◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51386 - NQR AIR BRAKE RHD ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#80548) — 151 parça

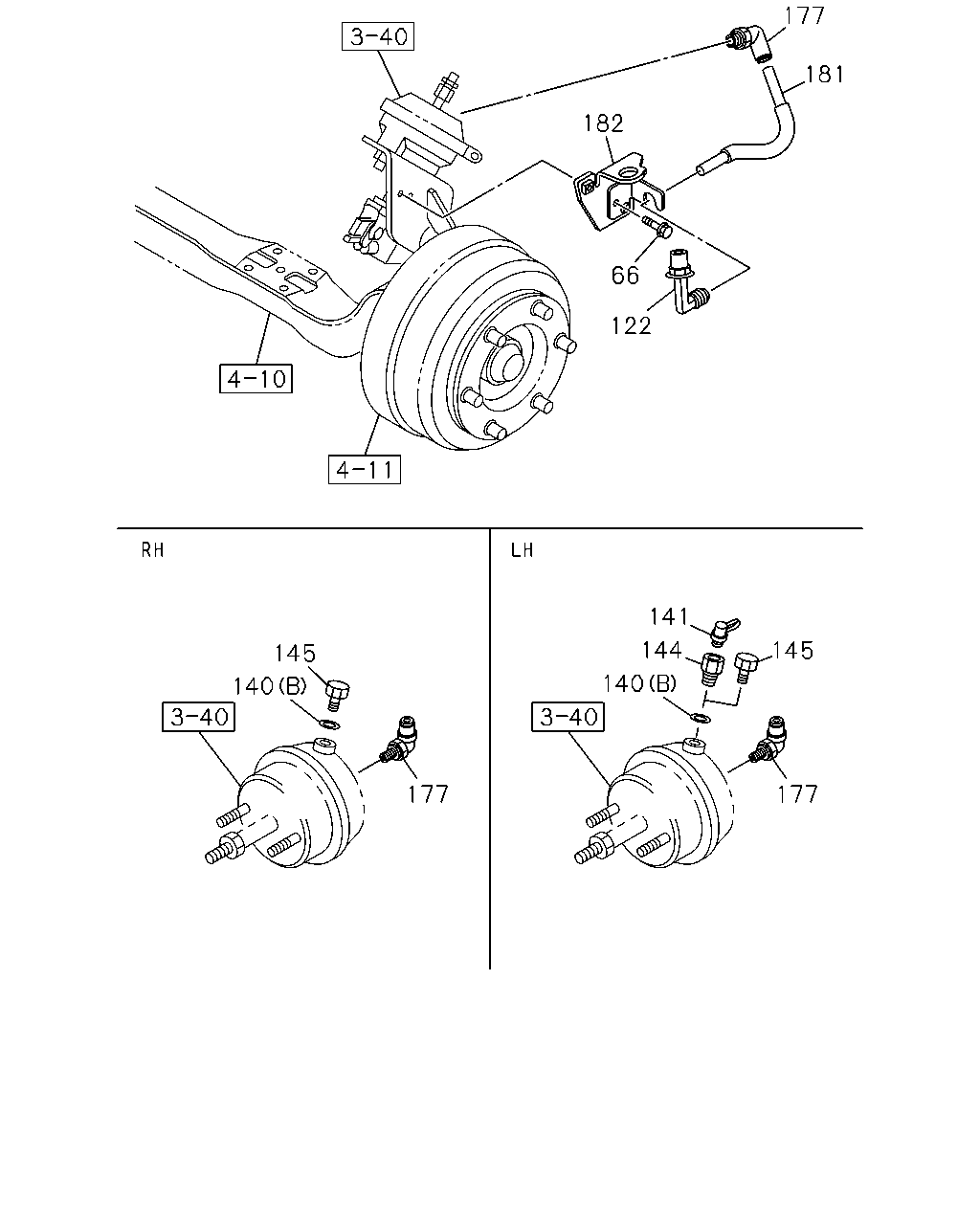

çizim 122318
177 181 182 66 122 141 145 144 140 177 177 140 145
BalonParca AdiParca NoAdetTipApplied Date
66 04.686 BOLT; HOSE BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111-
122 04.866 CONNECTOR; FLEX HOSE 8-98179-488-0 02 1 1111-
140 04.868 GASKET; CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE(TDV) FRONT WIDE TREAD<7GV> 01.252 (B) ID=16.2 OD=24 		9-09571-416-0 01 1 1111-
140 04.868 GASKET; CONNECTOR
(A) ID=11 OD=18 		9-09572-510-0 04 1 1111-
141 04.868 CONNECTOR; TEST
4 WHEEL ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE(TDV) FRONT WIDE TREAD<7GV> 04.866 R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1111-
144 04.866 ADAPTER
4 WHEEL ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE(TDV) FRONT WIDE TREAD<7GV> 		1-09661-821-0 01 1 1111-
145 04.868 PLUG
4 WHEEL ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE(TDV) FRONT WIDE TREAD<7GV> 		1-09661-522-0 01 1 1111-
145 04.868 PLUG
EXC. BRAKE REGULATION ECE(TDV) 		1-09661-522-0 02 1 1111-
177 04.866 CONNECTOR 1-09661-496-0 02 1 1111-
181 04.866 TUBE; CHAMBER,BRK 8-98182-142-0 02 1 1111-
182 04.866 BRACKET; CONNECTOR 8-98177-790-2 01 1 1111-1301
182 04.866 BRACKET; CONNECTOR 8-98238-363-0 01 1 1302-
182 04.866 BRACKET; CONNECTOR 8-98177-791-2 01 1 1111-1301
182 04.866 BRACKET; CONNECTOR 8-98238-364-0 01 1 1302-

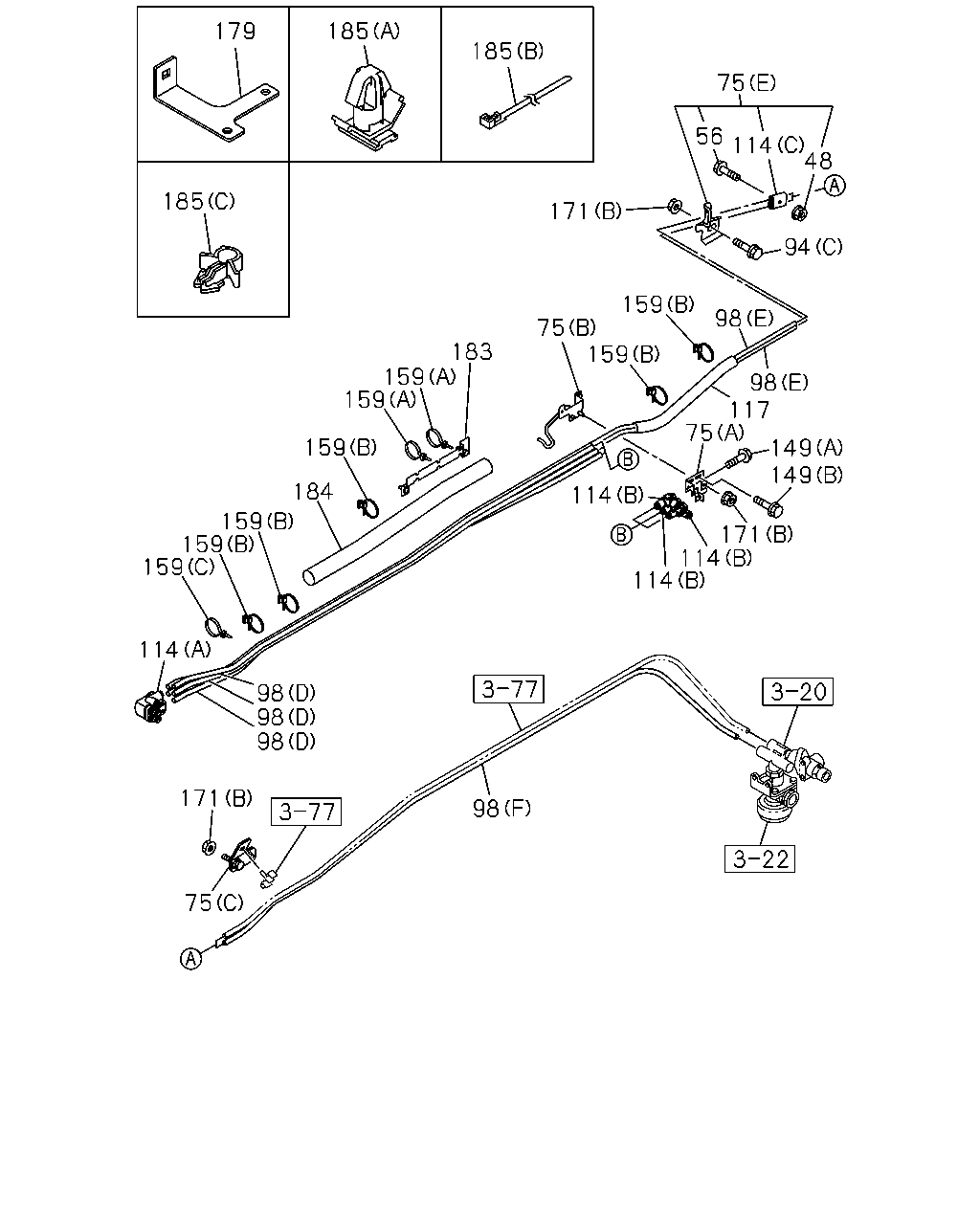

çizim 183103
179 185 185 75 56 114 48 185 171 94 159 98 75 159 183 159 159 98 117 75 159 149 149 184 114 159 159 159 171 114 114 114 98 98 98 171 98 75
BalonParca AdiParca NoAdetTipApplied Date
48 04.866 NUT; UNION BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1111-
56 04.866 BOLT; UNION BRKT
03.330 M6X35 FLANGE 		0-28050-635-0 01 1 1111-
75 04.866 BRACKET; UNION
(D) 		8-98178-160-2 01 1 1111-
75 04.866 BRACKET; UNION
(E) 		8-98196-435-0 01 1 1111-1407
75 04.866 BRACKET; UNION
(E) 		8-98268-192-0 01 1 1408-1501
75 04.866 BRACKET; UNION
(E) 		8-98284-449-0 01 1 1502-
75 04.866 BRACKET; UNION
(C) 		8-98196-436-0 01 1 1111-
75 04.866 BRACKET; UNION
(B) 		8-98197-668-1 01 1 1111-
75 04.866 BRACKET; UNION
(A) 		8-98197-669-0 01 1 1111-
94 04.866 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1111-
94 04.866 BOLT; BRKT
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1111-
94 04.866 BOLT; BRKT
00.029 (C) M10X30 FLANGE 		0-28651-030-0 01 1 1111-
98 04.867 TUBE; NYLON
(D) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1111-
98 04.867 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 1111-
98 04.867 TUBE; NYLON
(A) 		8-98186-672-1 01 1 1111-
98 04.867 TUBE; NYLON
(G) 		8-98196-434-0 01 1 1111-1502
98 04.867 TUBE; NYLON
(G) 		8-98288-834-0 01 1 1503-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98178-076-3 01 1 1111-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98178-078-3 01 1 1111-1502
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-198-0 01 1 1503-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98181-107-1 02 1 1111-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98181-108-1 02 1 1111-1502
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98277-160-0 02 1 1503-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98181-168-2 01 1 1111-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-169-3 01 1 1111-
98 04.867 TUBE; NYLON
WHEEL BASE 3300MM(33W) (F) 		8-98196-417-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 3300MM(33W) (F) 		8-98269-743-1 01 1 1408-
98 04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (F) 		8-98196-418-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (F) 		8-98269-744-1 01 1 1408-
98 04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (F) 		8-98196-419-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (F) 		8-98269-745-1 01 1 1408-
98 04.867 TUBE; NYLON
WHEEL BASE 4400MM(44W) (F) 		8-98196-420-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 4400MM(44W) (F) 		8-98269-746-1 01 1 1408-
114 04.866 UNION; NYLON TUBE
04.032 (C) 		8-98179-490-0 01 1 1111-1501
114 04.866 UNION; NYLON TUBE
04.032 (C) 		8-98284-448-0 01 1 1502-
114 04.866 UNION; NYLON TUBE
(B) 		8-98187-030-0 03 1 1111-
114 04.866 UNION; NYLON TUBE
(A) 		8-98201-091-0 01 1 1111-
117 04.867 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1111-
149 04.866 BOLT; UNION
02.343 (A) M8X12 FLANGE 		0-28050-812-0 03 1 1111-
149 04.866 BOLT; UNION
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1111-
159 04.866 CLIP; NYLON TUBE
02.559 (A) L=251 		8-97619-917-0 03 1 1111-
159 04.866 CLIP; NYLON TUBE
(C) L=250 		1-09707-126-0 01 1 1111-1111
159 04.866 CLIP; NYLON TUBE
04.439 (C) L=200 		8-98081-183-0 01 1 1111-
159 04.866 CLIP; NYLON TUBE
04.128 (B) L=213.5 		8-98000-506-1 05 1 1111-
159 04.866 CLIP; NYLON TUBE
(D) 		8-98179-225-0 01 1 1111-
171 04.866 NUT; BRACKET
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 1111-1509
171 04.866 NUT; BRACKET
01.062 (A) M8 FLANGE 		0-91180-108-0 05 1 1510-
171 04.866 NUT; BRACKET
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1111-1509
171 04.866 NUT; BRACKET
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1111-
179 04.866 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98186-509-1 01 1 1111-
183 04.866 BRACKET; NYLON TUBE 8-98179-681-3 01 1 1111-
184 04.866 PROTECTOR; HEAT,NYLON TUBE 8-98187-615-2 01 1 1111-
185 04.681 CLIP; AIR BRAKE CHAS HARNESS
02.559 (A) OD=9 H=6 		1-09709-178-0 01 1 1111-
185 04.681 CLIP; AIR BRAKE CHAS HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 1111-1203
185 04.681 CLIP; AIR BRAKE CHAS HARNESS
02.559 (C) ID=9 		8-97063-874-0 01 1 1204-
çizim 183104
96 96 159
BalonParca AdiParca NoAdetTipApplied Date
96 04.867 TUBE ASM; NYLON AIR VLV TO UNION 8-98169-682-0 01 1 1111-
159 04.866 CLIP; NYLON TUBE
02.559 (A) L=251 		8-97619-917-0 03 1 1111-
159 04.866 CLIP; NYLON TUBE
(C) L=250 		1-09707-126-0 01 1 1111-1111
159 04.866 CLIP; NYLON TUBE
04.439 (C) L=200 		8-98081-183-0 01 1 1111-
159 04.866 CLIP; NYLON TUBE
04.128 (B) L=213.5 		8-98000-506-1 05 1 1111-
159 04.866 CLIP; NYLON TUBE
(D) 		8-98179-225-0 01 1 1111-

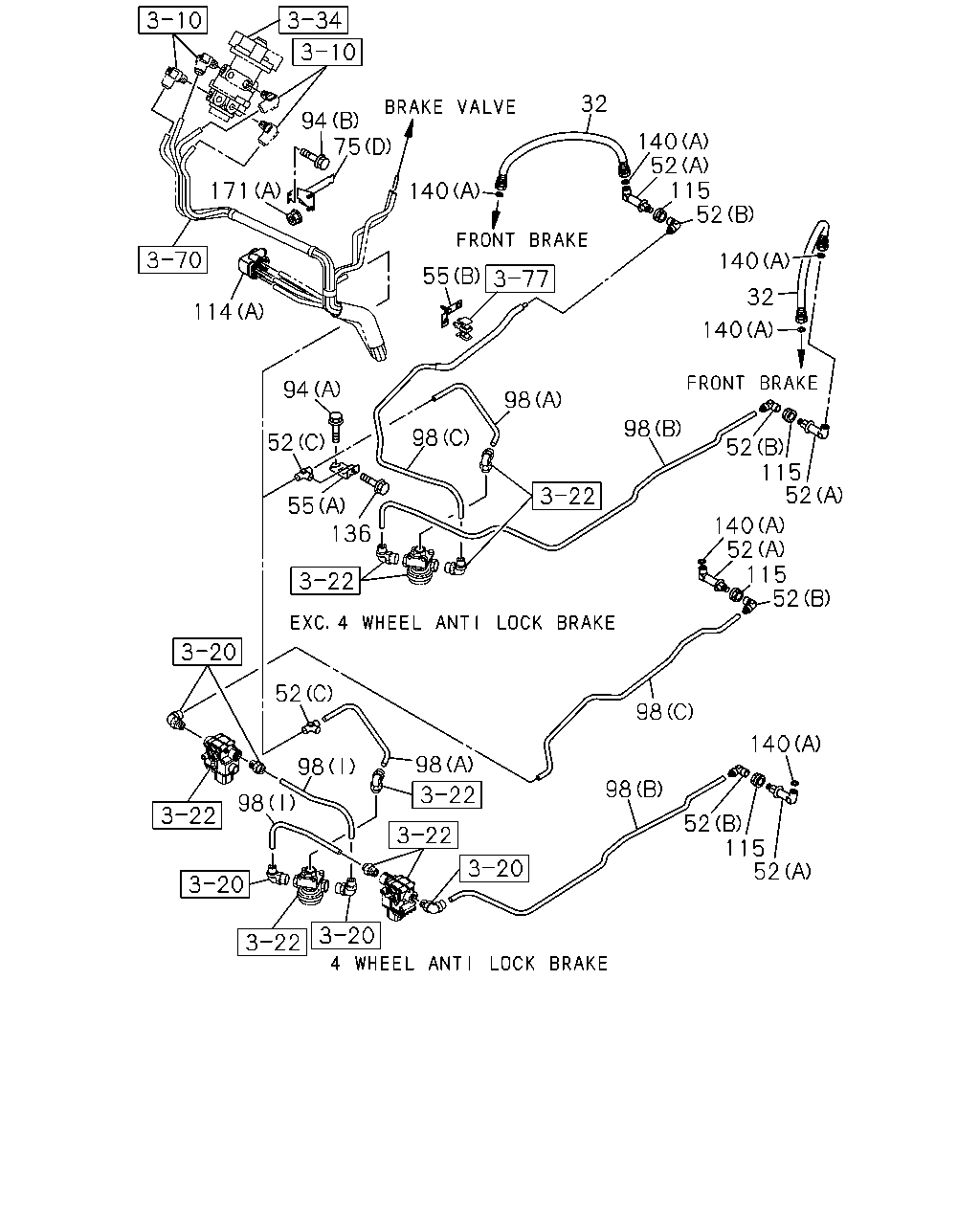

çizim 183107
32 94 75 140 52 115 52 171 140 140 55 32 114 140 94 98 98 98 52 52 115 52 55 136 140 52 115 52 52 98 140 98 98 98 98 52 115 52
BalonParca AdiParca NoAdetTipApplied Date
32 04.867 HOSE; FLEX,FRT
FRONT WIDE TREAD<7GV> 		8-98191-414-0 02 1 1111-
32 04.867 HOSE; FLEX,FRT
EXC. FRONT WIDE TREAD<7GV> 		8-98186-512-0 02 1 1111-
52 04.867 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1111-
52 04.867 CONNECTOR; NYLON TUBE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 1111-
52 04.867 CONNECTOR; NYLON TUBE
(C) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1111-
52 04.867 CONNECTOR; NYLON TUBE
(A) 		8-98202-492-0 02 1 1111-
55 04.866 BRACKET; TUBE UNION
(A) 		8-98186-684-1 01 1 1111-
55 04.866 BRACKET; TUBE UNION
(B) 		8-98203-066-0 01 1 1111-
75 04.866 BRACKET; UNION
(D) 		8-98178-160-2 01 1 1111-
75 04.866 BRACKET; UNION
(E) 		8-98196-435-0 01 1 1111-1407
75 04.866 BRACKET; UNION
(E) 		8-98268-192-0 01 1 1408-1501
75 04.866 BRACKET; UNION
(E) 		8-98284-449-0 01 1 1502-
75 04.866 BRACKET; UNION
(C) 		8-98196-436-0 01 1 1111-
75 04.866 BRACKET; UNION
(B) 		8-98197-668-1 01 1 1111-
75 04.866 BRACKET; UNION
(A) 		8-98197-669-0 01 1 1111-
94 04.866 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1111-
94 04.866 BOLT; BRKT
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1111-
94 04.866 BOLT; BRKT
00.029 (C) M10X30 FLANGE 		0-28651-030-0 01 1 1111-
98 04.867 TUBE; NYLON
(D) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1111-
98 04.867 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 1111-
98 04.867 TUBE; NYLON
(A) 		8-98186-672-1 01 1 1111-
98 04.867 TUBE; NYLON
(G) 		8-98196-434-0 01 1 1111-1502
98 04.867 TUBE; NYLON
(G) 		8-98288-834-0 01 1 1503-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98178-076-3 01 1 1111-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98178-078-3 01 1 1111-1502
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-198-0 01 1 1503-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98181-107-1 02 1 1111-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98181-108-1 02 1 1111-1502
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98277-160-0 02 1 1503-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98181-168-2 01 1 1111-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-169-3 01 1 1111-
98 04.867 TUBE; NYLON
WHEEL BASE 3300MM(33W) (F) 		8-98196-417-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 3300MM(33W) (F) 		8-98269-743-1 01 1 1408-
98 04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (F) 		8-98196-418-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (F) 		8-98269-744-1 01 1 1408-
98 04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (F) 		8-98196-419-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (F) 		8-98269-745-1 01 1 1408-
98 04.867 TUBE; NYLON
WHEEL BASE 4400MM(44W) (F) 		8-98196-420-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 4400MM(44W) (F) 		8-98269-746-1 01 1 1408-
114 04.866 UNION; NYLON TUBE
04.032 (C) 		8-98179-490-0 01 1 1111-1501
114 04.866 UNION; NYLON TUBE
04.032 (C) 		8-98284-448-0 01 1 1502-
114 04.866 UNION; NYLON TUBE
(B) 		8-98187-030-0 03 1 1111-
114 04.866 UNION; NYLON TUBE
(A) 		8-98201-091-0 01 1 1111-
115 04.866 NUT; TUBE UNION 8-98201-087-0 02 1 1111-
136 04.866 BOLT; CONNECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1111-
140 04.868 GASKET; CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE(TDV) FRONT WIDE TREAD<7GV> 01.252 (B) ID=16.2 OD=24 		9-09571-416-0 01 1 1111-
140 04.868 GASKET; CONNECTOR
(A) ID=11 OD=18 		9-09572-510-0 04 1 1111-
171 04.866 NUT; BRACKET
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 1111-1509
171 04.866 NUT; BRACKET
01.062 (A) M8 FLANGE 		0-91180-108-0 05 1 1510-
171 04.866 NUT; BRACKET
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1111-1509
171 04.866 NUT; BRACKET
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1111-

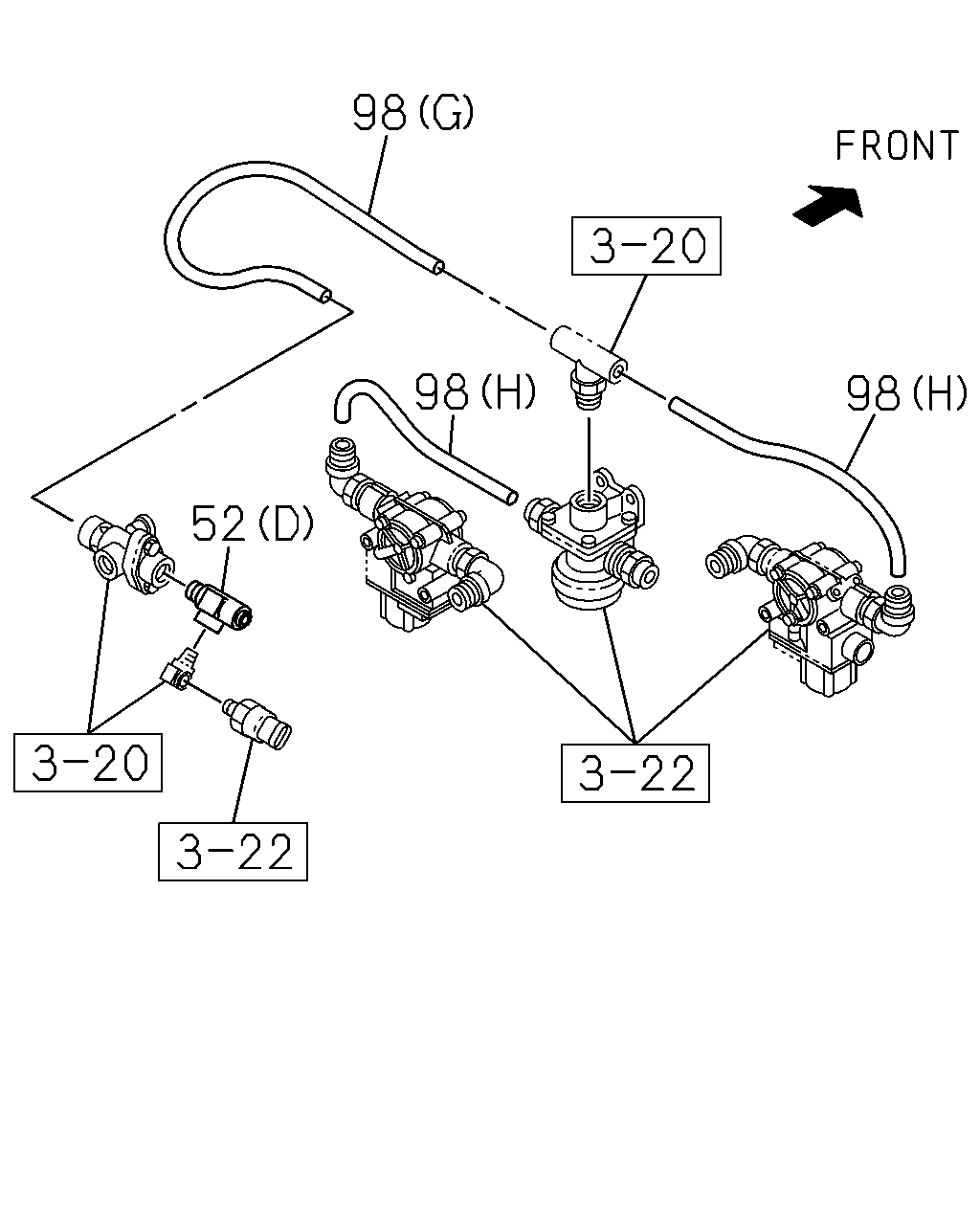

çizim 183113
98 98 98 52
BalonParca AdiParca NoAdetTipApplied Date
52 04.867 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1111-
52 04.867 CONNECTOR; NYLON TUBE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 1111-
52 04.867 CONNECTOR; NYLON TUBE
(C) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1111-
52 04.867 CONNECTOR; NYLON TUBE
(A) 		8-98202-492-0 02 1 1111-
98 04.867 TUBE; NYLON
(D) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1111-
98 04.867 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 1111-
98 04.867 TUBE; NYLON
(A) 		8-98186-672-1 01 1 1111-
98 04.867 TUBE; NYLON
(G) 		8-98196-434-0 01 1 1111-1502
98 04.867 TUBE; NYLON
(G) 		8-98288-834-0 01 1 1503-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98178-076-3 01 1 1111-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98178-078-3 01 1 1111-1502
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-198-0 01 1 1503-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98181-107-1 02 1 1111-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98181-108-1 02 1 1111-1502
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98277-160-0 02 1 1503-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98181-168-2 01 1 1111-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-169-3 01 1 1111-
98 04.867 TUBE; NYLON
WHEEL BASE 3300MM(33W) (F) 		8-98196-417-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 3300MM(33W) (F) 		8-98269-743-1 01 1 1408-
98 04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (F) 		8-98196-418-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (F) 		8-98269-744-1 01 1 1408-
98 04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (F) 		8-98196-419-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (F) 		8-98269-745-1 01 1 1408-
98 04.867 TUBE; NYLON
WHEEL BASE 4400MM(44W) (F) 		8-98196-420-0 01 1 1111-1407
98 04.867 TUBE; NYLON
WHEEL BASE 4400MM(44W) (F) 		8-98269-746-1 01 1 1408-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
