Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#80546) — 177 parça

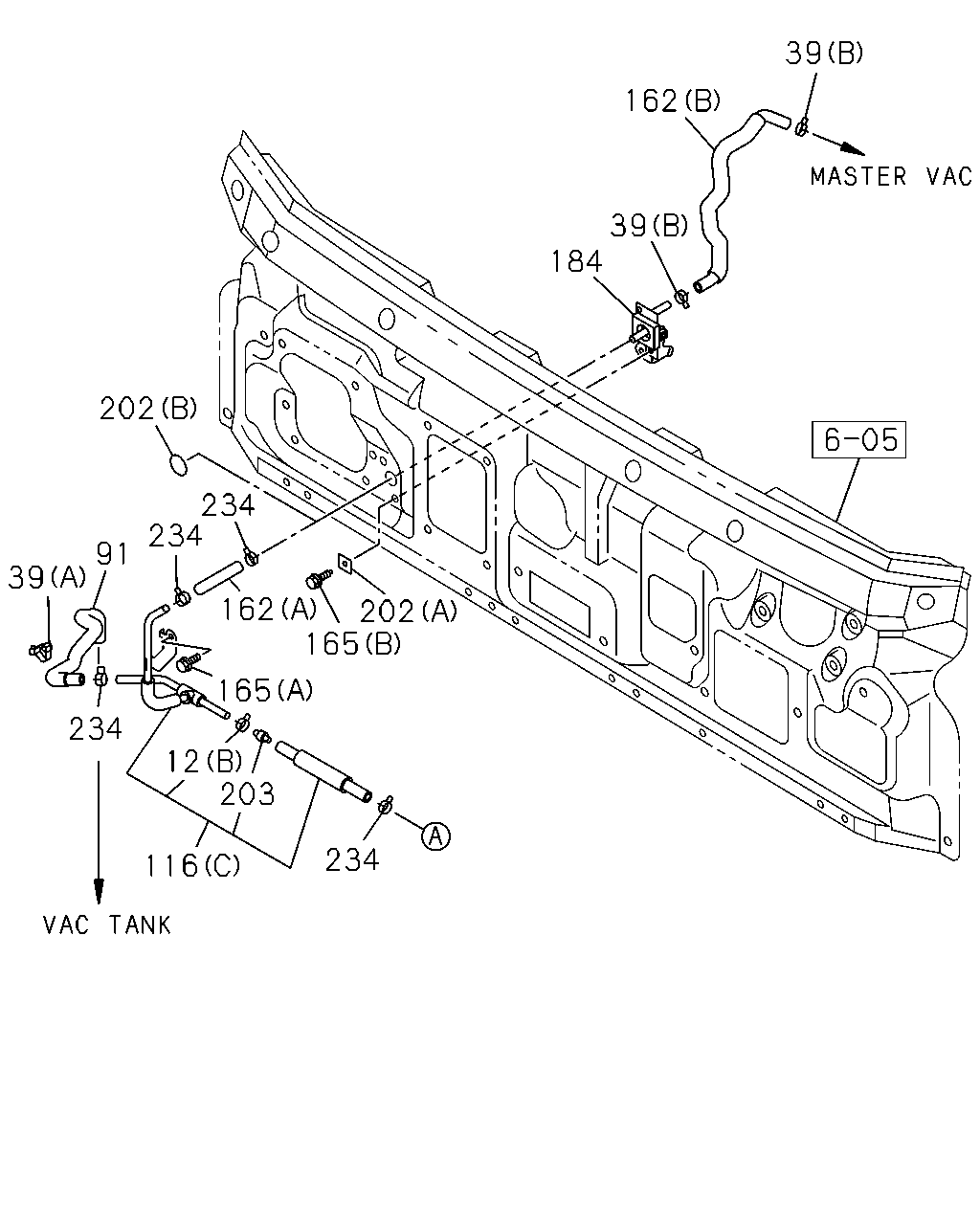

39 162 39 184 202 234 234 91 39 162 202 165 165 234 12 203 234 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (C) ID=16	8-98008-098-0	02	1	1111-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1111-
91	04.931 HOSE; VAC,RESERVE TANK POWER ASSIST CLUTCH(S2T)	8-98174-538-2	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98203-933-1	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1510-
116	04.931 HOSE; VAC,M/VAC (A)	8-98178-956-0	01	1	1111-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98169-697-0	01	1	1111-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-561-0	01	1	1111-
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1111-
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1111-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T)	8-98169-731-1	01	1	1111-
202	04.686 SEAL POWER ASSIST CLUTCH(S2T) 08.845 (A)	8-97856-616-0	02	1	1111-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98201-038-0	01	1	1111-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94104-021-0	01	1	1111-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1111-

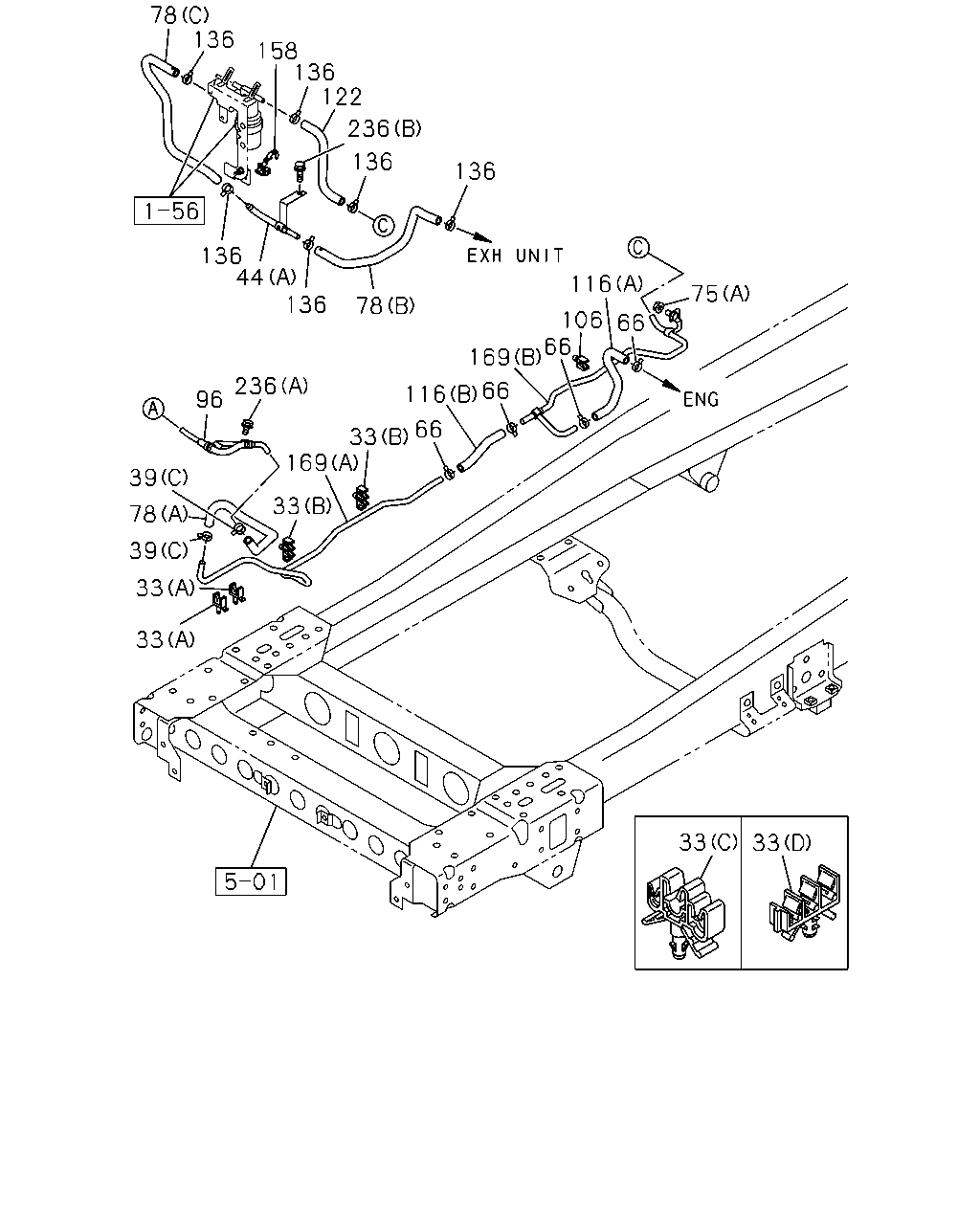

122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98181-403-3	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98181-404-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO4 SPECIFICATION(NT4) (B)	8-98197-253-0	01	1	1111-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1111-
136	04.681 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 ID=16	8-98008-098-0	02	1	1111-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1111-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1111-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1111-

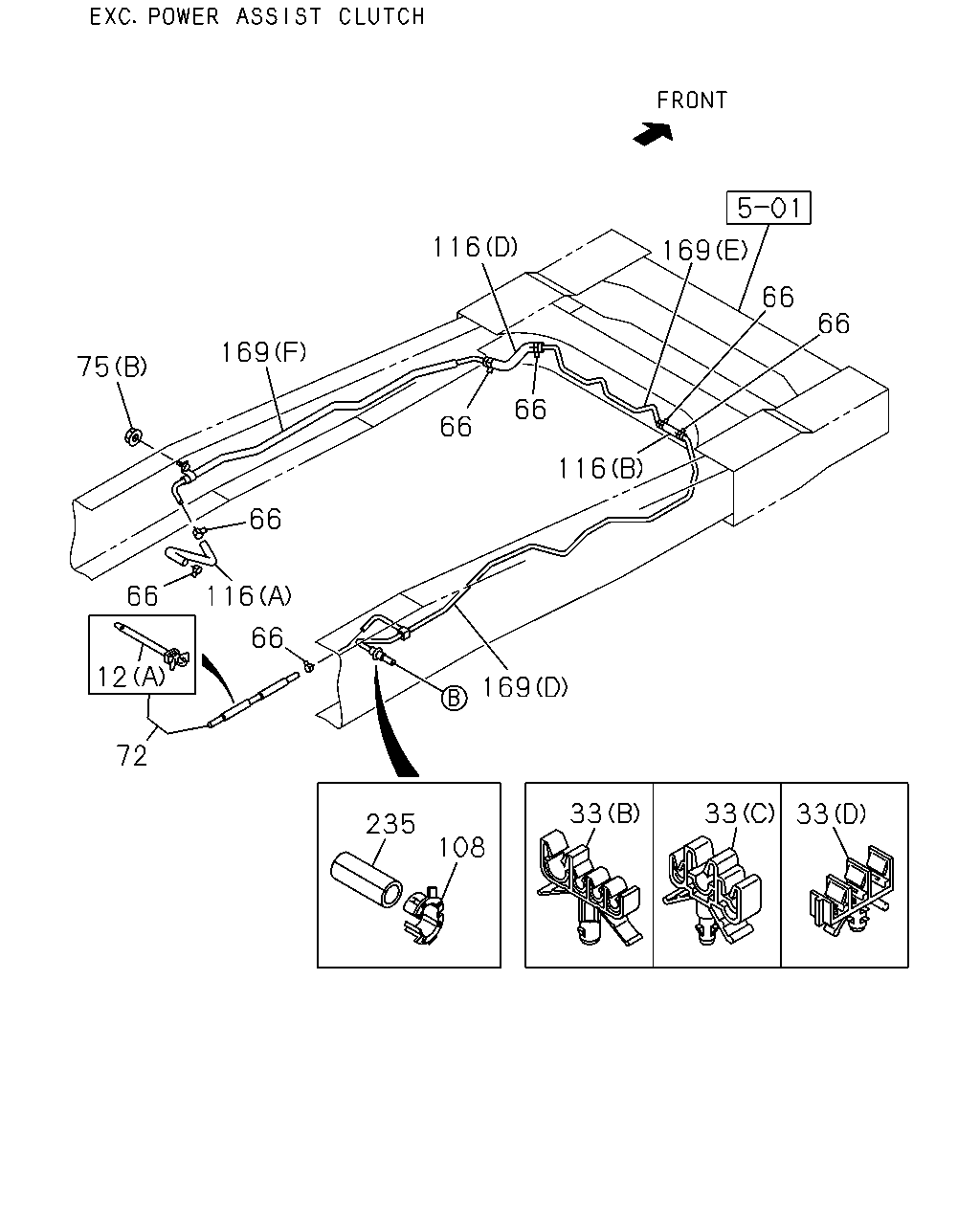

116 169 66 66 169 75 66 66 116 66 66 116 66 12 169 72 33 33 33 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL(6MZ) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	06	1	1510-
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98201-857-1	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-
108	04.931 GROMMET; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 ID=17	8-94128-319-2	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98203-933-1	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1510-
116	04.931 HOSE; VAC,M/VAC (A)	8-98178-956-0	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E)	8-98180-910-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F)	8-98180-913-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) (C)	8-98181-471-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) (C)	8-98181-471-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98181-501-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) (D)	8-98181-501-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-964-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) (A)	8-98181-470-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) (A)	8-98181-470-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-963-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL(6MZ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-963-3	01	1	1508-
235	04.931 RUBBER; SUPPORT,PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1111-

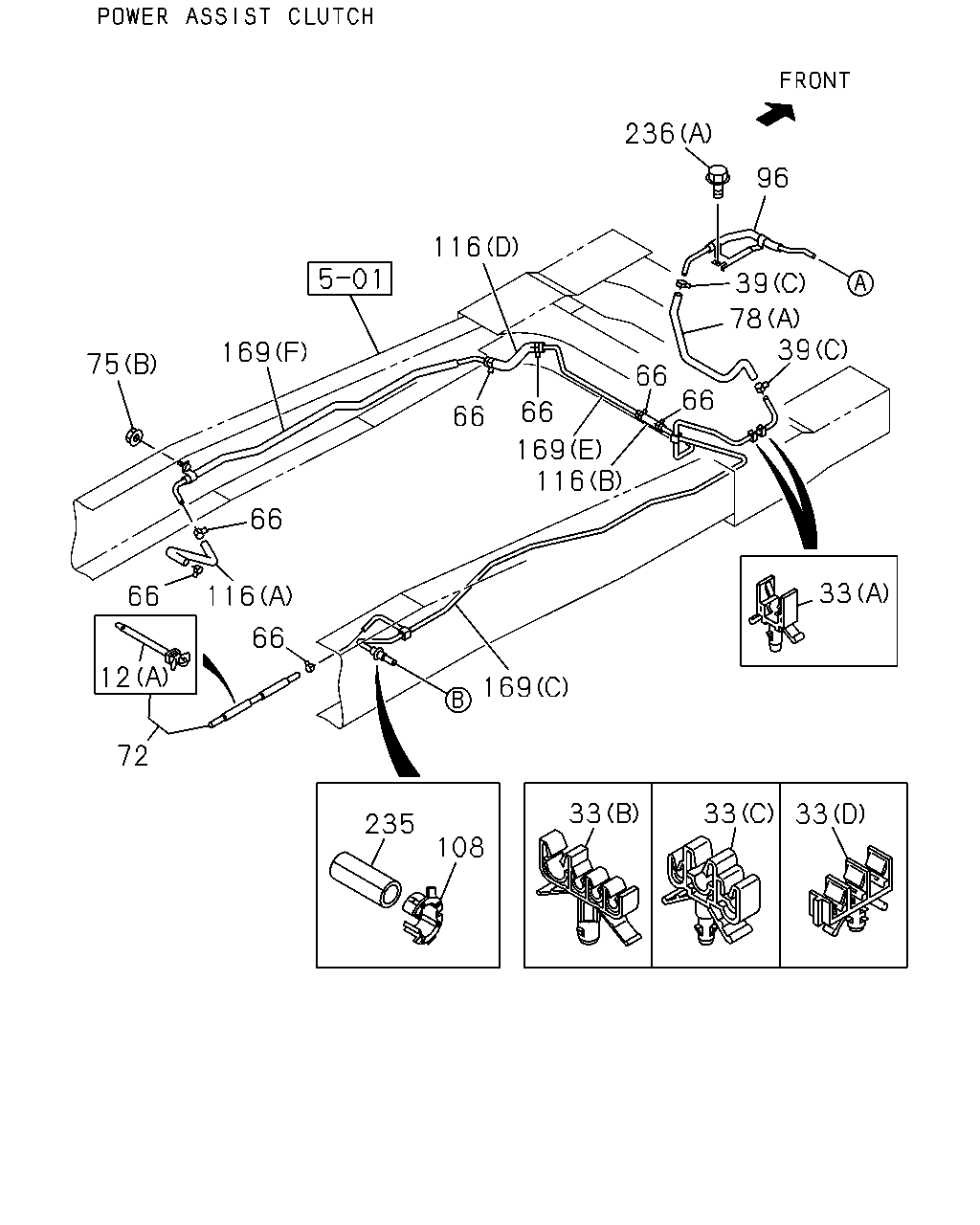

236 96 116 39 78 39 169 75 66 66 66 66 169 116 66 33 116 66 66 12 169 72 33 33 33 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (C) ID=16	8-98008-098-0	02	1	1111-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1111-
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL(6MZ) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	06	1	1510-
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98201-857-1	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98181-404-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO4 SPECIFICATION(NT4) (B)	8-98197-253-0	01	1	1111-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98181-381-2	01	1	1111-
108	04.931 GROMMET; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 ID=17	8-94128-319-2	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98203-933-1	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1510-
116	04.931 HOSE; VAC,M/VAC (A)	8-98178-956-0	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E)	8-98180-910-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F)	8-98180-913-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) (C)	8-98181-471-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) (C)	8-98181-471-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98181-501-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) (D)	8-98181-501-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-964-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) (A)	8-98181-470-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) (A)	8-98181-470-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-963-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL(6MZ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-963-3	01	1	1508-
235	04.931 RUBBER; SUPPORT,PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1111-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1111-

78 136 158 136 122 236 136 136 136 44 136 116 75 78 106 66 169 66 236 116 66 96 66 33 169 39 33 78 39 33 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (C) ID=16	8-98008-098-0	02	1	1111-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1111-
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98181-403-3	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL(6MZ) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	06	1	1510-
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98181-404-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO4 SPECIFICATION(NT4) (B)	8-98197-253-0	01	1	1111-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98181-381-2	01	1	1111-
106	04.930 CLIP; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ID=10 H=40	8-94462-219-0	02	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98203-933-1	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1510-
116	04.931 HOSE; VAC,M/VAC (A)	8-98178-956-0	01	1	1111-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1111-
136	04.681 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 ID=16	8-98008-098-0	02	1	1111-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1111-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E)	8-98180-910-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F)	8-98180-913-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) (C)	8-98181-471-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL(6MZ) (C)	8-98181-471-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98181-501-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) (D)	8-98181-501-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-964-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) (A)	8-98181-470-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) (A)	8-98181-470-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-963-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL(6MZ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-963-3	01	1	1508-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
