◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51386 - NQR AIR BRAKE RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#80528) — 65 parça

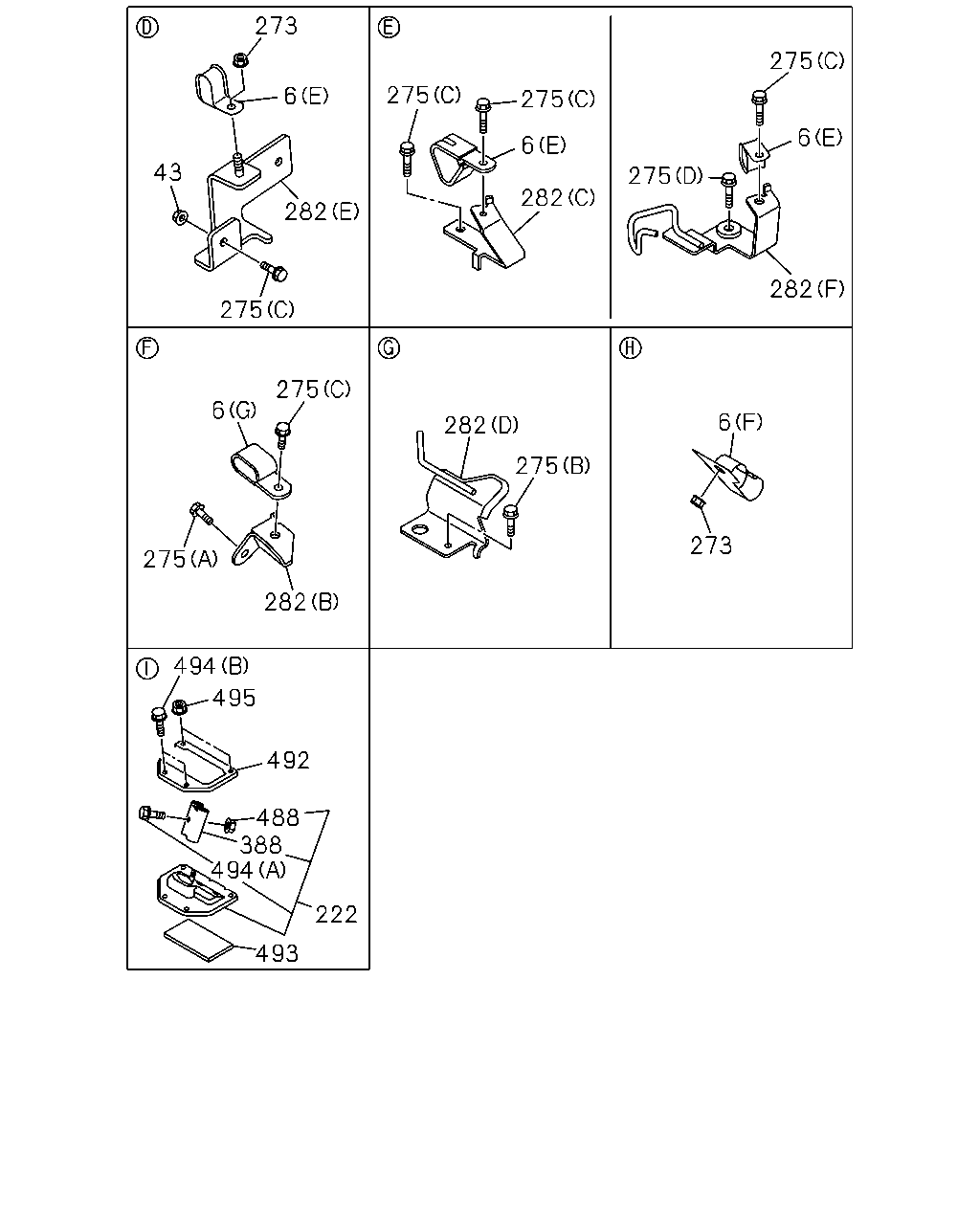

çizim 113981
273 275 275 6 275 6 6 43 275 282 282 282 275 275 6 6 282 275 273 275 282 494 495 492 488 388 494 222 493
BalonParca AdiParca NoAdetTipApplied Date A B
6 04.047 CLIP; CABLE
(G) ID=13X2 L=20 		0-95325-236-0 01 1 1111- ● ●
6 04.047 CLIP; CABLE
(E) ID=15 		1-09700-845-1 02 1 1111- ● ●
6 04.047 CLIP; CABLE
00.854 (A) ID=22.2 		1-09701-209-1 01 1 1111- ● ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 02 1 1111- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1111- ● ●
6 04.047 CLIP; CABLE
04.785 (F) 		8-98023-622-0 01 1 1111- ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1111- ● ●
43 04.040 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1111- ● ●
222 04.010 GROMMET; CABLE 8-98171-882-1 01 1 1111- ● ●
273 04.047 NUT; CONT CABLE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
275 04.047 BOLT; CONT CABLE CLIP
FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 1111- ● ●
275 04.047 BOLT; CONT CABLE CLIP
06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 1111- ● ●
275 04.047 BOLT; CONT CABLE CLIP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1111- ● ●
275 04.047 BOLT; CONT CABLE CLIP
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1111- ● ●
275 04.047 BOLT; CONT CABLE CLIP
16.069 (B) M8X35 FLANGE 		8-98046-876-0 01 1 1111- ● ●
275 04.047 BOLT; CONT CABLE CLIP
EXC. FRONT WIDE TREAD<7GV> 01.060 (D) M8X35 FLANGE 		0-28650-835-0 01 1 1111- ● ●
282 04.010 BRACKET; TRANS SIDE
FRONT WIDE TREAD<7GV> (C) 		8-98202-992-0 01 1 1111- ● ●
282 04.010 BRACKET; TRANS SIDE
(A) 		8-98189-177-1 01 1 1111- ●
282 04.010 BRACKET; TRANS SIDE
(A) 		8-98189-176-1 01 1 1111- ●
282 04.010 BRACKET; TRANS SIDE
04.785 (B) 		8-98034-115-0 01 1 1111- ● ●
282 04.010 BRACKET; TRANS SIDE
04.592 (D) 		8-98096-374-0 01 1 1111- ● ●
282 04.010 BRACKET; TRANS SIDE
04.785 (E) 		8-98099-516-0 01 1 1111-1508 ● ●
282 04.010 BRACKET; TRANS SIDE
04.785 (E) 		8-98216-763-1 01 1 1509- ● ●
282 04.010 BRACKET; TRANS SIDE
EXC. FRONT WIDE TREAD<7GV> (F) 		8-98197-200-1 01 1 1111- ● ●
388 04.032 UNION 8-98179-490-0 01 1 1111-1501 ● ●
388 04.032 UNION 8-98284-448-0 01 1 1502- ● ●
488 04.047 NUT; CABLE
03.330 M6 		0-91110-506-0 01 1 1111- ● ●
492 04.010 RETAINER; GROMMET 8-98182-152-0 01 1 1111- ● ●
493 04.010 SEAL; CABLE
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1111- ● ●
494 04.010 BOLT; GROMMET
01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1111- ● ●
494 04.010 BOLT; GROMMET
00.785 (B) M6X20 FLANGE 		0-28450-620-0 02 1 1111- ● ●
495 04.010 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1111- ● ●

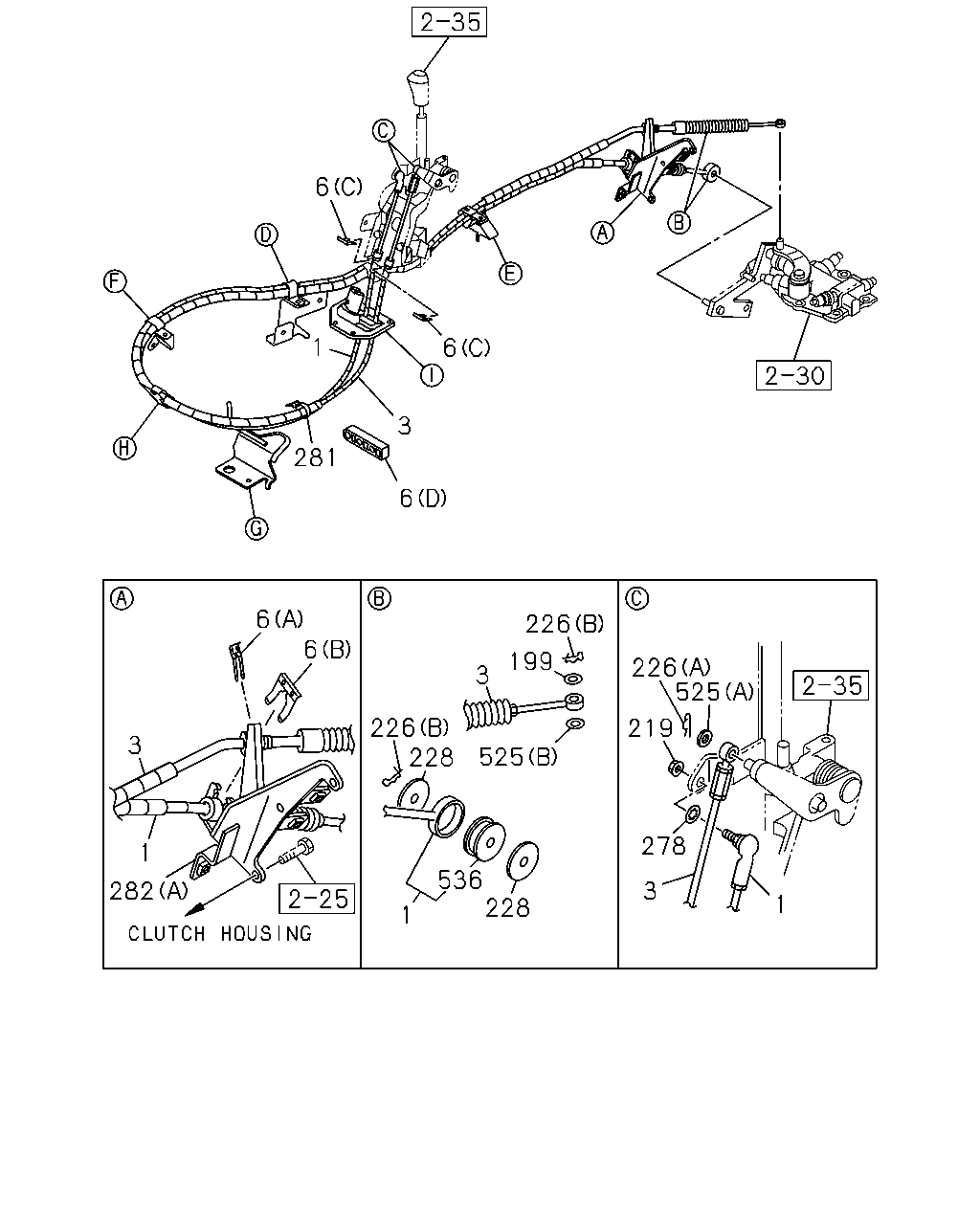

çizim 114070
6 1 6 3 281 6 6 6 226 199 226 525 3 226 228 219 3 525 278 1 536 228 3 282 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.854 CABLE; SHIFT,TRANS CONT
FRONT WIDE TREAD<7GV> 		8-98203-757-1 01 1 1111- ●
1 00.854 CABLE; SHIFT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> 		8-98203-758-1 01 1 1111- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRONT WIDE TREAD<7GV> 		8-98202-901-1 01 1 1111- ●
1 00.854 CABLE; SHIFT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> 		8-98202-900-1 01 1 1111- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRONT WIDE TREAD<7GV> 		8-98203-759-1 01 1 1111- ●
3 00.852 CABLE; SELECT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> 		8-98203-760-2 01 1 1111- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRONT WIDE TREAD<7GV> 		8-98202-906-0 01 1 1111- ●
3 00.852 CABLE; SELECT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> 		8-98202-905-1 01 1 1111- ●
6 04.047 CLIP; CABLE
(G) ID=13X2 L=20 		0-95325-236-0 01 1 1111- ● ●
6 04.047 CLIP; CABLE
(E) ID=15 		1-09700-845-1 02 1 1111- ● ●
6 04.047 CLIP; CABLE
00.854 (A) ID=22.2 		1-09701-209-1 01 1 1111- ● ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 02 1 1111- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1111- ● ●
6 04.047 CLIP; CABLE
04.785 (F) 		8-98023-622-0 01 1 1111- ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1111- ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1111- ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 1111- ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1111- ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1111- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1111- ● ●
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1111- ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 1111- ● ●
282 04.010 BRACKET; TRANS SIDE
FRONT WIDE TREAD<7GV> (C) 		8-98202-992-0 01 1 1111- ● ●
282 04.010 BRACKET; TRANS SIDE
(A) 		8-98189-177-1 01 1 1111- ●
282 04.010 BRACKET; TRANS SIDE
(A) 		8-98189-176-1 01 1 1111- ●
282 04.010 BRACKET; TRANS SIDE
04.785 (B) 		8-98034-115-0 01 1 1111- ● ●
282 04.010 BRACKET; TRANS SIDE
04.592 (D) 		8-98096-374-0 01 1 1111- ● ●
282 04.010 BRACKET; TRANS SIDE
04.785 (E) 		8-98099-516-0 01 1 1111-1508 ● ●
282 04.010 BRACKET; TRANS SIDE
04.785 (E) 		8-98216-763-1 01 1 1509- ● ●
282 04.010 BRACKET; TRANS SIDE
EXC. FRONT WIDE TREAD<7GV> (F) 		8-98197-200-1 01 1 1111- ● ●
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1111- ● ●
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1111- ● ●
536 00.854 DAMPER; CABLE 8-98097-681-0 01 1 1111- ● ●
