◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#8052) — 903 parça

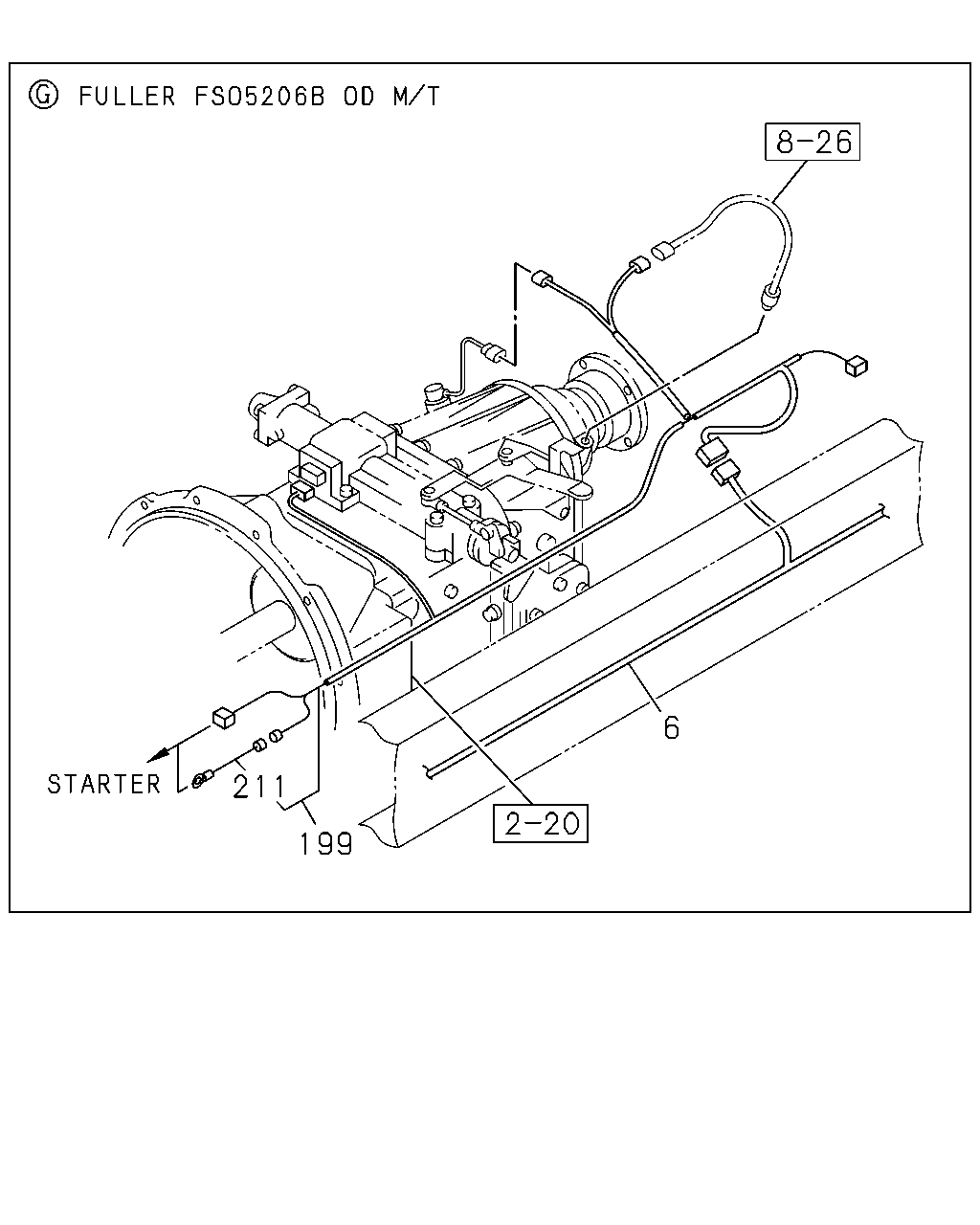

çizim 8588
6 211 199
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-288-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-287-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-290-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-289-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) FOG LAMP<T96> 		1-82678-286-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-292-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-291-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-296-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-295-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-300-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-299-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> AIR HORN<WB8> 		1-82678-302-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-301-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-905-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-905-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> 		1-82677-906-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-906-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-907-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-907-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> 		1-82677-909-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-909-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> 		1-82677-911-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-911-1 01 1 0601- ●
6 HARNESS; FRAME
AIR HORN<WB8> 		1-82677-904-1 01 1 0406-0512 ●
6 HARNESS; FRAME
AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-904-1 01 1 0601- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) 		1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) 		1-82677-155-3 01 1 0303-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) EXC. FOG LAMP<T96> 		1-82677-155-3 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) A/T<X9D> 		1-82673-169-1 01 1 0005-0106 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82673-169-2 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82676-191-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-191-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-191-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82673-170-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-190-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-190-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-190-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) A/T<X9D> 		1-82674-929-0 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-192-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-192-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-192-2 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82673-173-1 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-196-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-196-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-196-2 01 1 0601- ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82673-172-2 01 1 0005-0210 ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82676-194-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. AIR HORN<WB8> 		1-82676-194-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-194-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-165-1 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-189-1 01 1 0211-0405 ●
6 HARNESS; FRAME
EXC. AIR HORN<WB8> 		1-82676-189-2 01 1 0406-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-189-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-171-2 01 1 0012-0210 ●
199 HARNESS; STARTER
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) 		1-82641-397-0 01 1 0610- ●
199 HARNESS; STARTER
6HE1 TC ENG(57L) 		1-82640-668-3 01 1 0005-0210 ●
199 HARNESS; STARTER
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82641-323-1 01 1 0303-0309 ●
199 HARNESS; STARTER
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82641-342-3 01 1 0310- ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) A/T<X9D> 		1-82640-815-0 01 1 0005-0210 ●
199 HARNESS; STARTER
A/T<X9D> 		1-82640-815-0 01 1 0005-0210 ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) A/T<X9D> 		1-82641-304-0 01 1 0211- ● ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0005-0011 ●
199 HARNESS; STARTER
BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0005-0011 ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0012-0210 ●
199 HARNESS; STARTER
BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0012-0210 ● ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0005-0011 ●
199 HARNESS; STARTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0005-0011 ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0012-0210 ●
199 HARNESS; STARTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0012-0210 ● ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82641-303-1 01 1 0211- ● ● ●
199 HARNESS; STARTER
FULLER RT7608LL M/T(X8P) 		1-82640-755-2 01 1 0005-0202 ●
199 HARNESS; STARTER
FULLER RT7608LL M/T(X8P) 		1-82641-270-0 01 1 0203-0210 ●
199 HARNESS; STARTER
FULLER RT7608LL M/T(X8P) 		1-82641-306-0 01 1 0211- ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0005-0011 ● ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0012- ● ● ● ●

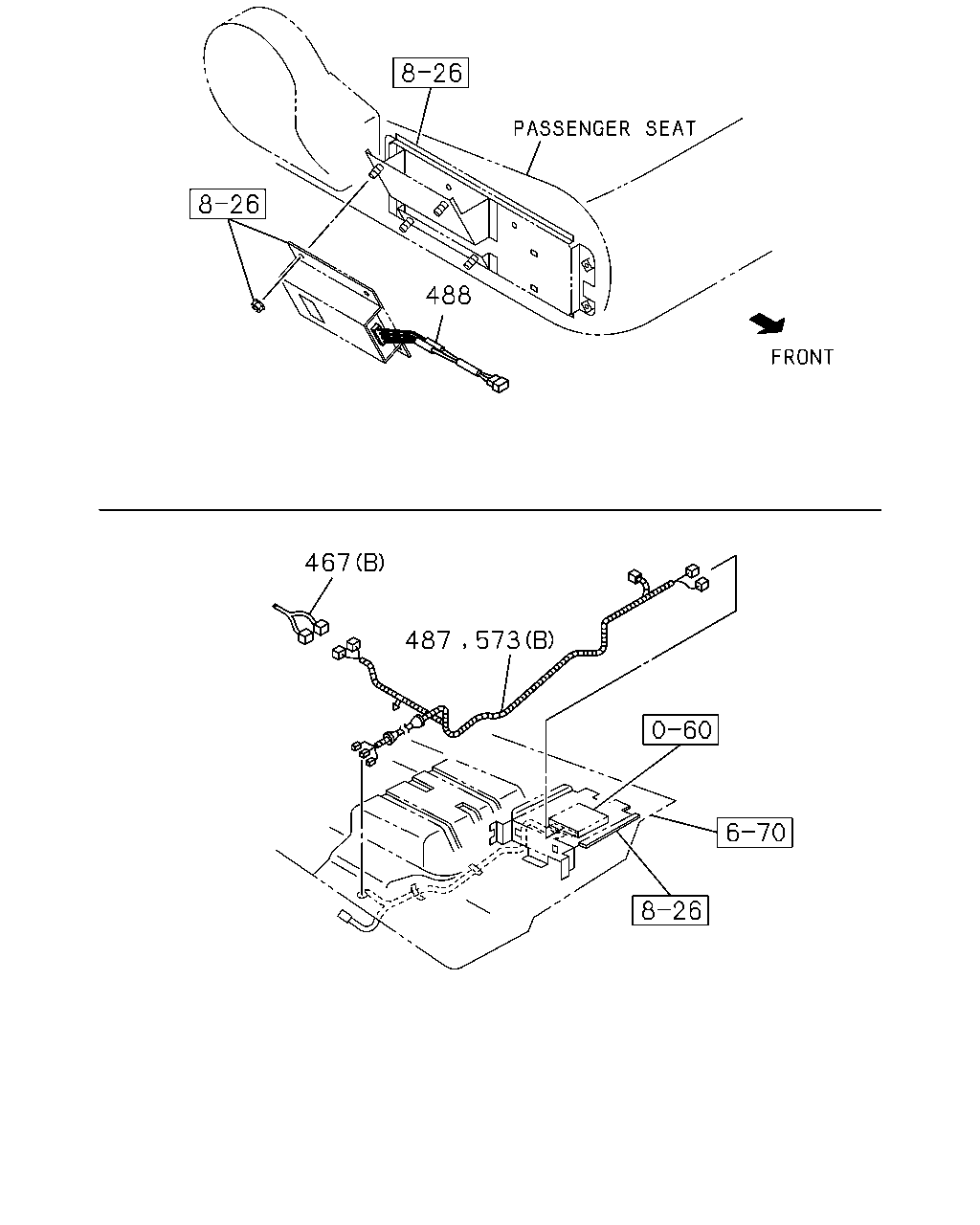

çizim 10112
488 467 487 573
BalonParca AdiParca NoAdetTipApplied Date A B C D
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-877-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-876-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> FULLER M/T<X9B> (B) INST LOWER 		1-82662-870-1 01 1 0601- ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-387-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-387-2 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) POWER WINDOW<A30> CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-259-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
(B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-383-1 01 1 0303-0304 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-890-0 01 1 0305-0512 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82661-890-2 01 1 0601- ●
467 HARNESS; FACIA
A/T<X9D> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-340-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) A/T<X9D> (B) INST LOWER 		1-82629-341-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> (B) INST LOWER 		1-82661-394-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-394-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-394-3 01 1 0601- ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-0 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-2 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-3 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82661-377-0 01 1 0211- ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-3 01 1 0012-0210 ● ● ● ●
487 HARNESS; GOV
6HK1 TCS ENG(80L) 		1-82661-387-0 01 1 0303-0304 ●
487 HARNESS; GOV
6HK1 TCS ENG(80L) 		1-82661-891-1 01 1 0305- ●
488 HARNESS; EXT,CONVERTER
W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009-0011 ● ● ●
488 HARNESS; EXT,CONVERTER
W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0012-0603 ● ● ● ●
488 HARNESS; EXT,CONVERTER 1-82662-883-0 01 1 0604- ● ● ● ●
573 HARNESS; CONTROL UNIT
6HE1 TC ENG(57L) (A) 		1-82628-155-2 01 1 0005-0210 ●
573 HARNESS; CONTROL UNIT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) 		1-82661-500-3 01 1 0211- ● ● ●
573 HARNESS; CONTROL UNIT
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (B) 		1-82661-500-3 01 1 0211- ●
573 HARNESS; CONTROL UNIT
A/T<X9D> (A) 		1-82629-338-1 01 1 0005-0210 ● ●
573 HARNESS; CONTROL UNIT
6SD1 TCN ENG(31L) A/T<X9D> (B) 		1-82661-392-3 01 1 0211- ● ●

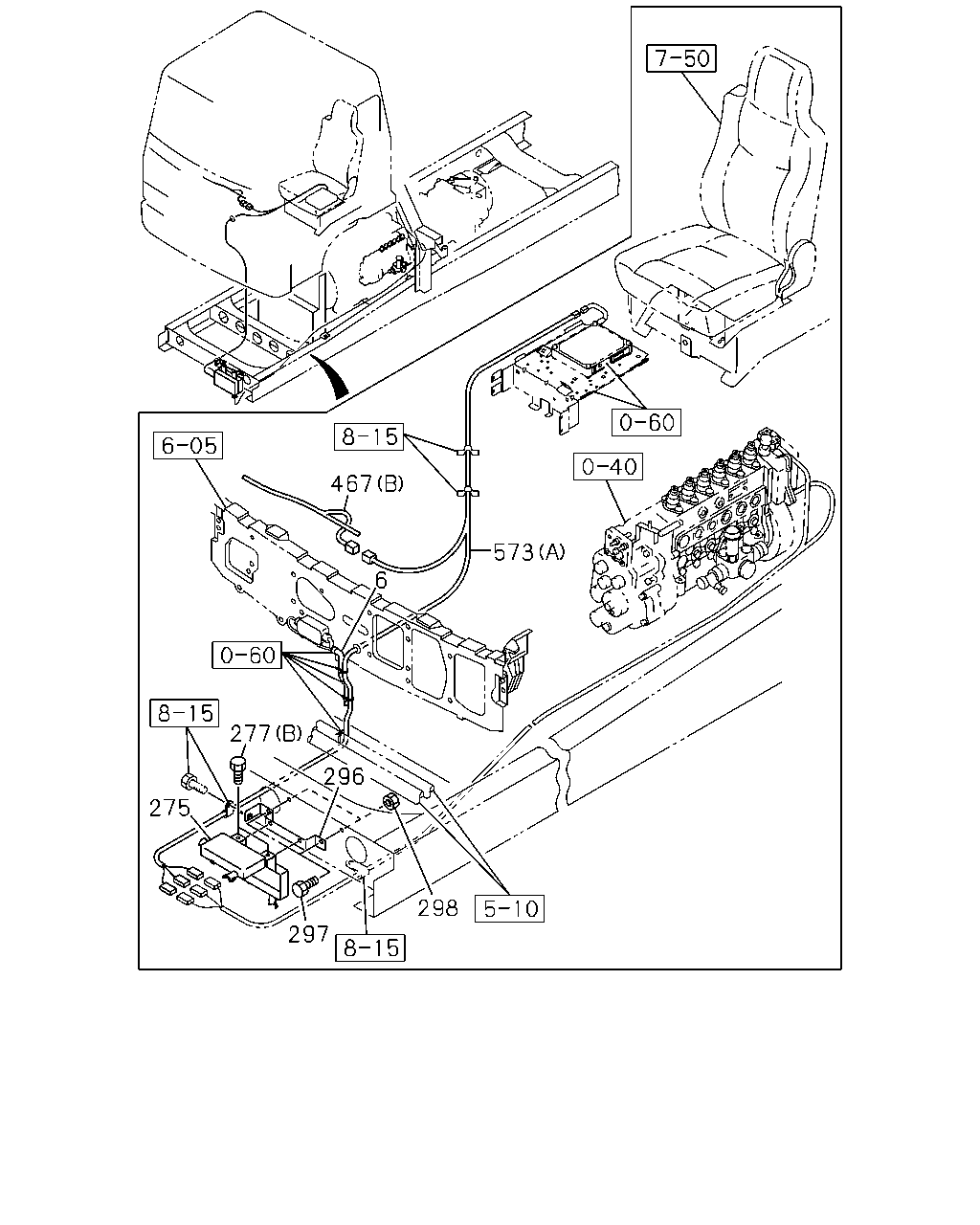

çizim 43255
467 573 6 277 296 275 298 297
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-288-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-287-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-290-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-289-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) FOG LAMP<T96> 		1-82678-286-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-292-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-291-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-296-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-295-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-300-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-299-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> AIR HORN<WB8> 		1-82678-302-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-301-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-905-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-905-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> 		1-82677-906-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-906-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-907-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-907-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> 		1-82677-909-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-909-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> 		1-82677-911-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-911-1 01 1 0601- ●
6 HARNESS; FRAME
AIR HORN<WB8> 		1-82677-904-1 01 1 0406-0512 ●
6 HARNESS; FRAME
AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-904-1 01 1 0601- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) 		1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) 		1-82677-155-3 01 1 0303-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) EXC. FOG LAMP<T96> 		1-82677-155-3 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) A/T<X9D> 		1-82673-169-1 01 1 0005-0106 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82673-169-2 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82676-191-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-191-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-191-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82673-170-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-190-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-190-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-190-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) A/T<X9D> 		1-82674-929-0 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-192-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-192-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-192-2 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82673-173-1 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-196-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-196-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-196-2 01 1 0601- ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82673-172-2 01 1 0005-0210 ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82676-194-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. AIR HORN<WB8> 		1-82676-194-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-194-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-165-1 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-189-1 01 1 0211-0405 ●
6 HARNESS; FRAME
EXC. AIR HORN<WB8> 		1-82676-189-2 01 1 0406-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-189-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-171-2 01 1 0012-0210 ●

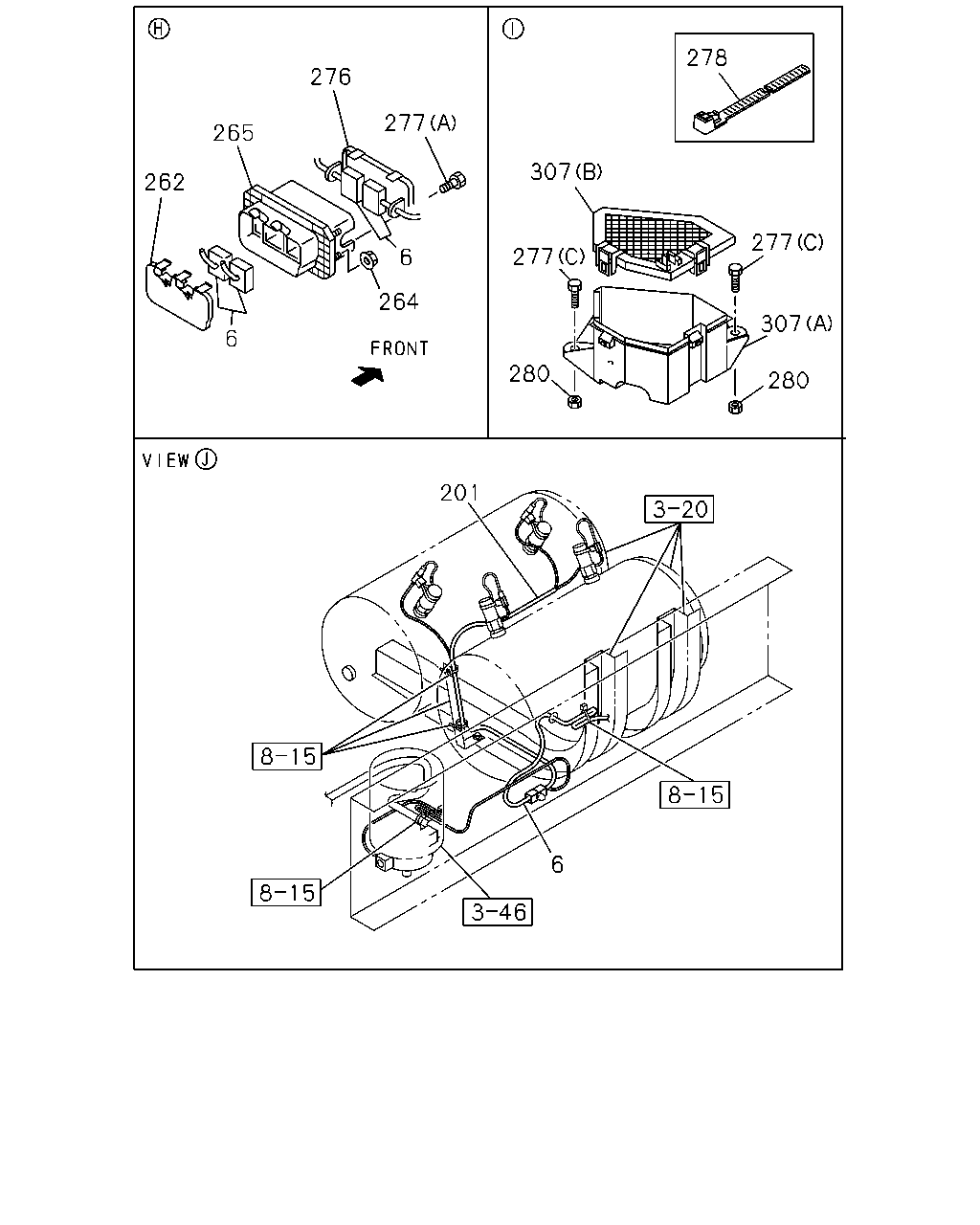

275 BOX ASM; FRAME HARNESS
6HE1 TC ENG(57L) 		1-82699-378-0 01 1 0005-0210 ●
277 BOLT; BOX ASM FIX
6HE1 TC ENG(57L) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
277 BOLT; BOX ASM FIX
(C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0211- ● ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0011 ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0012-0512 ● ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ● ●
296 BRACKET; HARNESS BOX
6HE1 TC ENG(57L) 		1-82699-923-0 01 1 0005-0210 ●
297 BOLT; BOX BRKT
6HE1 TC ENG(57L) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
298 NUT; BOX BRKT
6HE1 TC ENG(57L) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●

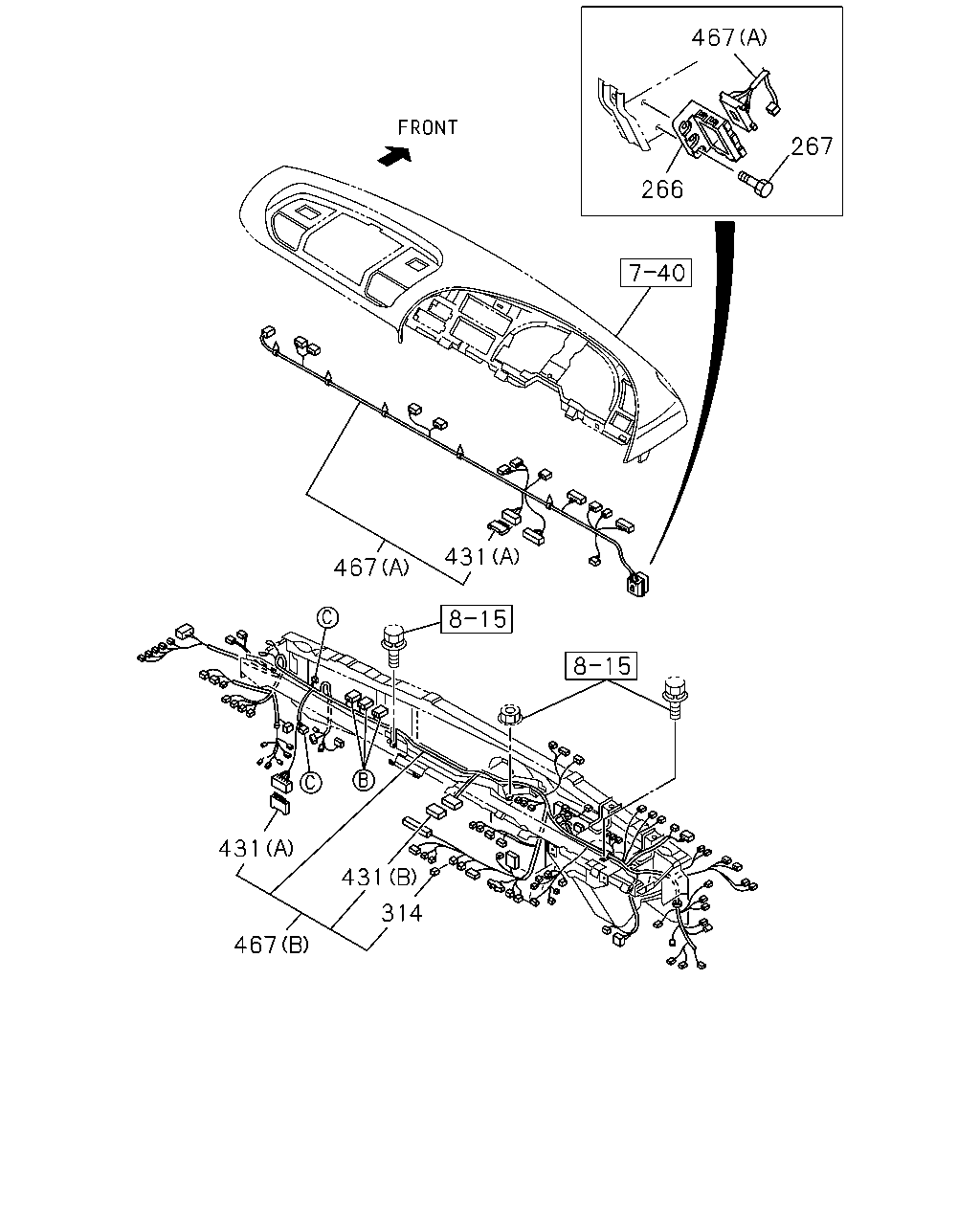

467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-877-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-876-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> FULLER M/T<X9B> (B) INST LOWER 		1-82662-870-1 01 1 0601- ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-387-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-387-2 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) POWER WINDOW<A30> CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-259-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
(B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-383-1 01 1 0303-0304 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-890-0 01 1 0305-0512 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82661-890-2 01 1 0601- ●
467 HARNESS; FACIA
A/T<X9D> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-340-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) A/T<X9D> (B) INST LOWER 		1-82629-341-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> (B) INST LOWER 		1-82661-394-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-394-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-394-3 01 1 0601- ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-0 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-2 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-3 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82661-377-0 01 1 0211- ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-3 01 1 0012-0210 ● ● ● ●
573 HARNESS; CONTROL UNIT
6HE1 TC ENG(57L) (A) 		1-82628-155-2 01 1 0005-0210 ●
573 HARNESS; CONTROL UNIT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) 		1-82661-500-3 01 1 0211- ● ● ●
573 HARNESS; CONTROL UNIT
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (B) 		1-82661-500-3 01 1 0211- ●
573 HARNESS; CONTROL UNIT
A/T<X9D> (A) 		1-82629-338-1 01 1 0005-0210 ● ●
573 HARNESS; CONTROL UNIT
6SD1 TCN ENG(31L) A/T<X9D> (B) 		1-82661-392-3 01 1 0211- ● ●

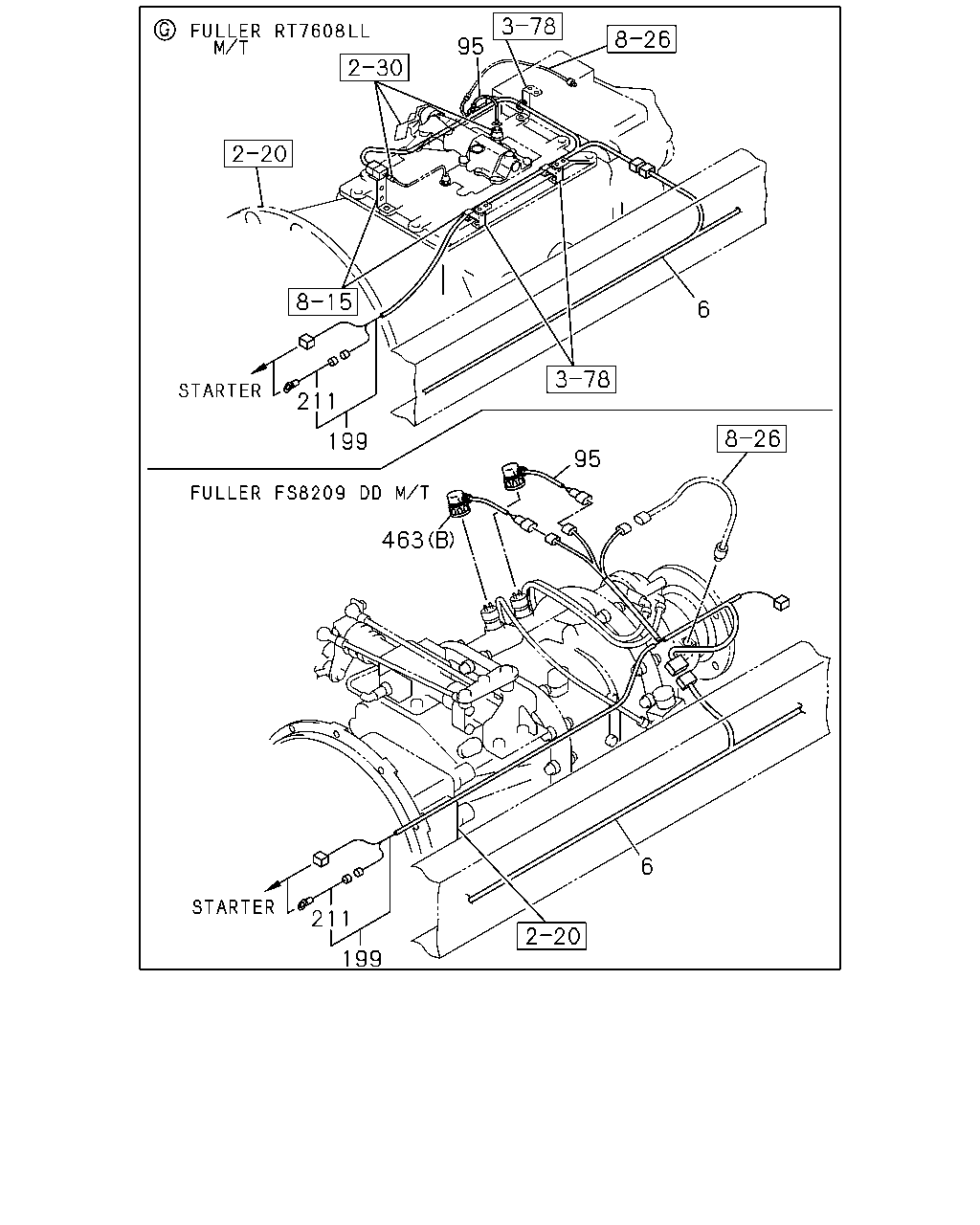

çizim 43380
95 6 211 199 95 463 6 211 199
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-288-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-287-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-290-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-289-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) FOG LAMP<T96> 		1-82678-286-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-292-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-291-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-296-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-295-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-300-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-299-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> AIR HORN<WB8> 		1-82678-302-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-301-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-905-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-905-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> 		1-82677-906-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-906-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-907-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-907-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> 		1-82677-909-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-909-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> 		1-82677-911-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-911-1 01 1 0601- ●
6 HARNESS; FRAME
AIR HORN<WB8> 		1-82677-904-1 01 1 0406-0512 ●
6 HARNESS; FRAME
AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-904-1 01 1 0601- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) 		1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) 		1-82677-155-3 01 1 0303-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) EXC. FOG LAMP<T96> 		1-82677-155-3 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) A/T<X9D> 		1-82673-169-1 01 1 0005-0106 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82673-169-2 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82676-191-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-191-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-191-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82673-170-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-190-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-190-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-190-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) A/T<X9D> 		1-82674-929-0 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-192-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-192-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-192-2 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82673-173-1 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-196-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-196-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-196-2 01 1 0601- ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82673-172-2 01 1 0005-0210 ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82676-194-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. AIR HORN<WB8> 		1-82676-194-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-194-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-165-1 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-189-1 01 1 0211-0405 ●
6 HARNESS; FRAME
EXC. AIR HORN<WB8> 		1-82676-189-2 01 1 0406-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-189-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-171-2 01 1 0012-0210 ●
95 HARNESS; NEUTRAL SW
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82639-627-0 01 1 0005-0011 ●
95 HARNESS; NEUTRAL SW 1-82639-627-0 01 1 0005-0011 ●
95 HARNESS; NEUTRAL SW
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82639-627-0 01 1 0012-0210 ●
95 HARNESS; NEUTRAL SW 1-82639-627-0 01 1 0012-0210 ● ●
95 HARNESS; NEUTRAL SW
FULLER RT7608LL M/T(X8P) 		1-82639-626-0 01 1 0005- ●
199 HARNESS; STARTER
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) 		1-82641-397-0 01 1 0610- ●
199 HARNESS; STARTER
6HE1 TC ENG(57L) 		1-82640-668-3 01 1 0005-0210 ●
199 HARNESS; STARTER
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82641-323-1 01 1 0303-0309 ●
199 HARNESS; STARTER
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82641-342-3 01 1 0310- ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) A/T<X9D> 		1-82640-815-0 01 1 0005-0210 ●
199 HARNESS; STARTER
A/T<X9D> 		1-82640-815-0 01 1 0005-0210 ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) A/T<X9D> 		1-82641-304-0 01 1 0211- ● ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0005-0011 ●
199 HARNESS; STARTER
BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0005-0011 ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0012-0210 ●
199 HARNESS; STARTER
BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0012-0210 ● ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0005-0011 ●
199 HARNESS; STARTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0005-0011 ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0012-0210 ●
199 HARNESS; STARTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0012-0210 ● ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82641-303-1 01 1 0211- ● ● ●
199 HARNESS; STARTER
FULLER RT7608LL M/T(X8P) 		1-82640-755-2 01 1 0005-0202 ●
199 HARNESS; STARTER
FULLER RT7608LL M/T(X8P) 		1-82641-270-0 01 1 0203-0210 ●
199 HARNESS; STARTER
FULLER RT7608LL M/T(X8P) 		1-82641-306-0 01 1 0211- ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0005-0011 ● ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0012- ● ● ● ●
463 HARNESS; SW,BACK UP
6HE1 TC ENG(57L) (A) 		1-82639-608-1 01 1 0005-0210 ●
463 HARNESS; SW,BACK UP
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) (B) 		1-82639-627-0 01 1 0005-0011 ●
463 HARNESS; SW,BACK UP
(B) 		1-82639-627-0 01 1 0005-0011 ●
463 HARNESS; SW,BACK UP
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) (B) 		1-82639-627-0 01 1 0012-0210 ●
463 HARNESS; SW,BACK UP
(B) 		1-82639-627-0 01 1 0012-0210 ● ●

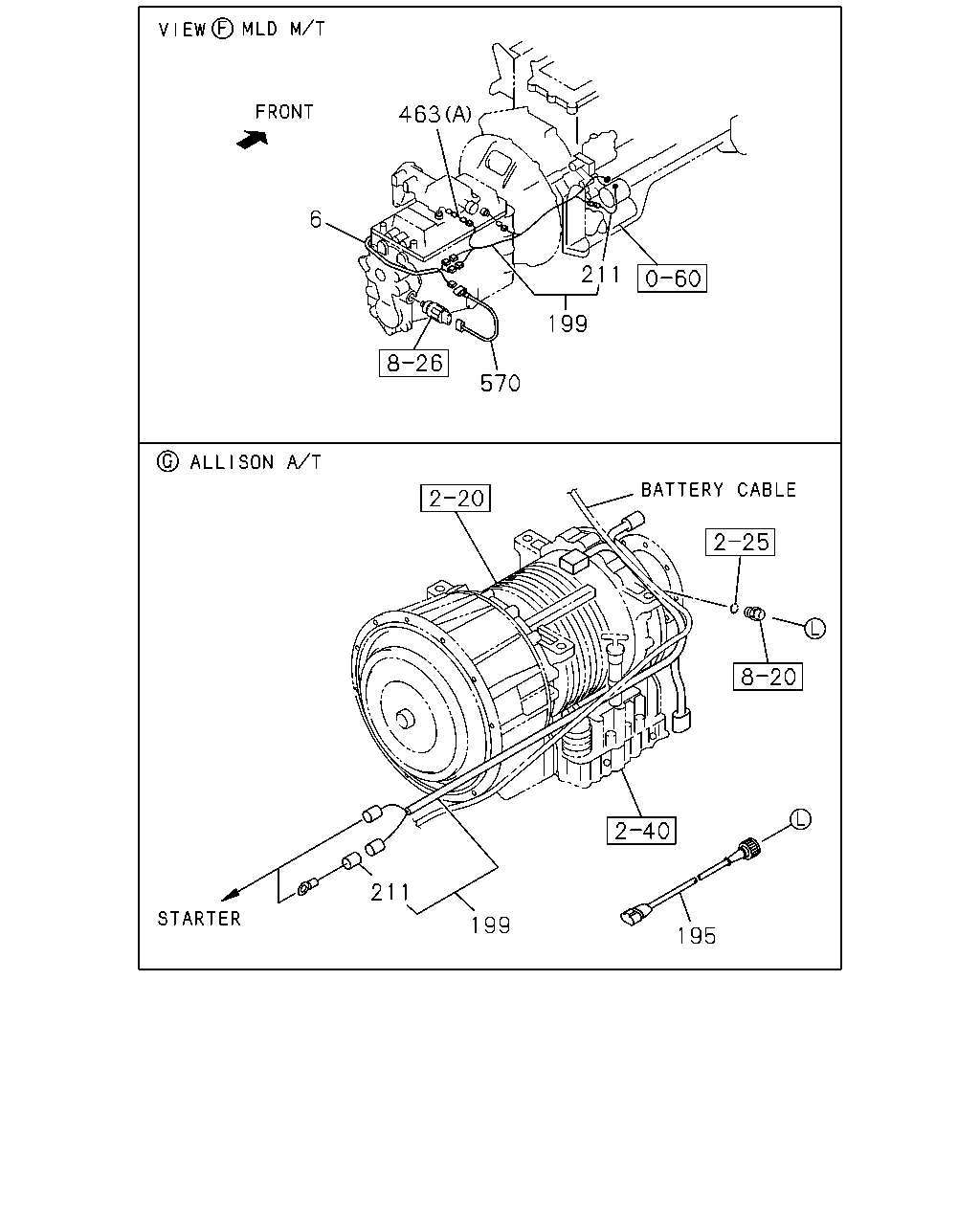

çizim 43810
463 6 211 199 570 211 199 195
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-288-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-287-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-290-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-289-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) FOG LAMP<T96> 		1-82678-286-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-292-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-291-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-296-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-295-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-300-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-299-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> AIR HORN<WB8> 		1-82678-302-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-301-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-905-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-905-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> 		1-82677-906-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-906-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-907-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-907-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> 		1-82677-909-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-909-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> 		1-82677-911-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-911-1 01 1 0601- ●
6 HARNESS; FRAME
AIR HORN<WB8> 		1-82677-904-1 01 1 0406-0512 ●
6 HARNESS; FRAME
AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-904-1 01 1 0601- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) 		1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) 		1-82677-155-3 01 1 0303-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) EXC. FOG LAMP<T96> 		1-82677-155-3 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) A/T<X9D> 		1-82673-169-1 01 1 0005-0106 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82673-169-2 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82676-191-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-191-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-191-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82673-170-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-190-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-190-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-190-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) A/T<X9D> 		1-82674-929-0 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-192-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-192-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-192-2 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82673-173-1 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-196-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-196-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-196-2 01 1 0601- ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82673-172-2 01 1 0005-0210 ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82676-194-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. AIR HORN<WB8> 		1-82676-194-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-194-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-165-1 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-189-1 01 1 0211-0405 ●
6 HARNESS; FRAME
EXC. AIR HORN<WB8> 		1-82676-189-2 01 1 0406-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-189-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-171-2 01 1 0012-0210 ●
195 HARNESS; EXT
A/T<X9D> 		1-82671-045-1 01 1 0903- ● ●
199 HARNESS; STARTER
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) 		1-82641-397-0 01 1 0610- ●
199 HARNESS; STARTER
6HE1 TC ENG(57L) 		1-82640-668-3 01 1 0005-0210 ●
199 HARNESS; STARTER
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82641-323-1 01 1 0303-0309 ●
199 HARNESS; STARTER
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 		1-82641-342-3 01 1 0310- ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) A/T<X9D> 		1-82640-815-0 01 1 0005-0210 ●
199 HARNESS; STARTER
A/T<X9D> 		1-82640-815-0 01 1 0005-0210 ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) A/T<X9D> 		1-82641-304-0 01 1 0211- ● ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0005-0011 ●
199 HARNESS; STARTER
BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0005-0011 ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0012-0210 ●
199 HARNESS; STARTER
BRAKE SYSTEM RETARDER<RE2> 		1-82641-028-0 01 1 0012-0210 ● ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0005-0011 ●
199 HARNESS; STARTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0005-0011 ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0012-0210 ●
199 HARNESS; STARTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82640-814-0 01 1 0012-0210 ● ●
199 HARNESS; STARTER
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82641-303-1 01 1 0211- ● ● ●
199 HARNESS; STARTER
FULLER RT7608LL M/T(X8P) 		1-82640-755-2 01 1 0005-0202 ●
199 HARNESS; STARTER
FULLER RT7608LL M/T(X8P) 		1-82641-270-0 01 1 0203-0210 ●
199 HARNESS; STARTER
FULLER RT7608LL M/T(X8P) 		1-82641-306-0 01 1 0211- ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0005-0011 ● ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-0 01 1 0012- ● ● ● ●
463 HARNESS; SW,BACK UP
6HE1 TC ENG(57L) (A) 		1-82639-608-1 01 1 0005-0210 ●
463 HARNESS; SW,BACK UP
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) (B) 		1-82639-627-0 01 1 0005-0011 ●
463 HARNESS; SW,BACK UP
(B) 		1-82639-627-0 01 1 0005-0011 ●
463 HARNESS; SW,BACK UP
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) (B) 		1-82639-627-0 01 1 0012-0210 ●
463 HARNESS; SW,BACK UP
(B) 		1-82639-627-0 01 1 0012-0210 ● ●
570 HARNESS; SPEED SENSOR
FULLER FSO5206B OD M/T(Y4V) 		1-82670-012-0 01 1 0303- ●
570 HARNESS; SPEED SENSOR
6HE1 TC ENG(57L) 		1-82670-012-0 01 1 0005-0210 ●

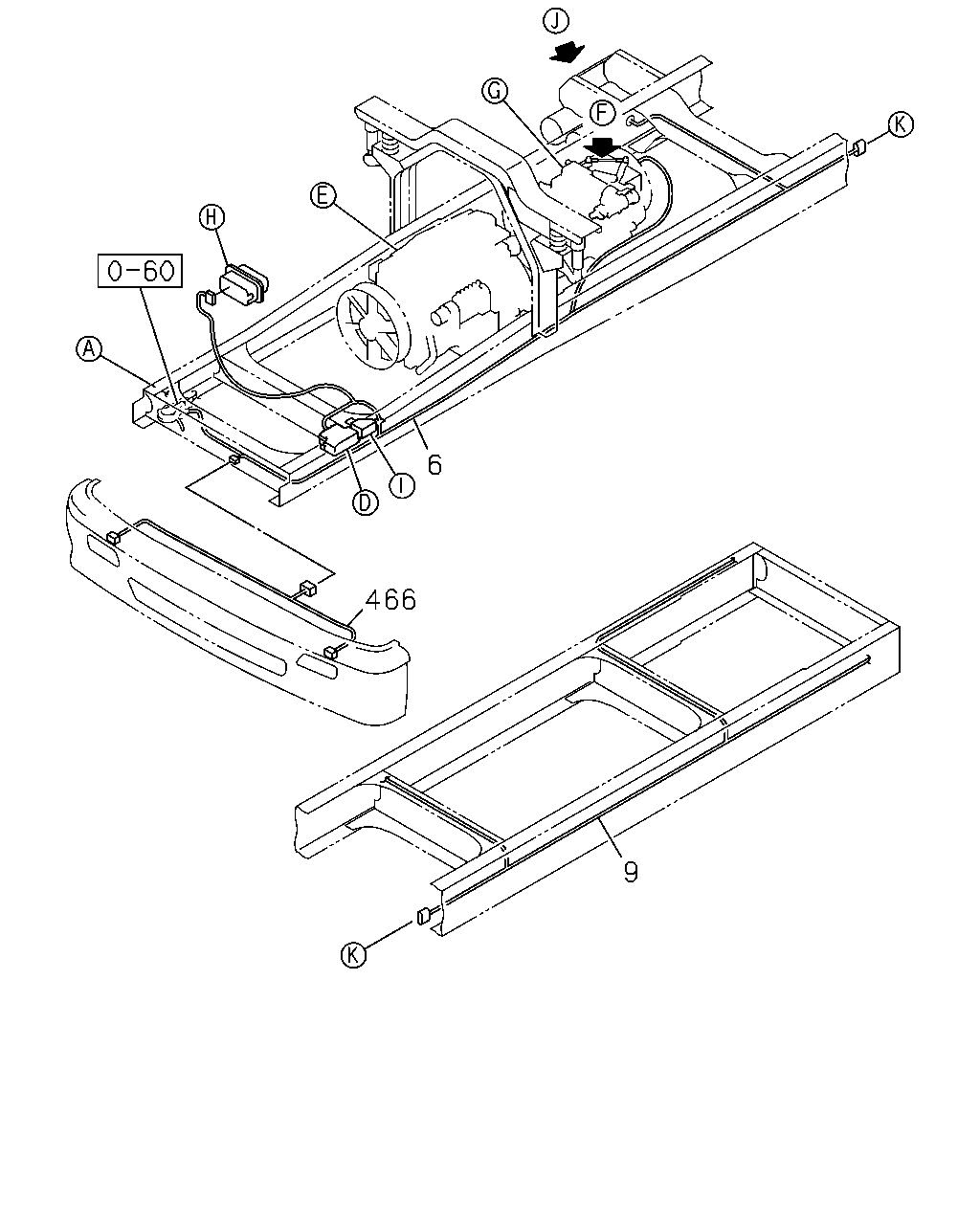

çizim 45070
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-288-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-287-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-290-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-289-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) FOG LAMP<T96> 		1-82678-286-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-292-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-291-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-296-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-295-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-300-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-299-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> AIR HORN<WB8> 		1-82678-302-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-301-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-905-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-905-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> 		1-82677-906-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-906-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-907-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-907-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> 		1-82677-909-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-909-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> 		1-82677-911-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-911-1 01 1 0601- ●
6 HARNESS; FRAME
AIR HORN<WB8> 		1-82677-904-1 01 1 0406-0512 ●
6 HARNESS; FRAME
AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-904-1 01 1 0601- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) 		1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) 		1-82677-155-3 01 1 0303-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) EXC. FOG LAMP<T96> 		1-82677-155-3 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) A/T<X9D> 		1-82673-169-1 01 1 0005-0106 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82673-169-2 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82676-191-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-191-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-191-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82673-170-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-190-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-190-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-190-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) A/T<X9D> 		1-82674-929-0 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-192-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-192-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-192-2 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82673-173-1 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-196-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-196-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-196-2 01 1 0601- ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82673-172-2 01 1 0005-0210 ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82676-194-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. AIR HORN<WB8> 		1-82676-194-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-194-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-165-1 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-189-1 01 1 0211-0405 ●
6 HARNESS; FRAME
EXC. AIR HORN<WB8> 		1-82676-189-2 01 1 0406-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-189-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-171-2 01 1 0012-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6200MM(62W) 		1-82677-913-0 01 1 0406- ●
9 HARNESS; FRAME,RR
6HE1 TC ENG(57L) 		1-82673-151-1 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-82674-930-0 01 1 0107-0210 ●
9 HARNESS; FRAME,RR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) 		1-82673-152-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) 		1-82676-197-0 01 1 0211- ●
9 HARNESS; FRAME,RR
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) 		1-82673-153-0 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		1-82676-198-0 01 1 0211- ●
9 HARNESS; FRAME,RR 1-82672-243-1 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) 		1-82676-204-1 01 1 0211- ●
9 HARNESS; FRAME,RR 1-82673-353-1 01 1 0012-0210 ●
9 HARNESS; FRAME,RR
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) 		1-82673-353-1 01 1 0211- ●
466 HARNESS; BUMPER
FOG LAMP<T96> 		8-97603-621-3 01 1 0601- ● ● ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0005-0011 ● ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0012-0512 ● ● ● ●
466 HARNESS; BUMPER
EXC. FOG LAMP<T96> 		1-82638-758-1 01 1 0601- ● ● ● ●

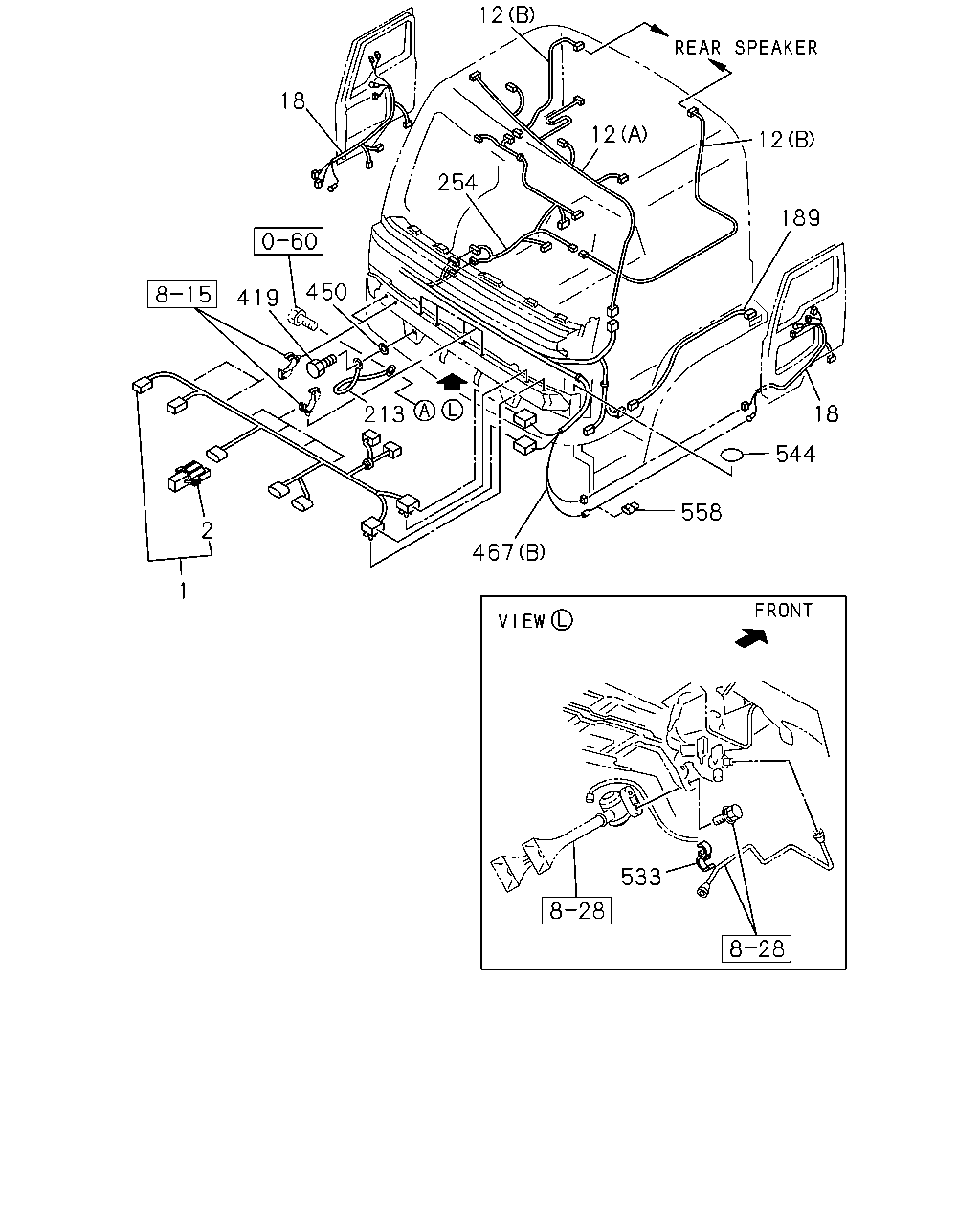

çizim 45106
12 12 12 18 544 558 467 213 450 419 18 254 189 1 2 533
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HARNESS; CAB
AIR HORN<WB8> 		1-82627-506-3 01 1 0406- ● ● ● ●
1 HARNESS; CAB 1-82626-365-0 01 1 0005-0011 ● ● ●
1 HARNESS; CAB 1-82626-365-0 01 1 0012-0210 ● ● ● ●
1 HARNESS; CAB 1-82629-662-1 01 1 0211-0405 ● ● ● ●
1 HARNESS; CAB
EXC. AIR HORN<WB8> 		1-82629-662-1 01 1 0406- ● ● ● ●
2 DIODE; CABLE HARNESS
AIR HORN<WB8> GRAY 2P-1.3A 		1-81514-015-0 01 1 0406- ● ● ● ●
12 HARNESS; ROOF
(B) 		1-82626-753-0 02 1 0005-0011 ● ● ●
12 HARNESS; ROOF
(B) 		1-82626-753-0 02 1 0012- ● ● ● ●
12 HARNESS; ROOF
(A) 		1-82629-297-0 01 1 0005-0011 ● ● ●
12 HARNESS; ROOF
(A) 		1-82629-297-1 01 1 0012-0210 ● ● ● ●
12 HARNESS; ROOF
(A) 		1-82660-765-1 01 1 0211- ● ● ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-583-0 01 1 0005-0011 ● ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-583-0 01 1 0012-0210 ● ● ● ●
18 HARNESS; DOOR 1-82628-583-0 01 1 0211- ● ● ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82629-302-0 01 1 0005-0011 ● ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82629-302-1 01 1 0012-0210 ● ● ● ●
18 HARNESS; DOOR 1-82629-302-1 01 1 0211- ● ● ● ●
189 HARNESS; EXT 1-82625-673-2 02 1 0005-0011 ● ● ●
189 HARNESS; EXT 1-82625-673-2 02 1 0012- ● ● ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0005-0011 ● ● ●
213 CABLE; EARTH,CAB TO FRAME
A/T<X9D> 		1-82657-055-1 01 1 0005-0011 ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0012- ● ● ● ●
213 CABLE; EARTH,CAB TO FRAME
A/T<X9D> 		1-82657-055-1 01 1 0012- ● ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. CUSTOM CAB(SR5) 		1-82628-135-5 01 1 0005-0210 ● ●
254 HARNESS; CAB FLOOR
FULLER M/T<X9B> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82661-385-1 01 1 0211-0310 ● ●
254 HARNESS; CAB FLOOR
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82661-385-1 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR 1-82661-385-1 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR
FULLER M/T<X9B> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82662-049-1 01 1 0311- ● ●
254 HARNESS; CAB FLOOR
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82662-049-1 01 1 0311- ●
254 HARNESS; CAB FLOOR 1-82662-049-1 01 1 0311- ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) A/T<X9D> 		1-82629-300-2 01 1 0005-0210 ● ●
254 HARNESS; CAB FLOOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> A/T<X9D> 		1-82629-300-2 01 1 0211-0310 ● ●
254 HARNESS; CAB FLOOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> A/T<X9D> 		1-82662-052-1 01 1 0311- ● ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) EXC. A/T<X9D> 		1-82629-298-1 01 1 0005-0011 ● ● ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) EXC. A/T<X9D> 		1-82629-298-2 01 1 0012-0210 ● ●
254 HARNESS; CAB FLOOR
CUSTOM CAB(SR5) 		1-82629-298-2 01 1 0012-0210 ● ●
254 HARNESS; CAB FLOOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> FULLER M/T<X9B> 		1-82629-298-2 01 1 0211-0310 ● ●
254 HARNESS; CAB FLOOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82629-298-2 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> FULLER M/T<X9B> 		1-82662-047-1 01 1 0311- ● ●
254 HARNESS; CAB FLOOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82662-047-1 01 1 0311- ●
254 HARNESS; CAB FLOOR
EXC. CUSTOM CAB(SR5),A/T<X9D> 		1-82628-129-4 01 1 0005-0011 ● ● ●
254 HARNESS; CAB FLOOR
EXC. CUSTOM CAB(SR5),A/T<X9D> 		1-82628-129-5 01 1 0012-0210 ● ● ● ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82661-386-1 01 1 0211-0310 ● ●
254 HARNESS; CAB FLOOR
A/T<X9D> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82662-053-1 01 1 0311- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0005-0011 ● ● ●
419 BOLT; CAB EARTH
A/T<X9D> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0005-0011 ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0012-1201 ● ● ● ●
419 BOLT; CAB EARTH
A/T<X9D> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0012-1201 ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ● ● ●
419 BOLT; CAB EARTH
A/T<X9D> M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0205-0605 ● ● ● ●
450 WASHER; PL,CAB EARTH
A/T<X9D> ID=8.4 OD=18 		9-09164-608-0 01 1 0205-0605 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ● ● ●
450 WASHER; PL,CAB EARTH
A/T<X9D> ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-877-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-876-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> FULLER M/T<X9B> (B) INST LOWER 		1-82662-870-1 01 1 0601- ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-387-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-387-2 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) POWER WINDOW<A30> CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-259-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
(B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-383-1 01 1 0303-0304 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-890-0 01 1 0305-0512 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82661-890-2 01 1 0601- ●
467 HARNESS; FACIA
A/T<X9D> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-340-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) A/T<X9D> (B) INST LOWER 		1-82629-341-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> (B) INST LOWER 		1-82661-394-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-394-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-394-3 01 1 0601- ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-0 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-2 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-3 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82661-377-0 01 1 0211- ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-3 01 1 0012-0210 ● ● ● ●
533 CLIP
AIR HORN<WB8> ID=6.35 & 10.0 		1-09709-274-1 01 1 0406- ● ● ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 0005-0011 ● ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 0012- ● ● ● ●
558 CONNECTOR; HARNESS
EXC. POWER WINDOW<A30> 		1-82690-666-0 02 1 0005-0011 ● ● ●
558 CONNECTOR; HARNESS
EXC. POWER WINDOW<A30> 		1-82690-666-0 02 1 0012-0210 ● ● ● ●
çizim 46031
467 267 266 431 467 431 431 314 467
BalonParca AdiParca NoAdetTipApplied Date A B C D
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0005-0011 ● ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0012- ● ● ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0005-0011 ● ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0012- ● ● ● ●
314 RESISTOR; HARNESS
6SD1 TCN ENG(31L) FOG LAMP<T96> A/T<X9D> BLUE 		1-82691-204-0 01 1 0601-0601 ● ●
314 RESISTOR; HARNESS
6SD1 TCN ENG(31L) A/T<X9D> BLUE 		1-82691-204-0 01 1 0602- ● ●
314 RESISTOR; HARNESS
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> 		1-81515-035-0 01 1 0406-0512 ● ●
314 RESISTOR; HARNESS
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-81515-035-0 01 1 0601-0601 ● ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 AR 1 0005- ● ● ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 AR 1 0005- ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-877-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-876-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> FULLER M/T<X9B> (B) INST LOWER 		1-82662-870-1 01 1 0601- ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-387-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-387-2 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) POWER WINDOW<A30> CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-259-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
(B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-383-1 01 1 0303-0304 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-890-0 01 1 0305-0512 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82661-890-2 01 1 0601- ●
467 HARNESS; FACIA
A/T<X9D> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-340-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) A/T<X9D> (B) INST LOWER 		1-82629-341-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> (B) INST LOWER 		1-82661-394-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-394-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-394-3 01 1 0601- ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-0 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-2 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-3 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82661-377-0 01 1 0211- ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-3 01 1 0012-0210 ● ● ● ●
çizim 47030
278 276 277 265 307 262 277 277 6 264 307 6 280 280 201 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-288-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-287-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-290-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-289-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) FOG LAMP<T96> 		1-82678-286-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-292-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-291-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-296-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-295-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-300-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-299-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> AIR HORN<WB8> 		1-82678-302-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-301-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-905-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-905-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> 		1-82677-906-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-906-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-907-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-907-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> 		1-82677-909-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-909-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> 		1-82677-911-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-911-1 01 1 0601- ●
6 HARNESS; FRAME
AIR HORN<WB8> 		1-82677-904-1 01 1 0406-0512 ●
6 HARNESS; FRAME
AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-904-1 01 1 0601- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) 		1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) 		1-82677-155-3 01 1 0303-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) EXC. FOG LAMP<T96> 		1-82677-155-3 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) A/T<X9D> 		1-82673-169-1 01 1 0005-0106 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82673-169-2 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82676-191-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-191-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-191-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82673-170-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-190-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-190-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-190-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) A/T<X9D> 		1-82674-929-0 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-192-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-192-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-192-2 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82673-173-1 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-196-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-196-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-196-2 01 1 0601- ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82673-172-2 01 1 0005-0210 ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82676-194-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. AIR HORN<WB8> 		1-82676-194-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-194-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-165-1 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-189-1 01 1 0211-0405 ●
6 HARNESS; FRAME
EXC. AIR HORN<WB8> 		1-82676-189-2 01 1 0406-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-189-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-171-2 01 1 0012-0210 ●
201 HARNESS; AIR TANK 1-82670-616-1 01 1 0005-0011 ●
201 HARNESS; AIR TANK 1-82670-616-1 01 1 0012-0210 ● ●
201 HARNESS; AIR TANK 1-82676-206-2 01 1 0211- ● ●
201 HARNESS; AIR TANK 1-82639-105-1 01 1 0005-0006 ●
201 HARNESS; AIR TANK 1-82673-721-0 01 1 0007-0106 ●
201 HARNESS; AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-82673-721-0 01 1 0107-0210 ●
201 HARNESS; AIR TANK 1-82673-721-0 01 1 0107-0210 ●
201 HARNESS; AIR TANK 1-82676-205-2 01 1 0211- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0005-0011 ● ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0012- ● ● ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0005-0011 ● ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0012- ● ● ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0005-0011 ● ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0012- ● ● ● ●
276 COVER; BOX,FRAME HARNESS
A/T<X9D> 		1-82699-803-0 01 1 0005- ● ●
276 COVER; BOX,FRAME HARNESS
EXC. A/T<X9D> 		1-82699-558-3 01 1 0005-0011 ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0005-0011 ●
276 COVER; BOX,FRAME HARNESS
EXC. A/T<X9D> 		1-82699-558-3 01 1 0012- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0012- ● ●
277 BOLT; BOX ASM FIX
6HE1 TC ENG(57L) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
277 BOLT; BOX ASM FIX
(C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0211- ● ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0011 ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0012-0512 ● ● ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ● ● ●
278 CLIP; BOX
L=140 		5-09707-031-1 01 1 0211- ● ● ● ●
280 NUT; BOX ASM FIX
M8 		9-09110-408-0 02 1 0211-0512 ● ● ● ●
280 NUT; BOX ASM FIX
M8 		0-91110-508-0 02 1 0601- ● ● ● ●
307 BOX; ENG HARNESS
(A) 		1-82698-119-0 01 1 0211- ● ● ● ●
307 BOX; ENG HARNESS
(B) 		1-82698-138-0 01 1 0211- ● ● ● ●
çizim 47539
594 181 13 13 181 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-288-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-287-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-290-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-289-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) FOG LAMP<T96> 		1-82678-286-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-292-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-291-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-296-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-295-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-300-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-299-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> AIR HORN<WB8> 		1-82678-302-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-301-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-905-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-905-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> 		1-82677-906-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-906-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-907-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-907-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> 		1-82677-909-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-909-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> 		1-82677-911-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-911-1 01 1 0601- ●
6 HARNESS; FRAME
AIR HORN<WB8> 		1-82677-904-1 01 1 0406-0512 ●
6 HARNESS; FRAME
AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-904-1 01 1 0601- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) 		1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) 		1-82677-155-3 01 1 0303-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) EXC. FOG LAMP<T96> 		1-82677-155-3 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) A/T<X9D> 		1-82673-169-1 01 1 0005-0106 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82673-169-2 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82676-191-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-191-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-191-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82673-170-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-190-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-190-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-190-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) A/T<X9D> 		1-82674-929-0 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-192-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-192-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-192-2 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82673-173-1 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-196-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-196-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-196-2 01 1 0601- ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82673-172-2 01 1 0005-0210 ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82676-194-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. AIR HORN<WB8> 		1-82676-194-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-194-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-165-1 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-189-1 01 1 0211-0405 ●
6 HARNESS; FRAME
EXC. AIR HORN<WB8> 		1-82676-189-2 01 1 0406-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-189-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-171-2 01 1 0012-0210 ●
13 HARNESS; ENG
6SD1 TCN ENG(31L) (B) 		1-82641-181-1 01 1 0211- ● ● ● ●
13 HARNESS; ENG
6HE1 TC ENG(57L) (A) 		1-82640-982-0 01 1 0005-0009 ●
13 HARNESS; ENG
6HE1 TC ENG(57L) (A) 		1-82641-164-0 01 1 0010-0210 ●
13 HARNESS; ENG
6HK1 TCS ENG(80L) (A) 		1-82641-280-0 01 1 0303- ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0005-0011 ● ● ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0012-0210 ● ● ● ●
181 NUT; GLOW PLUG HARNESS
6SD1 TCN ENG(31L) M4 FLANGE 		5-09440-007-0 01 1 0211- ● ● ● ●
594 BOLT; GLOW PLUG HARNESS
6HK1 TCS ENG(80L) M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0303-0604 ●
594 BOLT; GLOW PLUG HARNESS
6HK1 TCS ENG(80L) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0605- ●
çizim 49520
467 41 4 4 5 5 467 62 431 62 431 62 6 10 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> (A) 7.5AX14 		1-82510-486-0 01 1 0406-0512 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) AIR HORN<WB8> (A) 7.5AX14 		1-82510-486-0 01 1 0406-0512 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> EXC. FOG LAMP<T96> (A) 7.5AX14 		1-82510-486-0 01 1 0601-0601 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) AIR HORN<WB8> EXC. FOG LAMP<T96> (A) 7.5AX14 		1-82510-486-0 01 1 0601-0601 ● ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCS ENG(80L) FULLER M/T<X9B> (A) 7.5AX16 		1-82510-395-0 01 1 0303- ●
4 BOX ASM; FUSE,HARNESS
A/T<X9D> (A) 7.5AX16 		1-82510-395-0 01 1 0005-0210 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) A/T<X9D> (A) 7.5AX15 		1-82510-391-0 01 1 0211- ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) FULLER M/T<X9B> (B) 15AX15 		1-82510-521-0 01 1 0211- ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0211- ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX16 		1-82510-397-0 01 1 0005-0011 ● ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX16 		1-82510-397-0 01 1 0012-0210 ● ● ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) A/T<X9D> (B) 15AX16 		1-82510-397-0 01 1 0211-0302 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) A/T<X9D> (B) 15AX16 		1-82510-397-0 01 1 0303- ● ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) 15AX16 		1-82510-397-0 01 1 0303- ●
4 BOX ASM; FUSE,HARNESS
EXC. A/T<X9D> (A) 7.5AX18 		1-82510-422-0 01 1 0005-0011 ● ● ●
4 BOX ASM; FUSE,HARNESS
EXC. A/T<X9D> (A) 7.5AX18 		1-82510-422-0 01 1 0012-0210 ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX18 		1-82510-422-0 01 1 0012-0210 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) FULLER M/T<X9B> (A) 7.5AX14 		1-82510-265-0 01 1 0211-0405 ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-265-0 01 1 0211-0405 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. AIR HORN<WB8> (A) 7.5AX14 		1-82510-265-0 01 1 0406-0512 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) EXC. AIR HORN<WB8> (A) 7.5AX14 		1-82510-265-0 01 1 0406-0512 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. FOG LAMP<T96>,AIR HORN<WB8> (A) 7.5AX14 		1-82510-265-0 01 1 0601-0601 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) FOG LAMP<T96> FULLER M/T<X9B> (A) 7.5AX14 		1-82510-265-0 01 1 0601-0601 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (A) 7.5AX14 		1-82510-265-0 01 1 0601-0601 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) FOG LAMP<T96> (A) 7.5AX14 		1-82510-265-0 01 1 0601-0601 ● ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCN ENG(31L) FULLER M/T<X9B> (A) 7.5AX14 		1-82510-265-0 01 1 0602- ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-265-0 01 1 0602- ● ●
5 FUSE; FACIA HARNESS
6HK1 TCS ENG(80L) FULLER M/T<X9B> 7.5A BROWN 		8-94159-007-0 16 1 0303- ●
5 FUSE; FACIA HARNESS
A/T<X9D> 7.5A BROWN 		8-94159-007-0 16 1 0005-0210 ● ●
5 FUSE; FACIA HARNESS
6SD1 TCN ENG(31L) A/T<X9D> 7.5A BROWN 		8-94159-007-0 15 1 0211- ● ●
5 FUSE; FACIA HARNESS
6SD1 TCN ENG(31L) A/T<X9D> 15A BLUE 		5-82516-003-0 16 1 0211-0302 ● ●
5 FUSE; FACIA HARNESS
6SD1 TCN ENG(31L) A/T<X9D> 15A BLUE 		5-82516-003-0 16 1 0303- ● ●
5 FUSE; FACIA HARNESS
6HK1 TCS ENG(80L) FULLER M/T<X9B> 15A BLUE 		5-82516-003-0 16 1 0303- ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 16 1 0005-0011 ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 16 1 0012-0210 ● ● ● ●
5 FUSE; FACIA HARNESS
6SD1 TCN ENG(31L) FULLER M/T<X9B> 15A BLUE 		5-82516-003-0 15 1 0211- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 15 1 0211- ● ●
5 FUSE; FACIA HARNESS
EXC. A/T<X9D> 7.5A BROWN 		8-94159-007-0 18 1 0005-0011 ● ● ●
5 FUSE; FACIA HARNESS
EXC. A/T<X9D> 7.5A BROWN 		8-94159-007-0 18 1 0012-0210 ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 18 1 0012-0210 ● ●
5 FUSE; FACIA HARNESS
6SD1 TCN ENG(31L) FULLER M/T<X9B> 7.5A BROWN 		8-94159-007-0 14 1 0211- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 14 1 0211- ● ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-288-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-287-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-290-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-289-0 01 1 0601- ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) FOG LAMP<T96> 		1-82678-286-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-292-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-291-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> 		1-82678-296-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-295-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> 		1-82678-300-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> 		1-82678-299-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> AIR HORN<WB8> 		1-82678-302-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> EXC. AIR HORN<WB8> 		1-82678-301-0 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-905-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-905-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> 		1-82677-906-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-906-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> 		1-82677-907-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-907-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> 		1-82677-909-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-909-1 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> 		1-82677-911-1 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> 		1-82677-911-1 01 1 0601- ●
6 HARNESS; FRAME
AIR HORN<WB8> 		1-82677-904-1 01 1 0406-0512 ●
6 HARNESS; FRAME
AIR HORN<WB8> EXC. FOG LAMP<T96> 		1-82677-904-1 01 1 0601- ●
6 HARNESS; FRAME
6HE1 TC ENG(57L) 		1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) 		1-82677-155-3 01 1 0303-0512 ●
6 HARNESS; FRAME
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) EXC. FOG LAMP<T96> 		1-82677-155-3 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) A/T<X9D> 		1-82673-169-1 01 1 0005-0106 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82673-169-2 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> 		1-82676-191-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-191-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-191-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) 		1-82673-170-2 01 1 0005-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-190-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-190-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-190-2 01 1 0601- ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) A/T<X9D> 		1-82674-929-0 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-82676-192-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. AIR HORN<WB8> 		1-82676-192-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-192-2 01 1 0601- ●
6 HARNESS; FRAME
A/T<X9D> 		1-82673-173-1 01 1 0005-0210 ●
6 HARNESS; FRAME
A/T<X9D> 		1-82676-196-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. AIR HORN<WB8> 		1-82676-196-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) WHEEL BASE 7100MM(71W) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-196-2 01 1 0601- ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82673-172-2 01 1 0005-0210 ●
6 HARNESS; FRAME
FULLER RT7608LL M/T(X8P) 		1-82676-194-1 01 1 0211-0405 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. AIR HORN<WB8> 		1-82676-194-2 01 1 0406-0512 ●
6 HARNESS; FRAME
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-194-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-165-1 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-189-1 01 1 0211-0405 ●
6 HARNESS; FRAME
EXC. AIR HORN<WB8> 		1-82676-189-2 01 1 0406-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96>,AIR HORN<WB8> 		1-82676-189-2 01 1 0601- ●
6 HARNESS; FRAME 1-82673-171-2 01 1 0012-0210 ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0005-0011 ● ● ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0012- ● ● ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0005-0011 ● ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0012- ● ● ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0005-0011 ● ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0012- ● ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0005-0011 ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0012- ● ● ● ●
62 DIODE; HARNESS
A/T<X9D> (B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0005-0210 ● ●
62 DIODE; HARNESS
6SD1 TCN ENG(31L) FULLER M/T<X9B> (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0211-0302 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0211-0302 ● ●
62 DIODE; HARNESS
FULLER M/T<X9B> (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0303- ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0303- ● ●
62 DIODE; HARNESS
A/T<X9D> (C) BLACK 3P-1.5A 		8-94422-640-1 01 1 0005-0210 ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0005-0011 ● ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0012- ● ● ● ●
62 DIODE; HARNESS
EXC. A/T<X9D> (B) BLACK 2P-1.5A 		8-94422-639-1 10 1 0005-0011 ● ● ●
62 DIODE; HARNESS
EXC. A/T<X9D> (B) BLACK 2P-1.5A 		8-94422-639-1 10 1 0012-0210 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 10 1 0012-0210 ● ●
62 DIODE; HARNESS
6SD1 TCN ENG(31L) A/T<X9D> (B) BLACK 2P-1.5A 		8-94422-639-1 06 1 0211- ● ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 AR 1 0005- ● ● ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 AR 1 0005- ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> (B) INST LOWER 		1-82662-875-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-877-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-874-1 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FOG LAMP<T96> A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82662-876-1 01 1 0601- ● ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FOG LAMP<T96> FULLER M/T<X9B> (B) INST LOWER 		1-82662-870-1 01 1 0601- ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> (B) INST LOWER 		1-82662-386-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-386-2 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> (B) INST LOWER 		1-82662-387-0 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) AIR HORN<WB8> A/T<X9D> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82662-387-2 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) POWER WINDOW<A30> CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-259-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
(B) INST LOWER 		1-82661-384-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-384-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) FULLER M/T<X9B> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-384-3 01 1 0601- ● ●
467 HARNESS; FACIA
6HE1 TC ENG(57L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-383-1 01 1 0303-0304 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> (B) INST LOWER 		1-82661-890-0 01 1 0305-0512 ●
467 HARNESS; FACIA
6HK1 TCS ENG(80L) FULLER M/T<X9B> EXC. FOG LAMP<T96> (B) INST LOWER 		1-82661-890-2 01 1 0601- ●
467 HARNESS; FACIA
A/T<X9D> EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5) (B) INST LOWER 		1-82629-340-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
POWER WINDOW<A30> CUSTOM CAB(SR5) A/T<X9D> (B) INST LOWER 		1-82629-341-4 01 1 0005-0210 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> (B) INST LOWER 		1-82661-394-1 01 1 0211-0405 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. AIR HORN<WB8> (B) INST LOWER 		1-82661-394-1 01 1 0406-0512 ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) A/T<X9D> EXC. FOG LAMP<T96>,AIR HORN<WB8> (B) INST LOWER 		1-82661-394-3 01 1 0601- ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-0 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82629-294-2 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) POWER WINDOW<A30> CUSTOM CAB(SR5) EXC. A/T<X9D> (B) INST LOWER 		1-82629-257-3 01 1 0012-0210 ● ● ● ●
467 HARNESS; FACIA
(A) INST UPPER 		1-82661-377-0 01 1 0211- ● ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-1 01 1 0005-0011 ● ● ●
467 HARNESS; FACIA
6SD1 TCN ENG(31L) EXC. POWER WINDOW<A30>,CUSTOM CAB(SR5),A/T<X9D> (B) INST LOWER 		1-82629-256-3 01 1 0012-0210 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
