8-05 — INTERIOR LAMP (#8051) — 93 parça
çizim 8863
34 35 38
BalonParca AdiParca NoAdetTipApplied Date A B C D
34 COVER; STEP LAMP 1-79998-925-0 02 1 0005-0011 ● ● ●
34 COVER; STEP LAMP 1-79998-925-0 02 1 0012- ● ● ● ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74310-420-0 04 1 0005-0011 ● ● ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74310-420-0 04 1 0012-0604 ● ● ● ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 0605- ● ● ● ●
38 COVER; STEP LAMP,DOOR 1-74997-029-2 01 1 0005-0011 ● ● ●
38 COVER; STEP LAMP,DOOR 1-74997-029-2 01 1 0012- ● ● ● ●

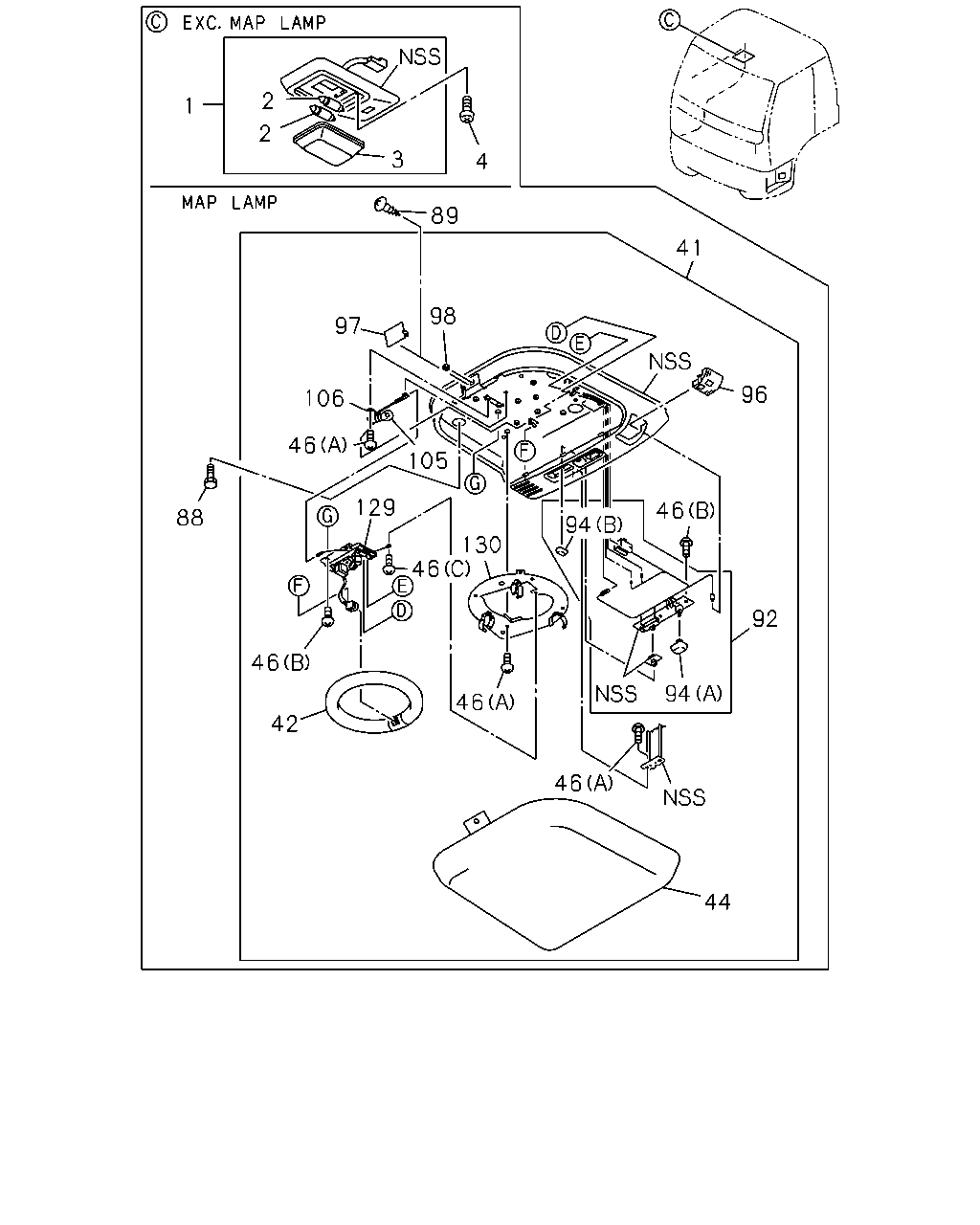

çizim 46346
2 1 2 3 4 89 41 98 97 96 106 46 105 129 46 88 94 130 46 92 46 94 46 42 46 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; ROOM
EXC. MAP LAMP<C85> 		1-82140-050-1 01 1 0005-0011 ● ● ●
1 LAMP ASM; ROOM
EXC. MAP LAMP<C85> 		1-82140-050-1 01 1 0012-0405 ● ● ● ●
1 LAMP ASM; ROOM
EXC. MAP LAMP<C85> 		1-82140-050-1 01 1 0406- ● ● ● ●
2 BULB; ROOM LAMP
EXC. MAP LAMP<C85> 24V 10W 		1-82195-001-0 02 1 0005-0011 ● ● ●
2 BULB; ROOM LAMP
EXC. MAP LAMP<C85> 24V 10W 		1-82195-001-0 02 1 0012-0405 ● ● ● ●
2 BULB; ROOM LAMP
EXC. MAP LAMP<C85> 24V 10W 		1-82195-001-0 02 1 0406- ● ● ● ●
3 LENS; ROOM LAMP
EXC. MAP LAMP<C85> 		1-82145-020-0 01 1 0005-0011 ● ● ●
3 LENS; ROOM LAMP
EXC. MAP LAMP<C85> 		1-82145-020-0 01 1 0012-0405 ● ● ● ●
3 LENS; ROOM LAMP
EXC. MAP LAMP<C85> 		1-82145-020-0 01 1 0406- ● ● ● ●
4 SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING 		9-07066-520-0 03 1 0005-0011 ● ● ●
4 SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING 		9-07066-520-0 03 1 0012-0405 ● ● ● ●
4 SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING 		9-07066-520-0 03 1 0406-0603 ● ● ● ●
4 SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING 		0-71040-520-0 03 1 0604- ● ● ● ●
41 LAMP ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-315-1 01 1 0005-0011 ● ● ●
41 LAMP ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-315-1 01 1 0012-0210 ● ● ● ●
41 LAMP ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-315-2 01 1 0211-0405 ● ● ●
41 LAMP ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-315-2 01 1 0406- ● ● ● ●
42 LAMP; FLUORESCENT
MAP LAMP<C85> 		1-86830-094-1 01 1 0005-0011 ● ● ●
42 LAMP; FLUORESCENT
MAP LAMP<C85> 		1-86830-094-1 01 1 0012-0210 ● ● ● ●
42 LAMP; FLUORESCENT
MAP LAMP<C85> 		1-86830-094-1 01 1 0211-0405 ● ● ●
42 LAMP; FLUORESCENT
MAP LAMP<C85> 		1-86830-094-1 01 1 0406- ● ● ● ●
44 LENS; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-092-0 01 1 0005-0011 ● ● ●
44 LENS; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-092-0 01 1 0012-0210 ● ● ● ●
44 LENS; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-092-0 01 1 0211-0405 ● ● ●
44 LENS; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-092-0 01 1 0406- ● ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING 		1-86830-095-0 08 1 0005-0011 ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING 		1-86830-095-0 08 1 0012-0210 ● ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING 		1-86830-095-0 08 1 0211-0405 ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING 		1-86830-095-0 08 1 0406- ● ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12 		1-86830-202-0 07 1 0005-0011 ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12 		1-86830-202-0 07 1 0012-0210 ● ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12 		1-86830-202-0 07 1 0211-0405 ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12 		1-86830-202-0 07 1 0406- ● ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (C) M3X6 TAPPING 		1-86830-336-0 01 1 0005-0011 ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (C) M3X6 TAPPING 		1-86830-336-0 01 1 0012-0210 ● ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (C) M3X6 TAPPING 		1-86830-336-0 01 1 0211-0405 ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (C) M3X6 TAPPING 		1-86830-336-0 01 1 0406- ● ● ● ●
88 BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0005-0011 ● ● ●
88 BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0012-0210 ● ● ● ●
88 BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0211-0405 ● ● ●
88 BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0406- ● ● ● ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		9-07076-510-0 01 1 0005-0011 ● ● ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		9-07076-510-0 01 1 0012-0210 ● ● ● ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		9-07076-510-0 01 1 0211-0405 ● ● ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		9-07076-510-0 01 1 0406-0603 ● ● ● ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		0-71240-510-0 01 1 0604- ● ● ● ●
92 SWITCH ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-306-0 01 1 0211-0405 ● ● ●
92 SWITCH ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-306-0 01 1 0406- ● ● ● ●
92 SWITCH ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-341-0 01 1 0005-0011 ● ● ●
92 SWITCH ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-341-0 01 1 0012-0210 ● ● ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (A) 		1-86830-312-0 01 1 0005-0011 ● ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (A) 		1-86830-312-0 01 1 0012-0210 ● ● ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (A) 		1-86830-312-0 01 1 0211-0405 ● ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (A) 		1-86830-312-0 01 1 0406- ● ● ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (B) 		1-86830-313-0 01 1 0005-0011 ● ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (B) 		1-86830-313-0 01 1 0012-0210 ● ● ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (B) 		1-86830-313-0 01 1 0211-0405 ● ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (B) 		1-86830-313-0 01 1 0406- ● ● ● ●
96 CAP; SPOT LAMP
MAP LAMP<C85> 		1-86830-385-0 01 1 0211-0405 ● ● ●
96 CAP; SPOT LAMP
MAP LAMP<C85> 		1-86830-385-0 01 1 0406- ● ● ● ●
96 CAP; SPOT LAMP
MAP LAMP<C85> 		1-86830-337-0 01 1 0005-0011 ● ● ●
96 CAP; SPOT LAMP
MAP LAMP<C85> 		1-86830-337-0 01 1 0012-0210 ● ● ● ●
97 CAP; LENS FIX
MAP LAMP<C85> 		1-86830-311-0 01 1 0005-0011 ● ● ●
97 CAP; LENS FIX
MAP LAMP<C85> 		1-86830-311-0 01 1 0012-0210 ● ● ● ●
97 CAP; LENS FIX
MAP LAMP<C85> 		1-86830-311-0 01 1 0211-0405 ● ● ●
97 CAP; LENS FIX
MAP LAMP<C85> 		1-86830-311-0 01 1 0406- ● ● ● ●
98 GROMMET; SCREW,LENS FIX
MAP LAMP<C85> 		1-86830-102-0 01 1 0005-0011 ● ● ●
98 GROMMET; SCREW,LENS FIX
MAP LAMP<C85> 		1-86830-102-0 01 1 0012-0210 ● ● ● ●
98 GROMMET; SCREW,LENS FIX
MAP LAMP<C85> 		1-86830-102-0 01 1 0211-0405 ● ● ●
98 GROMMET; SCREW,LENS FIX
MAP LAMP<C85> 		1-86830-102-0 01 1 0406- ● ● ● ●
105 BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W 		1-86830-200-0 01 1 0005-0011 ● ● ●
105 BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W 		1-86830-200-0 01 1 0012-0210 ● ● ● ●
105 BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W 		1-86830-200-0 01 1 0211-0405 ● ● ●
105 BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W 		1-86830-200-0 01 1 0406- ● ● ● ●
106 SOCKET; BULB
MAP LAMP<C85> 		1-86830-201-0 01 1 0005-0011 ● ● ●
106 SOCKET; BULB
MAP LAMP<C85> 		1-86830-201-0 01 1 0012-0210 ● ● ● ●
106 SOCKET; BULB
MAP LAMP<C85> 		1-86830-201-0 01 1 0211-0405 ● ● ●
106 SOCKET; BULB
MAP LAMP<C85> 		1-86830-201-0 01 1 0406- ● ● ● ●
129 INVERTER ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-338-0 01 1 0005-0011 ● ● ●
129 INVERTER ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-338-0 01 1 0012-0210 ● ● ● ●
129 INVERTER ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-338-0 01 1 0211-0405 ● ● ●
129 INVERTER ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-338-0 01 1 0406- ● ● ● ●
130 PLATE ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-339-0 01 1 0005-0011 ● ● ●
130 PLATE ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-339-0 01 1 0012-0210 ● ● ● ●
130 PLATE ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-339-0 01 1 0211-0405 ● ● ●
130 PLATE ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-339-0 01 1 0406- ● ● ● ●
