Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#80509) — 236 parça

381 381 242 389 314 317 242 381 281 381 389 64 314 317 381 242 389 5 232 314 317 61 409 40 287 232 242 26 287 5 35 563 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1111-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1111-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1111-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1111-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1111-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1111-1309
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98175-753-0	01	1	1111-
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98175-752-0	01	1	1111-
232	03.417 HOSE; CONN EURO3 SPECIFICATION(NT3) (C)	8-98175-750-0	01	1	1111-
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98175-749-0	01	1	1111-1402
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98272-695-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (E)	8-98281-174-0	01	1	1407-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-754-0	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-755-0	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1111-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1111-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1111-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	05	1	1111-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1111-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1111-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1111-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) FRIGID ZONE(YL3) 01.750 (A)	8-98030-387-0	01	1	1111-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) EXC. FRIGID ZONE(YL3) (B)	8-98090-587-0	01	1	1111-

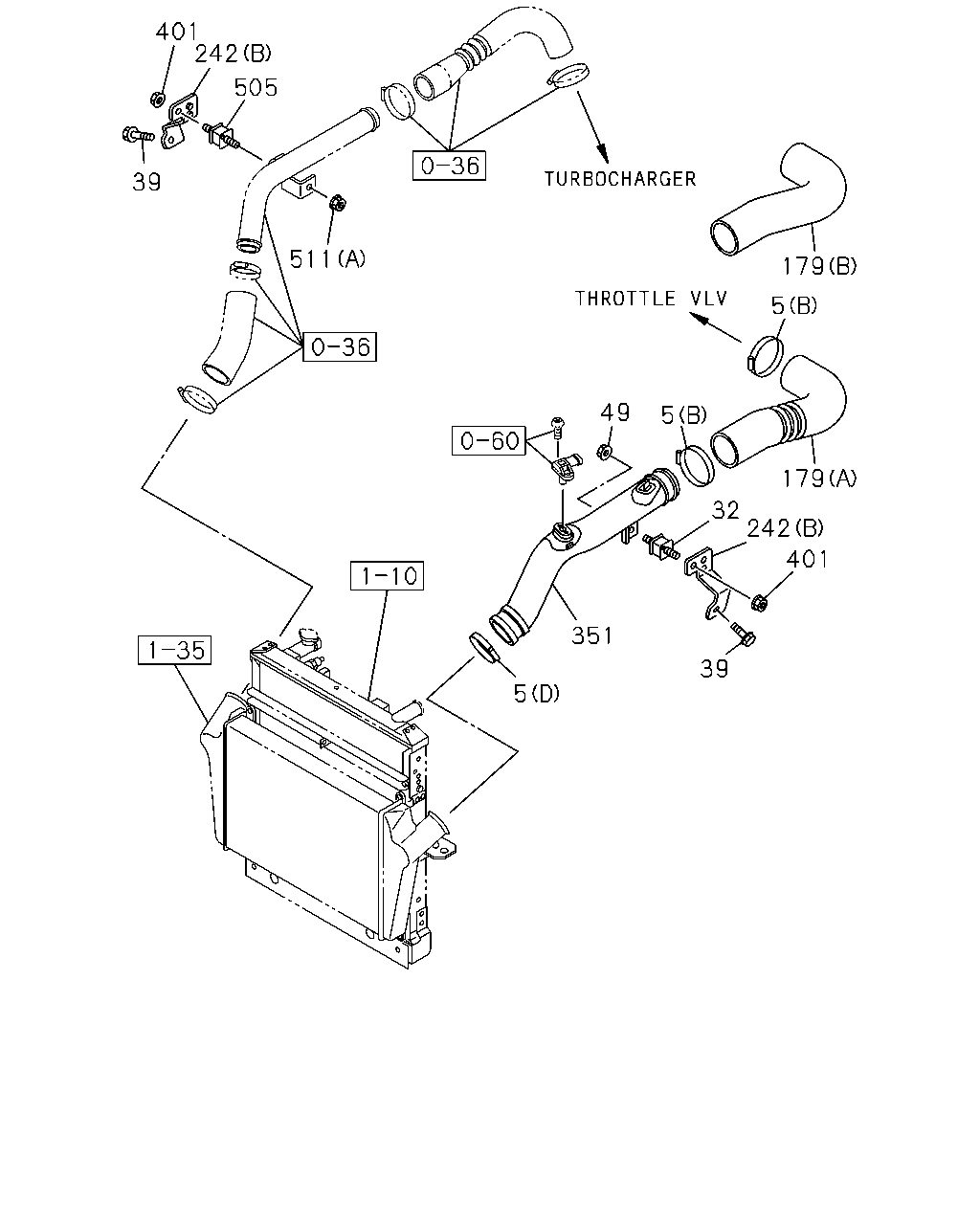

401 242 505 39 511 179 5 49 5 179 32 242 401 351 39 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1111-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1111-
32	03.417 RUBBER; AIR DUCT MTG	8-97081-886-0	01	1	1111-
39	03.417 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-
179	03.417 HOSE; AIR INT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98114-719-0	01	1	1111-
179	03.417 HOSE; AIR INT EURO4 SPECIFICATION(NT4) (B)	8-98117-928-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-754-0	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-755-0	01	1	1111-
351	03.407 DUCT; AIR	8-98105-722-1	01	1	1111-
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1111-
511	03.417 NUT; PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1111-1509
511	03.417 NUT; PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1510-
511	03.417 NUT; PIPE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1111-

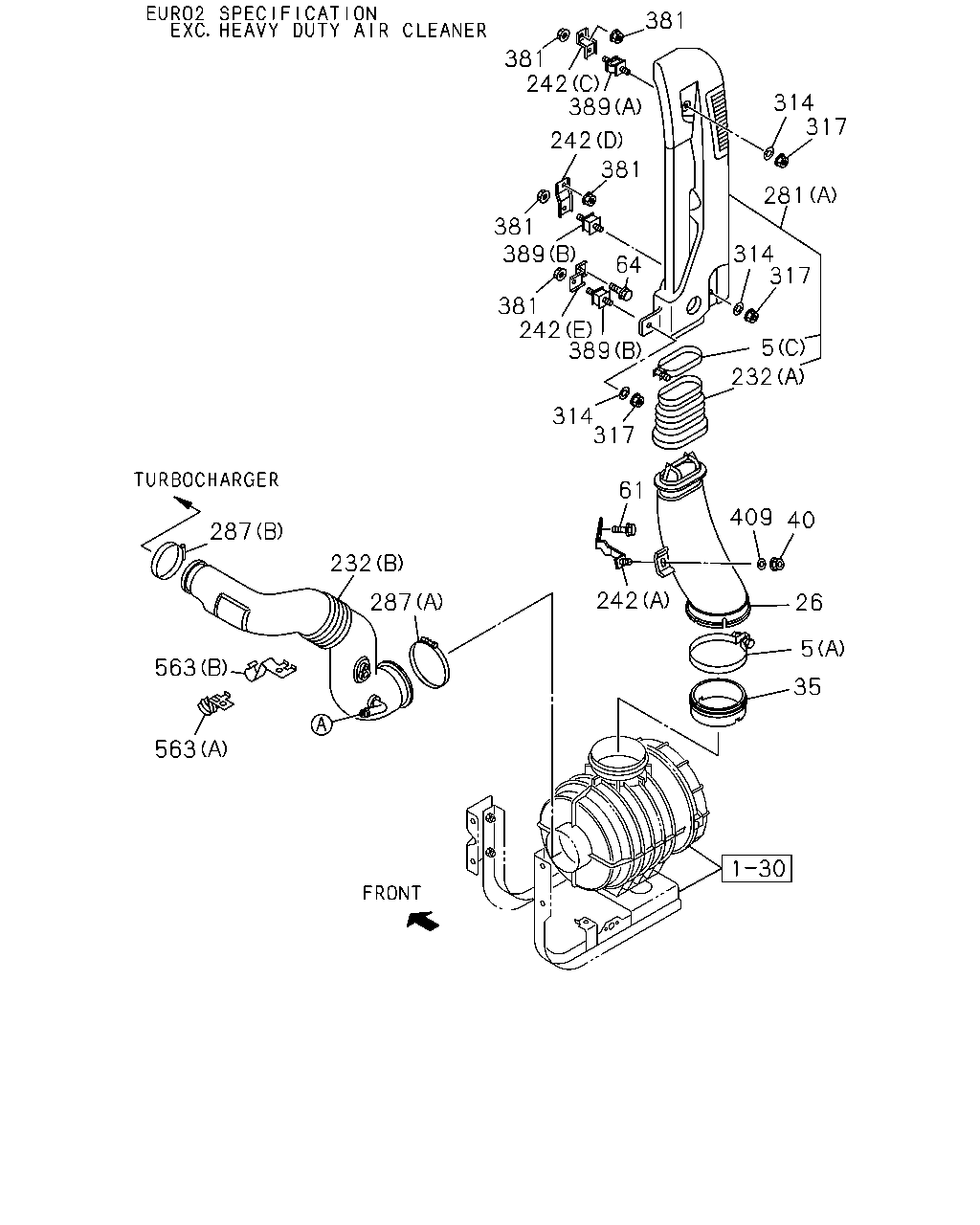

381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 242 389 5 232 314 317 61 409 40 287 232 242 287 26 5 563 35 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1111-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1111-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1111-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1111-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1111-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1111-1309
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98175-753-0	01	1	1111-
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98175-752-0	01	1	1111-
232	03.417 HOSE; CONN EURO3 SPECIFICATION(NT3) (C)	8-98175-750-0	01	1	1111-
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98175-749-0	01	1	1111-1402
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98272-695-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (E)	8-98281-174-0	01	1	1407-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-754-0	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-755-0	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1111-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1111-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1111-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	05	1	1111-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1111-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1111-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1111-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) FRIGID ZONE(YL3) 01.750 (A)	8-98030-387-0	01	1	1111-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) EXC. FRIGID ZONE(YL3) (B)	8-98090-587-0	01	1	1111-

511 424 379 357 357 357 357 379 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
159	03.417 BOLT; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1111-1509
159	03.417 BOLT; AIR PIPE 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1510-
357	03.417 CLIP; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 01.153 ID=24	8-98025-921-0	04	1	1111-1509
357	03.417 CLIP; RUBBER HOSE 01.153 ID=24	8-98025-921-0	04	1	1510-
379	03.675 HOSE; RUBBER EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (A)	8-98075-711-0	01	1	1111-
379	03.675 HOSE; RUBBER EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (B)	8-98153-120-0	01	1	1111-
379	03.675 HOSE; RUBBER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3) 03.975 (C)	8-98153-119-0	01	1	1111-
379	03.675 HOSE; RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98177-584-0	01	1	1111-1509
379	03.675 HOSE; RUBBER (D)	8-98177-584-0	01	1	1510-
379	03.675 HOSE; RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98180-671-2	01	1	1111-1509
379	03.675 HOSE; RUBBER (E)	8-98180-671-2	01	1	1510-
379	03.675 HOSE; RUBBER EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3) (B)	8-98153-093-1	01	1	1111-
424	03.417 PIPE; AIR,INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98180-496-2	01	1	1111-1509
424	03.417 PIPE; AIR,INL	8-98180-496-2	01	1	1510-
511	03.417 NUT; PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1111-1509
511	03.417 NUT; PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1510-
511	03.417 NUT; PIPE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1111-

381 381 242 389 242 381 314 317 281 314 317 5 232 317 314 389 242 381 64 389 381 232 530 232 287 557 557 554 225 175 174 35 5 26 40 409 242 61 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1111-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1111-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1111-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1111-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1111-
174	03.682 SENSOR; AIR FLOW CONT EURO4 SPECIFICATION(NT4)	8-97601-967-0	01	1	1111-
175	03.682 BOLT; AIR FLOW CONT SENSOR EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1111-
225	03.417 GASKET; AIR PIPE EURO3 SPECIFICATION(NT3) 01.097 ID=43.7	9-09561-344-0	01	1	1111-
225	03.417 GASKET; AIR PIPE EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1111-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1111-1309
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98175-753-0	01	1	1111-
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98175-752-0	01	1	1111-
232	03.417 HOSE; CONN EURO3 SPECIFICATION(NT3) (C)	8-98175-750-0	01	1	1111-
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98175-749-0	01	1	1111-1402
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98272-695-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (E)	8-98281-174-0	01	1	1407-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-754-0	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-755-0	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1111-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1111-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1111-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	05	1	1111-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1111-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1111-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1111-
530	03.407 CLAMP; AIR DUCT EURO4 SPECIFICATION(NT4) ID=77-99	1-09707-141-0	01	1	1407-
554	04.439 FLANGE; PIPE,PCV EURO3 SPECIFICATION(NT3)	8-98038-208-0	01	1	1111-
554	04.439 FLANGE; PIPE,PCV EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1111-
557	03.403 BOLT; HOSE CLIP EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1111-

381 112 381 379 242 389 314 317 242 381 281 381 389 314 317 64 225 381 242 389 5 232 554 379 314 317 287 61 232 409 40 287 242 26 5 35 112 557 379 225 248 554 228

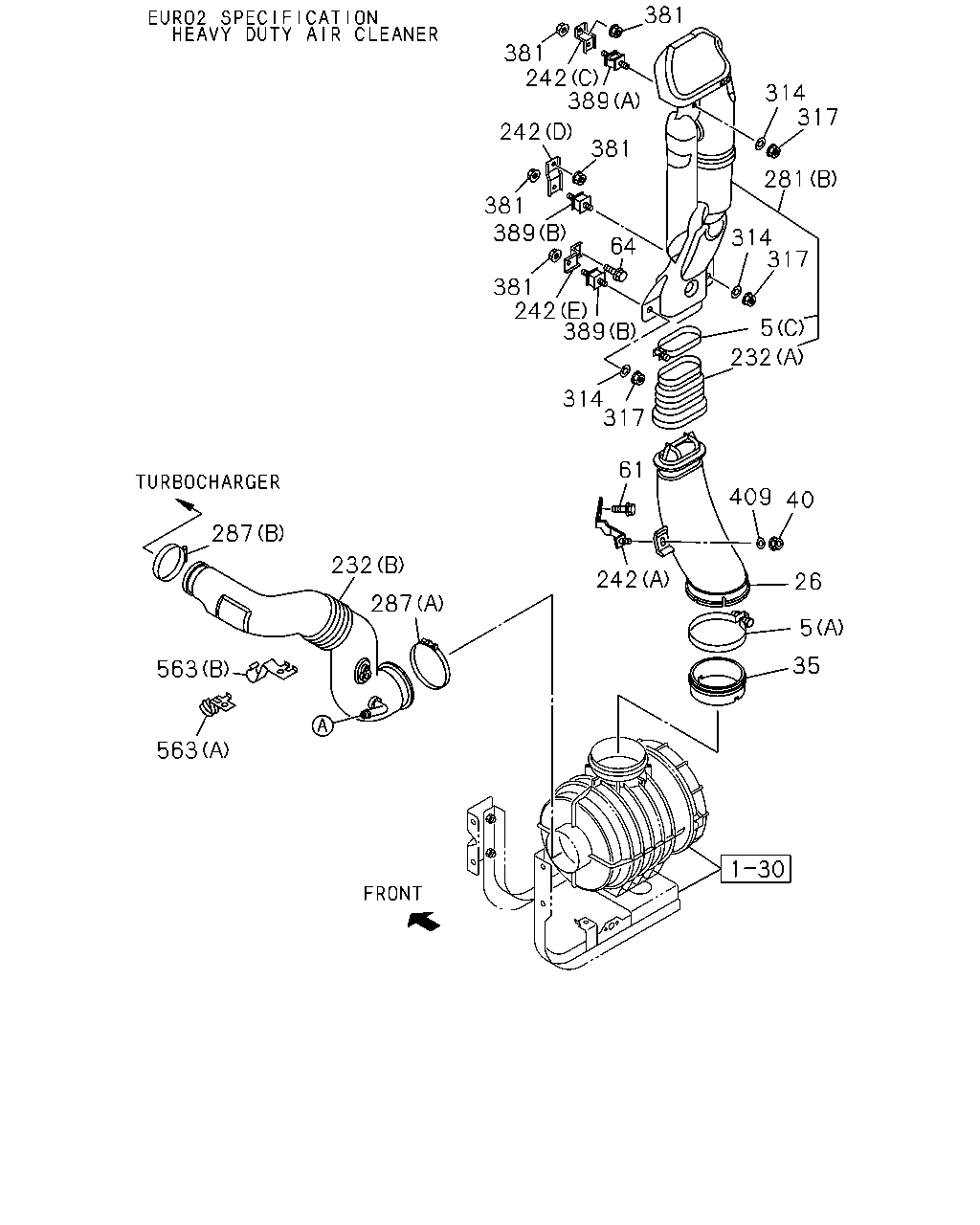

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1111-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1111-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1111-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1111-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1111-
112	03.417 BOLT; CLIP EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1111-
112	03.417 BOLT; CLIP EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-
112	03.417 BOLT; CLIP EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-
225	03.417 GASKET; AIR PIPE EURO3 SPECIFICATION(NT3) 01.097 ID=43.7	9-09561-344-0	01	1	1111-
225	03.417 GASKET; AIR PIPE EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1111-
228	03.278 CLIP; PCV HOSE EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) 04.866 ID=28 H=45 L=30	1-09700-948-0	01	1	1111-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1111-1309
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98175-753-0	01	1	1111-
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98175-752-0	01	1	1111-
232	03.417 HOSE; CONN EURO3 SPECIFICATION(NT3) (C)	8-98175-750-0	01	1	1111-
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98175-749-0	01	1	1111-1402
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98272-695-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (E)	8-98281-174-0	01	1	1407-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT FRONT WIDE TREAD<7GV> (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-754-0	01	1	1111-
242	03.417 BRACKET; AIR DUCT EXC. FRONT WIDE TREAD<7GV> (B)	8-98175-755-0	01	1	1111-
248	03.417 CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3) 08.846 ID=21.7	8-97203-074-0	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-5	01	1	1111-
281	03.417 DUCT; AIR,VERTICAL INT EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-2	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1111-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1111-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1111-
379	03.675 HOSE; RUBBER EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (A)	8-98075-711-0	01	1	1111-
379	03.675 HOSE; RUBBER EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (B)	8-98153-120-0	01	1	1111-
379	03.675 HOSE; RUBBER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3) 03.975 (C)	8-98153-119-0	01	1	1111-
379	03.675 HOSE; RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98177-584-0	01	1	1111-1509
379	03.675 HOSE; RUBBER (D)	8-98177-584-0	01	1	1510-
379	03.675 HOSE; RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98180-671-2	01	1	1111-1509
379	03.675 HOSE; RUBBER (E)	8-98180-671-2	01	1	1510-
379	03.675 HOSE; RUBBER EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3) (B)	8-98153-093-1	01	1	1111-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	05	1	1111-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1111-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1111-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1111-
554	04.439 FLANGE; PIPE,PCV EURO3 SPECIFICATION(NT3)	8-98038-208-0	01	1	1111-
554	04.439 FLANGE; PIPE,PCV EURO4 SPECIFICATION(NT4) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1111-
557	03.403 BOLT; HOSE CLIP EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
