0-57 — EMISSION PIPING (#80498) — 109 parça

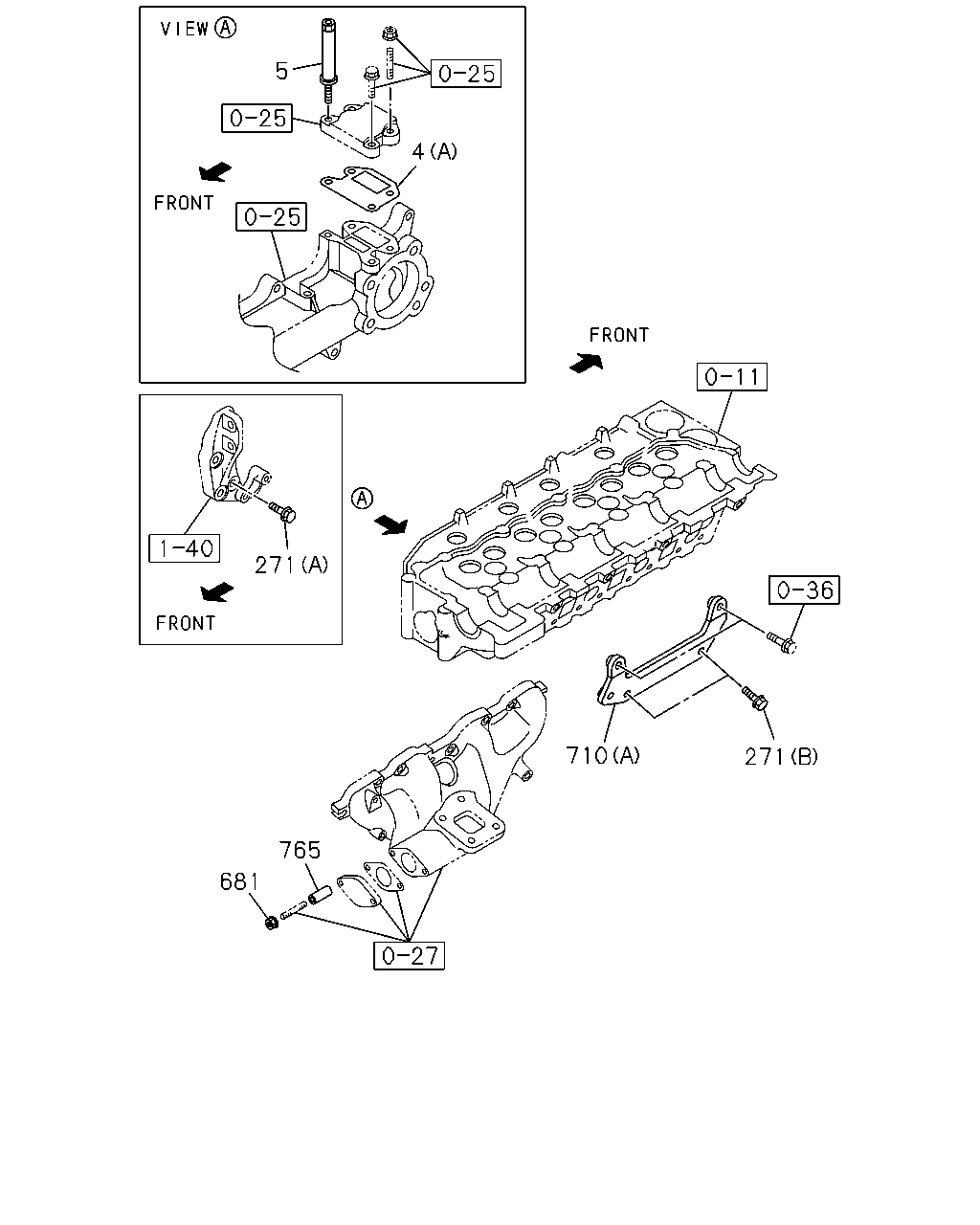

5 4 271 710 271 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1111-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.665 (B)	8-98036-507-0	01	1	1111-	●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1111-	●	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1111-	●
271	03.675 BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1111-	●	●
271	03.675 BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	1111-	●	●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	02	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1111-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1111-	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) 03.680 (D)	8-98025-253-2	01	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (E)	8-98025-254-1	01	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (F)	8-98055-940-1	01	1	1111-	●	●
765	03.670 SPACER; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613	8-94225-562-0	02	1	1111-	●	●

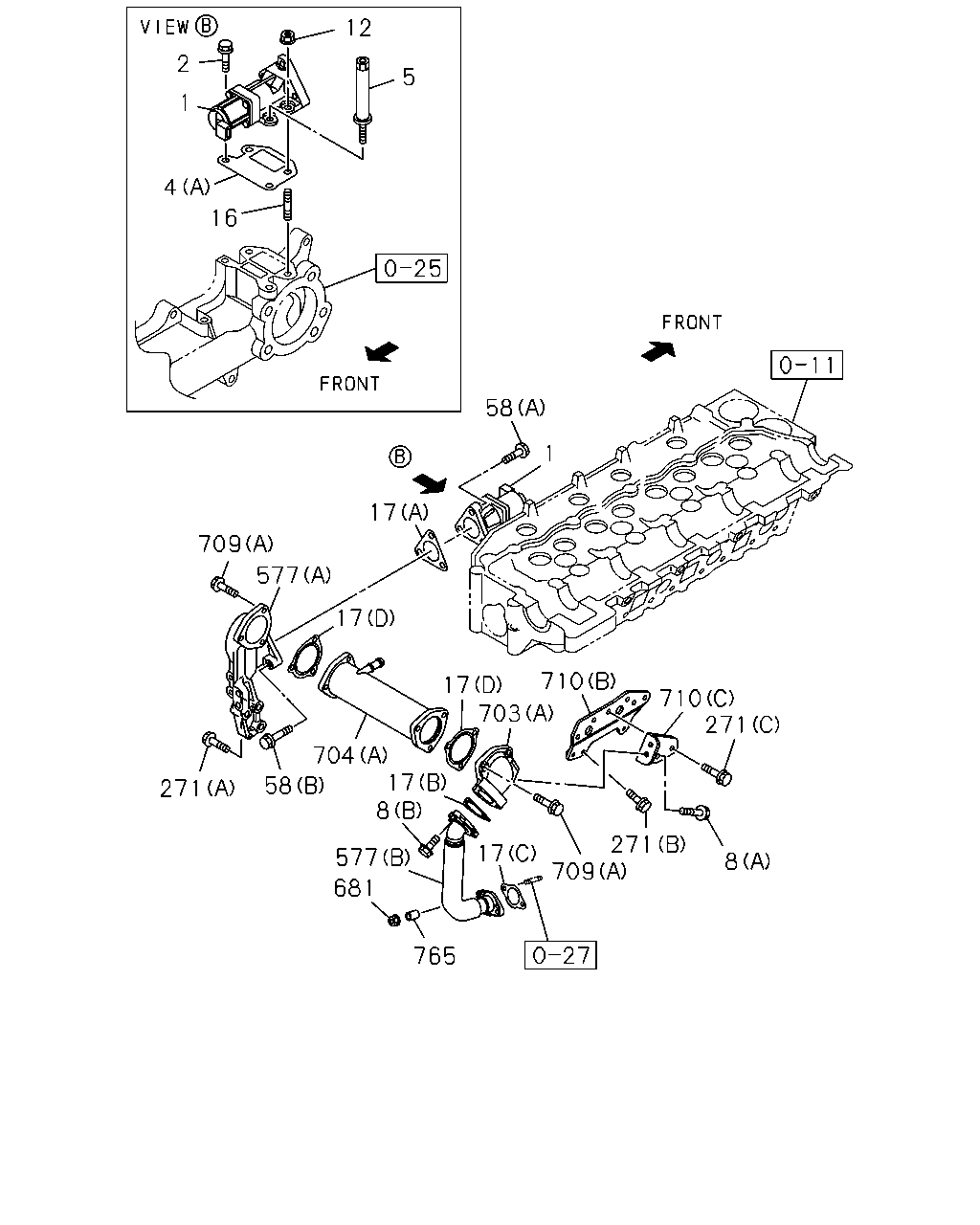

12 2 5 1 4 16 58 1 17 709 577 17 710 17 703 710 271 704 17 8 58 271 271 709 17 577 8 681 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97377-509-8	01	1	1111-	●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4)	8-98098-257-5	01	1	1111-	●	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1111-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.665 (B)	8-98036-507-0	01	1	1111-	●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1111-	●	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1111-	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 03.417 (B) M8X28 FLANGE	8-98043-528-0	03	1	1111-	●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.510 M8X20 L=32	0-41010-820-0	02	1	1111-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-97367-918-0	01	1	1111-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97375-980-1	01	1	1111-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1111-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-98036-507-0	01	1	1111-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.680 (E) ID=51.5	8-98046-192-1	01	1	1111-	●	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3) 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	1111-	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	1111-	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1111-	●
271	03.675 BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1111-	●	●
271	03.675 BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	1111-	●	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (A)	8-98055-858-2	01	1	1111-	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (B)	8-98063-655-2	01	1	1111-	●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	02	1	1111-	●	●
703	03.675 DUCT; EGR EURO3 SPECIFICATION(NT3) (A)	8-98061-100-2	01	1	1111-	●
703	03.675 DUCT; EGR EURO4 SPECIFICATION(NT4) (B)	8-98115-663-0	01	1	1111-	●	●
703	03.675 DUCT; EGR EURO4 SPECIFICATION(NT4) (C)	8-98115-665-1	01	1	1111-	●	●
704	03.337 COOLER ASM; EGR EURO3 SPECIFICATION(NT3) (A)	8-98061-104-0	01	1	1111-	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (C)	8-98025-248-5	01	1	1111-	●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (B)	8-98025-249-4	01	1	1111-1204	●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (D)	8-98212-718-0	01	1	1205-	●	●
709	03.670 BOLT; EGR COOLER EURO3 SPECIFICATION(NT3) 00.029 (A) M10X35 FLANGE	0-28751-035-0	06	1	1111-	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) (B) M8X45 FLANGE	0-28060-845-0	01	1	1111-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1111-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1111-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1111-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 03.417 (F) M8X28 FLANGE	8-98043-528-0	07	1	1111-1111	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 03.680 (F) M8X30 FLANGE	0-28660-830-0	07	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1111-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1111-	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) 03.680 (D)	8-98025-253-2	01	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (E)	8-98025-254-1	01	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (F)	8-98055-940-1	01	1	1111-	●	●
765	03.670 SPACER; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613	8-94225-562-0	02	1	1111-	●	●

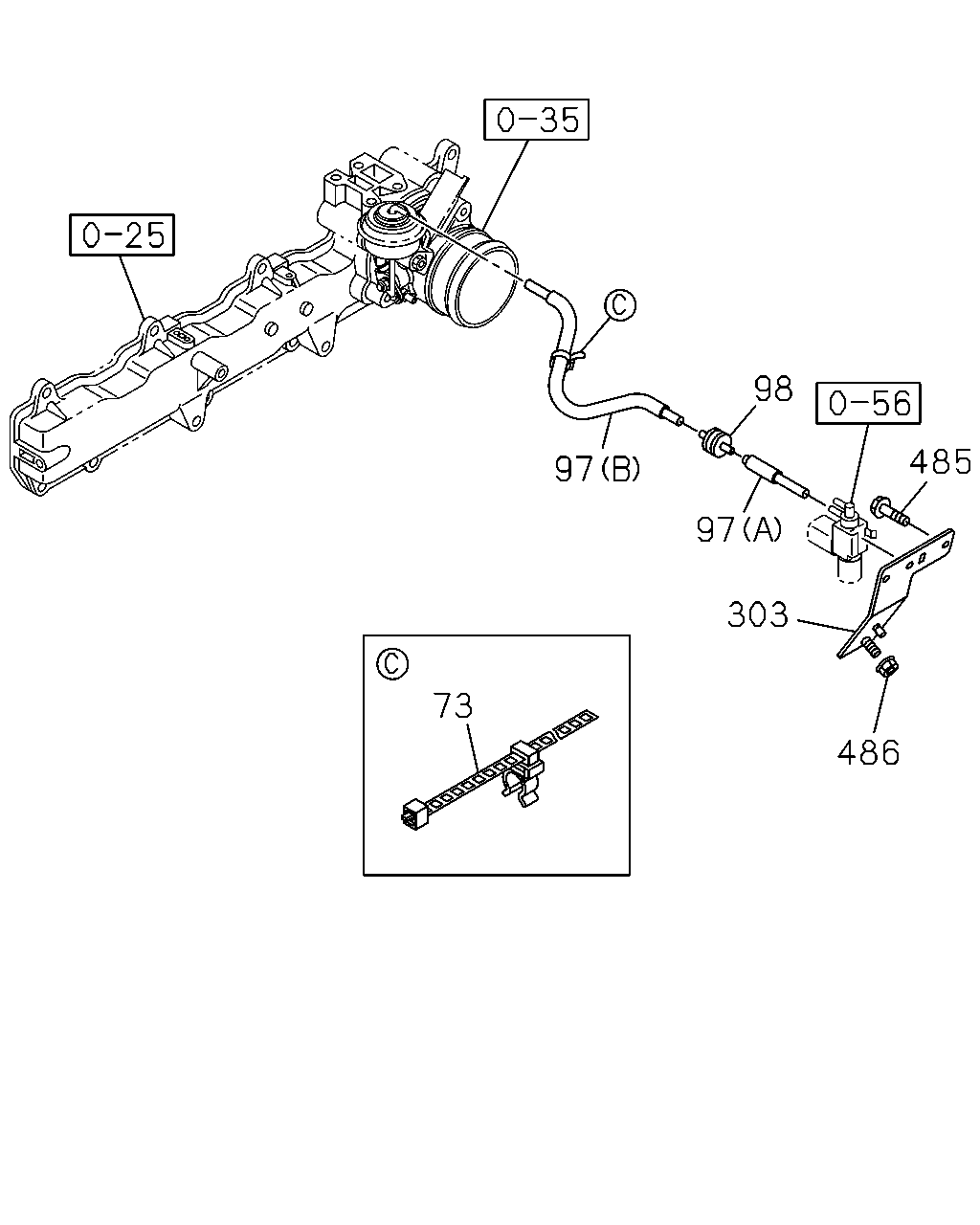

98 485 97 97 303 73 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	03.680 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) L=350	8-97373-487-0	01	1	1111-	●	●
97	03.675 HOSE; RUBBER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98113-964-0	01	1	1111-	●	●
97	03.675 HOSE; RUBBER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98113-965-0	01	1	1111-	●	●
98	03.670 VALVE; DELAY EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-94110-978-0	01	1	1111-	●	●
303	03.671 BRACKET; VAC SW EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98097-124-0	01	1	1111-	●	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1111-	●	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●

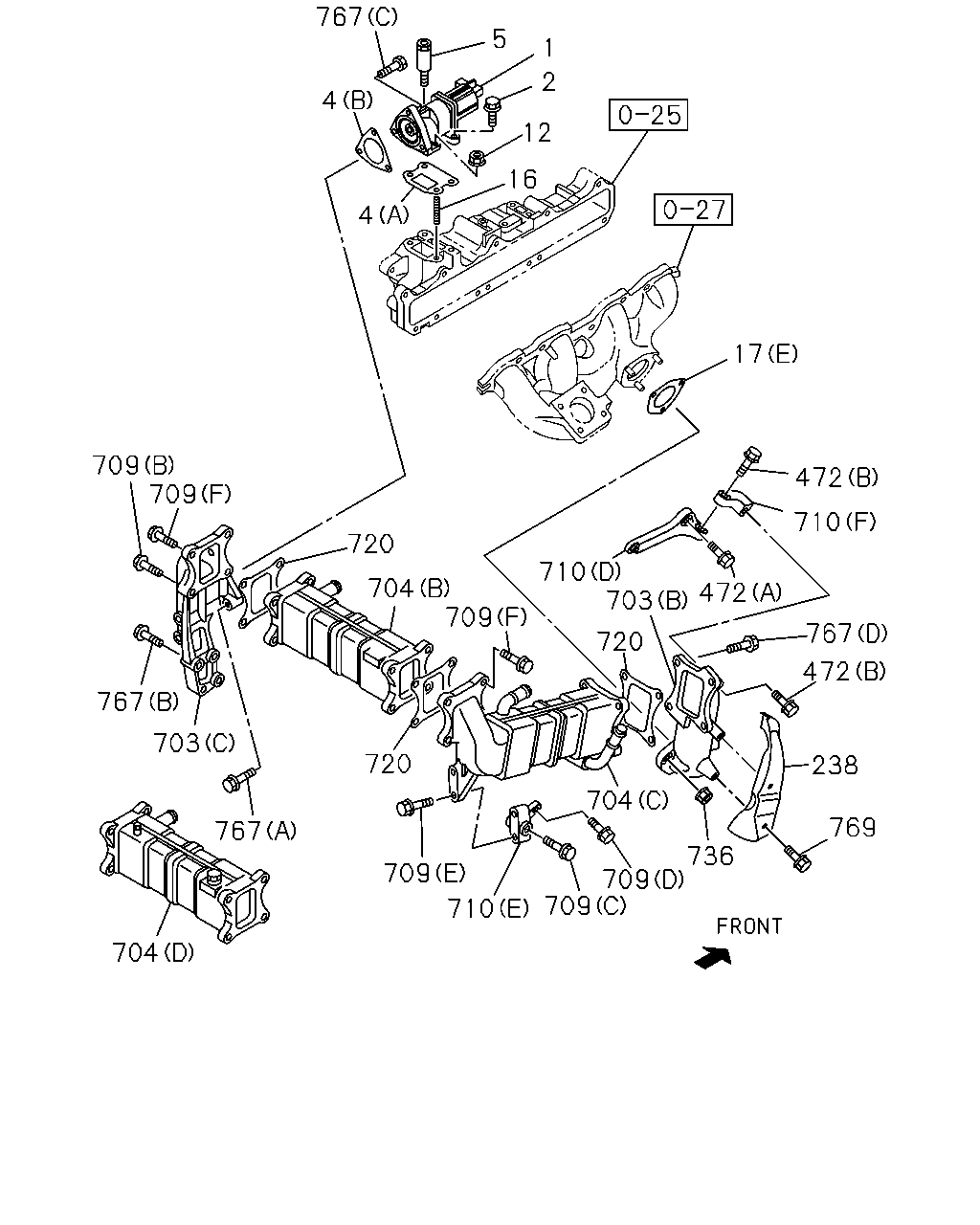

767 5 1 2 4 12 16 4 17 709 709 472 710 720 710 472 703 704 709 767 720 472 767 703 720 238 704 769 767 736 709 709 709 710 704

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97377-509-8	01	1	1111-	●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4)	8-98098-257-5	01	1	1111-	●	●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1111-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.665 (B)	8-98036-507-0	01	1	1111-	●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1111-	●	●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.510 M8X20 L=32	0-41010-820-0	02	1	1111-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-97367-918-0	01	1	1111-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97375-980-1	01	1	1111-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1111-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-98036-507-0	01	1	1111-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.680 (E) ID=51.5	8-98046-192-1	01	1	1111-	●	●
238	03.330 PROTECTOR; HEAT,EGR EURO4 SPECIFICATION(NT4)	8-98176-249-0	01	1	1111-	●	●
472	03.671 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1111-	●	●
472	03.671 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1111-	●	●
703	03.675 DUCT; EGR EURO3 SPECIFICATION(NT3) (A)	8-98061-100-2	01	1	1111-	●
703	03.675 DUCT; EGR EURO4 SPECIFICATION(NT4) (B)	8-98115-663-0	01	1	1111-	●	●
703	03.675 DUCT; EGR EURO4 SPECIFICATION(NT4) (C)	8-98115-665-1	01	1	1111-	●	●
704	03.337 COOLER ASM; EGR EURO3 SPECIFICATION(NT3) (A)	8-98061-104-0	01	1	1111-	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (C)	8-98025-248-5	01	1	1111-	●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (B)	8-98025-249-4	01	1	1111-1204	●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (D)	8-98212-718-0	01	1	1205-	●	●
709	03.670 BOLT; EGR COOLER EURO3 SPECIFICATION(NT3) 00.029 (A) M10X35 FLANGE	0-28751-035-0	06	1	1111-	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) (B) M8X45 FLANGE	0-28060-845-0	01	1	1111-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1111-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1111-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1111-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 03.417 (F) M8X28 FLANGE	8-98043-528-0	07	1	1111-1111	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 03.680 (F) M8X30 FLANGE	0-28660-830-0	07	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1111-	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1111-	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) 03.680 (D)	8-98025-253-2	01	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (E)	8-98025-254-1	01	1	1111-	●	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (F)	8-98055-940-1	01	1	1111-	●	●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4)	8-98149-353-0	03	1	1111-1302	●	●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4)	8-98200-753-0	03	1	1303-	●	●
736	03.675 NUT; DUCT,EGR VLV EURO4 SPECIFICATION(NT4) 03.613 M8 FLANGE	8-97061-401-1	03	1	1111-	●	●
767	03.670 BOLT; DUCT,EGR EURO4 SPECIFICATION(NT4) 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1111-	●	●
767	03.670 BOLT; DUCT,EGR EURO4 SPECIFICATION(NT4) 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1111-	●	●
767	03.670 BOLT; DUCT,EGR EURO4 SPECIFICATION(NT4) 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	1111-	●	●
767	03.670 BOLT; DUCT,EGR EURO4 SPECIFICATION(NT4) 03.417 (D) M8X28 FLANGE	8-98043-528-0	04	1	1111-	●	●
769	01.750 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1111-	●	●
