◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51386 - NQR AIR BRAKE RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#80492) — 25 parça

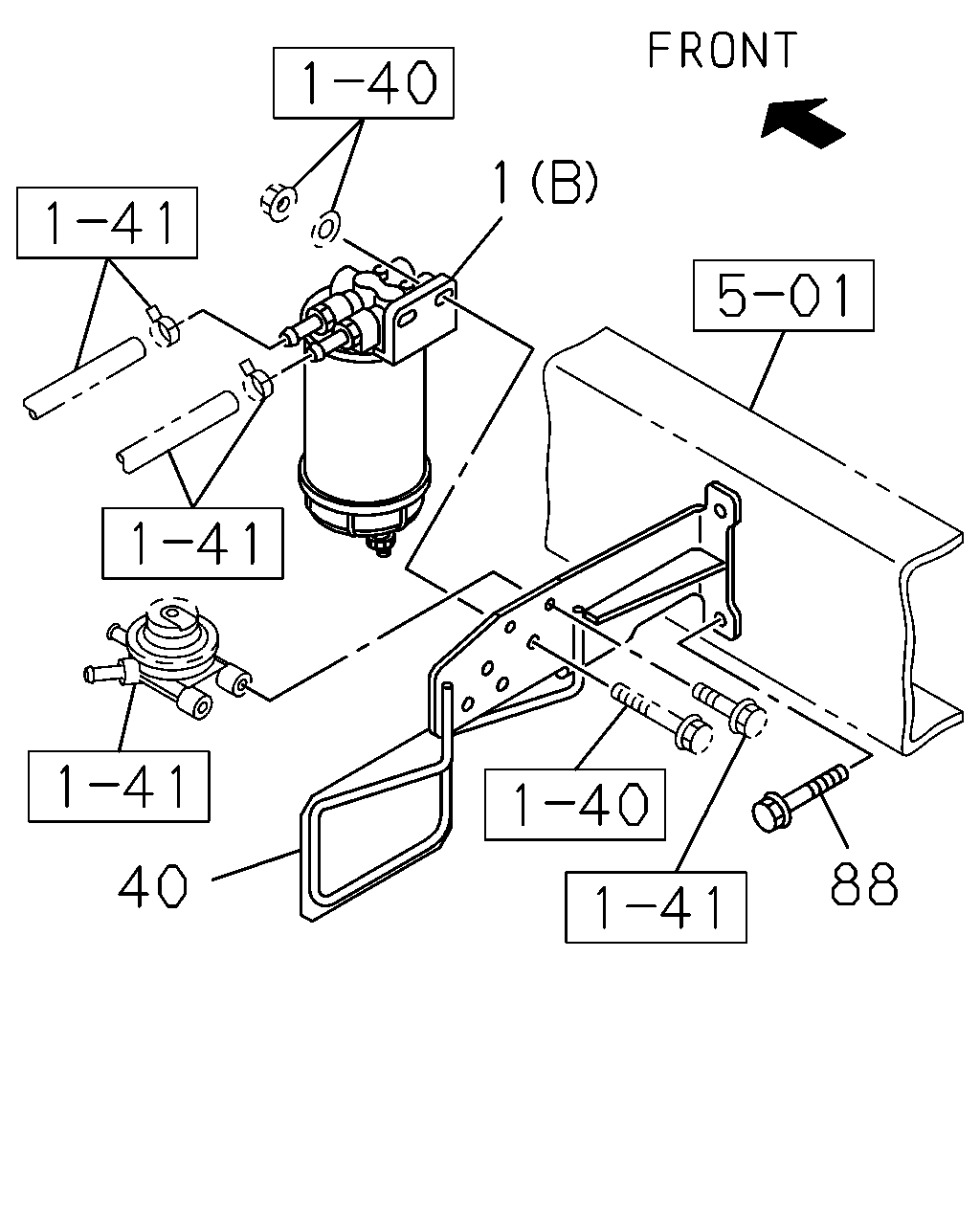

çizim 63550
1 88 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1111- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1111- ● ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98107-354-3 01 1 1111- ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1111- ● ●

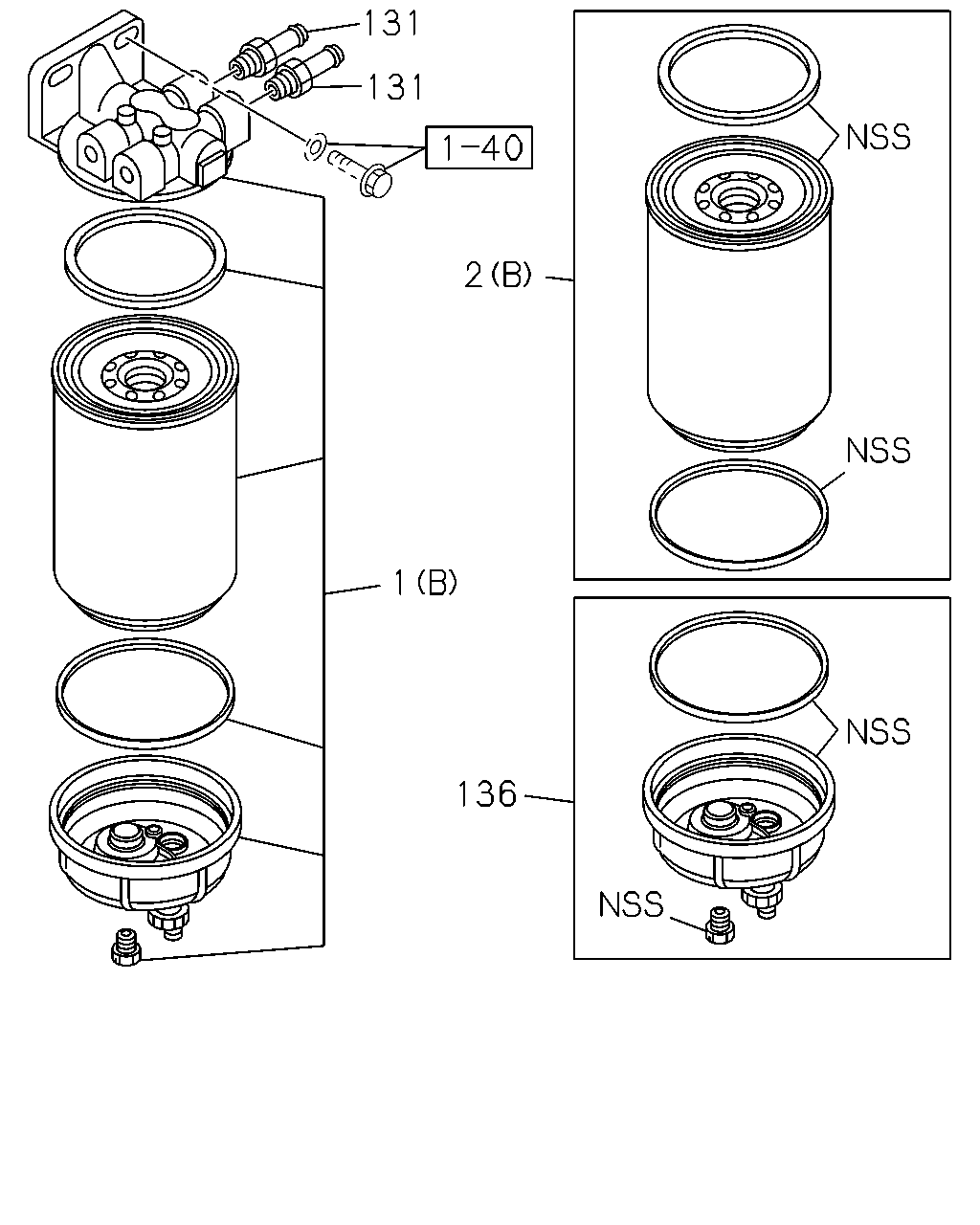

çizim 63964
131 131 2 1 136
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1111- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1111- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1111- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1111-1112 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1111- ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 1111-1408 ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1409- ● ●

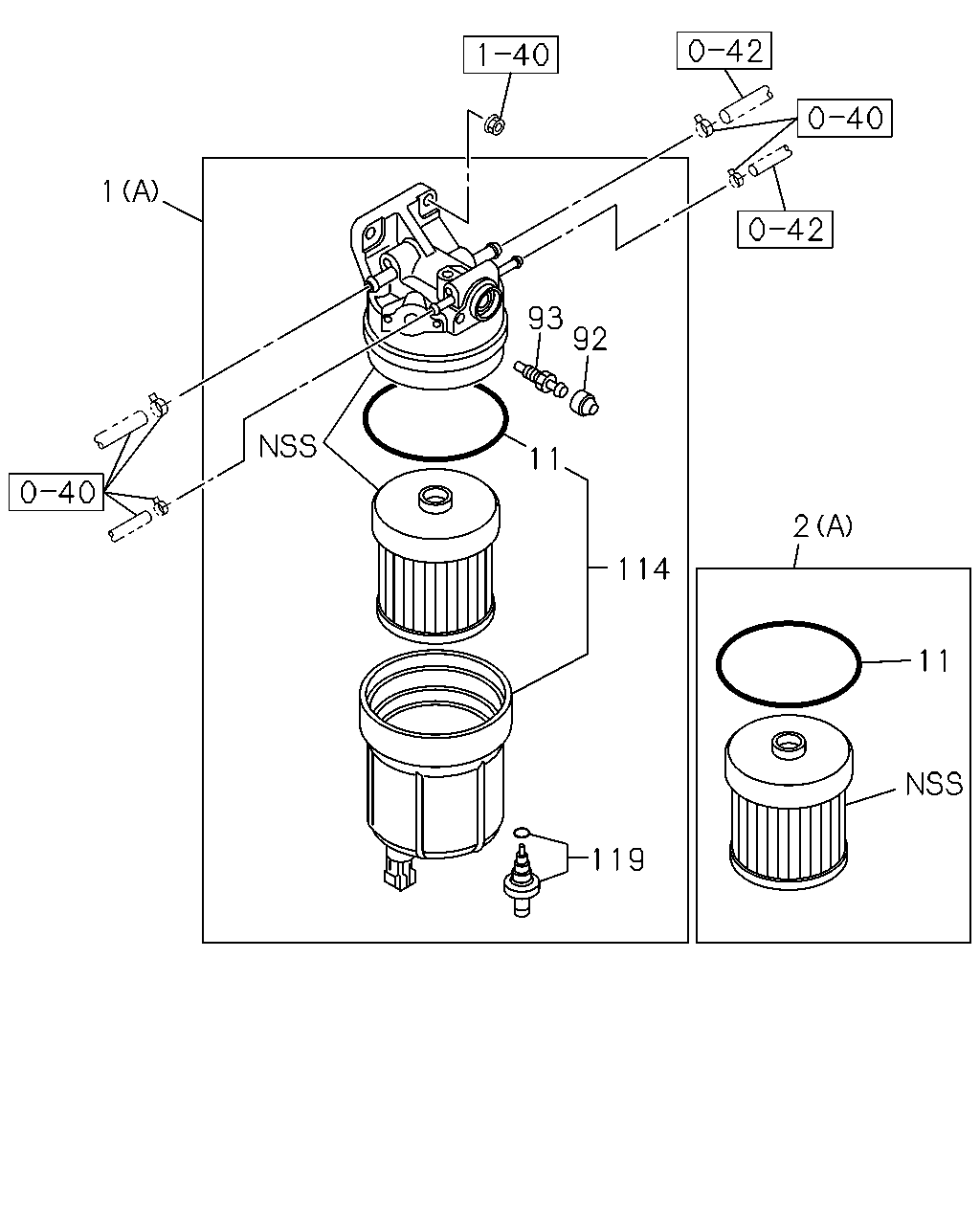

çizim 183065
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1111- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1111- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1111- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1111-1112 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 1111-1112 ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201- ● ●
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 1111- ● ●
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1111- ● ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1111- ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 1111- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
