◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#8049) — 176 parça

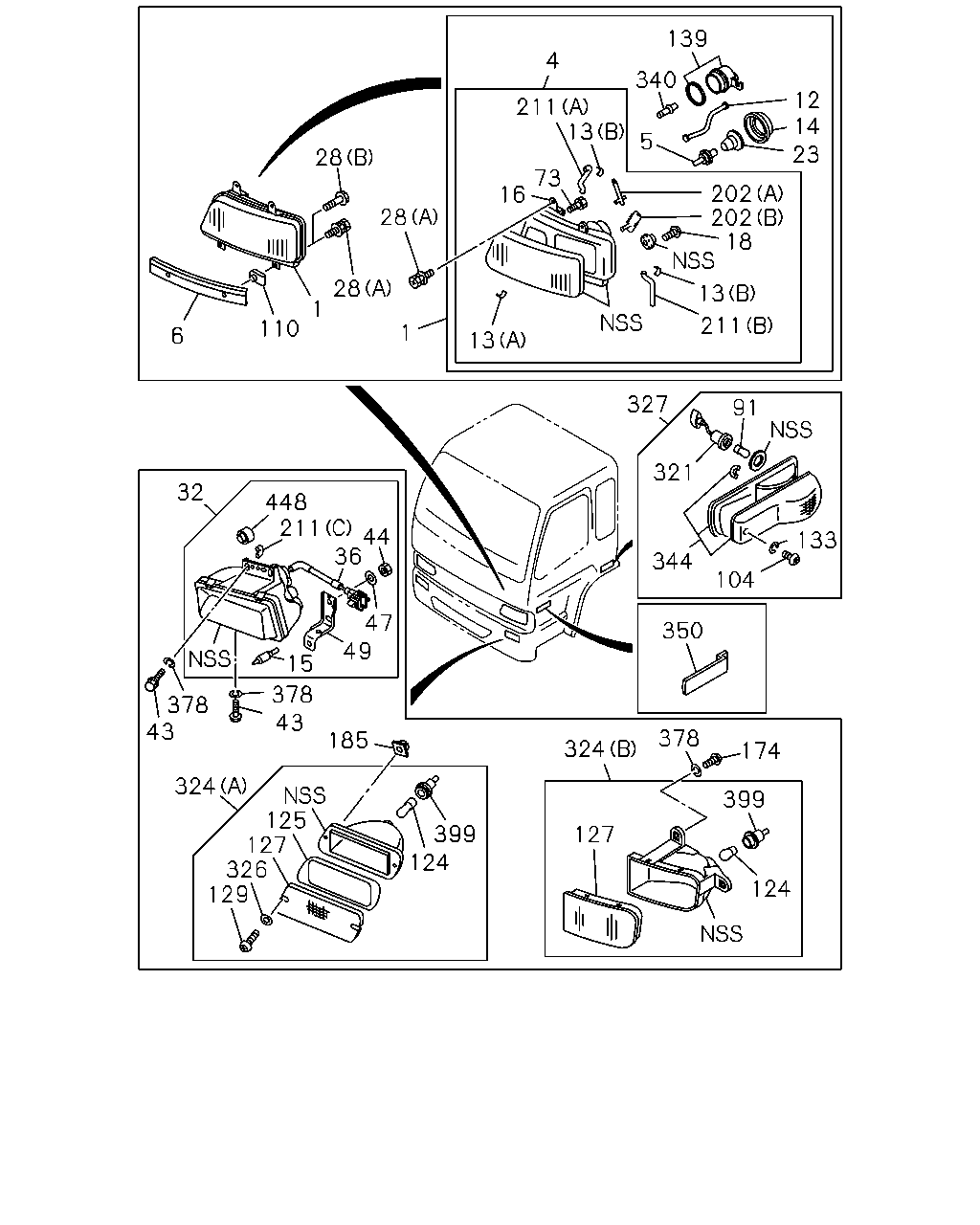

çizim 10828
28 28 28 1 1 110 6 32 448 211 44 36 47 49 15 378 43 185 378 43 324 125 127 326 129 124 399 324 378 174 399 124 127 350 104 344 133 91 321 327 211 13 18 202 202 23 14 12 139 340 5 4 211 13 73 16 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD 1-86830-122-3 01 1 0005-0011 ● ● ●
1 LAMP ASM; HEAD 1-86830-122-4 01 1 0012- ● ● ● ●
1 LAMP ASM; HEAD 1-86830-121-3 01 1 0005-0011 ● ● ●
1 LAMP ASM; HEAD 1-86830-121-4 01 1 0012- ● ● ● ●
4 HEADLAMP UNIT 1-86830-194-1 01 1 0005-0011 ● ● ●
4 HEADLAMP UNIT 1-86830-194-1 01 1 0012- ● ● ● ●
4 HEADLAMP UNIT 1-86830-193-1 01 1 0005-0011 ● ● ●
4 HEADLAMP UNIT 1-86830-193-1 01 1 0012- ● ● ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0005-0011 ● ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0012- ● ● ● ●
6 RIM; HEADLAMP
BODY COLOR FT ORANGE(609) EXC. CUSTOM CAB(SR5) 		1-86830-005-5 01 1 0612- ● ● ●
6 RIM; HEADLAMP
BODY COLOR FT ORANGE(609) 		1-86830-005-5 01 1 0612- ●
6 RIM; HEADLAMP
BODY COLOR FT ORANGE(609) EXC. CUSTOM CAB(SR5) 		1-86830-006-5 01 1 0612- ● ● ●
6 RIM; HEADLAMP
BODY COLOR FT ORANGE(609) 		1-86830-006-5 01 1 0612- ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> 		1-86830-035-5 01 1 0602-0602 ● ● ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. CUSTOM CAB(SR5) 		1-86830-035-5 01 1 0603- ● ● ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> 		1-86830-036-5 01 1 0602-0602 ● ● ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. CUSTOM CAB(SR5) 		1-86830-036-5 01 1 0603- ● ● ● ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) 		1-88434-533-0 01 1 0005-0011 ● ● ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) 		1-88434-533-0 01 1 0012-0210 ● ● ● ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) 		1-88434-533-0 01 1 0211- ● ● ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) 		1-88434-532-0 01 1 0005-0011 ● ● ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) 		1-88434-532-0 01 1 0012-0210 ● ● ● ●
6 RIM; HEADLAMP
CUSTOM CAB(SR5) 		1-88434-532-0 01 1 0211- ● ● ●
6 RIM; HEADLAMP
EXC. CUSTOM CAB(SR5) 		1-86830-006-5 01 1 0005-0011 ● ● ●
6 RIM; HEADLAMP
EXC. CUSTOM CAB(SR5) 		1-86830-006-5 01 1 0012-0210 ● ● ● ●
6 RIM; HEADLAMP
EXC. CUSTOM CAB(SR5) 		1-86830-005-5 01 1 0005-0011 ● ● ●
6 RIM; HEADLAMP
EXC. CUSTOM CAB(SR5) 		1-86830-005-5 01 1 0012-0210 ● ● ● ●
6 RIM; HEADLAMP
EXC. CUSTOM CAB(SR5) 		1-86830-006-5 01 1 0211-0601 ● ● ●
6 RIM; HEADLAMP 1-86830-006-5 01 1 0211-0601 ●
6 RIM; HEADLAMP
EXC. CUSTOM CAB(SR5) 		1-86830-005-5 01 1 0211-0601 ● ● ●
6 RIM; HEADLAMP 1-86830-005-5 01 1 0211-0601 ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) EXC. CUSTOM CAB(SR5),FOG LAMP<T96> 		1-86830-005-5 01 1 0602- ● ● ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) EXC. CUSTOM CAB(SR5),FOG LAMP<T96> 		1-86830-006-5 01 1 0602- ● ● ● ●
12 HARNESS; HEADLAMP 1-86830-199-0 02 1 0211- ● ● ● ●
12 HARNESS; HEADLAMP 1-86830-199-0 02 1 0005-0011 ● ● ●
12 HARNESS; HEADLAMP 1-86830-199-0 02 1 0012-0210 ● ● ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0005-0011 ● ● ●
13 CLIP; HEADLAMP
(B) 		1-82119-084-0 04 1 0012- ● ● ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0005-0011 ● ● ●
13 CLIP; HEADLAMP
(A) 		8-94381-588-0 14 1 0012- ● ● ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0005-0011 ● ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0012- ● ● ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0601- ● ● ● ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 0005-0011 ● ● ●
16 BRACKET; HEADLAMP 1-86830-076-0 01 1 0012- ● ● ● ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 0005-0011 ● ● ●
16 BRACKET; HEADLAMP 1-86830-075-0 01 1 0012- ● ● ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0005-0011 ● ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0012- ● ● ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0005-0011 ● ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0012- ● ● ● ●
28 BOLT; HEADLAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0005-0011 ● ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0012-0708 ● ● ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709- ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		1-82110-453-0 01 1 0601-0712 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		1-82110-475-0 01 1 0801-0906 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-149-1 01 1 0907-1301 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-064-0 01 1 1302- ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		1-82110-454-0 01 1 0601-0712 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		1-82110-476-0 01 1 0801-0906 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-150-1 01 1 0907-1301 ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-065-0 01 1 1302- ● ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0601- ● ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0601- ● ● ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X20 FLANGE 		0-28650-620-0 04 1 0601- ● ● ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1205- ● ● ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1205- ● ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-437-0 01 1 0601- ● ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-438-0 01 1 0601- ● ● ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0005-0011 ● ● ●
73 BOLT; BRKT,HEADLAMP 8-94332-050-0 04 1 0012- ● ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0005-0011 ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0012- ● ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0005-0011 ● ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0012- ● ● ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 0005-0011 ● ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-1 04 1 0012- ● ● ● ●
124 BULB; FRT TURN SIGNAL
FOG LAMP<T96> 24V 21W 		1-82194-105-0 02 1 0601- ● ● ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0005-0011 ● ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0012-0512 ● ● ● ●
124 BULB; FRT TURN SIGNAL
EXC. FOG LAMP<T96> 24V 21W 		1-82194-036-0 02 1 0601- ● ● ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0005-0011 ● ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0012-0512 ● ● ● ●
125 GASKET; FRT TURN SIGNAL
EXC. FOG LAMP<T96> 		1-82216-033-0 02 1 0601- ● ● ● ●
127 LENS; FRT TURN SIGNAL
FOG LAMP<T96> ORANGE 		1-82215-073-0 01 1 0601- ● ● ● ●
127 LENS; FRT TURN SIGNAL
FOG LAMP<T96> ORANGE 		1-82215-074-0 01 1 0601- ● ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0005-0011 ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0012-0512 ● ● ● ●
127 LENS; FRT TURN SIGNAL
EXC. FOG LAMP<T96> ORANGE 		1-82215-065-0 01 1 0601- ● ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0005-0011 ● ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0012-0512 ● ● ● ●
127 LENS; FRT TURN SIGNAL
EXC. FOG LAMP<T96> ORANGE 		1-82215-064-0 01 1 0601- ● ● ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0005-0011 ● ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0012-0512 ● ● ● ●
129 SCREW; FRT TURN SIGNAL
EXC. FOG LAMP<T96> 		1-82219-026-0 04 1 0601- ● ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0005-0011 ● ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0012-0206 ● ● ● ●
139 COVER; HEADLAMP 1-82119-224-0 02 1 0211- ● ● ● ●
174 BOLT
FOG LAMP<T96> M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601- ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		1-09039-006-1 04 1 0005-0011 ● ● ●
174 BOLT
M6X25 W/PL WASHER 		1-09039-006-1 04 1 0012-0906 ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		8-98064-173-0 04 1 0907- ● ● ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005-0011 ● ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0012-0512 ● ● ● ●
185 GROMMET; SCREW
EXC. FOG LAMP<T96> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0601- ● ● ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 0005-0011 ● ● ●
202 GEAR UNIT; HEADLAMP
(A) OUTER 		1-86830-139-0 02 1 0012- ● ● ● ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 0005-0011 ● ● ●
202 GEAR UNIT; HEADLAMP
(B) INNER 		1-86830-140-0 02 1 0012- ● ● ● ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (C) 		8-97025-128-0 02 1 0601-0906 ● ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0005-0011 ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0012-0105 ● ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0005-0011 ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0012- ● ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0005-0011 ● ● ●
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0012-0105 ● ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0005-0011 ● ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0012- ● ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0005-0011 ● ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0012- ● ● ● ●
324 LAMP; FRT FLASHER
FOG LAMP<T96> (B) 		1-82210-259-1 01 1 0601- ● ● ● ●
324 LAMP; FRT FLASHER
FOG LAMP<T96> (B) 		1-82210-260-1 01 1 0601- ● ● ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-203-1 01 1 0005-0011 ● ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-203-1 01 1 0012-0512 ● ● ● ●
324 LAMP; FRT FLASHER
EXC. FOG LAMP<T96> (A) 		1-82210-203-1 01 1 0601- ● ● ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-202-1 01 1 0005-0011 ● ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-202-1 01 1 0012-0512 ● ● ● ●
324 LAMP; FRT FLASHER
EXC. FOG LAMP<T96> (A) 		1-82210-202-1 01 1 0601- ● ● ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0005-0011 ● ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0012-0512 ● ● ● ●
326 WASHER; PL,FRT TURN SIGNAL
EXC. FOG LAMP<T96> 		1-82216-032-0 04 1 0601- ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-0 01 1 0005-0011 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-263-1 01 1 0012- ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-0 01 1 0005-0011 ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-262-1 01 1 0012- ● ● ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0005-0011 ● ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0012- ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-0 01 1 0005-0011 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0012- ● ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-0 01 1 0005-0011 ● ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0012- ● ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 0005-0011 ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 0005-0011 ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-944-1 01 1 0012-0209 ● ● ● ●
350 COVER; SIDE TURN HOLE 1-79998-943-1 01 1 0012-0209 ● ● ● ●
350 COVER; SIDE TURN HOLE 1-79996-607-0 01 1 0210- ● ● ● ●
350 COVER; SIDE TURN HOLE 1-79996-606-0 01 1 0210- ● ● ● ●
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 04 1 0601-0605 ● ● ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 0606- ● ● ● ●
399 SOCKET; TURN SIGNAL
FOG LAMP<T96> 		1-82219-038-0 02 1 0601- ● ● ● ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0005-0011 ● ● ●
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0012-0512 ● ● ● ●
399 SOCKET; TURN SIGNAL
EXC. FOG LAMP<T96> 		1-82219-034-0 02 1 0601- ● ● ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0907- ● ● ● ●
çizim 49519
256 83 82 80 292 174 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0211- ● ● ● ●
80 BULB; MARKER LAMP
12V 5W 		1-82194-053-0 02 1 0005-0011 ● ● ●
80 BULB; MARKER LAMP
12V 5W 		1-82194-053-0 02 1 0012-0210 ● ● ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0005-0011 ● ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0012- ● ● ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0005-0011 ● ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0012- ● ● ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 04 1 0005-0011 ● ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 04 1 0012- ● ● ● ●
174 BOLT
FOG LAMP<T96> M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601- ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		1-09039-006-1 04 1 0005-0011 ● ● ●
174 BOLT
M6X25 W/PL WASHER 		1-09039-006-1 04 1 0012-0906 ● ● ● ●
174 BOLT
M6X25 W/PL WASHER 		8-98064-173-0 04 1 0907- ● ● ● ●
256 LAMP; MARKER 1-86830-293-0 01 1 0005-0011 ● ● ●
256 LAMP; MARKER 1-86830-293-0 01 1 0012- ● ● ● ●
256 LAMP; MARKER 1-86830-292-0 01 1 0005-0011 ● ● ●
256 LAMP; MARKER 1-86830-292-0 01 1 0012- ● ● ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0005-0011 ● ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0012- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
