Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#80487) — 260 parça

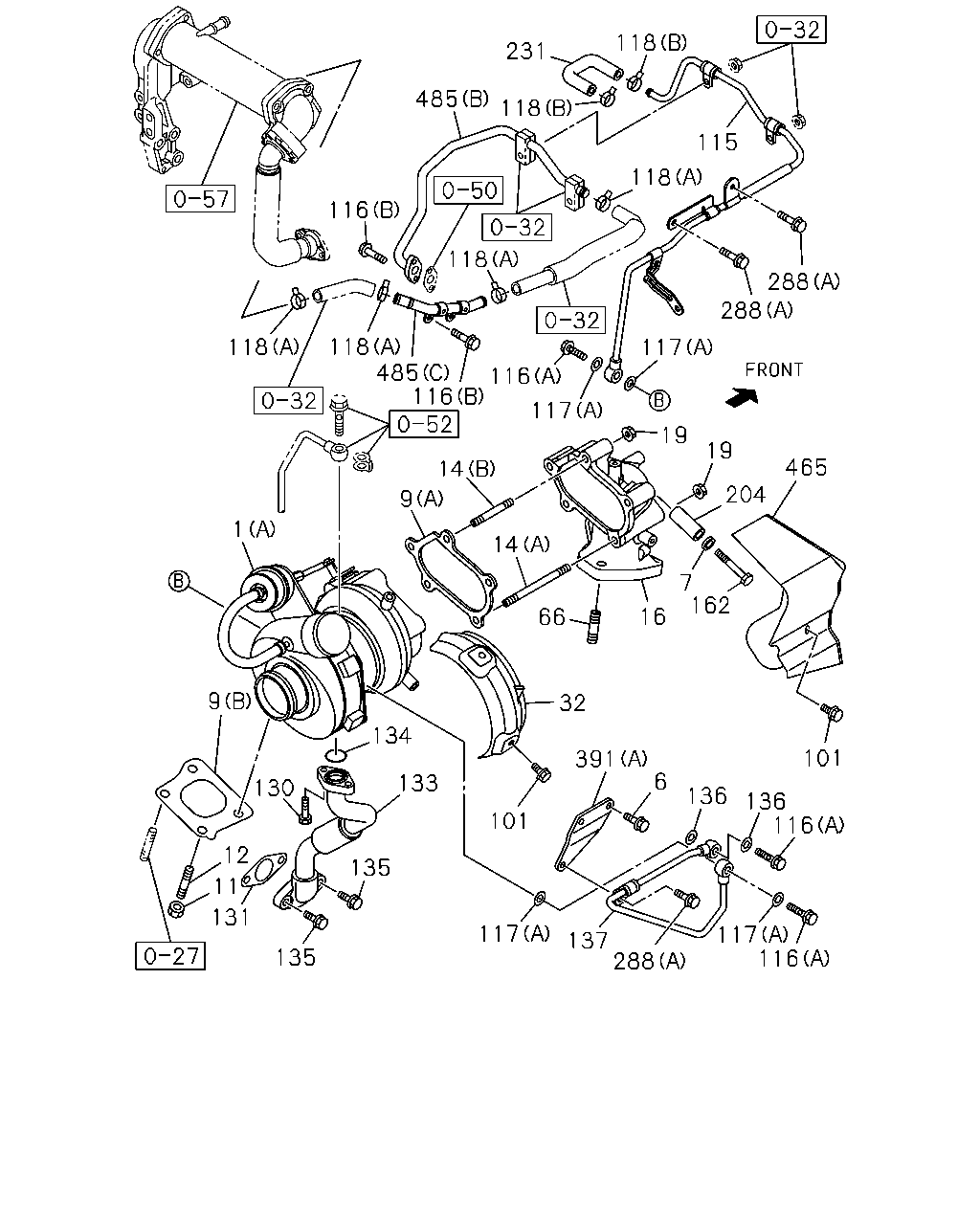

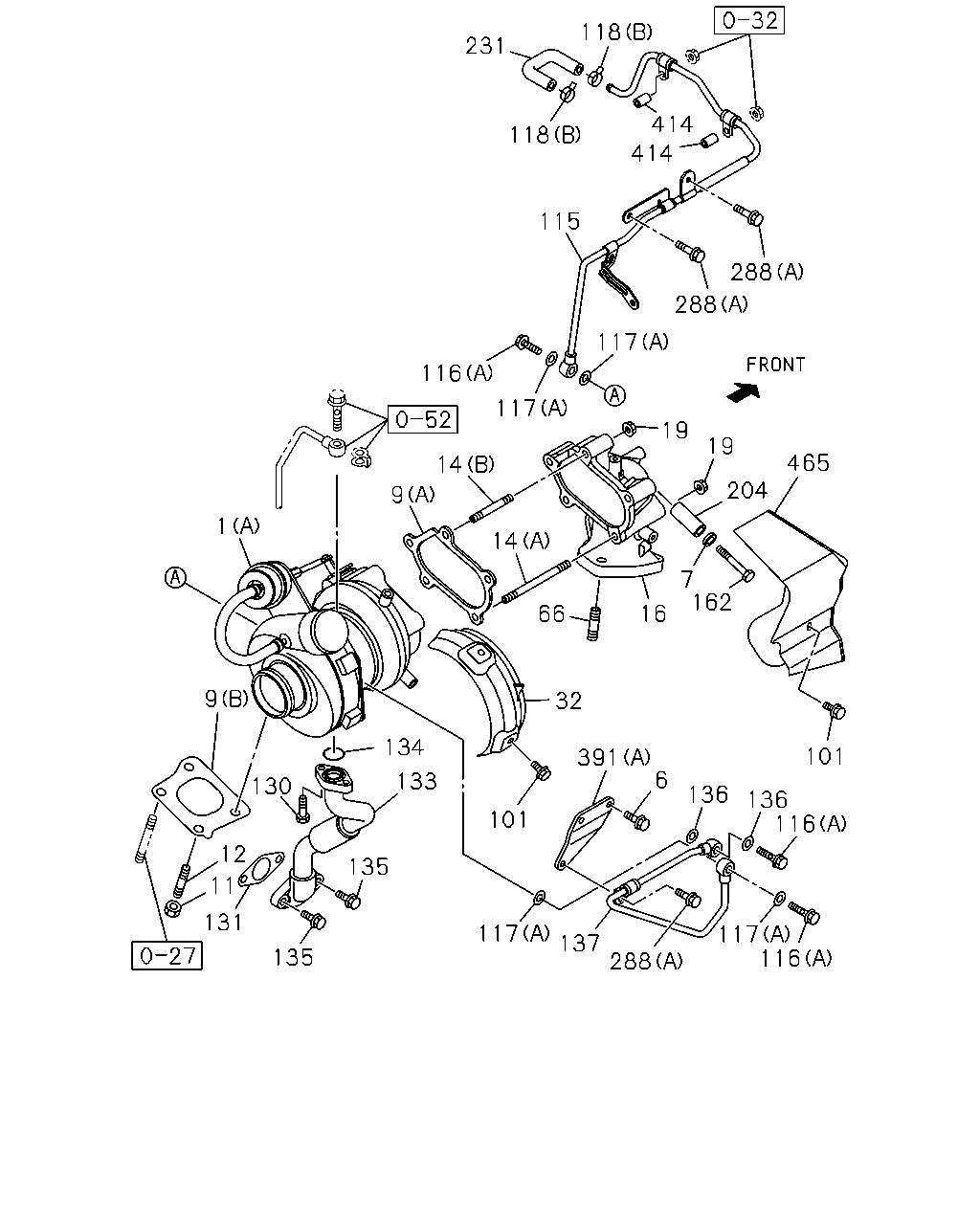

231 118 414 414 118 115 117 288 288 116 117 14 9 1 9 130 12 11 131 135 135 133 134 14 66 32 16 391 101 6 136 136 116 101 162 7 204 465 19 19 117 137 288 116 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-		●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98027-772-5	01	1	1111-1509	●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98322-481-0	01	1	1510-	●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97039-777-1	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97374-412-0	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (C) ID=54	8-97376-758-0	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (D) ID=49	8-98046-241-0	01	1	1111-	●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	1111-	●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	1111-	●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	1111-	●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	1111-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108	8-97019-477-0	02	1	1111-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1111-	●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	1111-	●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	1111-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	1111-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	1111-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97351-168-0	01	1	1111-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98031-888-3	01	1	1111-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1111-	●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1111-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98096-928-0	01	1	1111-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4)	8-98085-187-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (B) M8X20 FLANGE	0-28650-820-0	04	1	1111-	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	1111-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1111-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1111-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (B) ID=12.2	9-09571-412-0	04	1	1111-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	06	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1111-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (C) ID=22	8-97359-141-0	02	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 01.153 (D) ID=24	8-98025-921-0	04	1	1111-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1111-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1111-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98172-658-0	01	1	1111-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98172-661-0	01	1	1111-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1111-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1111-	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98063-840-0	01	1	1111-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4)	8-97387-271-0	01	1	1111-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1111-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1111-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1111-	●	●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1111-	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1111-	●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	1111-	●	●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (B)	8-98013-958-0	01	1	1111-	●	●
414	03.602 SPACER EURO2 SPECIFICATION(NT2) 01.429 M8X10	1-11369-081-0	02	1	1111-	●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98176-248-0	01	1	1111-	●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417	8-98052-394-0	01	1	1111-	●	●

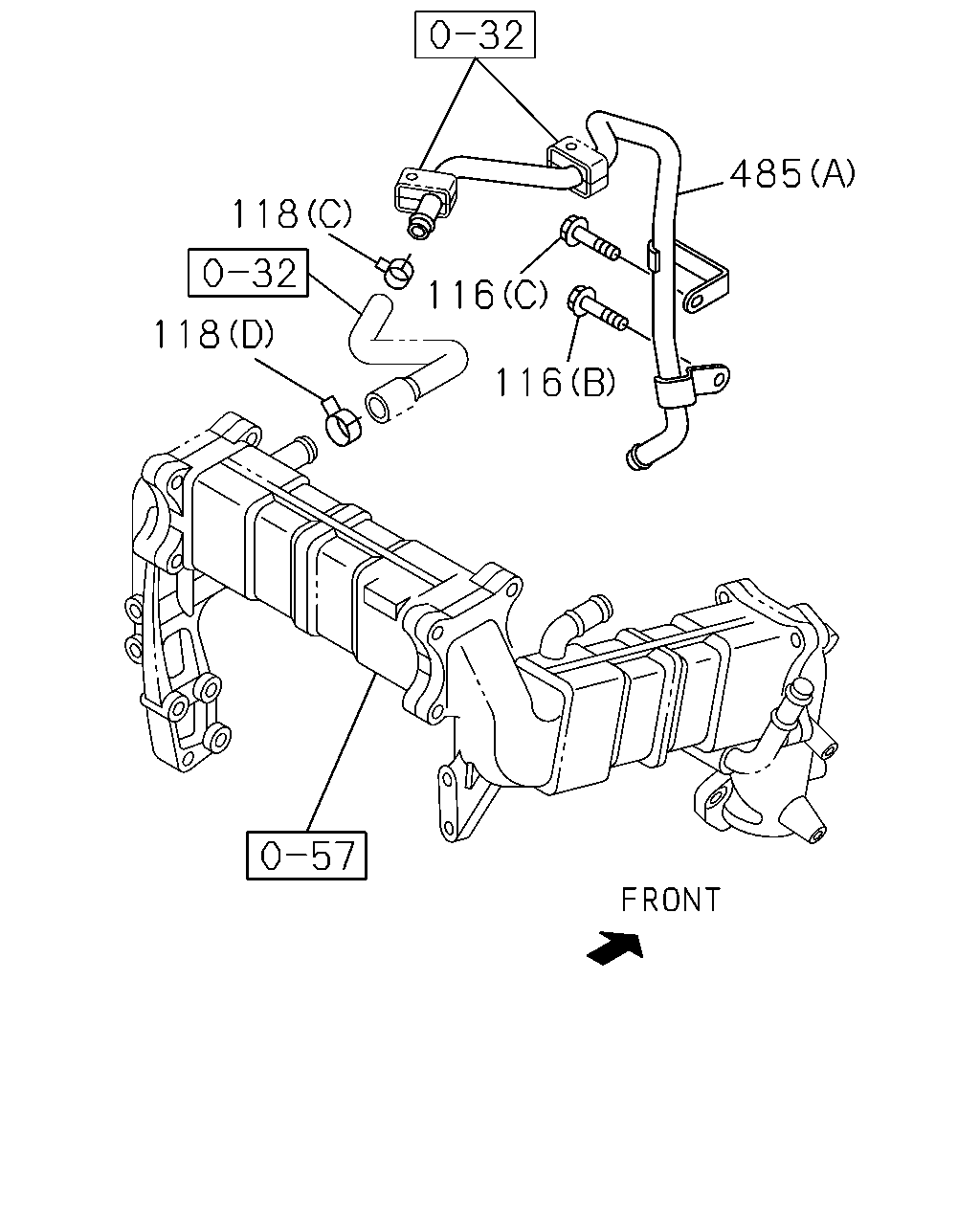

485 118 116 116 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (B) M8X20 FLANGE	0-28650-820-0	04	1	1111-	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	1111-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1111-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	06	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1111-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (C) ID=22	8-97359-141-0	02	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 01.153 (D) ID=24	8-98025-921-0	04	1	1111-	●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1111-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1111-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98041-637-1	01	1	1111-	●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (D)	8-98032-267-0	01	1	1111-	●	●

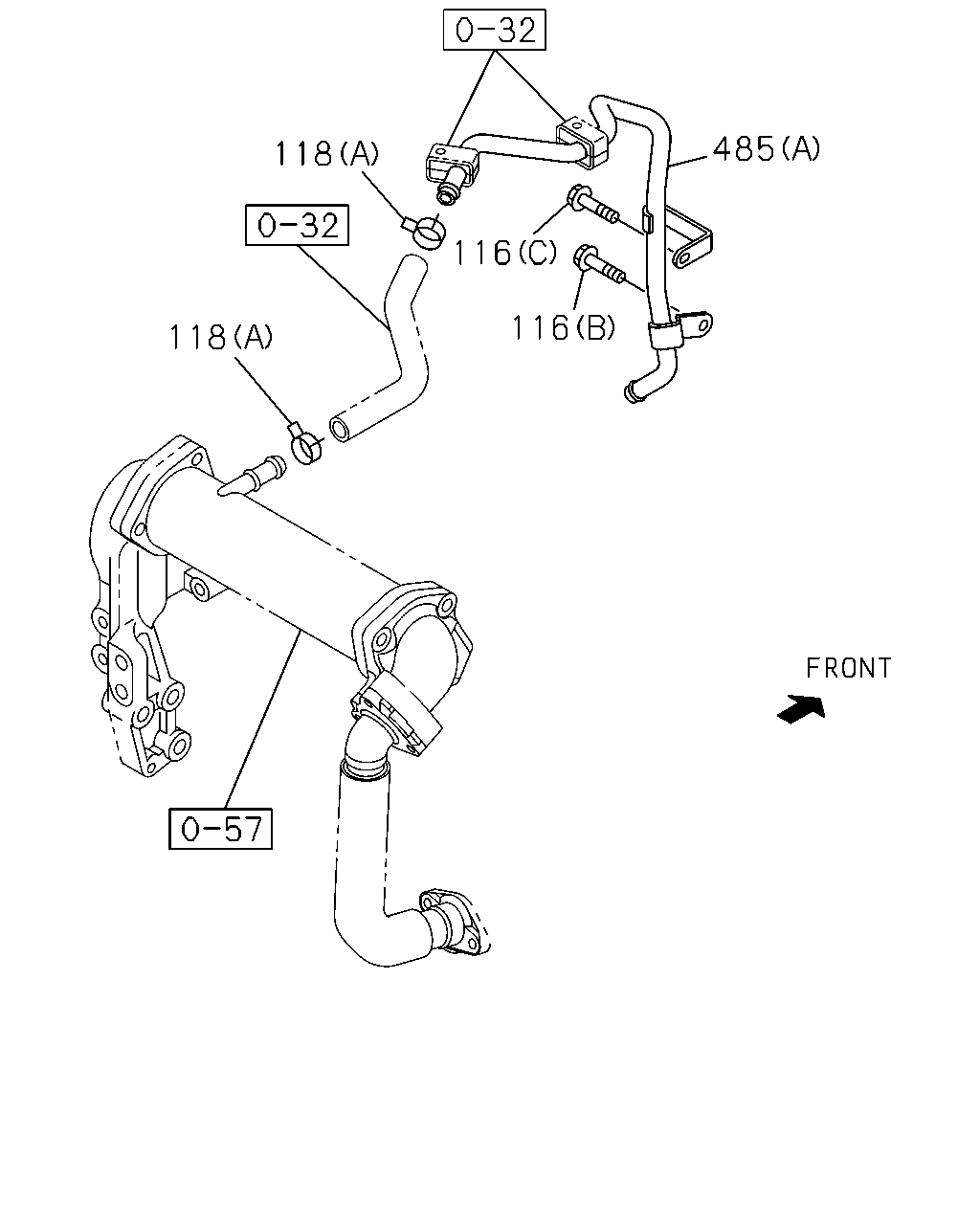

485 118 116 118 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (B) M8X20 FLANGE	0-28650-820-0	04	1	1111-	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	1111-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1111-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	06	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1111-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (C) ID=22	8-97359-141-0	02	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 01.153 (D) ID=24	8-98025-921-0	04	1	1111-	●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1111-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1111-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98041-637-1	01	1	1111-	●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (D)	8-98032-267-0	01	1	1111-	●	●

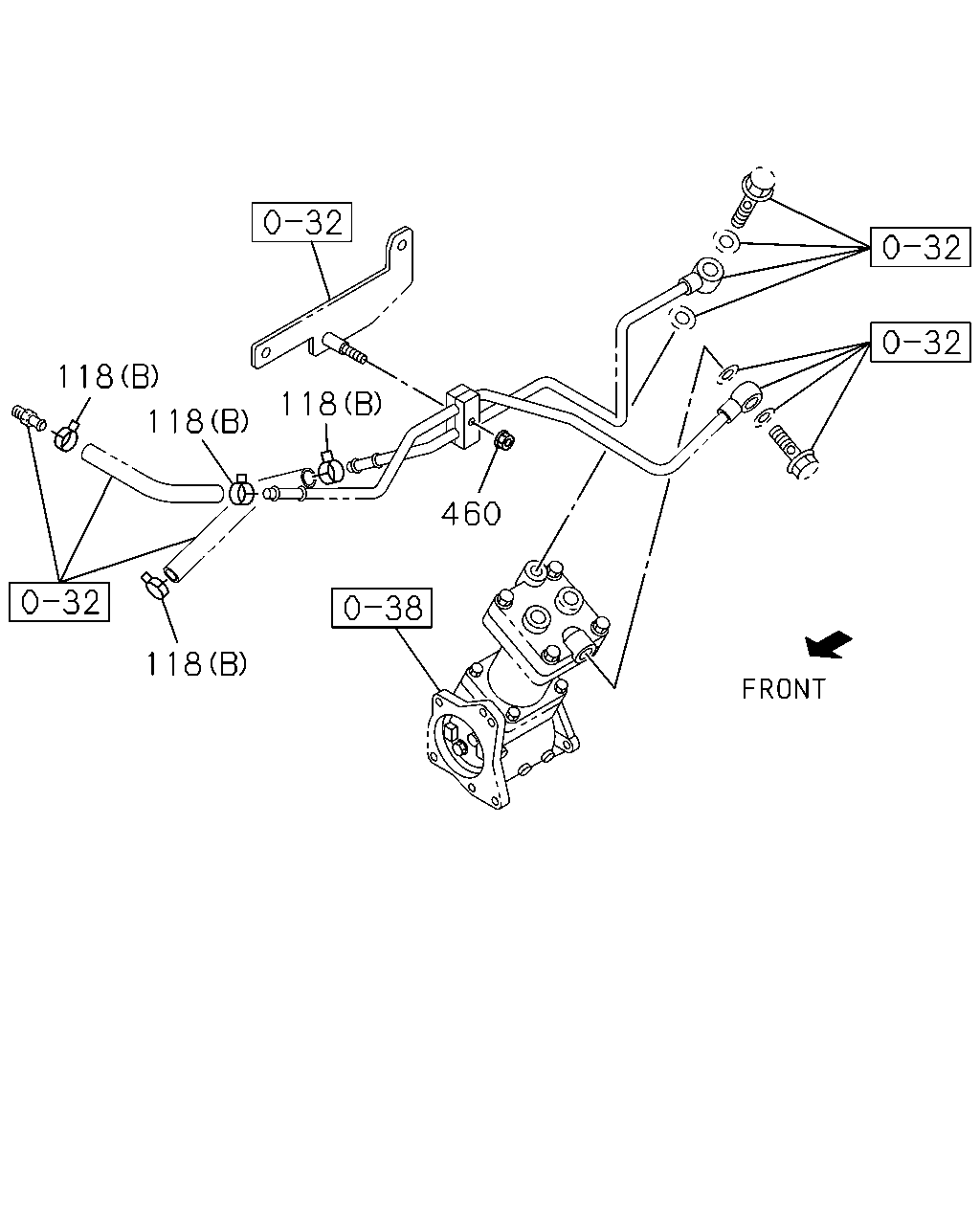

118 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	06	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1111-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (C) ID=22	8-97359-141-0	02	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 01.153 (D) ID=24	8-98025-921-0	04	1	1111-	●	●

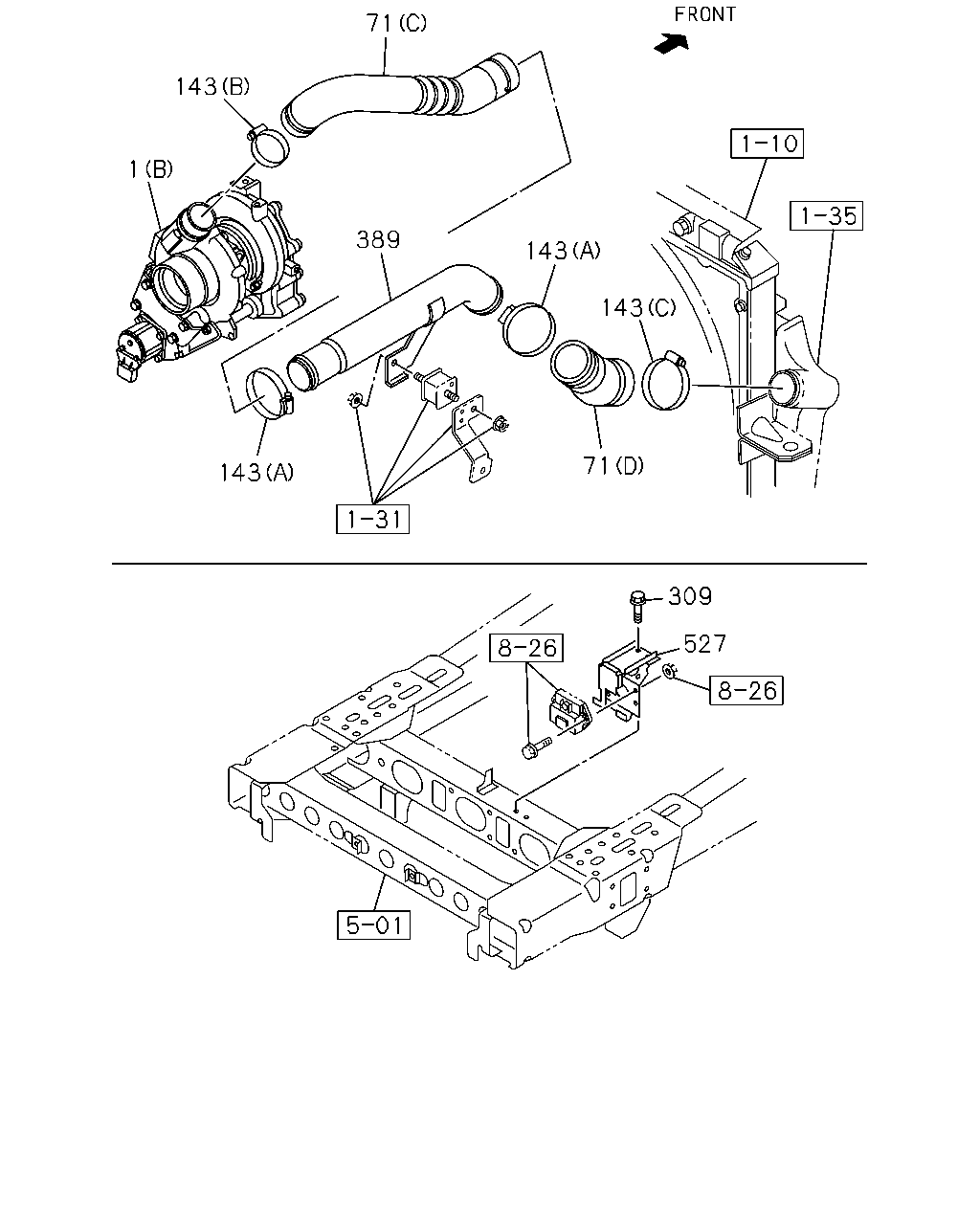

71 143 1 389 143 143 71 143 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-		●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98027-772-5	01	1	1111-1509	●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98322-481-0	01	1	1510-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98059-964-1	01	1	1111-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98107-509-1	01	1	1111-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98006-133-2	01	1	1111-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98039-732-3	01	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1111-	●	●
309	03.342 BOLT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1111-	●	●
527	03.373 BRACKET; TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98060-887-2	01	1	1111-	●	●

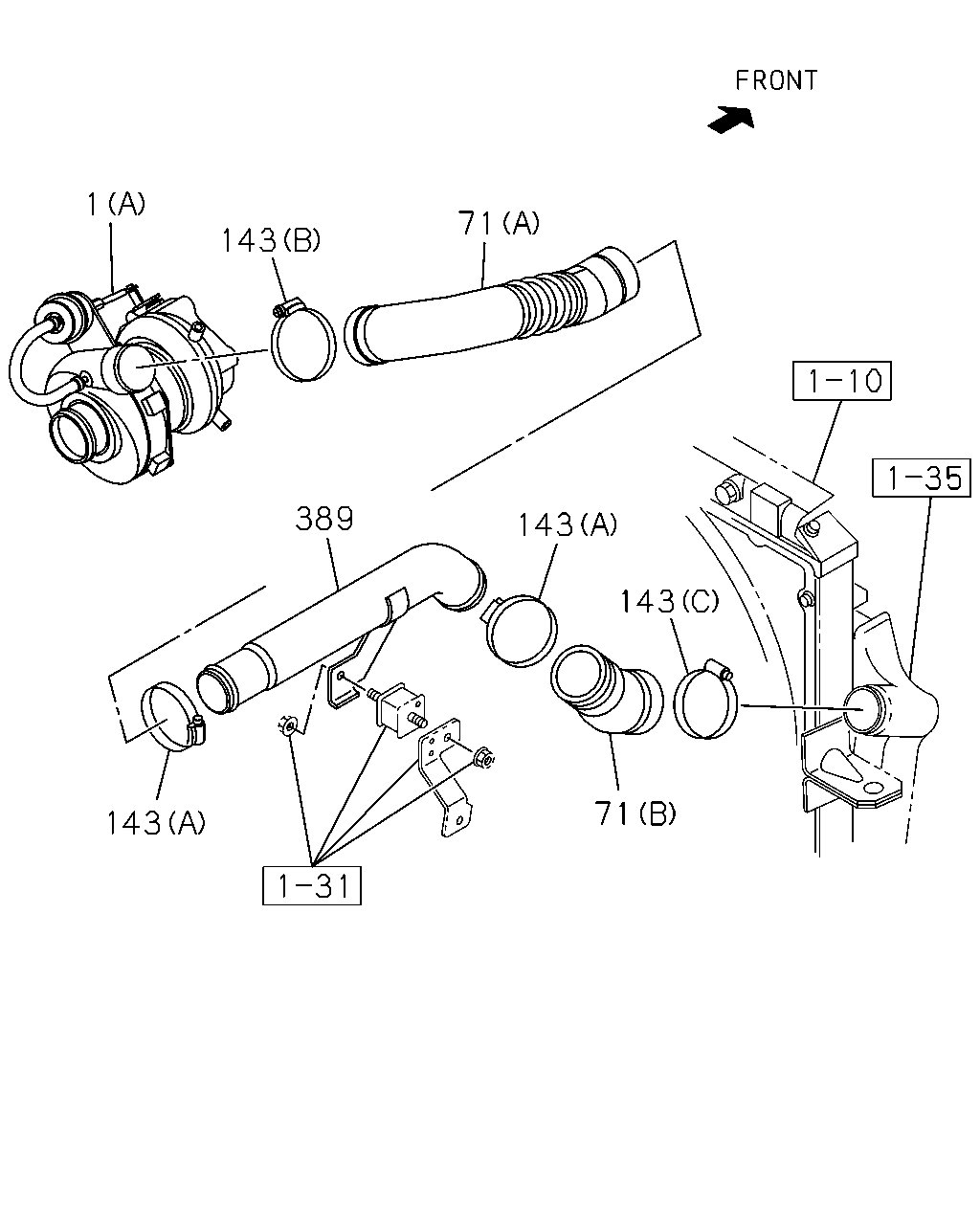

1 71 143 389 143 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-		●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98027-772-5	01	1	1111-1509	●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98322-481-0	01	1	1510-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98059-964-1	01	1	1111-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98107-509-1	01	1	1111-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98006-133-2	01	1	1111-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98039-732-3	01	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1111-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1111-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1111-	●	●

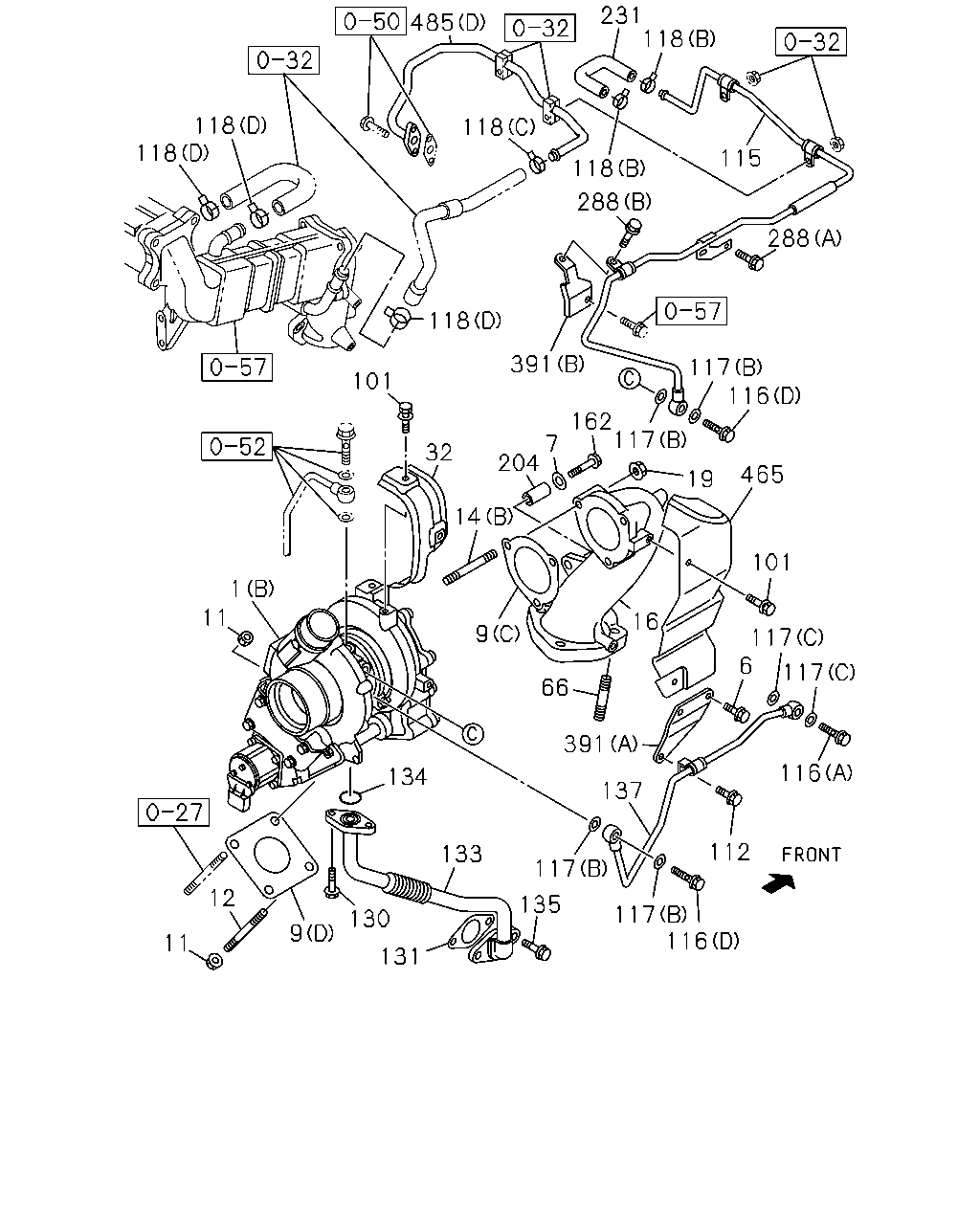

231 118 115 118 485 118 288 288 117 117 116 118 116 118 118 485 116 14 9 19 19 204 465 7 162 16 14 66 32 1 134 9 130 133 135 135 131 12 11 391 101 6 136 136 116 117 116 288 137 117 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-		●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98027-772-5	01	1	1111-1509	●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98322-481-0	01	1	1510-	●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97039-777-1	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97374-412-0	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (C) ID=54	8-97376-758-0	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (D) ID=49	8-98046-241-0	01	1	1111-	●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	1111-	●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	1111-	●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	1111-	●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	1111-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108	8-97019-477-0	02	1	1111-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1111-	●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	1111-	●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	1111-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	1111-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	1111-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97351-168-0	01	1	1111-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98031-888-3	01	1	1111-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1111-	●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1111-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98096-928-0	01	1	1111-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4)	8-98085-187-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (B) M8X20 FLANGE	0-28650-820-0	04	1	1111-	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	1111-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1111-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1111-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (B) ID=12.2	9-09571-412-0	04	1	1111-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	06	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1111-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (C) ID=22	8-97359-141-0	02	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 01.153 (D) ID=24	8-98025-921-0	04	1	1111-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1111-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1111-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98172-658-0	01	1	1111-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98172-661-0	01	1	1111-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1111-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1111-	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98063-840-0	01	1	1111-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4)	8-97387-271-0	01	1	1111-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1111-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1111-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1111-	●	●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1111-	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1111-	●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	1111-	●	●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (B)	8-98013-958-0	01	1	1111-	●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98176-248-0	01	1	1111-	●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417	8-98052-394-0	01	1	1111-	●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1111-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1111-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98041-637-1	01	1	1111-	●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (D)	8-98032-267-0	01	1	1111-	●	●

231 118 118 118 118 115 118 288 288 118 391 117 116 101 162 117 7 204 32 465 19 14 101 1 11 16 9 117 6 117 66 391 116 134 137 112 133 117 12 135 117 116 130 9 11 131 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1111-		●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	1111-	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98027-772-5	01	1	1111-1509	●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98322-481-0	01	1	1510-	●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97039-777-1	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97374-412-0	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (C) ID=54	8-97376-758-0	01	1	1111-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (D) ID=49	8-98046-241-0	01	1	1111-	●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	1111-	●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	1111-	●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	1111-	●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	1111-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108	8-97019-477-0	02	1	1111-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1111-	●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	1111-	●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	1111-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	1111-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	1111-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97351-168-0	01	1	1111-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98031-888-3	01	1	1111-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1111-	●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1111-	●	●
112	03.417 BOLT; CLIP EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98096-928-0	01	1	1111-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4)	8-98085-187-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (B) M8X20 FLANGE	0-28650-820-0	04	1	1111-	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	1111-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1111-	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1111-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	04	1	1111-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (B) ID=12.2	9-09571-412-0	04	1	1111-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	06	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1111-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (C) ID=22	8-97359-141-0	02	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 01.153 (D) ID=24	8-98025-921-0	04	1	1111-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1111-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1111-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98172-658-0	01	1	1111-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98172-661-0	01	1	1111-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1111-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1111-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98063-840-0	01	1	1111-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4)	8-97387-271-0	01	1	1111-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1111-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1111-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1111-	●	●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1111-	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1111-	●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	1111-	●	●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (B)	8-98013-958-0	01	1	1111-	●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98176-248-0	01	1	1111-	●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417	8-98052-394-0	01	1	1111-	●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1111-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1111-	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98041-637-1	01	1	1111-	●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (D)	8-98032-267-0	01	1	1111-	●	●

118 118 118 460 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	06	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (A) ID=20	1-09707-084-1	06	1	1111-	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (C) ID=22	8-97359-141-0	02	1	1111-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 01.153 (D) ID=24	8-98025-921-0	04	1	1111-	●	●
460	03.374 NUT; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M6 FLANGE	0-91180-106-0	01	1	1111-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
