Isuzu WW
▶
TRUCKS
▶
NQR
▶
51386 - NQR AIR BRAKE RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

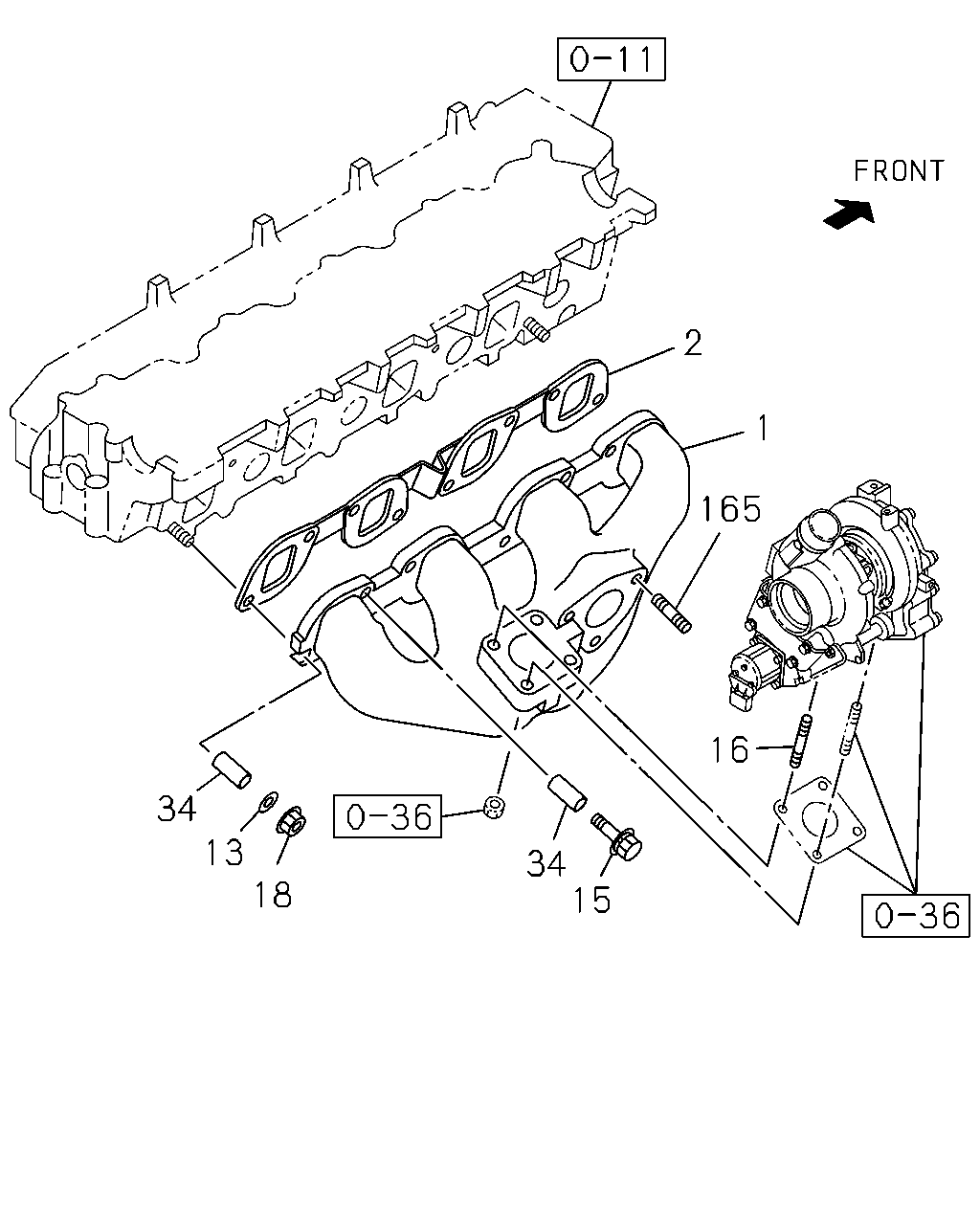

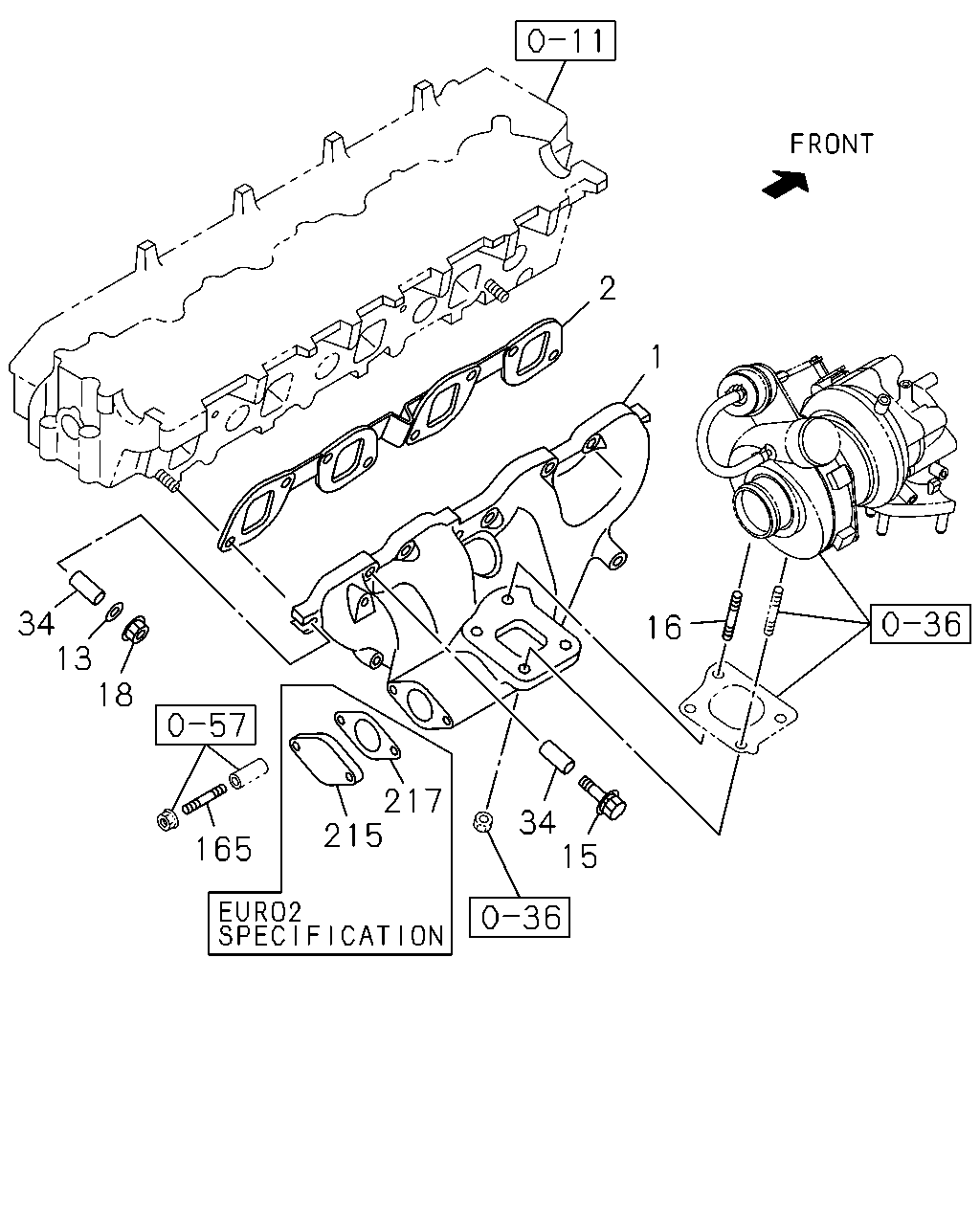

0-27 — EXHAUST MANIFOLD
(#80480) — 26 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
◀
[027A] EURO4 (12 parça)
[027A] EURO2,EURO3 (14 parça)
▶
2
1
165
16
15
34
18
13
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)
8-98027-968-1
01
1
1111-
●
●
1
03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4)
8-97387-873-4
01
1
1111-1405
●
●
1
03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4)
8-98271-447-0
01
1
1406-
●
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
1111-
●
●
13
03.613 WASHER; LK,EXH MANIF
03.604 T=2.2
1-09556-015-0
02
1
1111-
●
●
15
03.604 BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
1111-
●
●
16
03.604 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.981 M10X25 L=40
9-04731-025-0
02
1
1111-
●
●
16
03.604 STUD; EXH PIPE TO MANIF
EURO4 SPECIFICATION(NT4) 03.342 M10X30 L=45
1-09302-106-0
02
1
1111-
●
●
18
03.604 NUT; EXH MANIF
00.833 M10
0-91110-510-0
02
1
1111-
●
●
34
03.603 COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
1111-
●
●
165
03.417 STUD; EGR PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613 M8X45 L=57
8-94105-162-1
02
1
1111-
●
●
165
03.417 STUD; EGR PIPE
EURO4 SPECIFICATION(NT4) 03.342 M8X25 L=36
8-94476-282-0
03
1
1111-
●
●
2
1
16
15
34
217
215
165
18
13
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)
8-98027-968-1
01
1
1111-
●
●
1
03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4)
8-97387-873-4
01
1
1111-1405
●
●
1
03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4)
8-98271-447-0
01
1
1406-
●
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
1111-
●
●
13
03.613 WASHER; LK,EXH MANIF
03.604 T=2.2
1-09556-015-0
02
1
1111-
●
●
15
03.604 BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
1111-
●
●
16
03.604 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.981 M10X25 L=40
9-04731-025-0
02
1
1111-
●
●
16
03.604 STUD; EXH PIPE TO MANIF
EURO4 SPECIFICATION(NT4) 03.342 M10X30 L=45
1-09302-106-0
02
1
1111-
●
●
18
03.604 NUT; EXH MANIF
00.833 M10
0-91110-510-0
02
1
1111-
●
●
34
03.603 COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
1111-
●
●
165
03.417 STUD; EGR PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613 M8X45 L=57
8-94105-162-1
02
1
1111-
●
●
165
03.417 STUD; EGR PIPE
EURO4 SPECIFICATION(NT4) 03.342 M8X25 L=36
8-94476-282-0
03
1
1111-
●
●
215
03.601 PLATE; BOSS,EXH MANIF
EURO2 SPECIFICATION(NT2)
8-98170-965-0
01
1
1111-
●
●
217
03.601 GASKET; EXH MANIF TO PLATE
EURO2 SPECIFICATION(NT2) 03.665
8-94340-670-0
01
1
1111-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
