7-70 — SEPARATER AND BED (#8048) — 108 parça

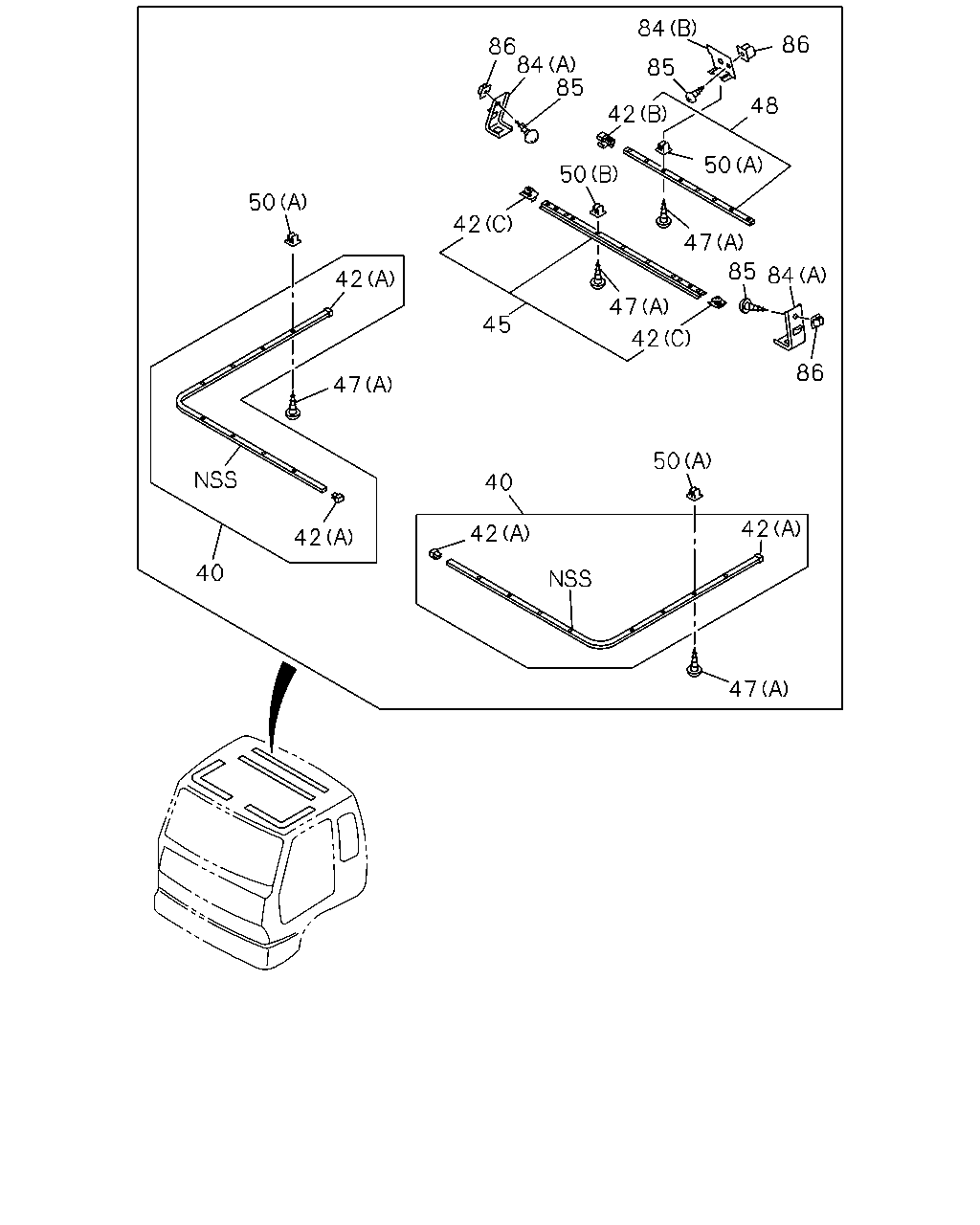

84 86 86 84 85 85 48 42 50 50 50 42 47 85 84 42 47 45 42 86 47 50 40 42 42 42 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-0	01	1	0005-0011	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-0	01	1	0012-0210	●	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-1	01	1	0211-	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-0	01	1	0005-0011	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-0	01	1	0012-0210	●	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-1	01	1	0211-	●	●	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5)	1-73996-378-0	02	1	0005-0011	●	●	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5)	1-73996-378-1	02	1	0012-	●	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0011	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0012-	●	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0011	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0012-	●	●	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0005-0011	●	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0012-0210	●	●	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0211-0305	●	●	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0005-0011	●	●	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0012-0305	●	●	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0306-	●	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0005-0011	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0012-0210	●	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0211-0305	●	●	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0005-0011	●	●	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0012-0305	●	●	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0306-	●	●	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0005-0011	●	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0012-0210	●	●	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0211-	●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	19	1	0005-0011	●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	19	1	0012-	●	●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) M5X25	5-09981-093-0	07	1	0005-0011	●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) M5X25	5-09981-093-0	07	1	0012-	●	●	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-0	01	1	0005-0011	●	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0012-	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-0011	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0012-0210	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0211-	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-0011	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0012-0210	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0211-	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0011	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0012-	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0011	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0012-	●	●	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0005-0011	●	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0012-	●	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0005-0011	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0012-0305	●	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0306-	●	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0005-0011	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0012-0305	●	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0306-	●	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0005-0011	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0012-0305	●	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0306-	●	●	●	●

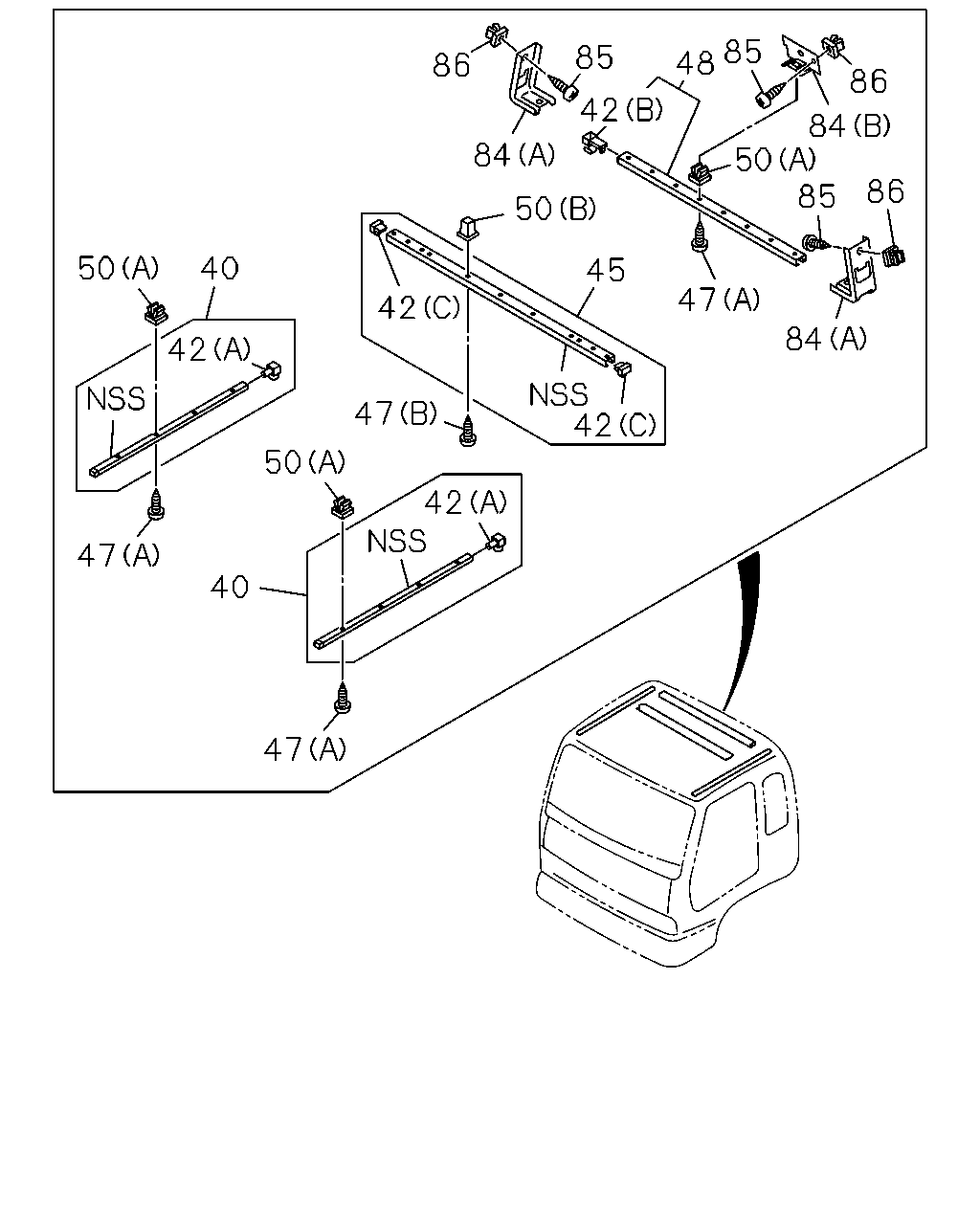

85 48 85 86 86 42 84 50 85 84 86 50 50 40 45 47 42 84 42 42 47 50 42 47 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-0	01	1	0005-0011	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-0	01	1	0012-0210	●	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-1	01	1	0211-	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-0	01	1	0005-0011	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-0	01	1	0012-0210	●	●	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-1	01	1	0211-	●	●	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5)	1-73996-378-0	02	1	0005-0011	●	●	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5)	1-73996-378-1	02	1	0012-	●	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0011	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0012-	●	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0011	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0012-	●	●	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0005-0011	●	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0012-0210	●	●	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0211-0305	●	●	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0005-0011	●	●	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0012-0305	●	●	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0306-	●	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0005-0011	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0012-0210	●	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0211-0305	●	●	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0005-0011	●	●	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0012-0305	●	●	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0306-	●	●	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0005-0011	●	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0012-0210	●	●	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0211-	●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	19	1	0005-0011	●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	19	1	0012-	●	●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) M5X25	5-09981-093-0	07	1	0005-0011	●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) M5X25	5-09981-093-0	07	1	0012-	●	●	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-0	01	1	0005-0011	●	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0012-	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-0011	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0012-0210	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0211-	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-0011	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0012-0210	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0211-	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0011	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0012-	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0011	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0012-	●	●	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0005-0011	●	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0012-	●	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0005-0011	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0012-0305	●	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0306-	●	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0005-0011	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0012-0305	●	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0306-	●	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0005-0011	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0012-0305	●	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0306-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
