Isuzu WW
▶
TRUCKS
▶
NQR
▶
51386 - NQR AIR BRAKE RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#80476) — 27 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
◀

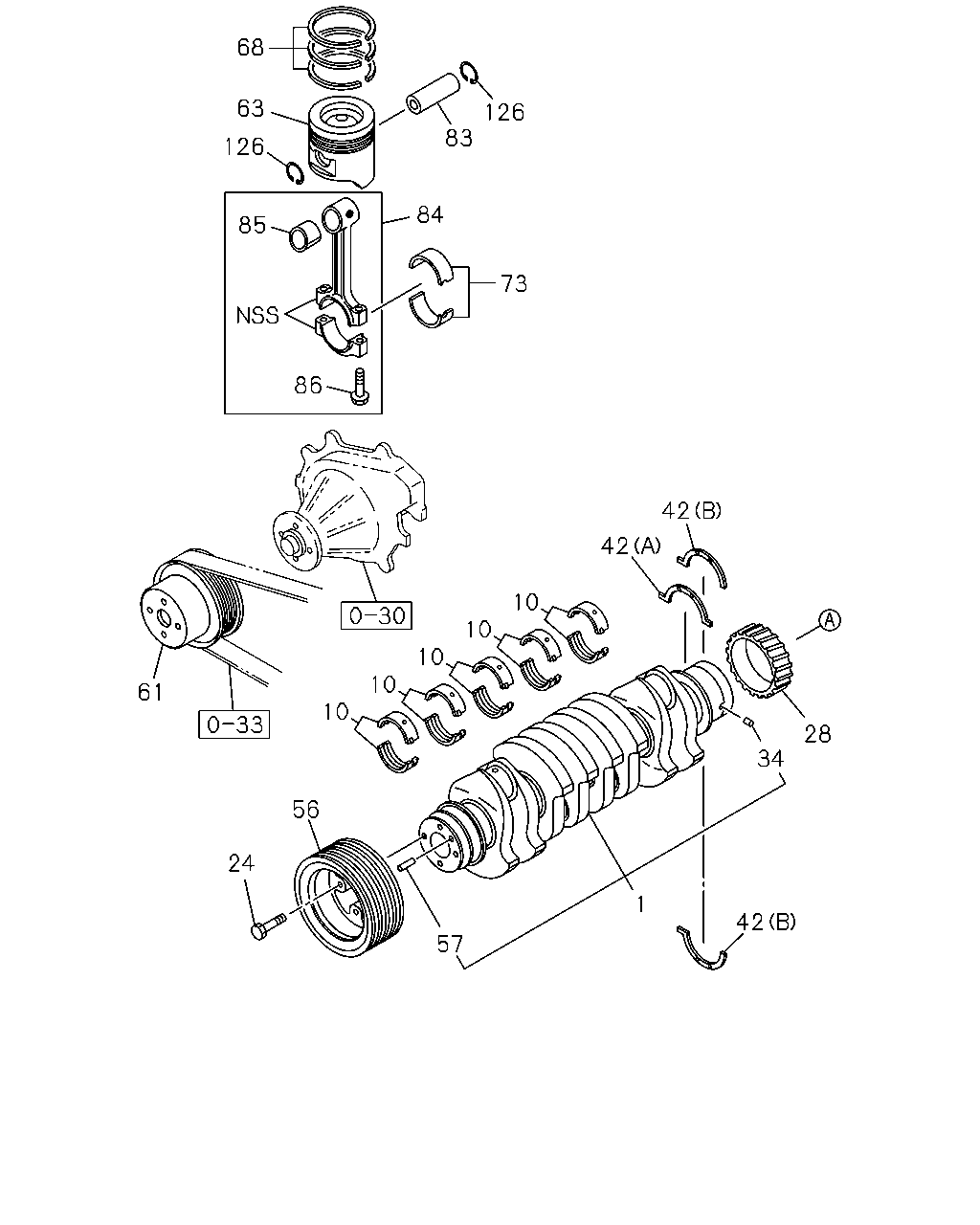

[015A] CRANKSHAFT AND PISTON (21 parça)

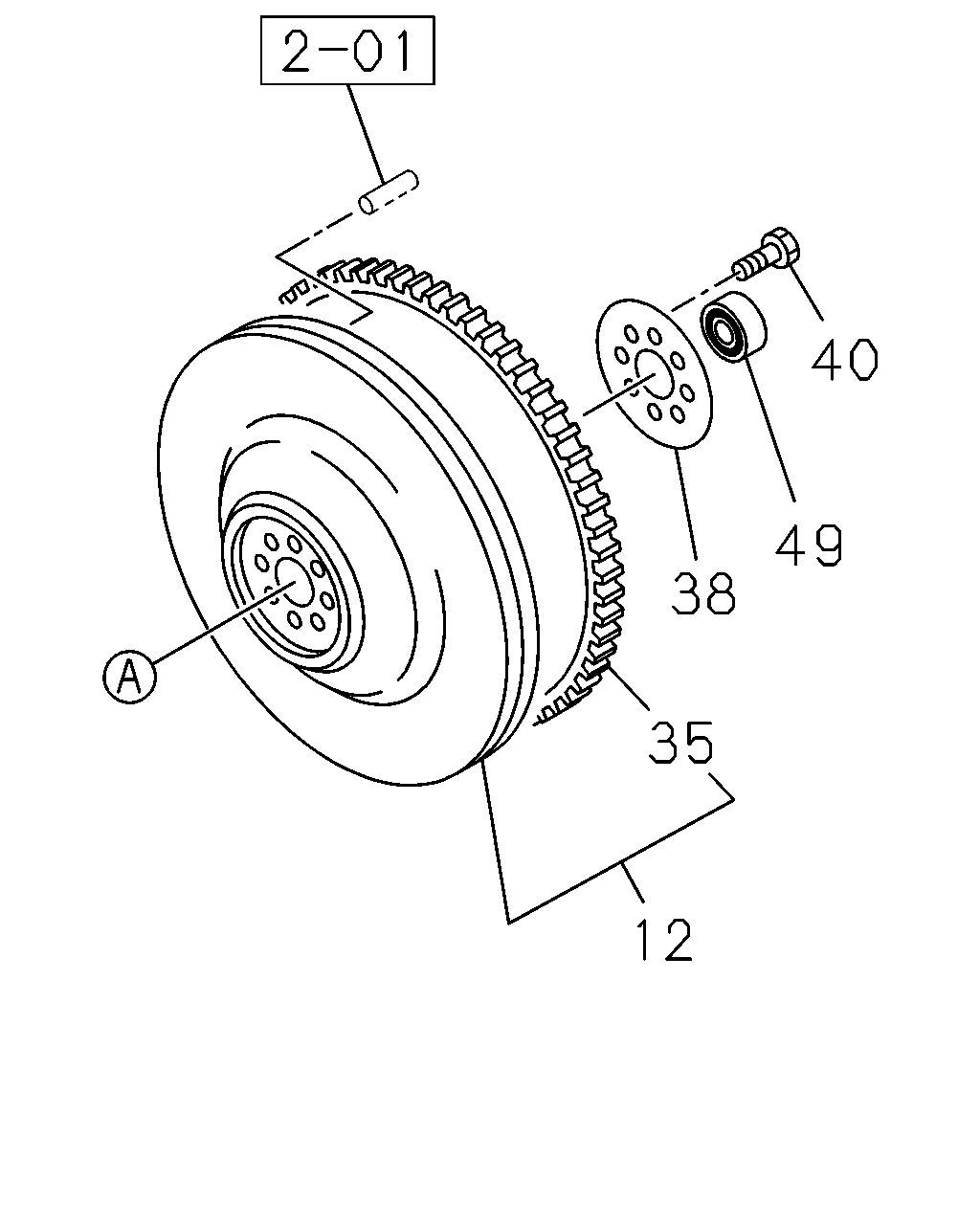

[015A] FLYWHEEL (6 parça)
▶
42
34
28
42
42
1
57
10
10
10
10
10
56
24
61
86
73
84
83
126
85
126
63
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.646 CRANKSHAFT
8-98029-270-0
01
1
1111-
●
●
10
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
05
1
1111-
●
●
10
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
05
1
1111-
●
●
10
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
05
1
1111-
●
●
24
00.659 BOLT; DAMPER
M16X42
8-97028-733-0
04
1
1111-
●
●
28
00.728 GEAR; CR/SHF
Z=42
8-94394-342-4
01
1
1111-
●
●
34
00.738 PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1111-
●
●
42
00.095 WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1111-
●
●
42
00.095 WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1111-
●
●
56
00.659 PULLEY; CR/SHF DAMPER
3-GROOVE
8-98004-024-3
01
1
1111-
●
●
57
00.662 PIN; PULLEY
00.862 OD=8 L=20
9-08150-820-0
02
1
1111-
●
●
61
00.659 PULLEY; FAN DRIVE
1-GROOVE
8-98003-384-1
01
1
1111-
●
●
63
00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
04
1
1111-
●
●
68
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
04
1
1111-
●
●
73
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
8-98055-479-0
04
1
1111-
●
●
73
00.616 METAL SET; CONN ROD,STANDARD
GREEN
8-98055-480-0
04
1
1111-
●
●
83
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
04
1
1111-
●
●
84
00.603 ROD ASM; CONN
8-98018-425-3
04
1
1111-
●
●
85
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
04
1
1111-
●
●
86
00.623 BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1111-
●
●
126
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
08
1
1111-
●
●
40
49
38
35
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
00.666 FLYWHEEL
8-97326-227-2
01
1
1111-
●
●
35
00.673 GEAR; RING
Z=138
8-97046-366-1
01
1
1111-
●
●
38
00.862 WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
1111-
●
●
40
00.669 BOLT; FLYWHEEL
M16X42
8-97178-013-0
08
1
1111-
●
●
49
00.669 BEARING; PILOT
8-97258-239-0
01
1
1111-
●
●
49
00.669 BEARING; PILOT
BEST VALUE PARTS
5-87610-164-0
01
1
1111-
●
●
