◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51386 - NQR AIR BRAKE RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#80470) — 108 parça

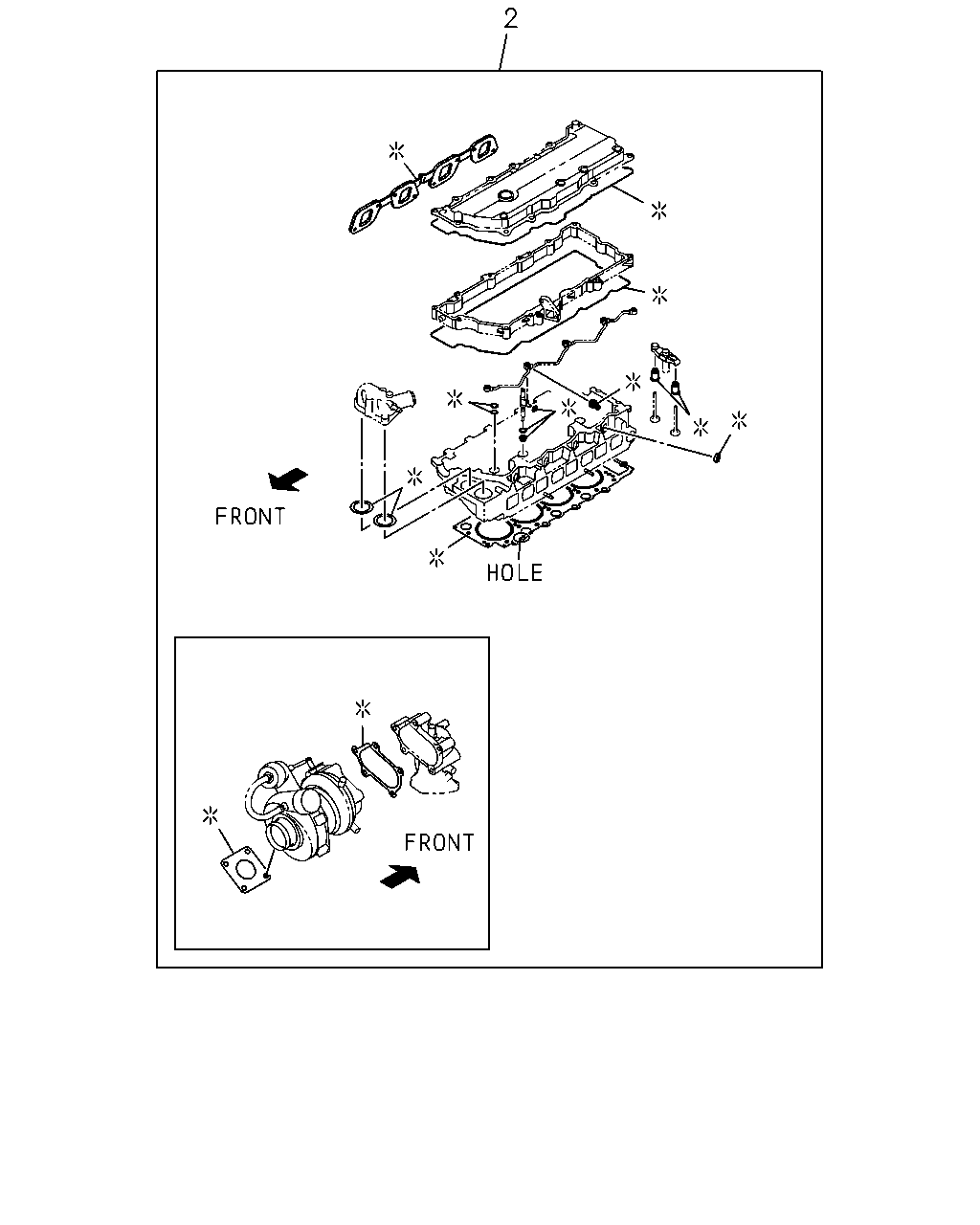

çizim 14942
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87816-080-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-738-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-987-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87816-081-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-739-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-988-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87816-082-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-740-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-989-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-526-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-702-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-921-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-527-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-703-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-922-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-528-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-704-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-923-0 01 1 1506- ● ●

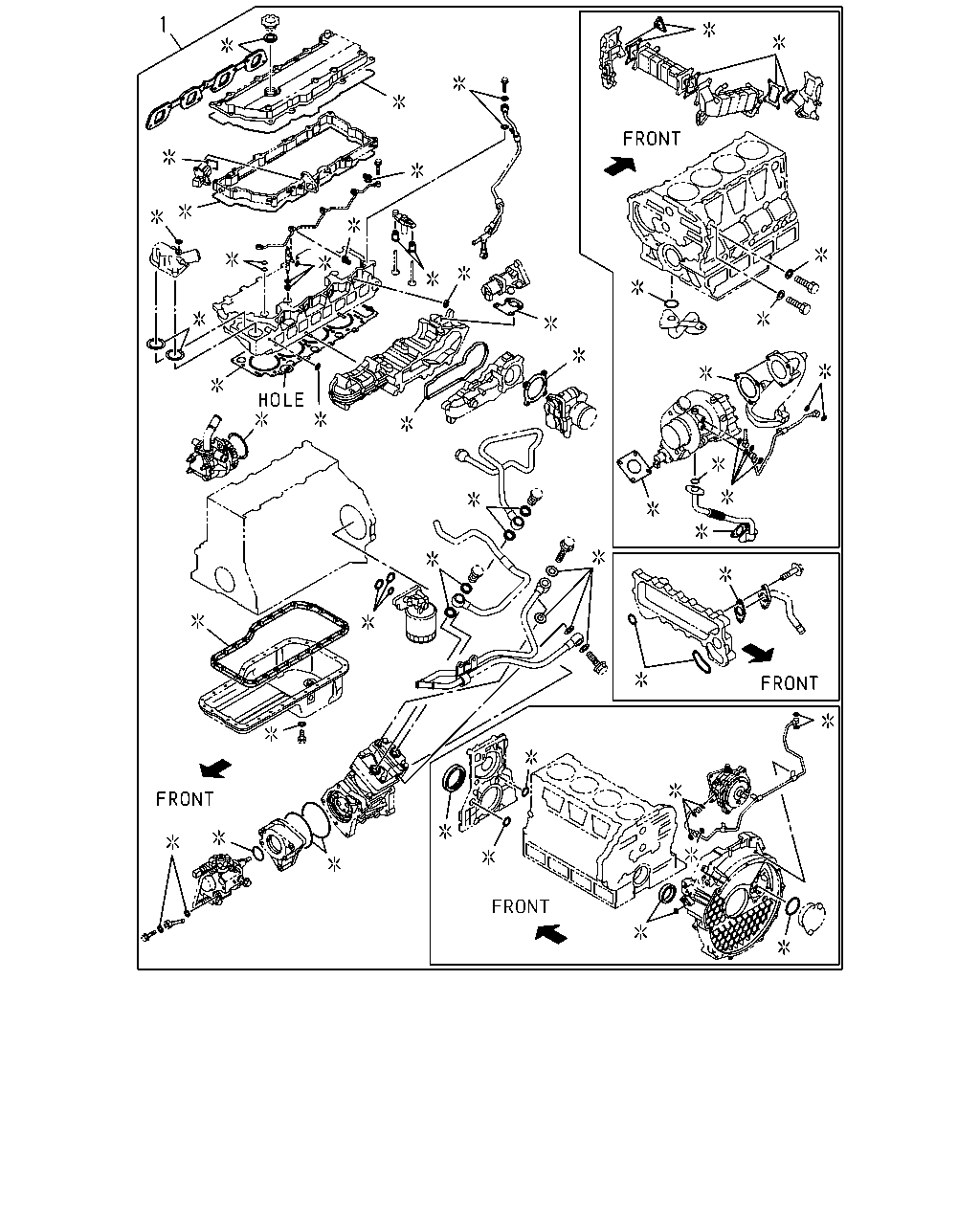

çizim 15658
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87816-071-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-180-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-771-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-960-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87816-072-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-181-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-772-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-961-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87816-073-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-182-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-773-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-962-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87816-074-1 01 1 1111-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-183-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-774-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-963-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87816-075-1 01 1 1111-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-184-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-775-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-964-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87816-076-1 01 1 1111-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-185-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-776-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-965-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87816-077-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-186-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-777-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-966-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87816-078-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-187-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-778-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-967-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87816-079-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-188-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-779-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-968-0 01 1 1506- ● ●

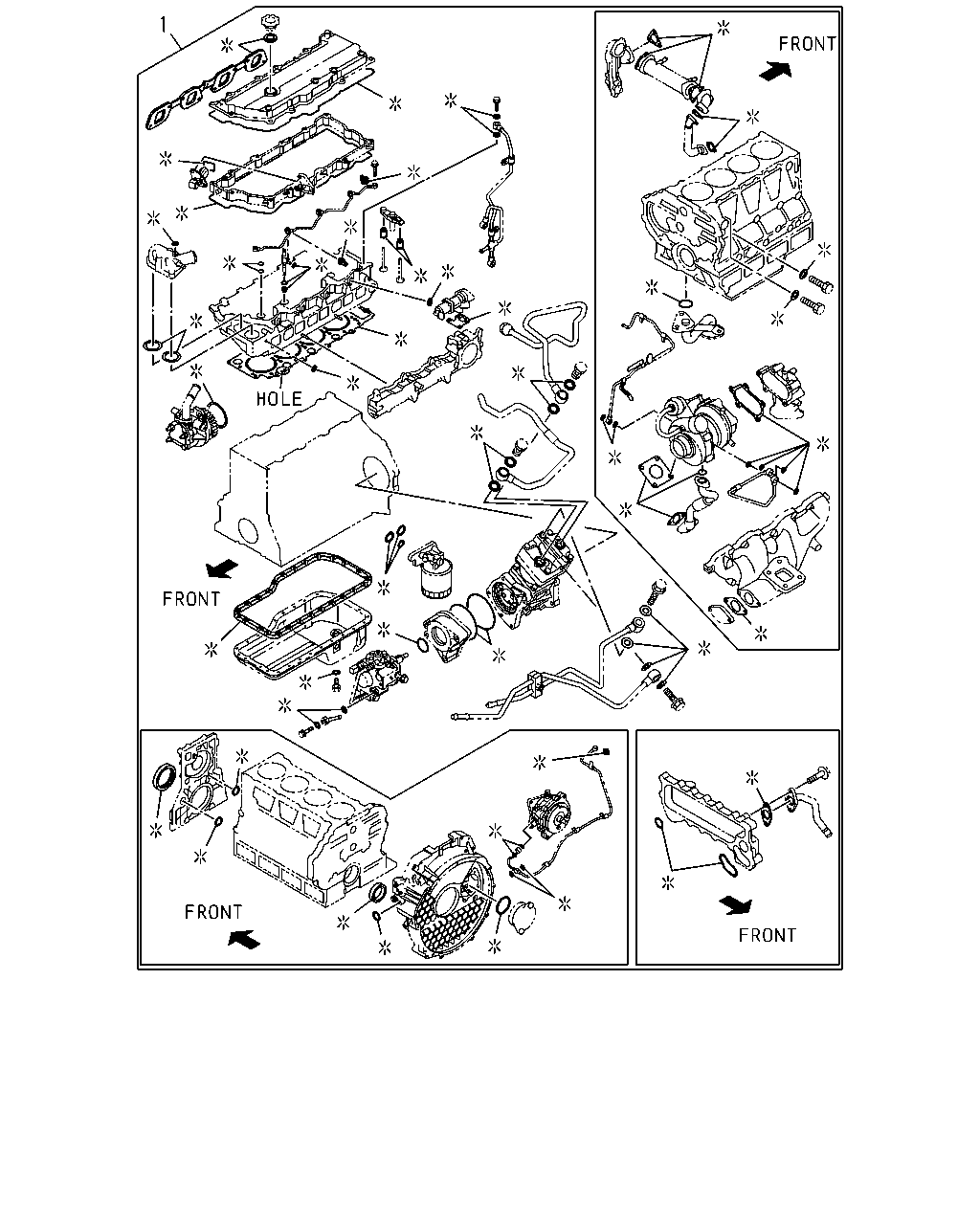

çizim 183053
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87816-071-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-180-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-771-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-960-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87816-072-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-181-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-772-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-961-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87816-073-1 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-182-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-773-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-962-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87816-074-1 01 1 1111-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-183-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-774-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-963-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87816-075-1 01 1 1111-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-184-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-775-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-964-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87816-076-1 01 1 1111-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-185-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-776-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-965-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87816-077-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-186-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-777-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-966-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87816-078-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-187-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-778-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-967-0 01 1 1506- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87816-079-2 01 1 1111-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-188-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-779-0 01 1 1502-1505 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-968-0 01 1 1506- ● ●

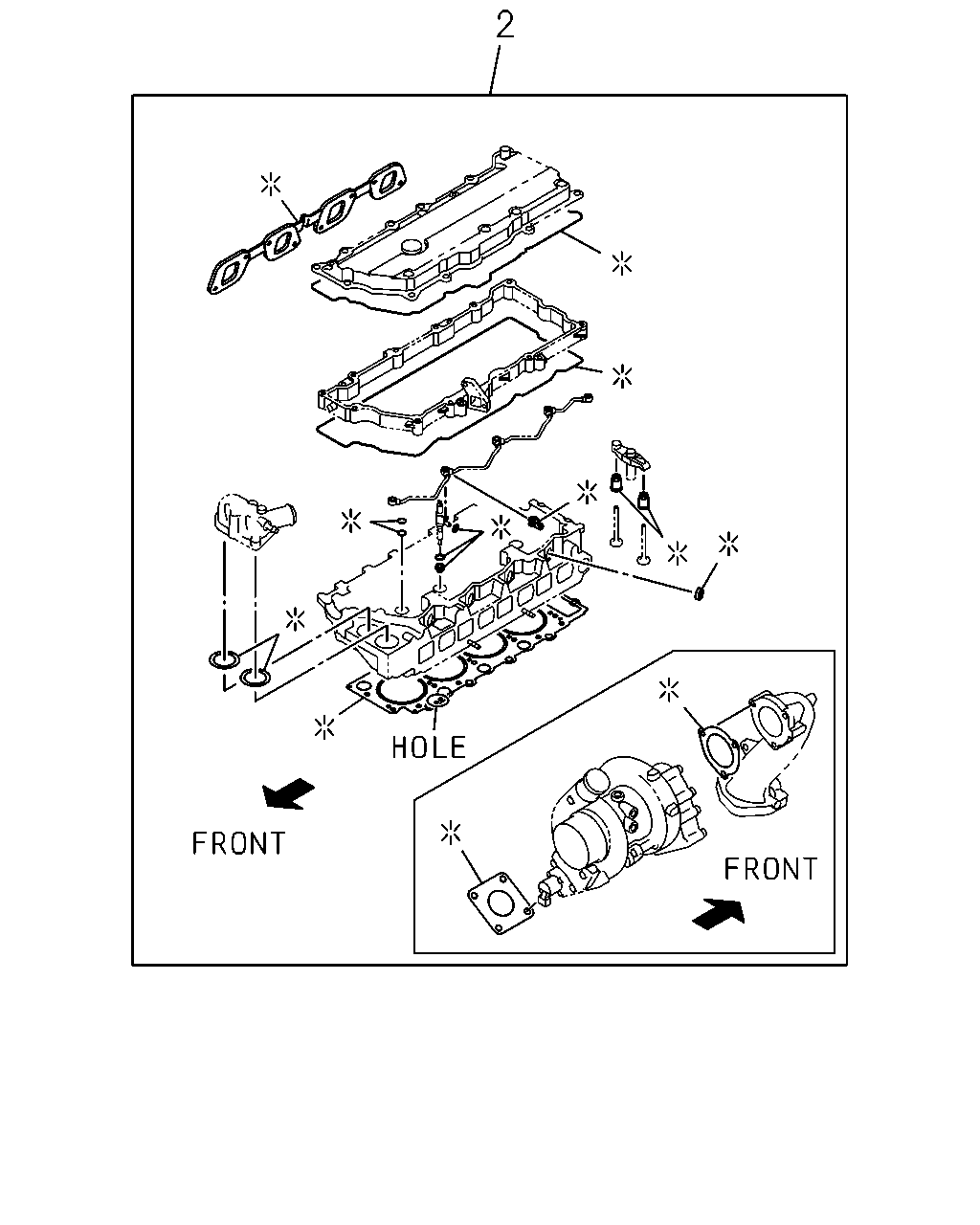

çizim 183054
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87816-080-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-738-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.475 NON-HOLE 		5-87817-987-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87816-081-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-739-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.525 1-HOLE 		5-87817-988-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87816-082-0 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-740-0 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) T=1.575 2-HOLE 		5-87817-989-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-526-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-702-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-921-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-527-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-703-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-922-0 01 1 1506- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-528-3 01 1 1111-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-704-1 01 1 1502-1505 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-923-0 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
