◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#8047) — 28 parça

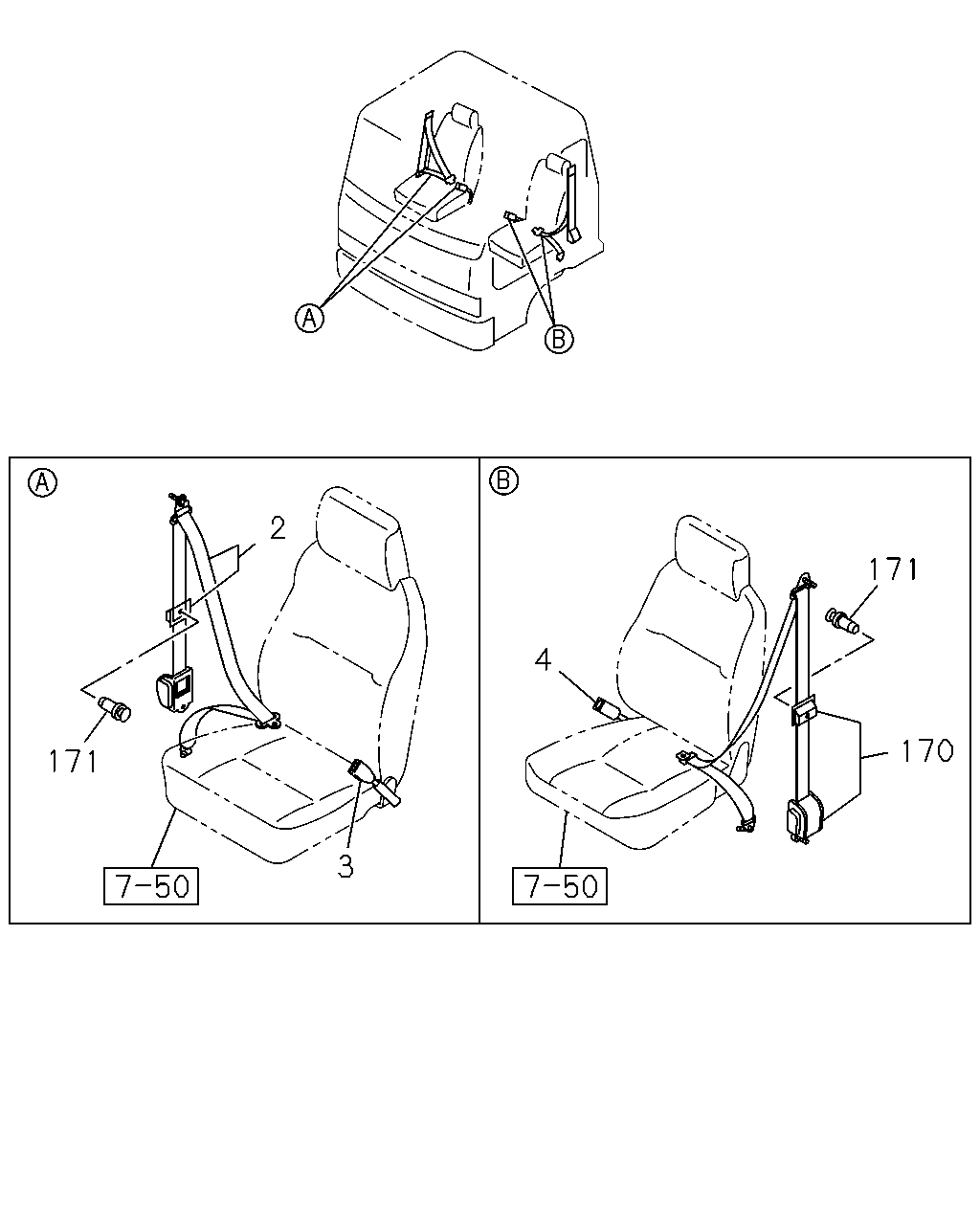

çizim 9302
2 171 4 170 171 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BELT; SEAT,TONGUE SIDE 1-75618-923-0 01 1 0005-0011 ● ● ●
2 BELT; SEAT,TONGUE SIDE 1-75618-923-2 01 1 0012- ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-925-0 01 1 0005-0011 ● ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-925-1 01 1 0012- ● ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-546-1 01 1 0005- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-0 01 1 0005-0011 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-2 01 1 0012- ● ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0005-0011 ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0012- ● ● ● ●

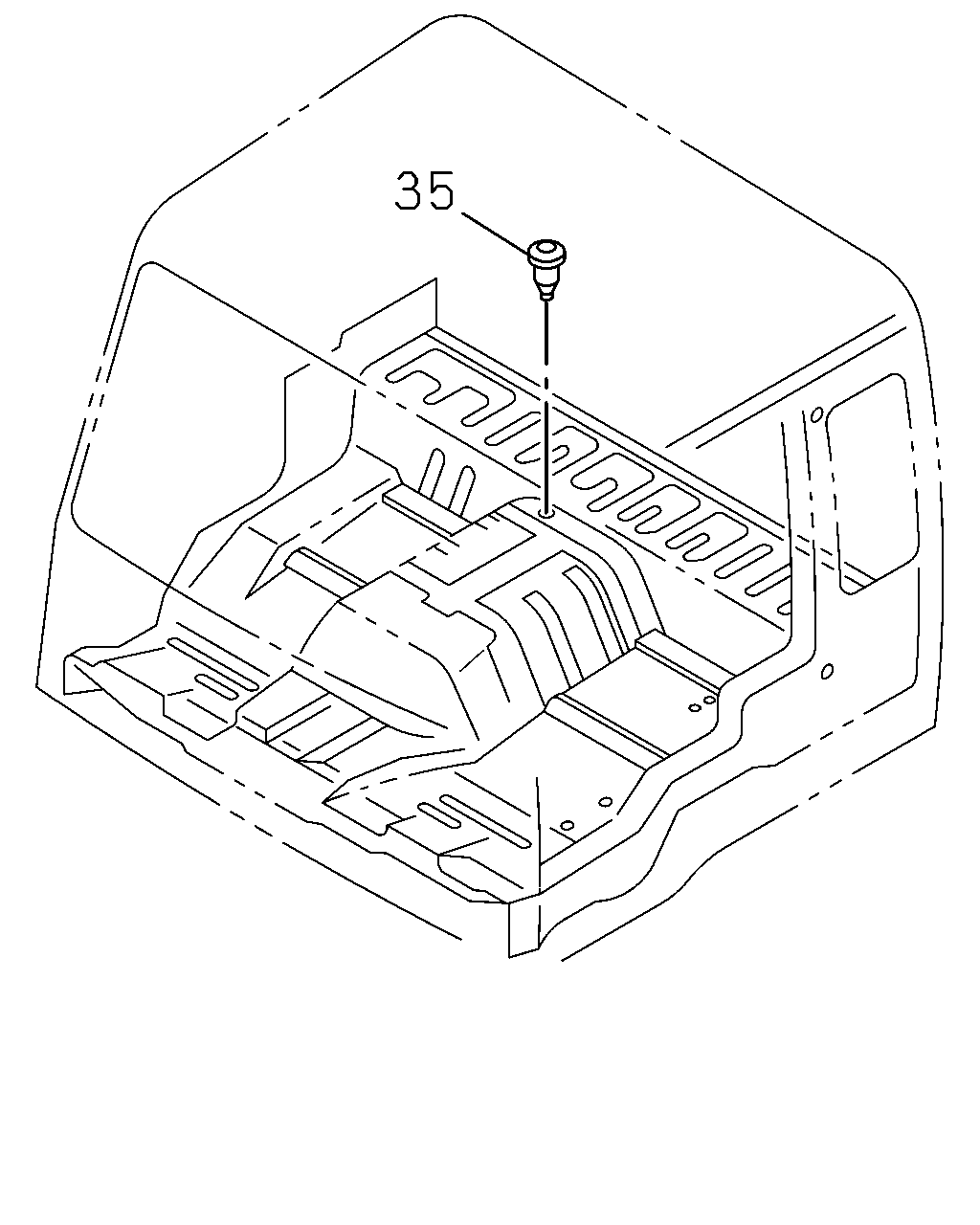

çizim 12088
35
BalonParca AdiParca NoAdetTipApplied Date A B C D
35 GROMMET; SEAT BELT ANCHOR
FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=22 		9-61168-535-0 01 1 0005- ● ●

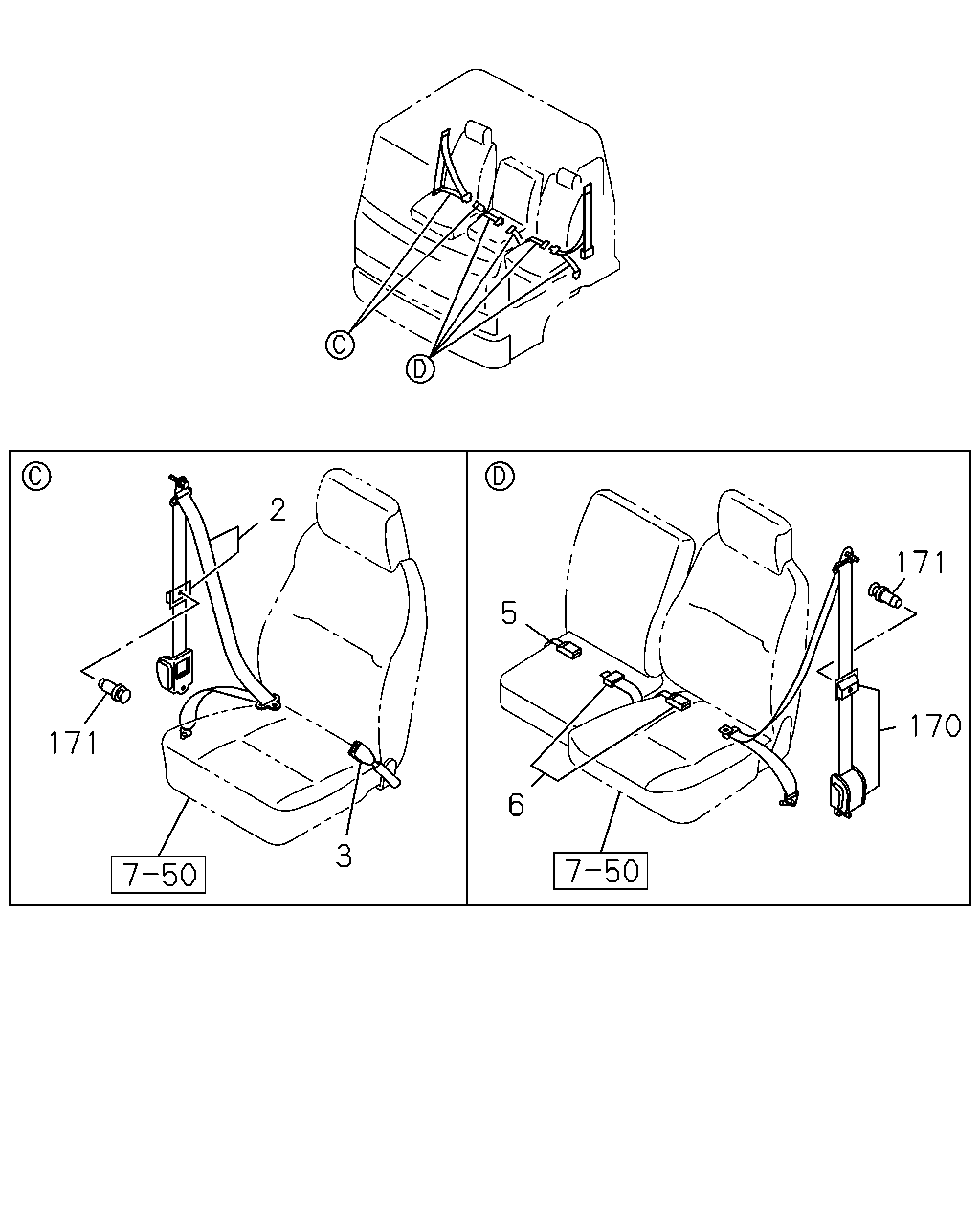

çizim 43415
2 171 5 170 171 6 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BELT; SEAT,TONGUE SIDE 1-75618-923-0 01 1 0005-0011 ● ● ●
2 BELT; SEAT,TONGUE SIDE 1-75618-923-2 01 1 0012- ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-925-0 01 1 0005-0011 ● ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-925-1 01 1 0012- ● ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS <SHY> 		1-75617-553-1 01 1 0005-0011 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS <SHY> 		1-75617-553-1 01 1 0012-0210 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0012-0210 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-553-1 01 1 0211- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0211- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS <SHY> 		1-75618-926-0 01 1 0005-0011 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS <SHY> 		1-75618-926-0 01 1 0012-0210 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-926-0 01 1 0012-0210 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-926-3 01 1 0211- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-926-3 01 1 0211- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-0 01 1 0005-0011 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-2 01 1 0012- ● ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0005-0011 ● ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0012- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
