Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#80468) — 140 parça

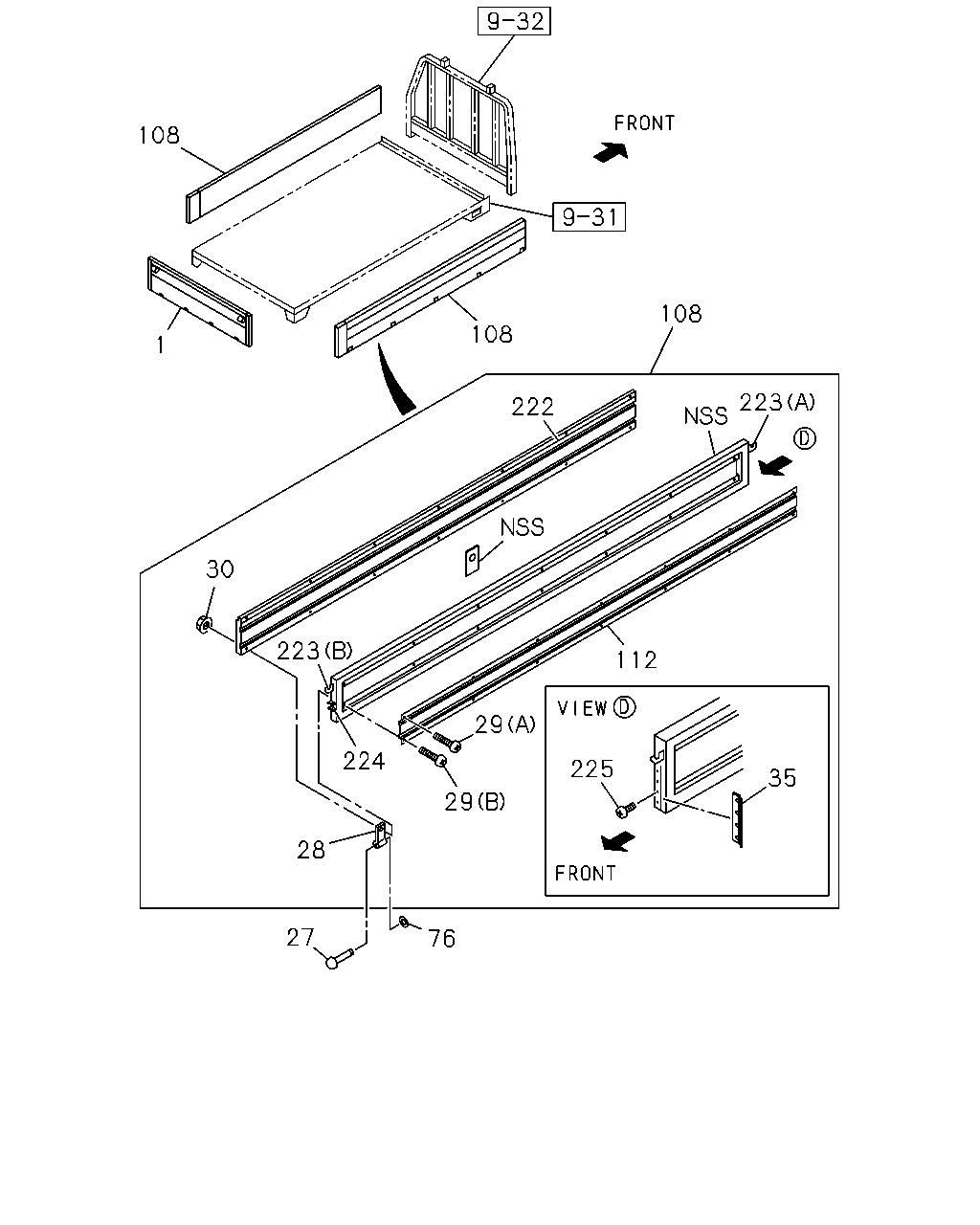

108 108 108 1 223 222 30 223 112 29 224 225 35 29 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD TAKADA	8-97594-651-0	01	1	0803-0810	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97594-772-1	01	1	0811-1404	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97565-788-1	01	1	1405-	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0803-0810	●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0803-0810	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0803-0810		●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404	●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404		●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-		●
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	12	1	0803-	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	12	1	0803-		●
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	14	1	0803-	●
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	12	1	0803-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	12	1	0803-		●
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	14	1	0803-	●
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 17.185 (A) M8X16	8-94193-952-3	12	1	0803-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 (A) M8X16	8-94193-952-3	12	1	0803-		●
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 17.185 (B) M8X21	8-94193-953-3	12	1	0803-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 (B) M8X21	8-94193-953-3	12	1	0803-		●
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.185 (A) M8X16	8-94193-952-3	14	1	0803-	●
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.185 (B) M8X21	8-94193-953-3	14	1	0803-	●
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	24	1	0803-1303	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	24	1	0803-1303		●
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 17.447 M8	8-97565-434-0	24	1	1304-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.447 M8	8-97565-434-0	24	1	1304-		●
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	28	1	0803-1303	●
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 17.447 M8	8-97565-434-0	28	1	1304-	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97593-750-0	02	1	0803-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0803-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0803-		●
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0803-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-3	01	1	0803-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-3	01	1	0803-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	0803-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	0803-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-492-3	01	1	0803-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-493-3	01	1	0803-		●
112	17.455 PANEL; SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> TAKADA	8-97594-605-0	02	1	0803-	●
112	17.455 PANEL; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97594-607-0	02	1	0803-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-97594-608-0	02	1	0803-		●
222	17.505 BOARD; SIDE GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> TAKADA	8-97594-609-1	02	1	0803-	●
222	17.505 BOARD; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97594-611-1	02	1	0803-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97594-612-1	02	1	0803-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> (B) REAR TAKADA	8-94194-396-0	01	1	0803-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> (B) REAR TAKADA	8-94194-397-0	01	1	0803-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> (A) FRONT TAKADA	8-97593-673-0	01	1	0803-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> (A) FRONT TAKADA	8-97593-674-0	01	1	0803-	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-275-0	01	1	0803-	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-276-0	01	1	0803-	●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	0803-	●	●

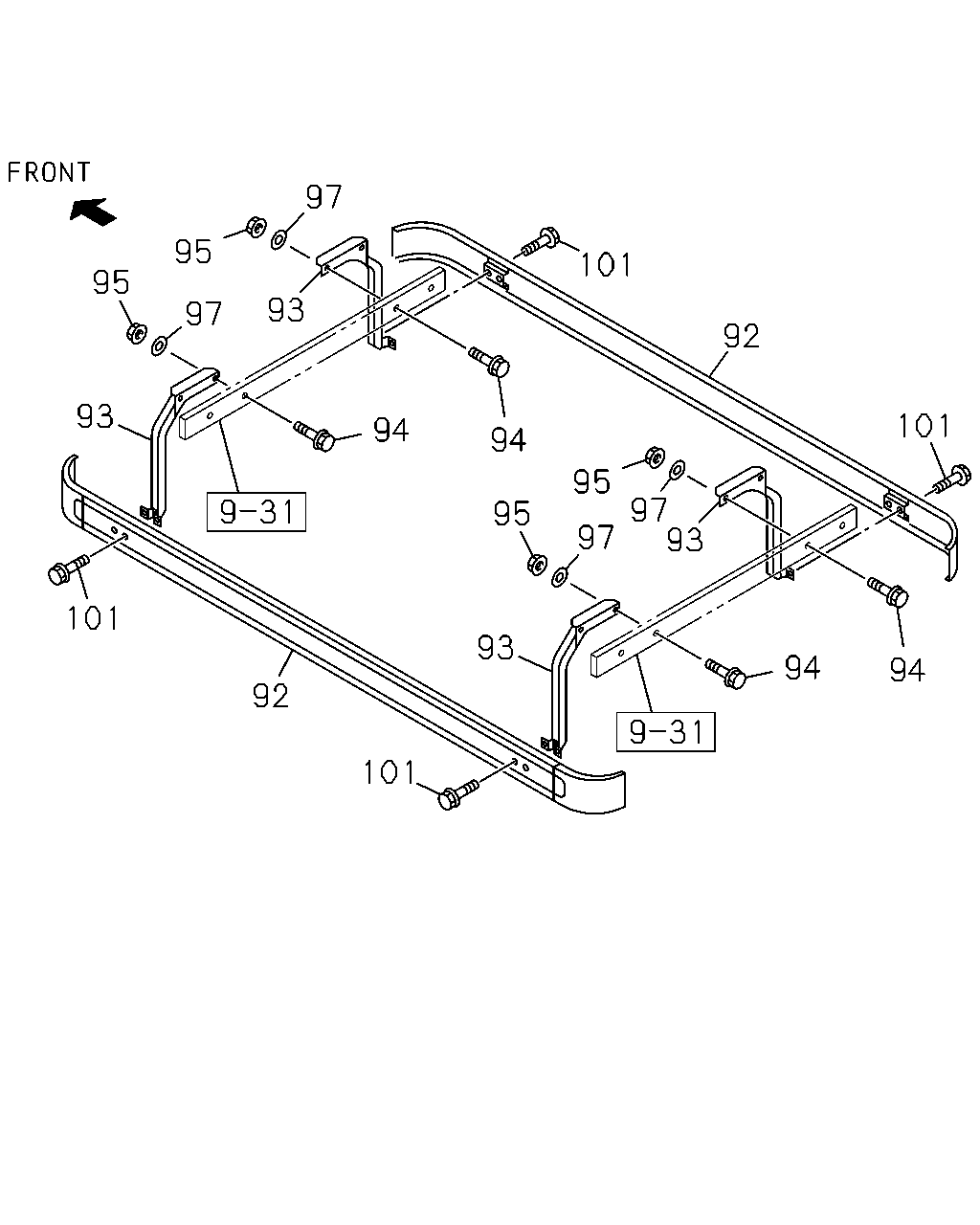

97 95 101 95 93 97 92 93 101 94 94 95 97 93 95 97 101 93 94 94 92 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	17.505 PIPE; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-98092-668-1	01	1	0803-	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-98092-669-0	01	1	0803-	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6>	8-98092-666-0	01	1	0803-	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6>	8-98092-667-0	01	1	0803-	●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED<RS6>	8-98091-352-0	01	1	0803-		●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED<RS6>	8-98091-353-0	01	1	0803-		●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-98035-148-0	02	1	0803-	●
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6>	8-98035-148-0	02	1	0803-	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6>	8-98035-148-0	02	1	0803-		●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH>	8-98035-149-0	02	1	0803-	●
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6>	8-98035-149-0	02	1	0803-	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6>	8-98035-149-0	02	1	0803-		●
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> M10X70 W/LK WASHER	0-50541-070-0	08	1	0803-	●
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> M10X70 W/LK WASHER	0-50541-070-0	08	1	0803-	●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED<RS6> M10X70 W/LK WASHER	0-50541-070-0	06	1	0803-		●
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 03.162 M10 FLANGE	0-91180-110-0	08	1	0803-	●
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 03.162 M10 FLANGE	0-91180-110-0	08	1	0803-	●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED<RS6> 03.162 M10 FLANGE	0-91180-110-0	08	1	0803-		●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	0803-	●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	0803-	●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED<RS6> 00.002 ID=10.5 OD=32	0-91614-810-0	06	1	0803-		●
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 06.216 M8X25 FLANGE	0-28650-825-0	08	1	0803-	●
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 06.216 M8X25 FLANGE	0-28650-825-0	08	1	0803-	●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> 06.216 M8X25 FLANGE	0-28650-825-0	08	1	0803-		●

40 40 40 36 70 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97592-525-0	02	1	0803-	●	●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-1	06	1	0803-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0803-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0803-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 OD=60 H=22	8-94193-455-0	02	1	0803-	●	●

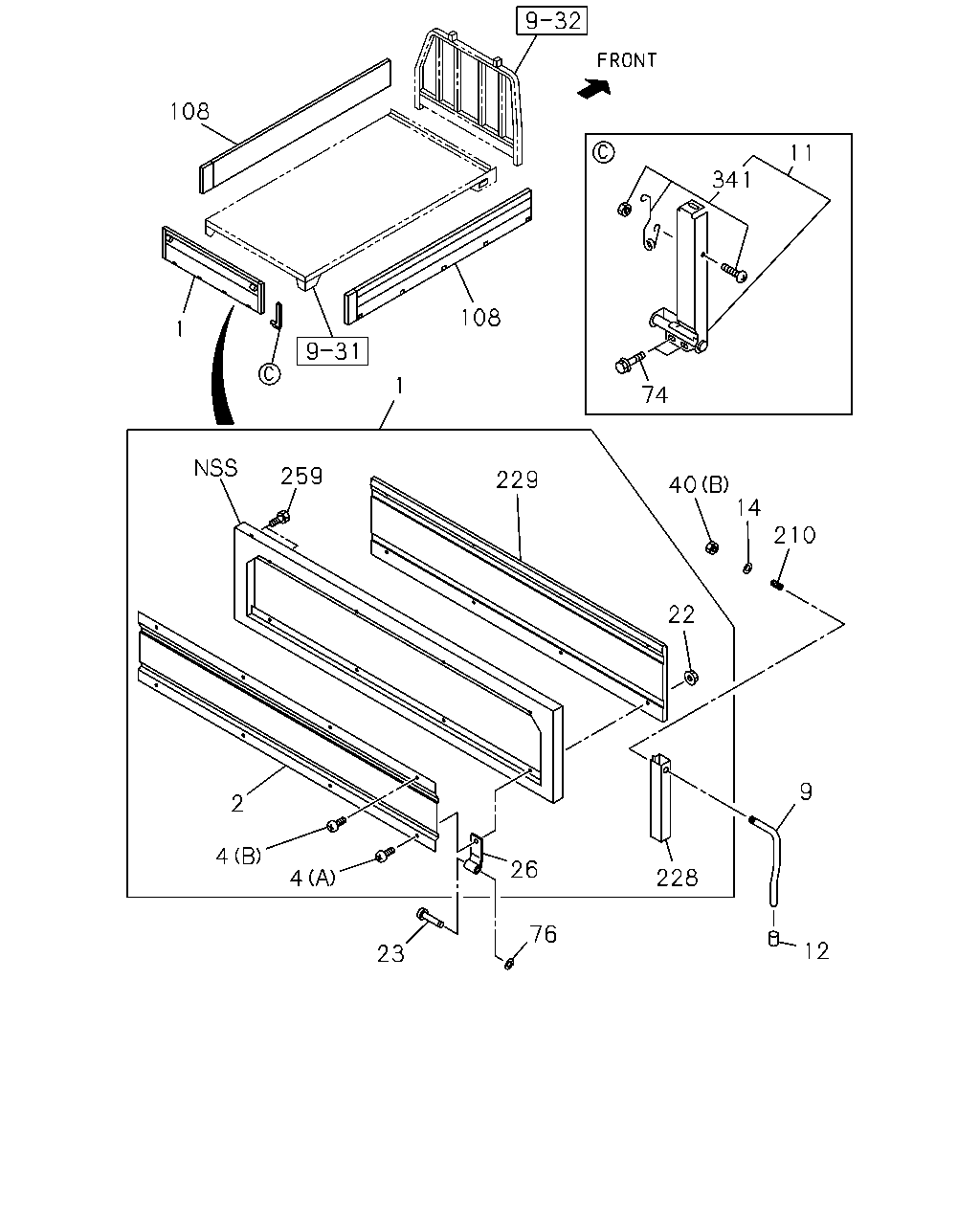

108 11 341 108 1 1 74 259 229 40 14 210 22 9 2 4 26 228 4 76 12 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=398 B=50 PLYWOOD TAKADA	8-97594-651-0	01	1	0803-0810	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97594-772-1	01	1	0811-1404	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97565-788-1	01	1	1405-	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0803-0810	●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0803-0810	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-650-0	01	1	0803-0810		●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404	●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	0811-1404		●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-		●
2	17.185 PANEL; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> TAKADA	8-97590-082-0	01	1	0803-	●
2	17.185 PANEL; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97590-081-0	01	1	0803-	●
2	17.185 PANEL; RR GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97590-081-0	01	1	0803-	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-081-0	01	1	0803-		●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (B) M8X16	8-94193-952-3	04	1	0803-	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (A) M8X21	8-94193-953-3	04	1	0803-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-400-2	01	1	0803-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-401-2	01	1	0803-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-97591-898-0	01	1	0803-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-97591-899-0	01	1	0803-	●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0803-	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> ID=12.5	0-91614-512-0	02	1	0803-	●	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> M8	8-94193-954-1	08	1	0803-1303	●	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> 17.447 M8	8-97565-434-0	08	1	1304-	●	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=10 L=58.5	8-94193-933-2	04	1	0803-	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-079-0	04	1	0803-0810	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-078-0	04	1	0811-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0803-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0803-	●	●
74	17.490 SCREW; LOCK RR BODY FLAT BED<RS6> 17.185 M8X25	8-94194-111-2	04	1	0803-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0803-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	16	1	0803-		●
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0803-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-3	01	1	0803-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-3	01	1	0803-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	0803-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	0803-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-492-3	01	1	0803-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-493-3	01	1	0803-		●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	0803-	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-97593-782-0	01	1	0803-	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-97593-783-0	01	1	0803-	●	●
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> TAKADA	8-97594-243-0	01	1	0803-1404	●
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> TAKADA	8-97565-793-1	01	1	1405-	●
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97594-242-0	01	1	0803-1404	●
229	17.505 BOARD; RR GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97594-242-0	01	1	0803-1404	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97594-242-0	01	1	0803-1404		●
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97565-792-1	01	1	1405-	●
229	17.505 BOARD; RR GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> TAKADA	8-97565-792-1	01	1	1405-	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97565-792-1	01	1	1405-		●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> OUTER M8X20 TAKADA	8-94194-115-0	02	1	0803-1303	●	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> OUTER M8X20 TAKADA	8-97590-324-0	02	1	1304-	●	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> INNER M8X40 TAKADA	8-97593-296-0	02	1	0803-1303	●	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> INNER M8X40 TAKADA	8-97590-325-0	02	1	1304-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-448-0	01	1	0803-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-449-0	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
