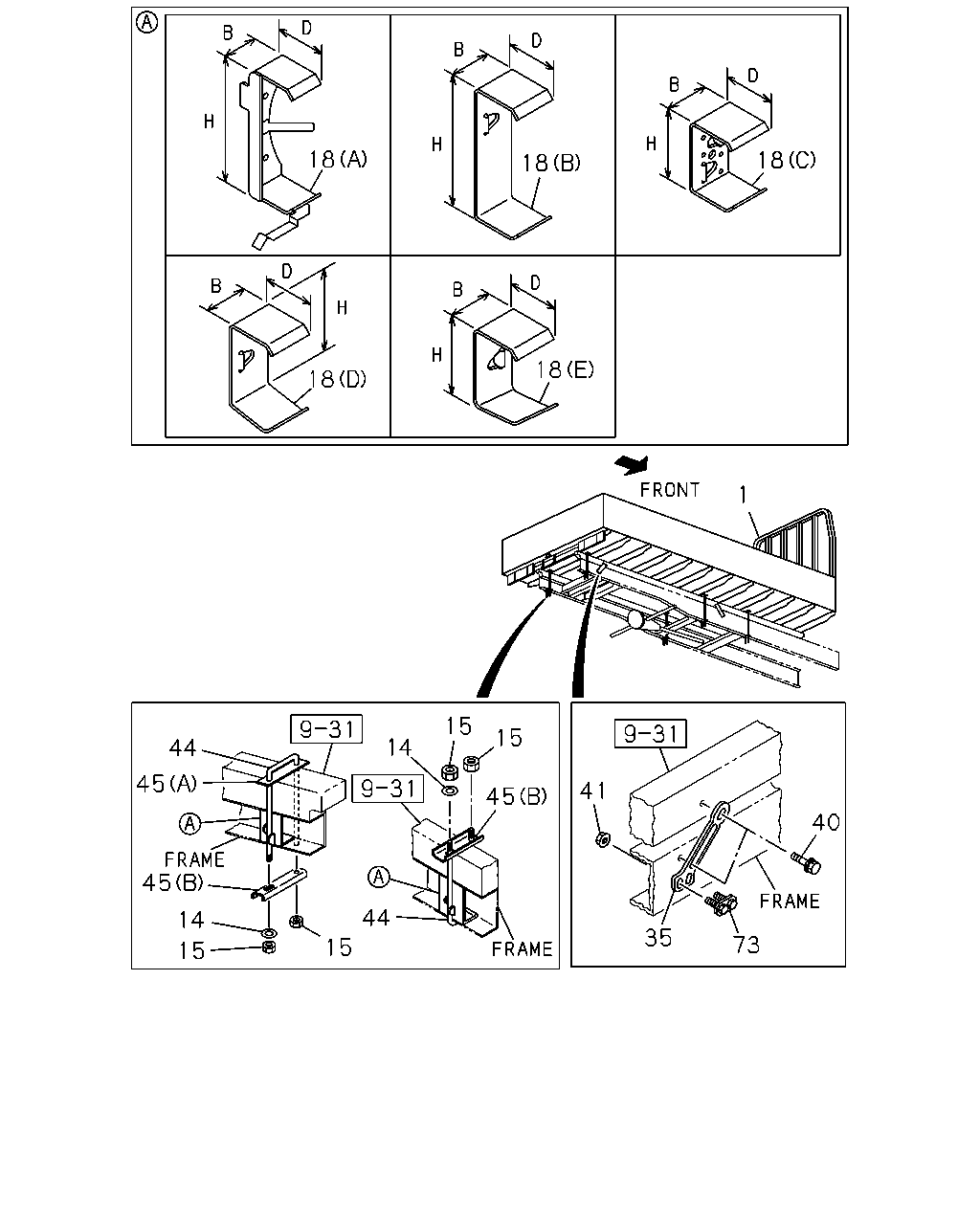

9-30 — REAR BODY ASM AND MOUNTING (#80465) — 51 parça

18 18 18 18 18 1 15 15 14 44 45 41 45 40 45 44 14 35 73 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.090 BODY ASM; REAR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> WHITE	8-97411-609-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> WHITE	8-97411-628-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 2400MM(24W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> LIGHT GRAY	8-97414-632-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 2400MM(24W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> LIGHT GRAY	8-97414-631-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 2400MM(24W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> BLUE	8-97411-610-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 2400MM(24W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> BLUE	8-97411-608-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE	8-97411-626-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED<RS6> LIGHT GRAY	8-97414-630-2	01	1	0803-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> BLUE	8-97411-627-2	01	1	0803-	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE	8-97411-622-2	01	1	0803-		●
1	17.090 BODY ASM; REAR BODY COLOR TRANS BLUE(999) RR BODY FLAT BED<RS6> BLUE	8-97411-623-2	01	1	0803-		●
1	17.090 BODY ASM; REAR WHEEL BASE 2400MM(24W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> BLUE	8-97417-301-2	01	1	0904-	●
1	17.090 BODY ASM; REAR WHEEL BASE 2400MM(24W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> BLUE	8-97417-300-2	01	1	0904-	●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE	8-97417-299-2	01	1	0904-	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE	8-97417-391-2	01	1	0904-		●
14	09.011 WASHER; PL,RR BODY MTG WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26	9-09164-514-0	04	1	0803-1010	●
14	09.011 WASHER; PL,RR BODY MTG WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> ID=15 OD=26	0-91614-514-0	04	1	1011-	●
14	09.011 WASHER; PL,RR BODY MTG WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26	9-09164-514-0	06	1	0803-1010	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26	9-09164-514-0	06	1	0803-1010		●
14	09.011 WASHER; PL,RR BODY MTG WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> ID=15 OD=26	0-91614-514-0	06	1	1011-	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED<RS6> ID=15 OD=26	0-91614-514-0	06	1	1011-		●
15	09.011 NUT; RR BODY MTG WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> 06.008 M14	9-09130-414-0	08	1	0803-	●
15	09.011 NUT; RR BODY MTG WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 06.008 M14	9-09130-414-0	12	1	0803-	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6> 06.008 M14	9-09130-414-0	12	1	0803-		●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> (A) H=172 B=40 D=65	8-98058-167-0	01	1	0803-	●	●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> (B) H=172 B=50 D=65	8-98037-580-0	01	1	0803-	●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> (D) H=102 B=50 D=65	8-98041-880-0	01	1	0803-	●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> (E) H=102 B=50 D=65	8-98041-881-0	01	1	0803-	●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (C) H=91 B=50 D=65	8-94132-123-1	02	1	0803-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> (C) H=91 B=50 D=65	8-94132-123-1	02	1	0803-		●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (B) H=172 B=50 D=65	8-98037-580-0	03	1	0803-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> (B) H=172 B=50 D=65	8-98037-580-0	03	1	0803-		●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6>	8-98030-398-2	04	1	0803-	●	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED<RS6>	8-97189-615-0	04	1	0803-	●	●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 03.162 M10 FLANGE	0-91180-110-0	08	1	0803-	●	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=367	5-51171-008-1	01	1	0803-	●	●
44	17.447 U-BOLT; FRAME TO RR BODY WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=367	5-51171-008-1	01	1	0803-	●
44	17.447 U-BOLT; FRAME TO RR BODY WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> L=297	5-51171-009-1	02	1	0803-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=297	5-51171-009-1	02	1	0803-		●
44	17.447 U-BOLT; FRAME TO RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=272	5-51171-007-1	02	1	0803-	●
44	17.447 U-BOLT; FRAME TO RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> L=367	5-51171-008-1	03	1	0803-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=367	5-51171-008-1	03	1	0803-		●
45	17.447 PLATE; U-BOLT WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> (B) L=120 B=45	5-66900-204-3	04	1	0803-	●
45	17.447 PLATE; U-BOLT WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (B) L=120 B=45	5-66900-204-3	06	1	0803-	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (B) L=120 B=45	5-66900-204-3	06	1	0803-		●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	02	1	0803-0901	●
45	17.447 PLATE; U-BOLT WHEEL BASE 2400MM(24W) RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	02	1	0902-	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	01	1	0803-0901		●
45	17.447 PLATE; U-BOLT WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	01	1	0902-	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	01	1	0902-		●
73	03.690 PLATE; STUD BOLT RR BODY FLAT BED<RS6>	8-98047-322-0	04	1	0803-	●	●
