9-01 — TOOLS (#80464) — 53 parça

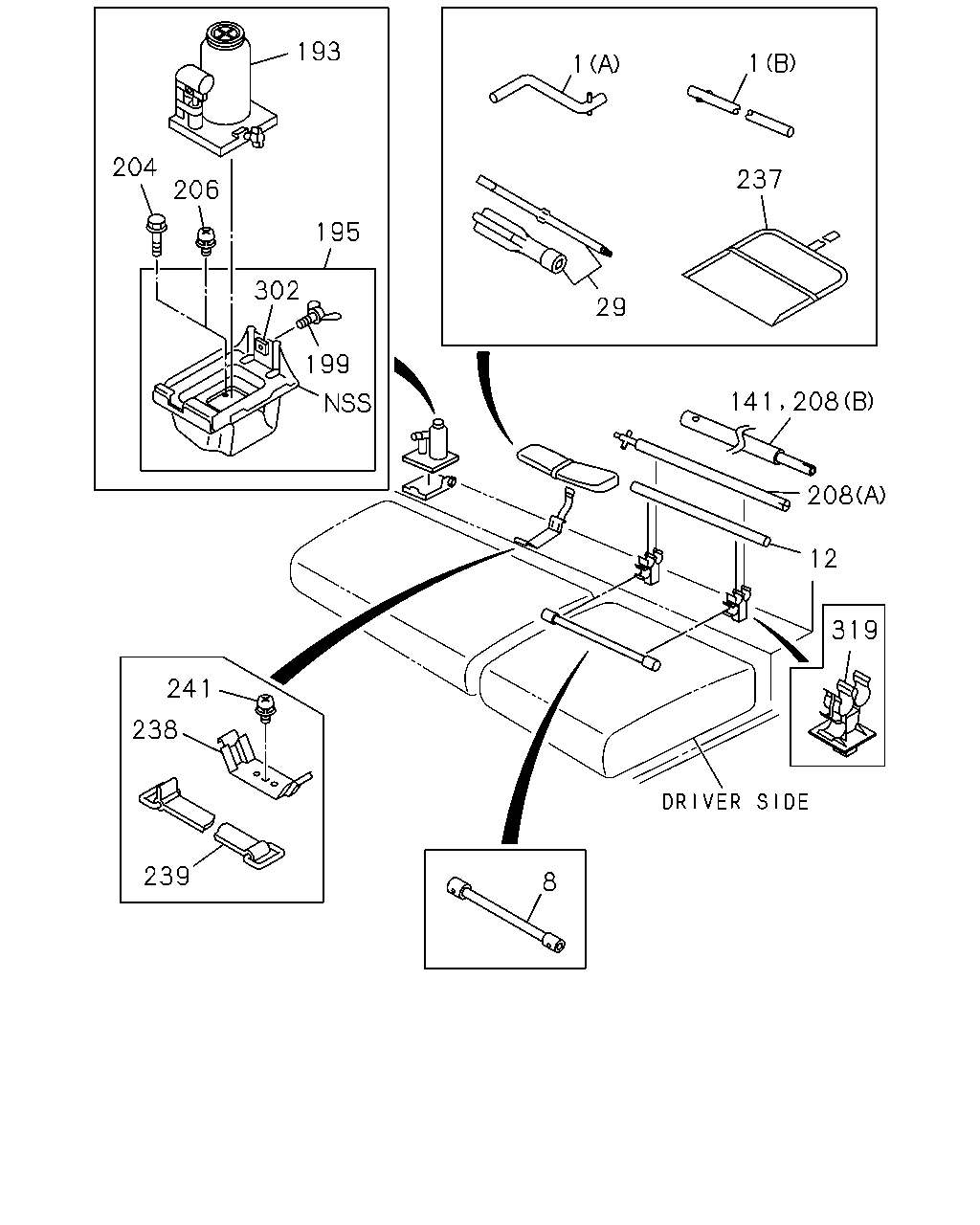

çizim 14343
193 1 1 204 237 206 195 302 29 199 208 12 319 241 238 239 8 141 208
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280 		1-85515-007-0 01 1 0803-0812 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 0803-0812 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0803-0812 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280 		1-85515-007-0 01 1 0901-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0901-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0901-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) 		8-97218-985-0 01 1 0803-0812 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 0901- ●
8 08.821 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 0803- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=590 		8-97332-988-0 01 1 0803-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1002 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1003-1407 ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0803- ● ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		1-85515-005-1 01 1 0803-1108 ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		8-98181-249-0 01 1 1109- ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 0803- ● ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 0803- ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0803- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0803- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0803- ●
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0803- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0803-0812 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 0803-0812 ●
208 08.820 HANDLE; JACK
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0901-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0901-1108 ●
208 08.820 HANDLE; JACK
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642 		8-97217-800-0 01 1 0803-0911 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-97217-800-0 01 1 0912-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1109- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0803- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0803- ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0803- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0803- ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0803- ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0803- ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0803- ● ●

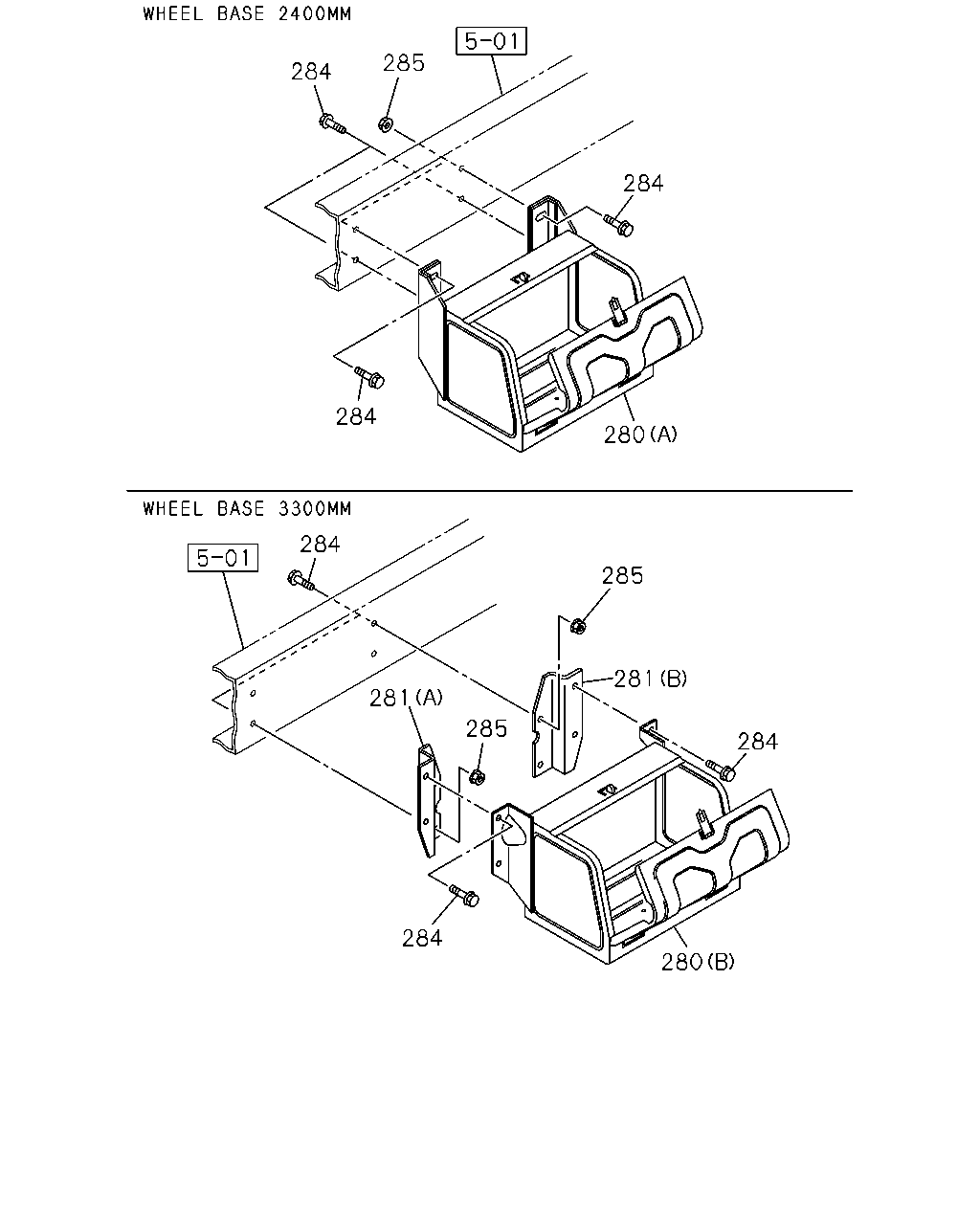

çizim 14637
285 284 284 284 280 284 285 281 281 285 284 284 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.821 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (A) 		8-98054-885-0 01 1 0803- ●
280 08.821 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-97384-079-0 01 1 0803- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 0803- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98046-374-1 01 1 0803-0901 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 0902- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0803- ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0803- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0803- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0803- ●

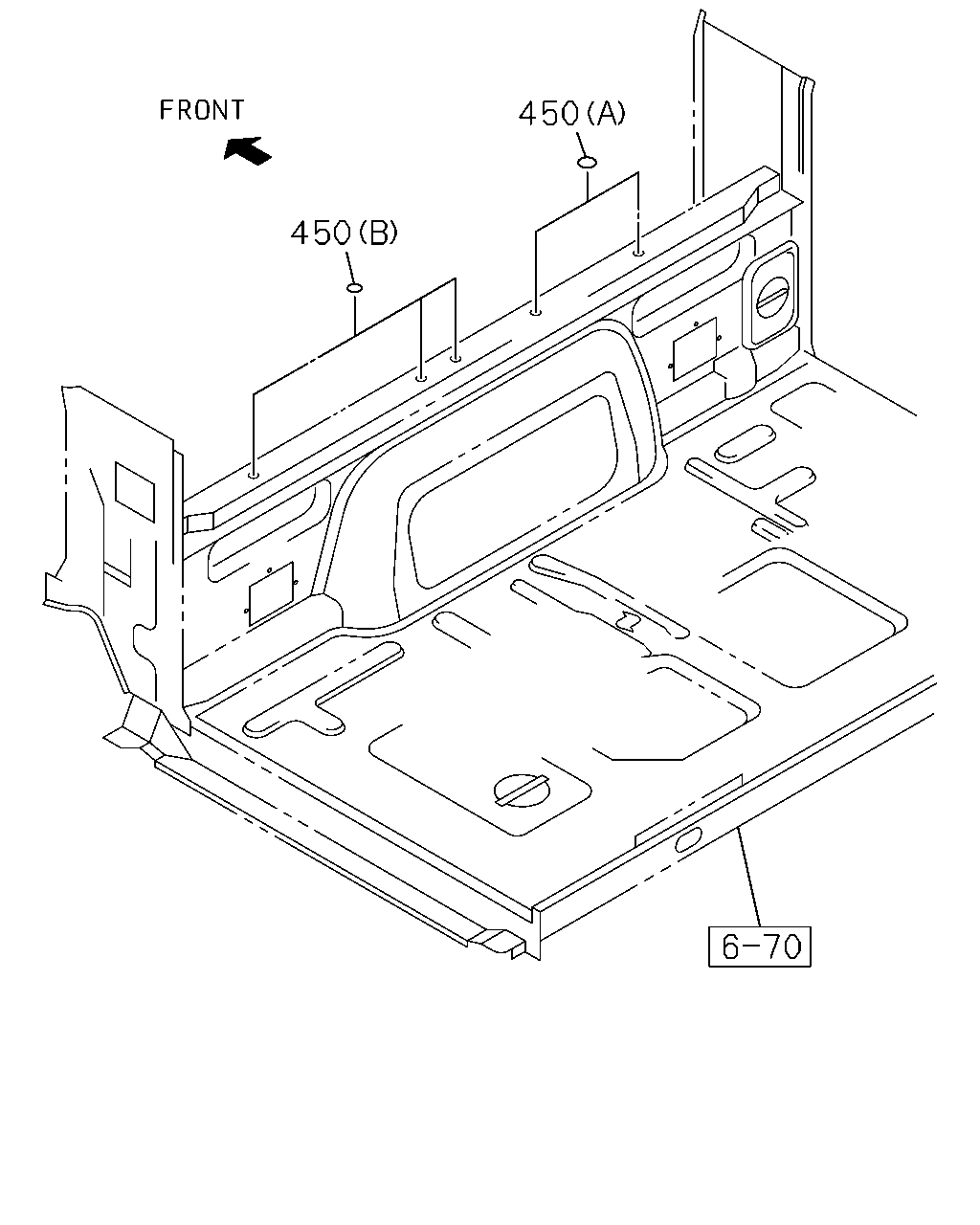

çizim 182614
450 450
BalonParca AdiParca NoAdetTipApplied Date A B
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0803- ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0803- ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0803- ●
