8-75 — CONDENSER (#80461) — 16 parça

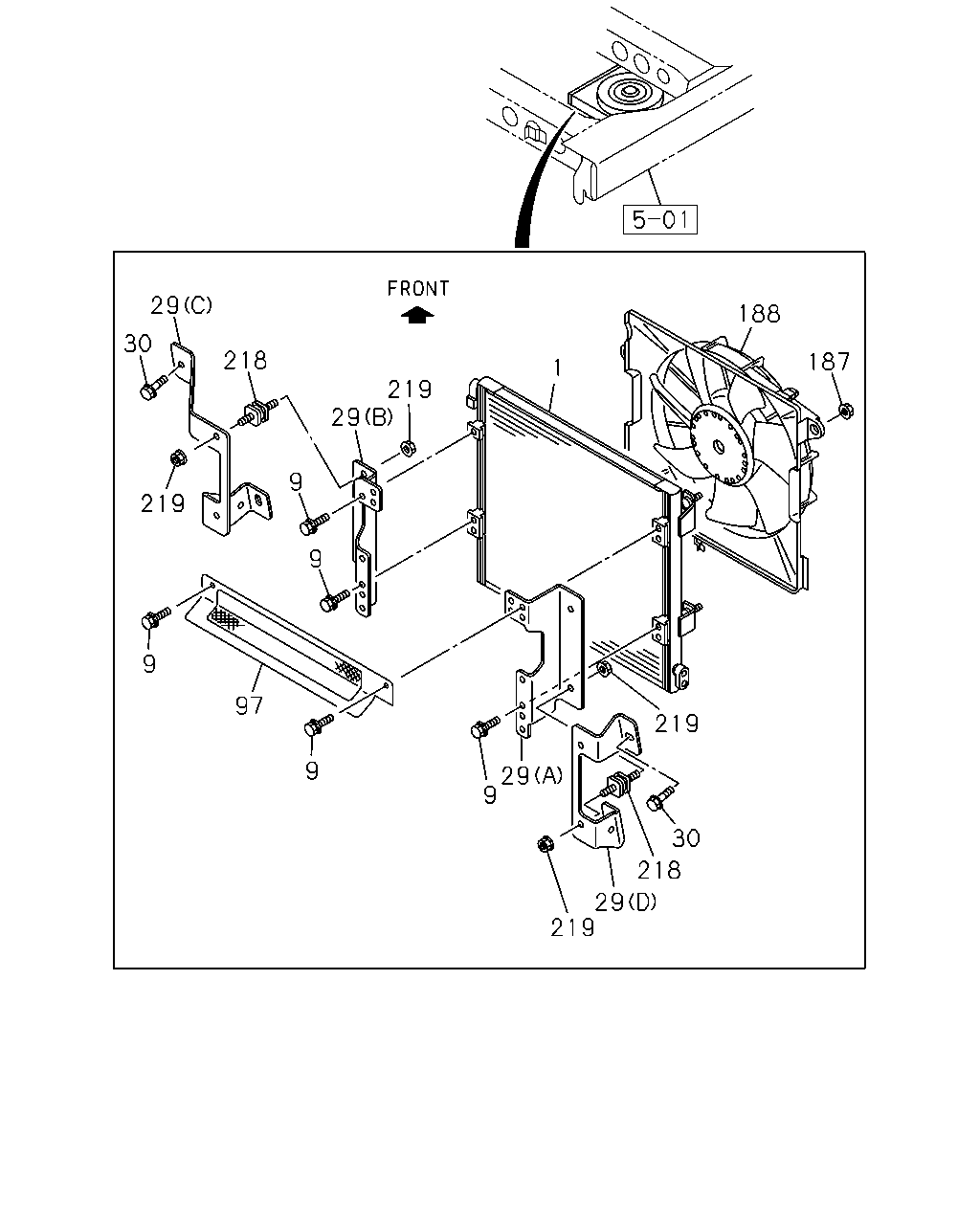

29 188 30 218 187 1 219 29 9 219 9 9 97 219 9 29 9 30 218 29 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98041-884-0	01	1	0803-	●	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	1-83539-382-0	08	1	0803-	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98041-893-0	01	1	0803-	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98041-895-0	01	1	0803-	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98041-896-1	01	1	0803-	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (D)	8-98041-897-1	01	1	0803-	●	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0803-	●	●
97	09.190 NET; CONDENSER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98041-900-0	01	1	0803-	●	●
187	09.190 NUT; SHROUD AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	0803-	●	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98041-889-0	01	1	0803-	●	●
218	09.215 CUSHION; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98041-898-0	04	1	0803-	●	●
219	09.190 NUT; CUSHION AIR CONDITIONER MANUAL CONT(C60) M8	1-83539-319-0	08	1	0803-	●	●

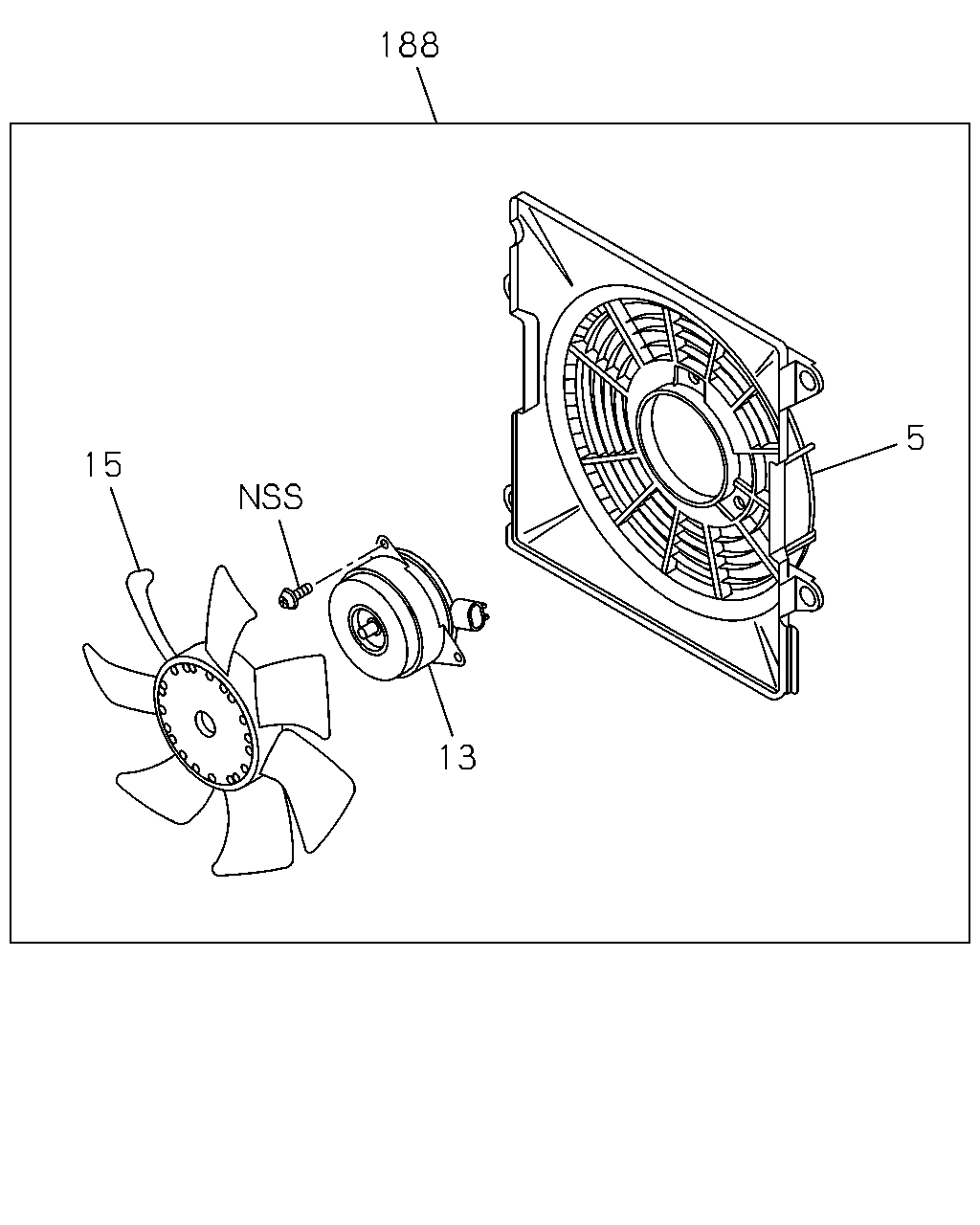

188 5 15 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	09.216 SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60)	8-98152-865-0	01	1	0803-	●	●
13	09.215 MOTOR; FAN AIR CONDITIONER MANUAL CONT(C60)	8-98157-044-0	01	1	0803-	●	●
15	09.216 FAN; MOTOR AIR CONDITIONER MANUAL CONT(C60)	8-98152-860-0	01	1	0803-	●	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98041-889-0	01	1	0803-	●	●
