◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#80451) — 19 parça

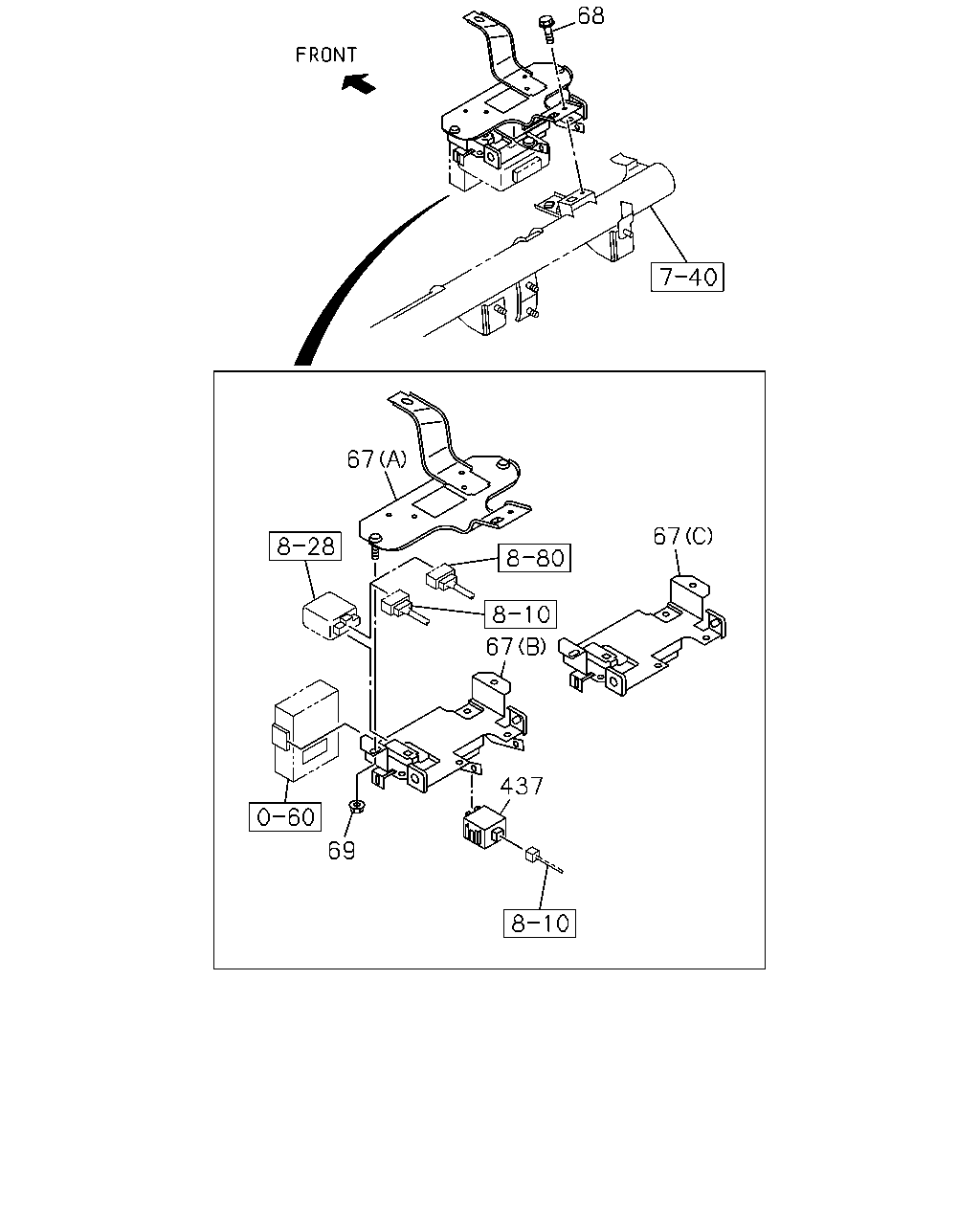

çizim 138228
68 67 67 437 69 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0803-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 0803- ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0803- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0803- ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 0803- ● ●

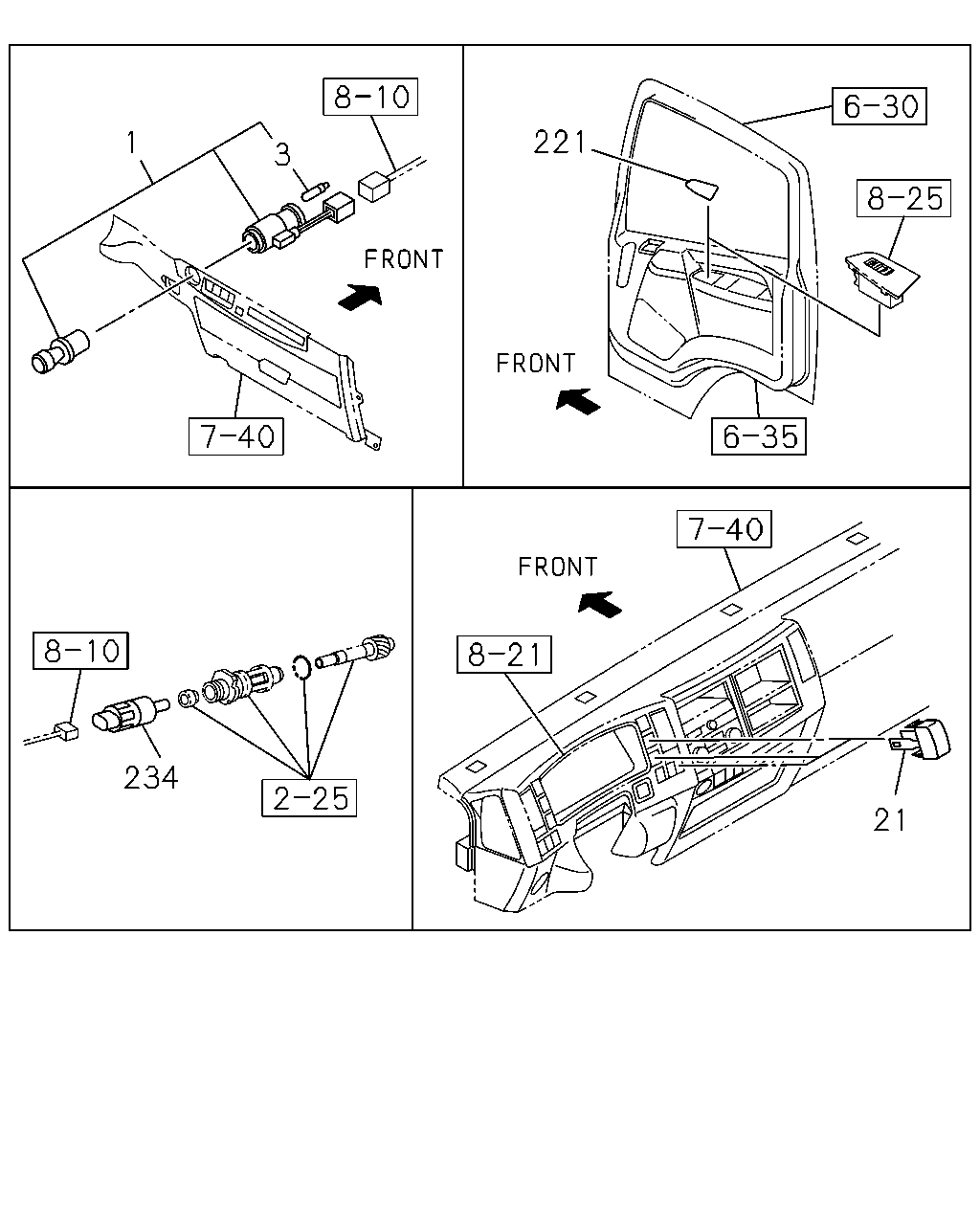

çizim 138238
221 1 3 234 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0803-0906 ● ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907- ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0803-0906 ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 0803- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 0803- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0803- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 0803- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0803- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 0803- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0803- ● ●
