8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#80450) — 95 parça

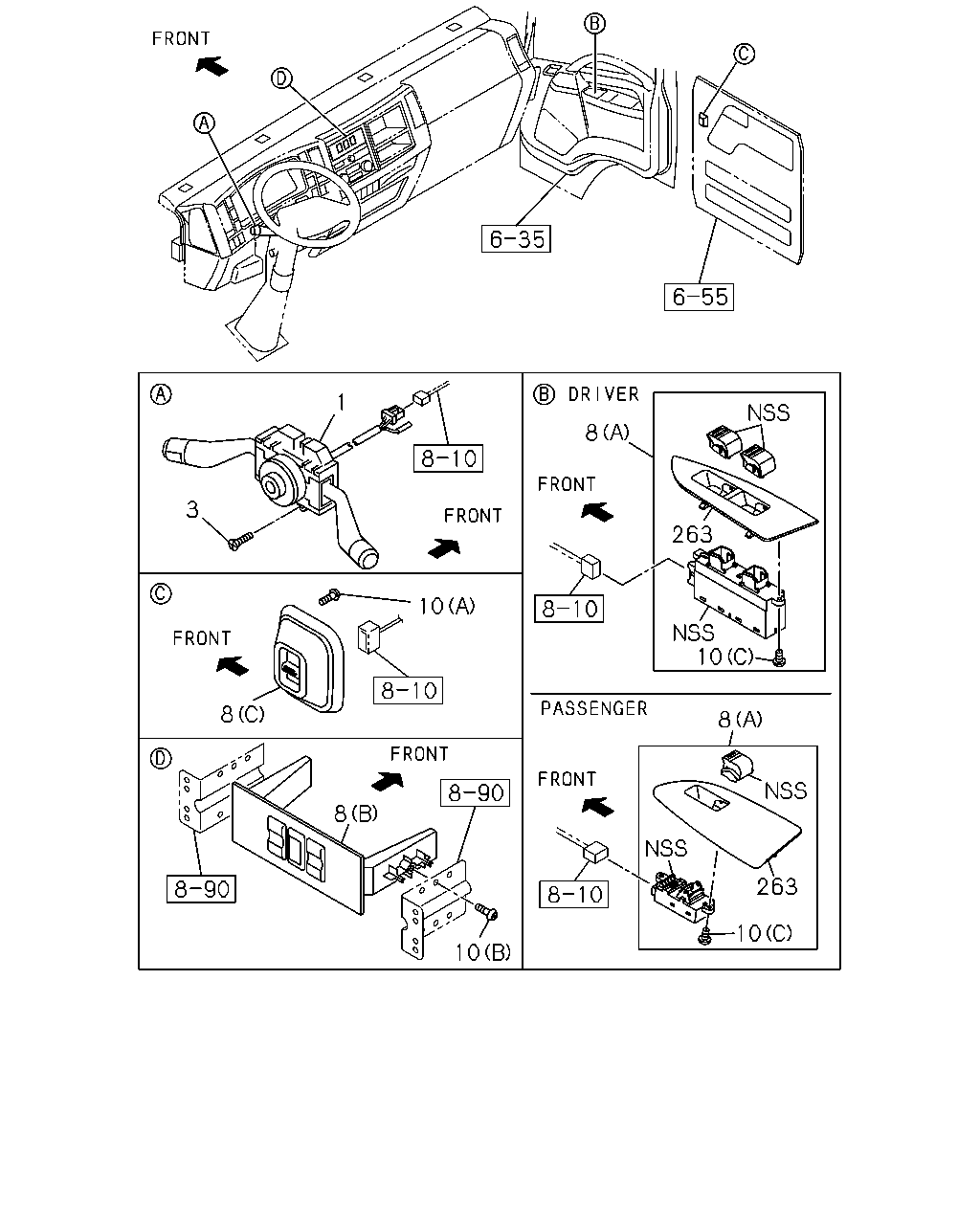

1 8 3 263 10 10 8 8 8 263 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98070-010-1	01	1	0803-1310	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98243-749-0	01	1	1311-	●	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98070-008-2	01	1	0803-1310	●	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98243-748-0	01	1	1311-	●	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0803-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-98001-737-2	01	1	0803-	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-98001-737-2	01	1	0803-		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-97386-987-2	01	1	0803-		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE	8-97387-035-0	02	1	0803-		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98003-784-1	01	1	0803-0809	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98003-784-1	01	1	0803-0809		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98129-845-0	01	1	0810-1001	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98129-845-0	01	1	0810-1001		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER SIDE	8-98159-544-0	01	1	1002-	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 06.609 (A) DRIVER SIDE	8-98159-544-0	01	1	1002-		●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	01	1	0803-	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	01	1	0803-		●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	02	1	0803-	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	02	1	0803-		●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING	0-74360-414-0	04	1	0803-		●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	0803-		●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32>	8-98153-838-0	01	1	0803-	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31>	8-98153-838-0	01	1	0803-		●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32>	8-98153-843-0	01	1	0803-	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31>	8-98153-843-0	01	1	0803-		●

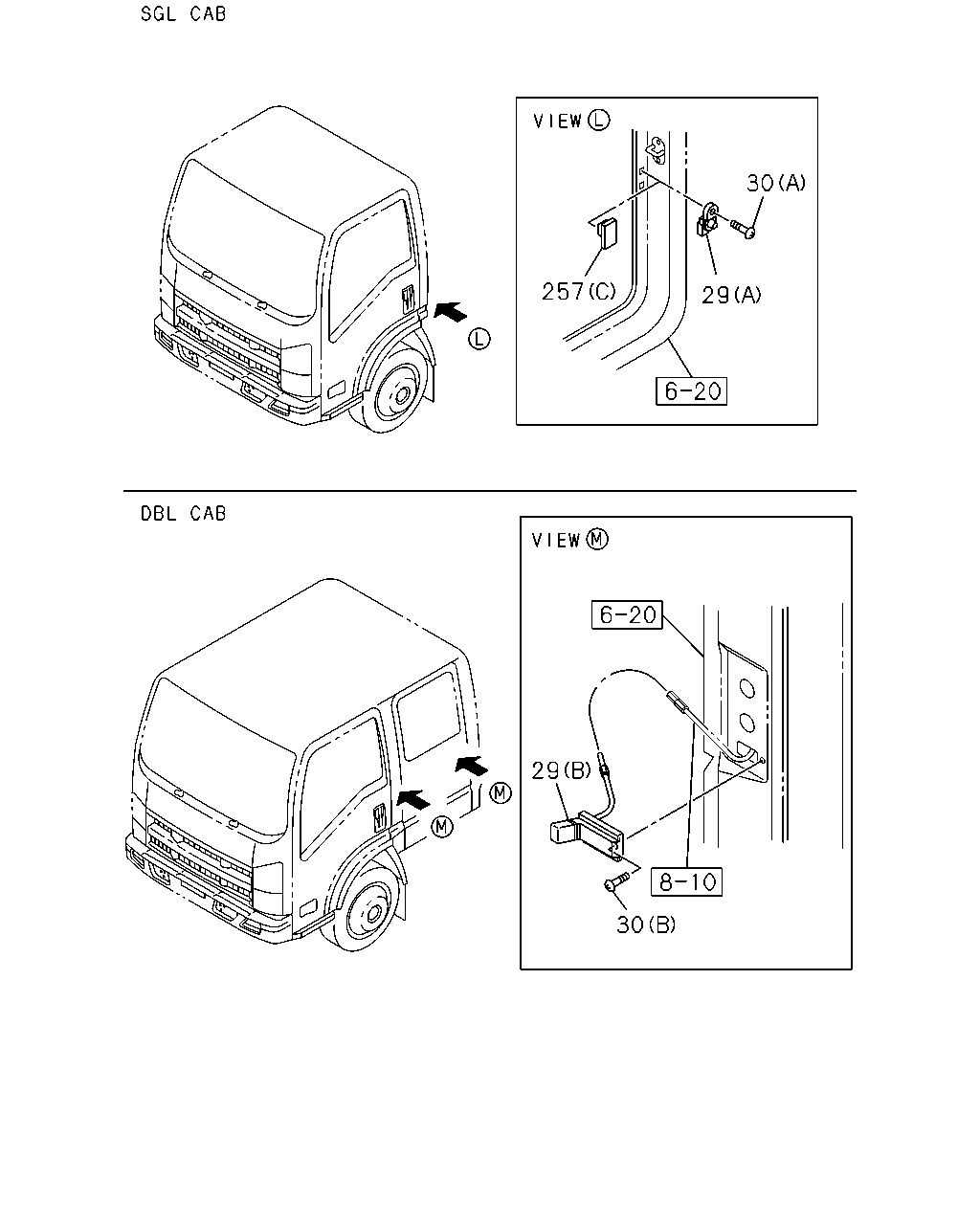

30 257 29 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0803-	●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	0803-		●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	0803-		●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	0803-		●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	0803-		●
30	16.263 SCREW; DOOR SW (A) M5X18	8-98047-201-0	01	1	0803-	●
30	16.263 SCREW; DOOR SW (B) M5X16	8-94279-341-0	04	1	0803-		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	0803-	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0803-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●

317 12 610 12 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-		●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-		●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-1204	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●

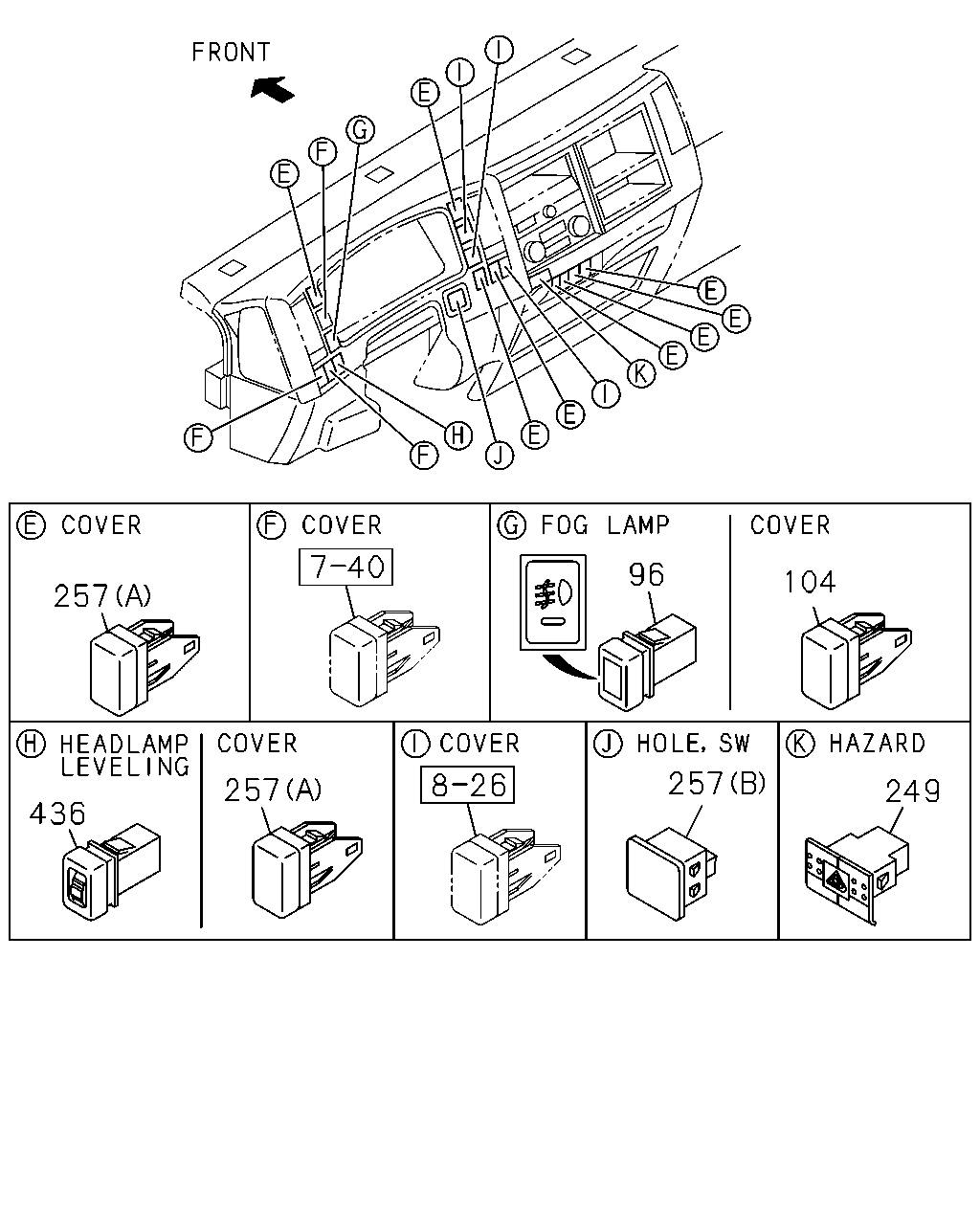

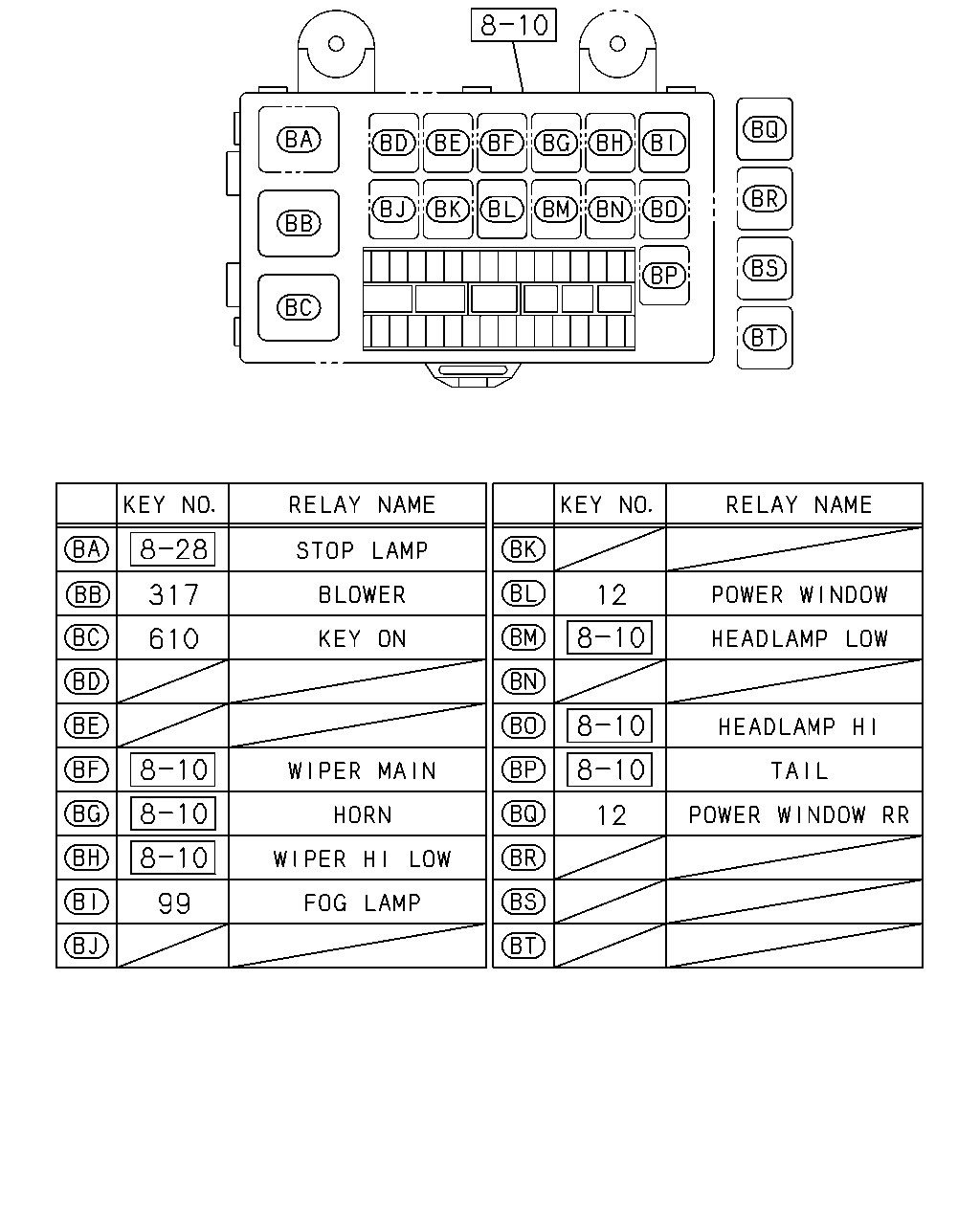

96 104 257 257 257 249 436

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0803-	●	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	0803-	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	0803-	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	0803-	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0803-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0803-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
436	02.485 SWITCH; HEADLAMP LEVELING HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-97386-981-2	01	1	0803-	●	●

151 154

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-	●	●
	154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●	●

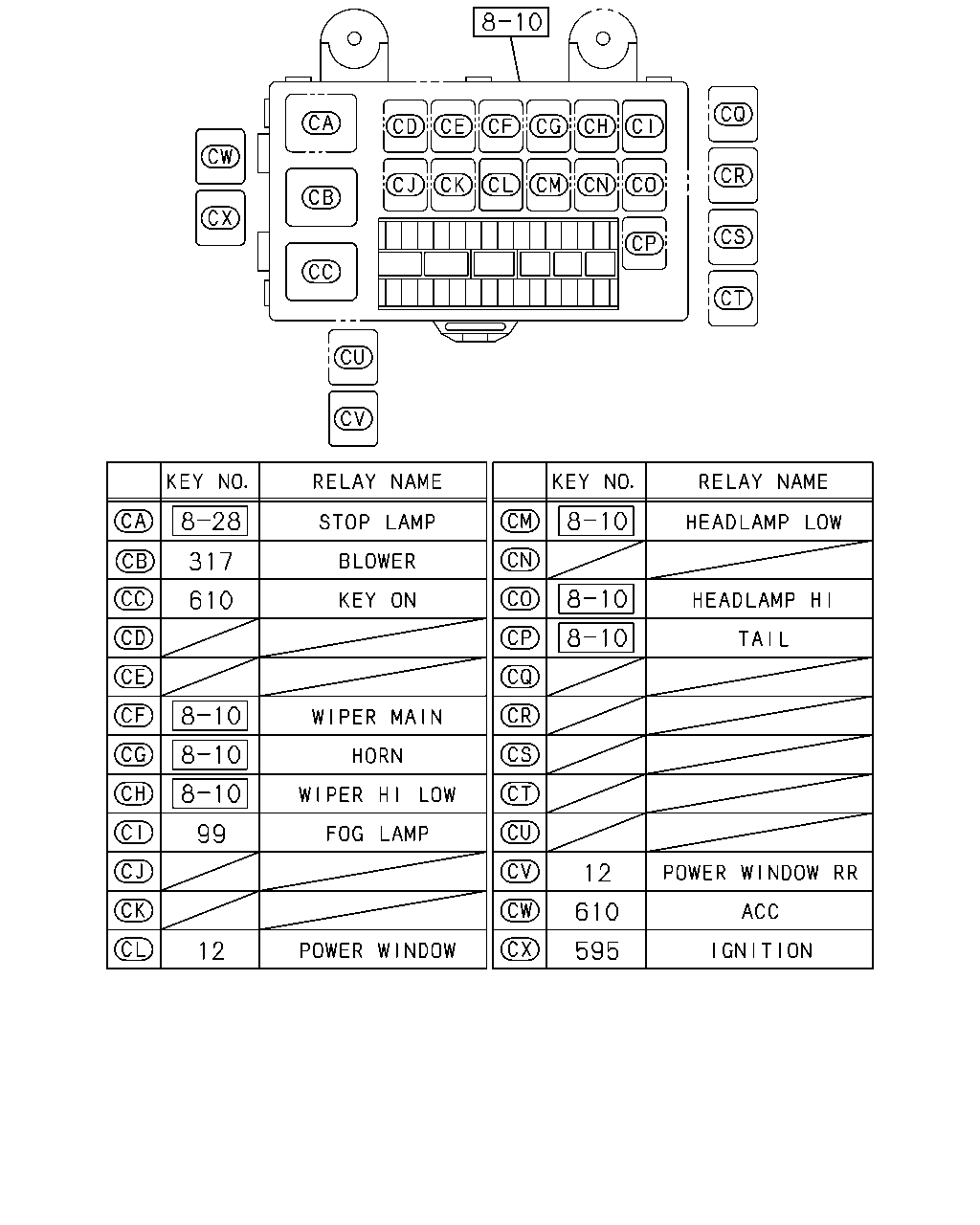

317 610 99 12 610 12 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-		●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-		●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-	●	●
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-1204	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	0803-	●	●

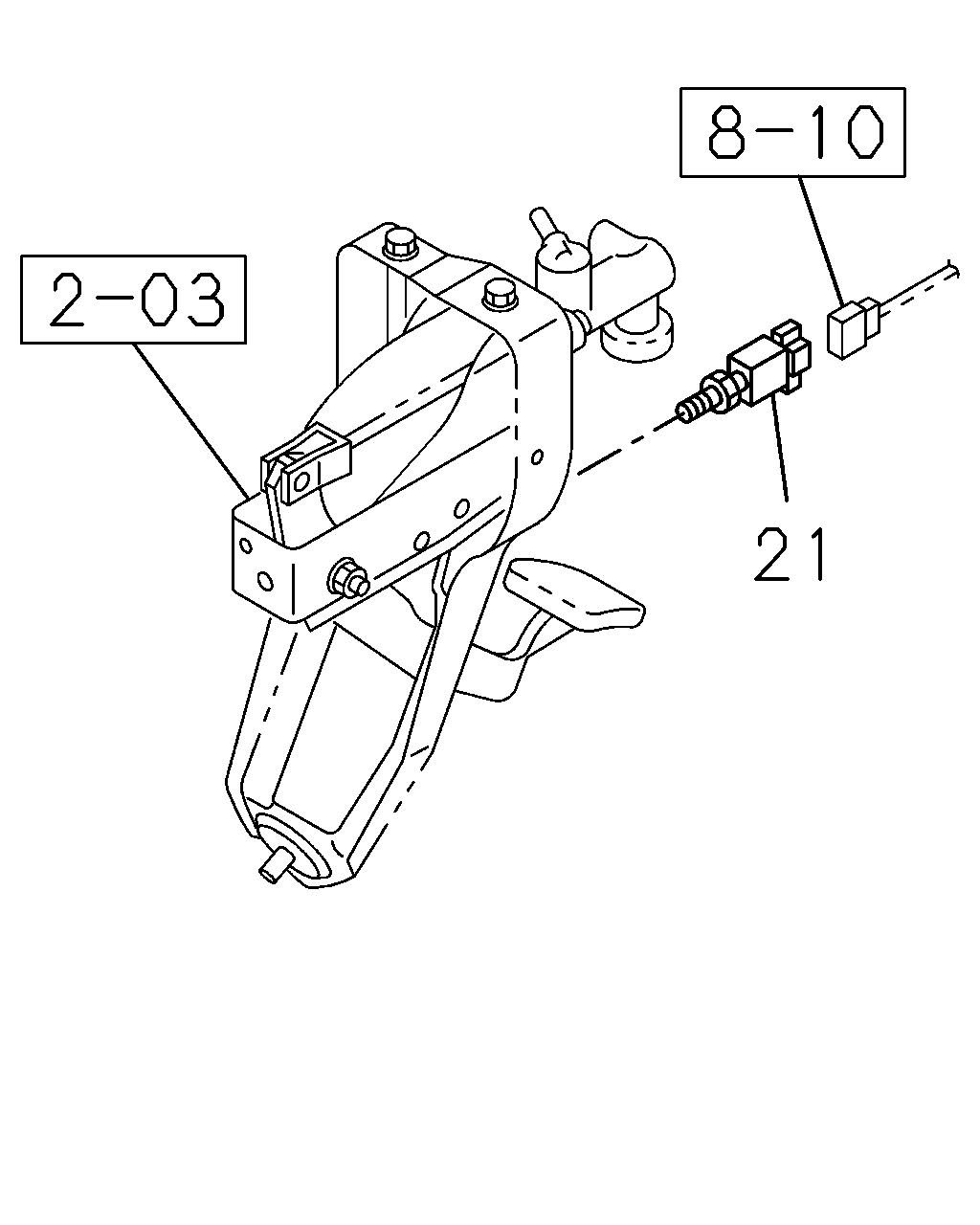

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	21	02.575 SWITCH; CLU	8-97358-248-0	01	1	0803-	●	●
