7-45 — CONSOLE BOX (#8045) — 72 parça

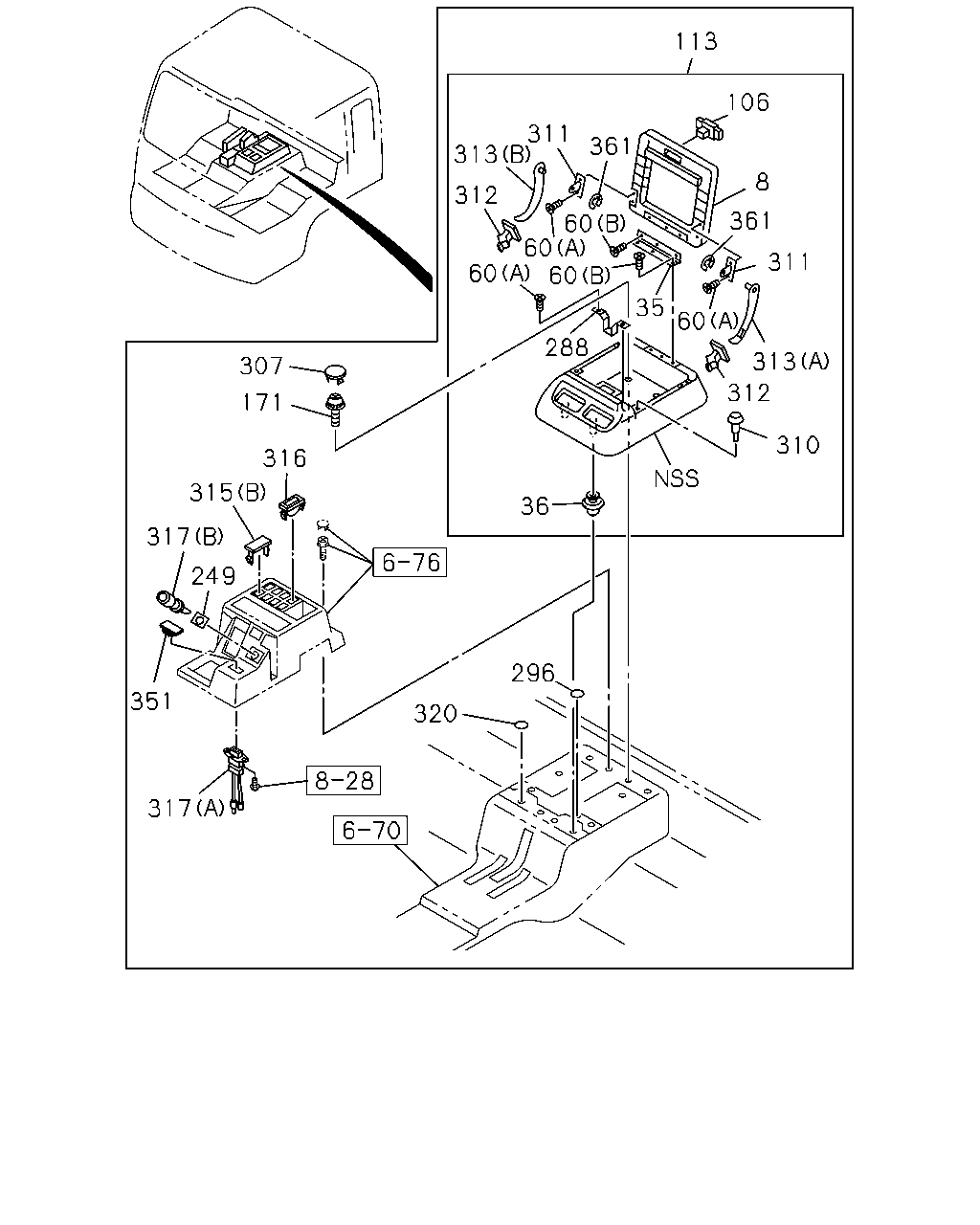

çizim 43212
113 106 311 313 361 8 312 60 60 60 361 311 60 35 60 288 313 307 312 171 310 316 315 36 317 249 296 351 320 317
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-260-1 01 1 0005-0703 ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-321-0 01 1 0704- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-182-1 01 1 0005- ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-09984-190-0 02 1 0005- ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0610-0703 ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0210-0603 ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0604- ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (B) M5X14 		8-94279-325-0 04 1 0210- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 0005- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-258-0 01 1 0005-0209 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-297-2 01 1 0210-0609 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-315-1 01 1 0610- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0005- ● ●
249 COVER 1-82529-001-0 01 1 0005-0011 ● ● ●
249 COVER 1-82529-001-0 01 1 0012- ● ● ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-190-0 01 1 0005- ● ●
296 SEAL
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 02 1 0005-0011 ● ● ●
296 SEAL
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 02 1 0012- ● ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0012- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-76337-461-0 02 1 0005- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-187-0 02 1 0005- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-188-2 02 1 0005- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-186-1 02 1 0005- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-185-3 01 1 0005- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-184-3 01 1 0005- ● ●
315 COVER; HOLE,SW
6HE1 TC ENG(57L) (A) 		1-82359-069-2 09 1 0005-0210 ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 08 1 0211-0405 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 08 1 0211-0405 ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 08 1 0406- ● ● ●
315 COVER; HOLE,SW
6SD1 TCN ENG(31L) (A) 		1-82359-069-2 07 1 0005-0011 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0005-0011 ● ●
315 COVER; HOLE,SW
6SD1 TCN ENG(31L) (A) 		1-82359-069-2 07 1 0012-0210 ● ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 09 1 0211- ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0005-0011 ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0012- ● ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 0005-0011 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 10 1 0012-0210 ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 0012-0210 ● ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 10 1 0211-0405 ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 10 1 0406- ● ● ●
315 COVER; HOLE,SW
6SD1 TCN ENG(31L) (A) 		1-82359-069-2 01 1 0005-0210 ● ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 07 1 0211- ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0105- ●
316 BOX; COIN 8-94482-280-2 02 1 0005-0011 ● ●
316 BOX; COIN 8-94482-280-2 02 1 0012- ● ● ●
317 CONSENT
(A) 		1-82523-020-2 01 1 0005-0011 ● ● ●
317 CONSENT
(A) 		1-82523-020-2 01 1 0012-0310 ● ● ● ●
317 CONSENT
(B) 		8-94382-451-1 01 1 0005-0011 ● ● ●
317 CONSENT
(B) 		8-94382-451-1 01 1 0012- ● ● ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 05 1 0005-0011 ● ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 05 1 0012- ● ● ● ●
351 COVER; HOLE CONSENT 8-97535-037-0 01 1 0311-0311 ●
351 COVER; HOLE CONSENT 8-97535-037-0 01 1 0312- ● ● ● ●
361 RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> ID=5 		9-09185-405-0 02 1 0210- ● ●

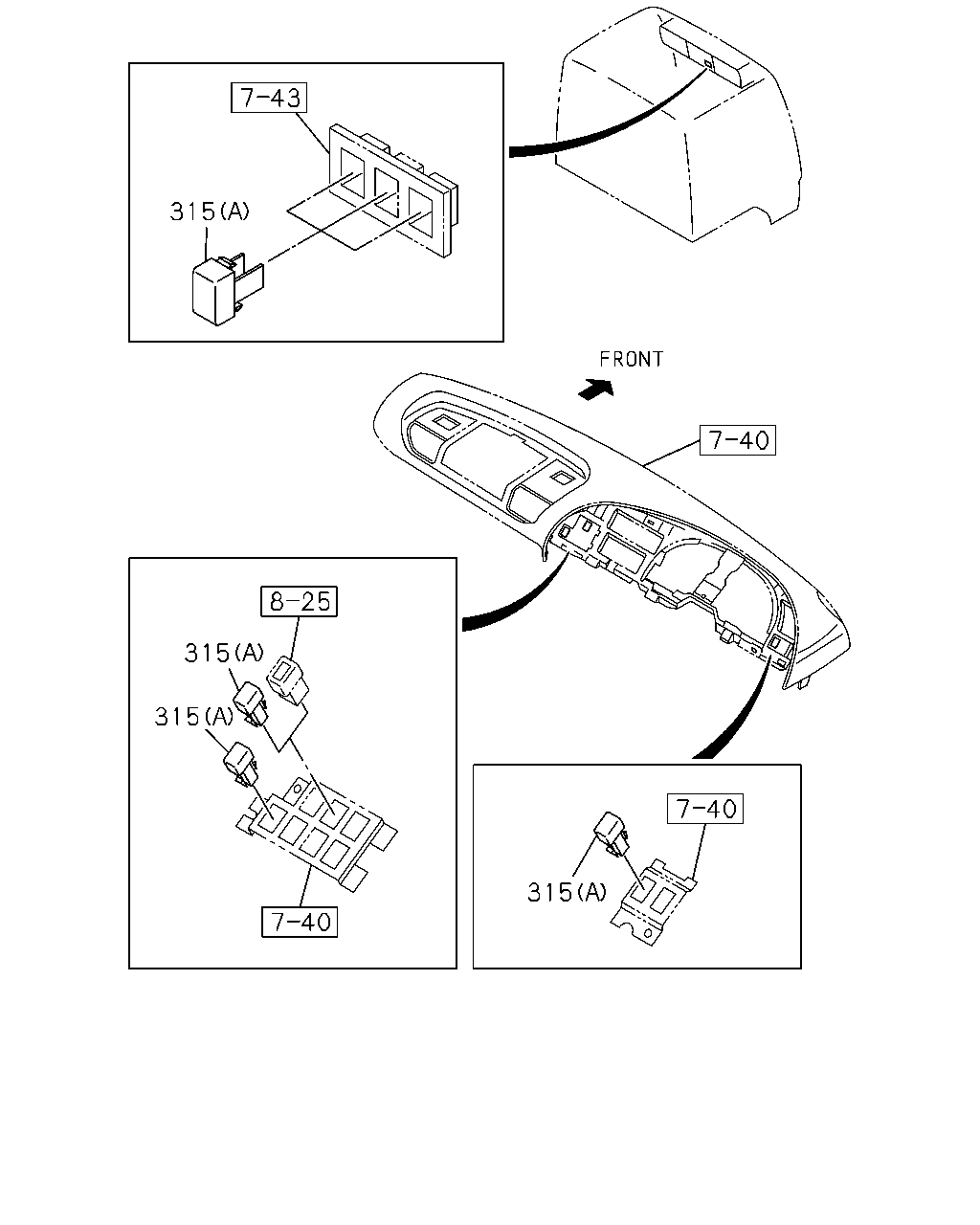

çizim 46756
315 315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B C D
315 COVER; HOLE,SW
6HE1 TC ENG(57L) (A) 		1-82359-069-2 09 1 0005-0210 ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 08 1 0211-0405 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 08 1 0211-0405 ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 08 1 0406- ● ● ●
315 COVER; HOLE,SW
6SD1 TCN ENG(31L) (A) 		1-82359-069-2 07 1 0005-0011 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0005-0011 ● ●
315 COVER; HOLE,SW
6SD1 TCN ENG(31L) (A) 		1-82359-069-2 07 1 0012-0210 ● ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 09 1 0211- ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0005-0011 ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0012- ● ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 0005-0011 ● ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 10 1 0012-0210 ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 0012-0210 ● ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 10 1 0211-0405 ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 10 1 0406- ● ● ●
315 COVER; HOLE,SW
6SD1 TCN ENG(31L) (A) 		1-82359-069-2 01 1 0005-0210 ● ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 07 1 0211- ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0105- ●
