Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#80448) — 237 parça

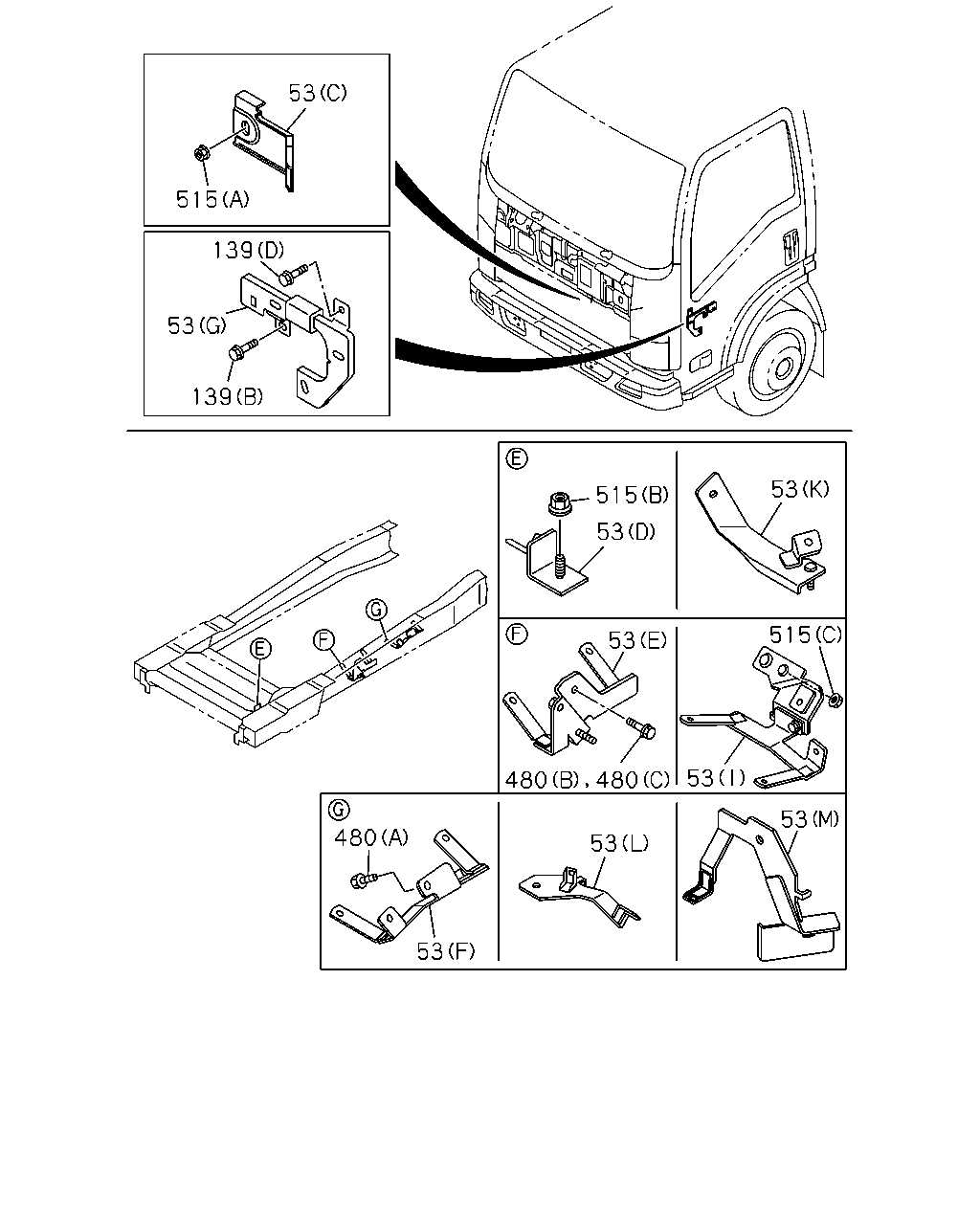

53 515 139 53 139 53 515 53 515 53 53 53 480 53 53 480 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (F)	8-98033-918-2	01	1	0803-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (E)	8-98052-900-1	01	1	0803-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (J)	8-98074-502-0	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (K)	8-98111-813-0	01	1	0803-1309	●	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	0803-1309	●
53	02.483 BRACKET; HARNESS (E)	8-98105-778-0	01	1	0803-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	0803-1309	●
53	02.483 BRACKET; HARNESS (I)	8-98107-111-1	01	1	0803-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0804-0805	●	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (L)	8-98096-963-0	01	1	0803-0808	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (M)	8-98123-409-1	01	1	0809-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0803	●	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0803-0809	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0803-	●	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-	●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-1309	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-1309		●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-0803	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-0803		●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-	●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-0803	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-0803		●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0803-1309	●	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-	●

139 516 313 38 139 516 480 139 480 480 529 377 377 386 377 386 386 386 24 515 577 219 294 515 552 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-1409	●	●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0803	●	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0803-0809	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0803-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0803-1004	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0803-1004	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0803-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0803-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0803-	●	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-	●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-1309	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-1309		●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-0803	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-0803		●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-	●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-0803	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-0803		●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0803-1309	●	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-	●
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-1111	●	●
516	02.559 BOLT; HARNESS 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0803-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0803-	●	●

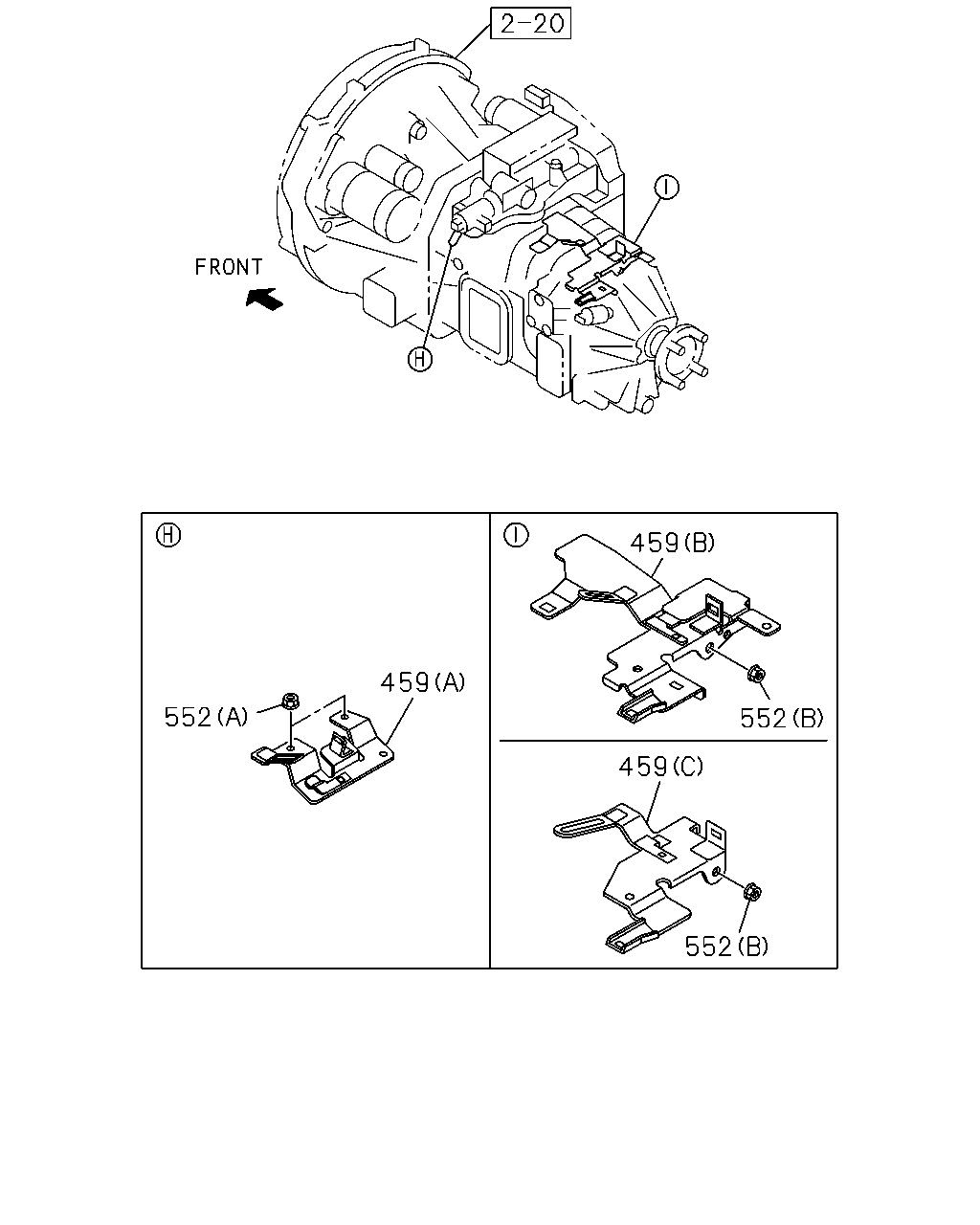

552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-	●	●

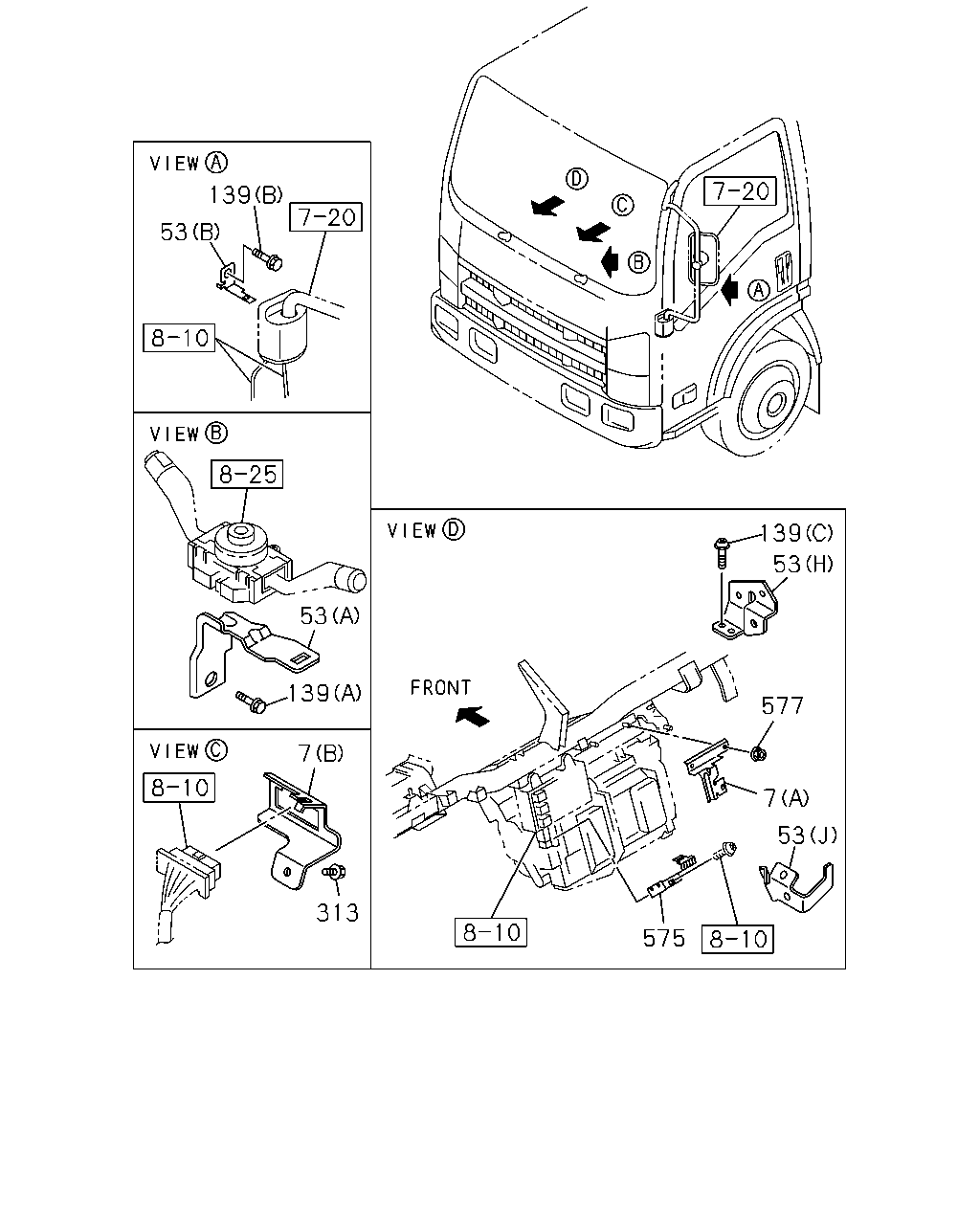

139 53 139 53 53 139 577 7 7 53 313 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	0803-	●	●
7	02.559 BRACKET; CONNECTOR (A)	8-98056-073-3	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (F)	8-98033-918-2	01	1	0803-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (E)	8-98052-900-1	01	1	0803-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (J)	8-98074-502-0	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS (K)	8-98111-813-0	01	1	0803-1309	●	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	0803-	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	0803-1309	●
53	02.483 BRACKET; HARNESS (E)	8-98105-778-0	01	1	0803-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	0803-1309	●
53	02.483 BRACKET; HARNESS (I)	8-98107-111-1	01	1	0803-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0804-0805	●	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (L)	8-98096-963-0	01	1	0803-0808	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (M)	8-98123-409-1	01	1	0809-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0803	●	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0803-0809	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0803-	●	●
575	02.559 BRACKET; FUSE BOX	8-98054-320-1	01	1	0803-0808	●	●
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	0809-	●	●
575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98132-932-1	01	1	0809-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-	●	●

22 22 22 16 48 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0803-		●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-94449-165-0	02	1	0803-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	0803-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0803-0904	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0905-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0803-0904	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0905-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0803-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C) L=170.3	1-09987-182-0	06	1	0803-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	0803-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	0803-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0803-		●

22 22 617 16 488 48 16 22 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0803-		●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-94449-165-0	02	1	0803-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	0803-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0803-0904	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0905-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0803-0904	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0905-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0803-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C) L=170.3	1-09987-182-0	06	1	0803-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	0803-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	0803-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0803-		●
488	02.559 CLIP; CABLE,TRAILER EXC. FRAME-KICK UP<7EW> (B) L=250	5-09707-030-1	01	1	0803-	●
488	02.559 CLIP; CABLE,TRAILER (B) L=250	5-09707-030-1	01	1	0803-		●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> 02.587 (A) L=112	8-94232-618-0	05	1	0803-1104	●	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> REAR BODY LAGER WIDTH<8EH> 02.587 (A) L=112	8-94232-618-0	05	1	1105-	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> EXC. REAR BODY LAGER WIDTH<8EH> 02.587 (A) L=112	8-94232-618-0	04	1	1105-	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED<RS6> 02.587 (A) L=112	8-94232-618-0	04	1	1105-		●
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1012-1106	●	●

459 459 552 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	0803-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	0803-1109	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-	●	●

22 16 16 48 513 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0803-		●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0803-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-94449-165-0	02	1	0803-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	0803-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0803-0904	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0905-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0803-0904	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0905-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0803-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C) L=170.3	1-09987-182-0	06	1	0803-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	0803-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	0803-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0803-		●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 130X80	8-97304-373-0	01	1	0808-	●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
