◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#80447) — 180 parça

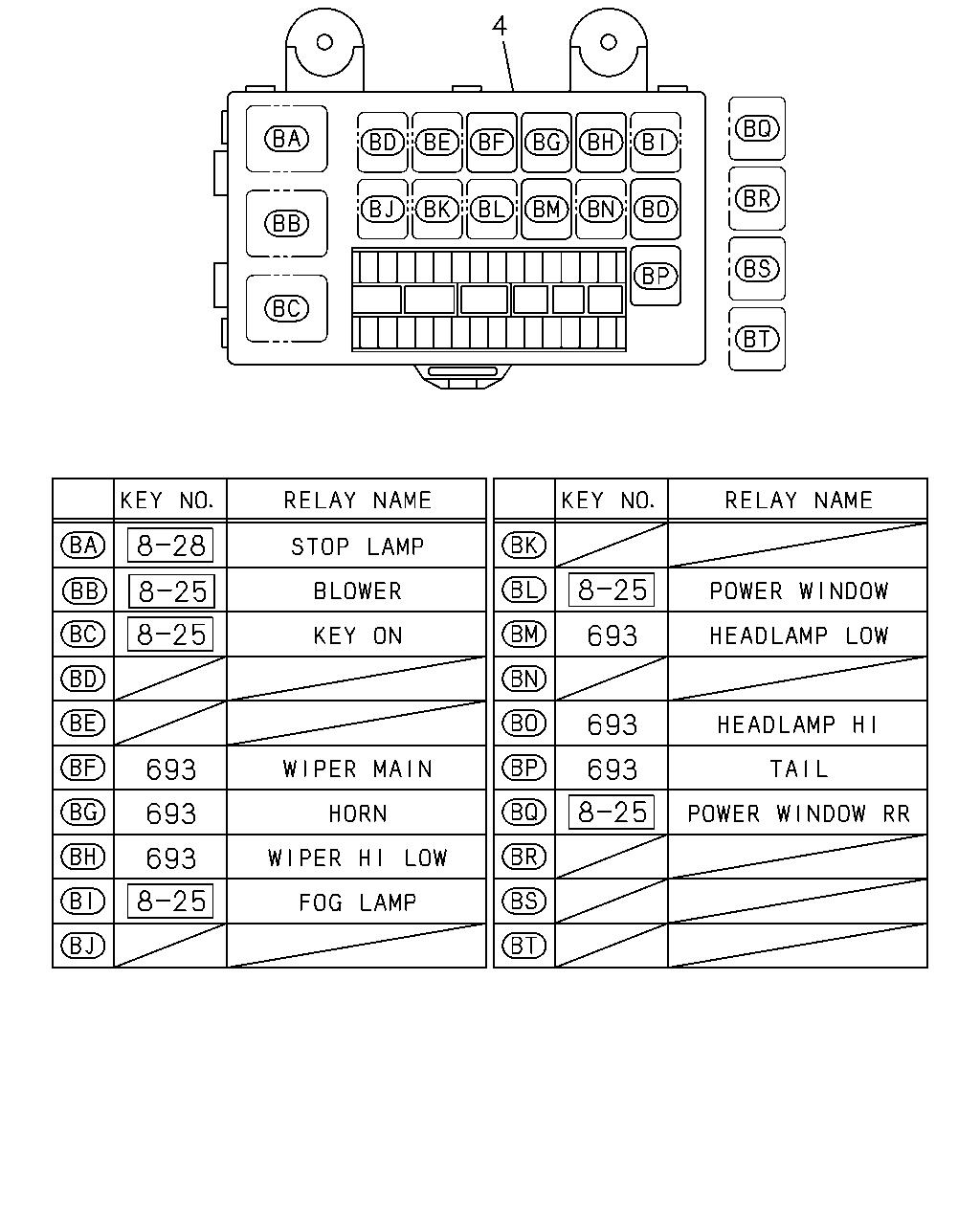

çizim 136205
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0803- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0803- ● ●

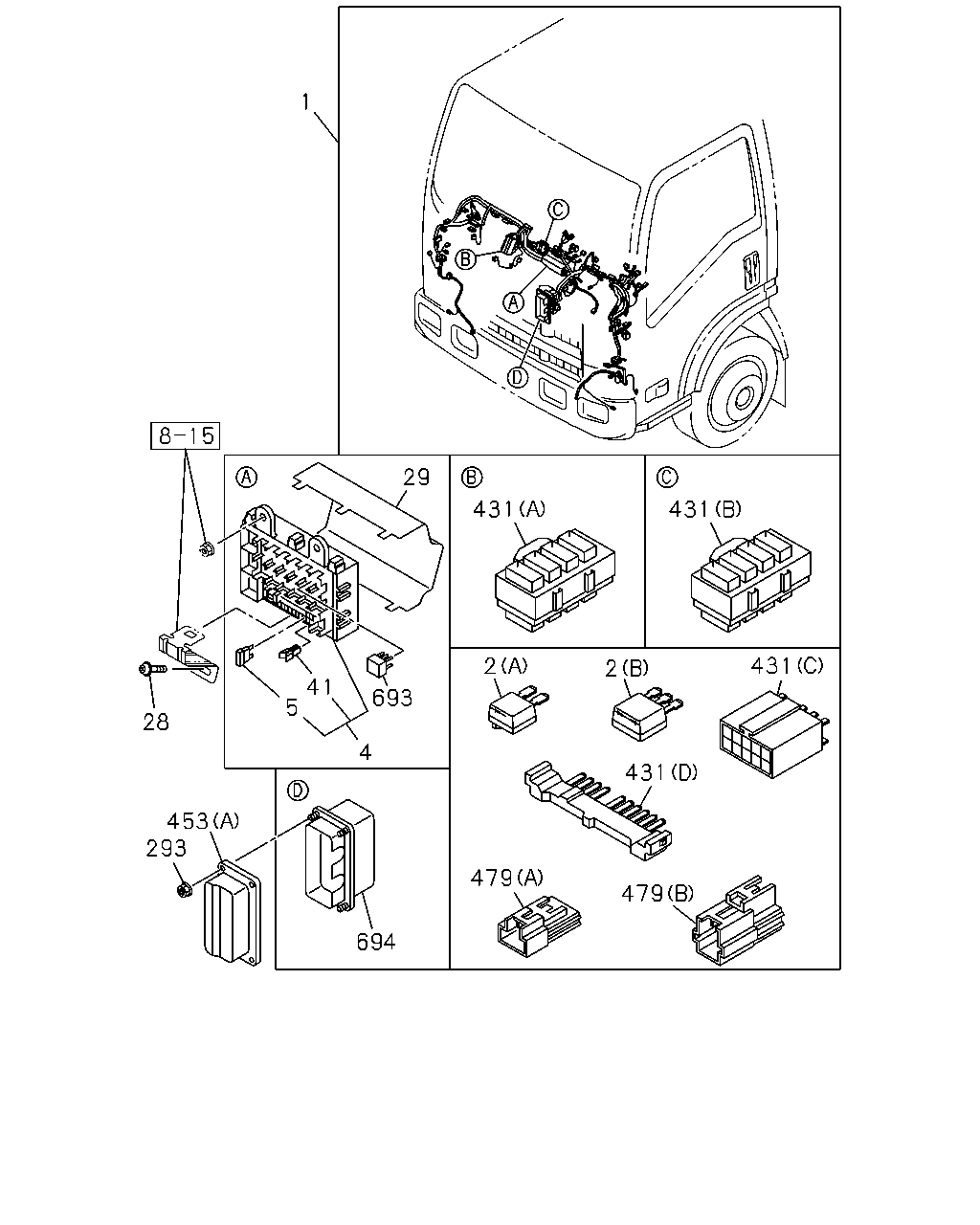

çizim 136497
1 29 431 431 431 2 2 41 5 693 28 4 431 453 293 479 479 694
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> 		8-98089-704-6 01 1 0803-1204 ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> 		8-98200-869-0 01 1 1205- ●
1 02.480 HARNESS; CAB 8-98089-698-4 01 1 0803-1005 ●
1 02.480 HARNESS; CAB
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98158-763-1 01 1 1006-1204 ●
1 02.480 HARNESS; CAB
HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98158-763-1 01 1 1006-1204 ●
1 02.480 HARNESS; CAB
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98204-633-0 01 1 1205- ●
1 02.480 HARNESS; CAB
HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98204-633-0 01 1 1205- ●
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98089-702-4 01 1 0803-1005 ●
1 02.480 HARNESS; CAB
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98158-762-1 01 1 1006-1204 ●
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98158-762-1 01 1 1006-1204 ●
1 02.480 HARNESS; CAB
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98200-863-0 01 1 1205-1312 ●
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98200-863-0 01 1 1205-1312 ●
1 02.480 HARNESS; CAB
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98257-650-0 01 1 1401- ●
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98257-650-0 01 1 1401- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0803-1204 ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1205- ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0803- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0803- ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0803- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0803- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0803- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 0803- ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 0803- ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0803- ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 01 1 0803-1005 ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 0803-1204 ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 0803- ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 0803- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0803- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 0803- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0803- ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 0803- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0803- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 0803-0804 ● ●
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 0809-1309 ●
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0803- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 0809-1309 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 0809-1309 ●
453 02.483 PROTECTOR; HARNESS
EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A) 		8-98108-678-0 01 1 0803- ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B) 		8-98108-679-0 01 1 0803- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0803- ● ●
694 02.483 BOX ASM; CONNECTOR 8-98057-640-0 01 1 0803-1204 ● ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1205- ● ●

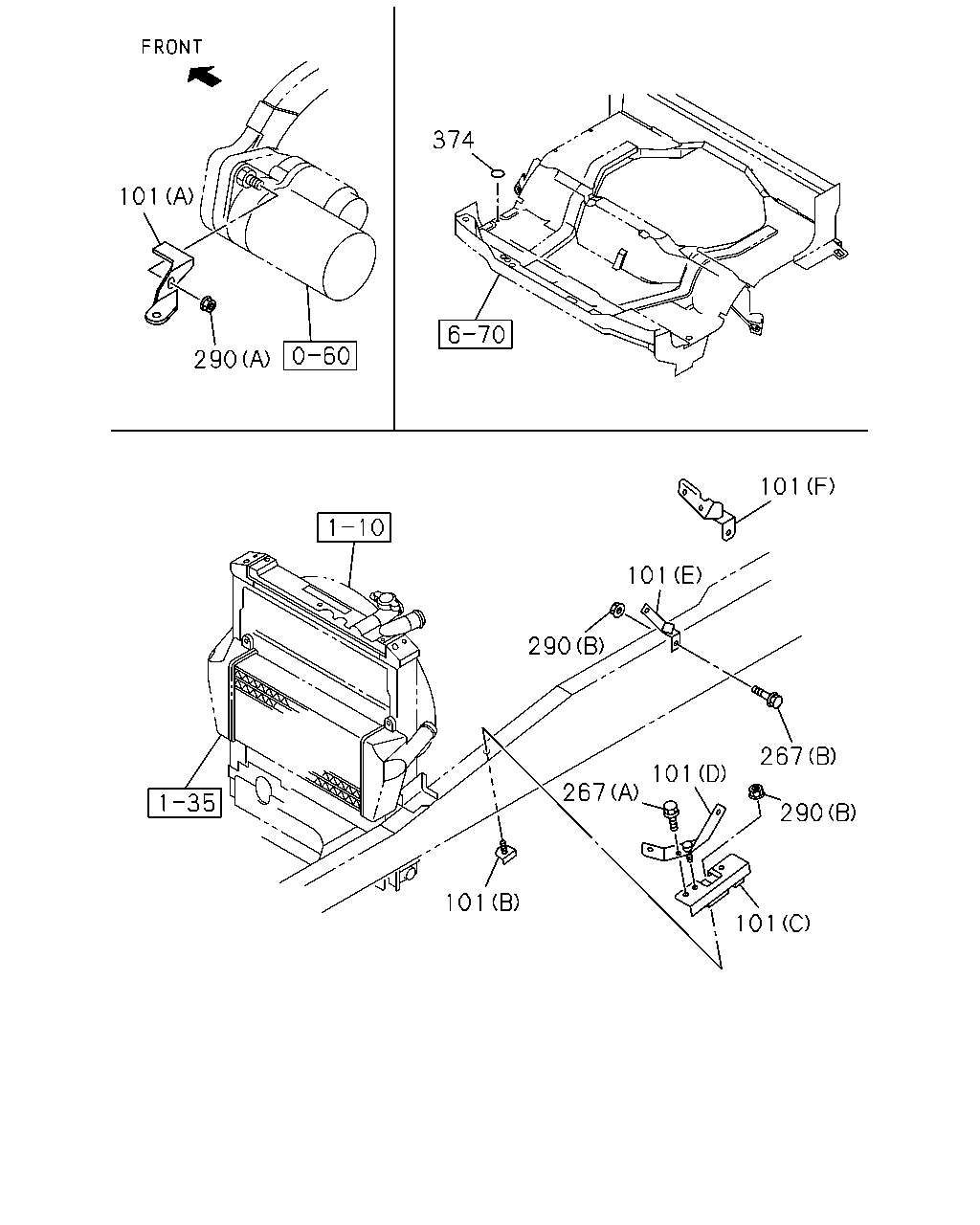

çizim 136601
101 290 374 101 101 290 267 290 101 101 267 101
BalonParca AdiParca NoAdetTipApplied Date A B
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (A) 		8-98030-725-1 01 1 0803- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-070-1 01 1 0803- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98078-071-1 01 1 0803- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98079-011-1 01 1 0803-1205 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(F) 		8-98217-757-0 01 1 1206- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98093-465-1 01 1 0803- ● ●
267 02.483 BOLT; BRKT
FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0803-1309 ●
267 02.483 BOLT; BRKT
HEAVY DUTY FRAME<6WB> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
267 02.483 BOLT; BRKT
FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 0803- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
290 02.483 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0803- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0803- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 0803- ●

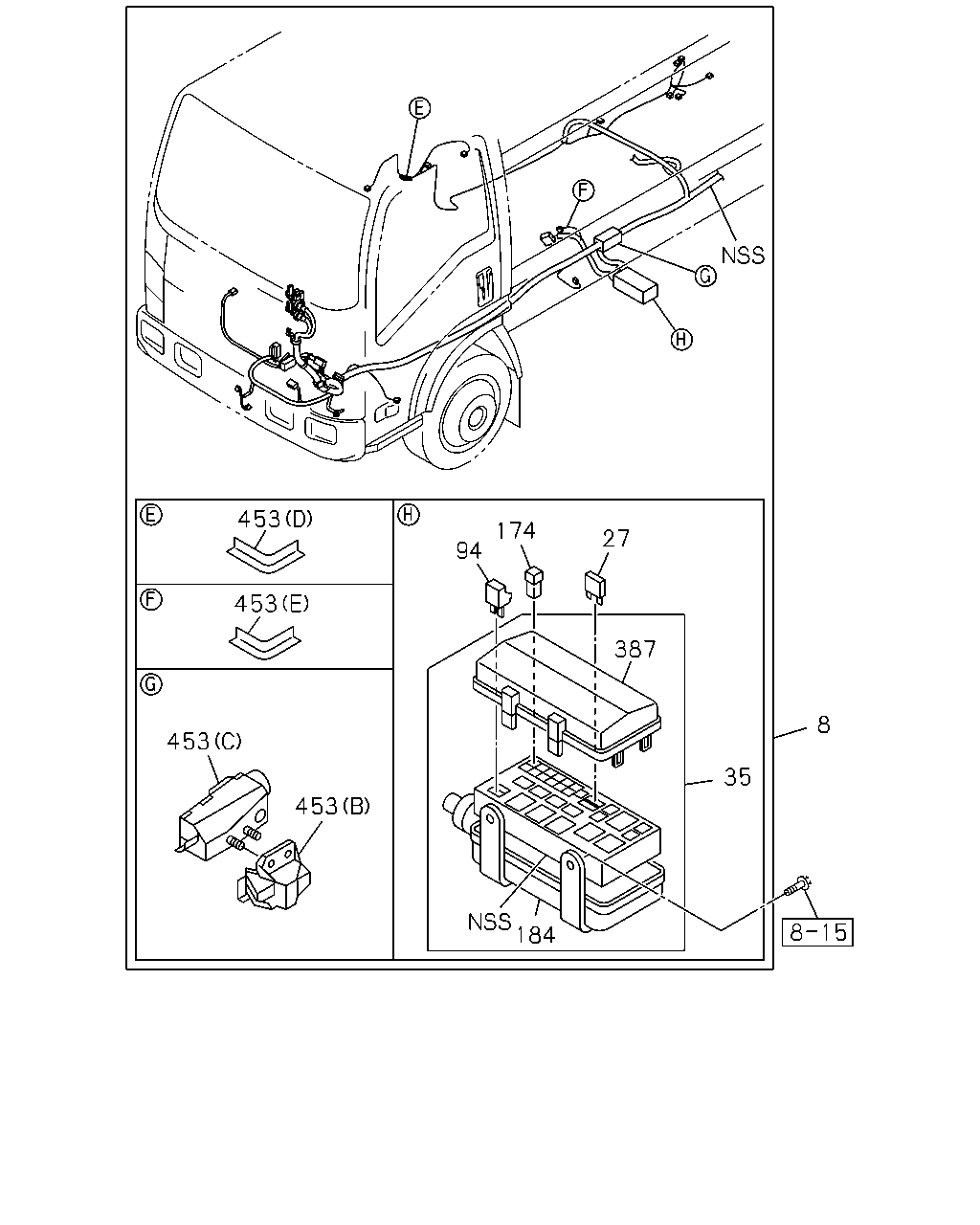

çizim 136902
453 174 27 94 453 387 8 453 35 453 184
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98228-514-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-852-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98113-017-3 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-848-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98071-816-1 01 1 0803-0804 ●
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98117-972-0 01 1 0805-0808 ●
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98126-024-2 01 1 0809-1409 ●
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98293-801-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. FRAME-KICK UP<7EW> 		8-98071-798-4 01 1 0803-0804 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 0805-1309 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-835-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98071-799-4 01 1 0803-0804 ●
8 02.480 HARNESS; FRAME,FRT 8-98117-812-3 01 1 0805-1309 ●
8 02.480 HARNESS; FRAME,FRT 8-98254-634-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT 8-98293-844-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 0805-1309 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-837-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 0803- ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0803- ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 0803- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 0803- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 0803- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 0803- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 0803- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 0803- ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0803- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 1410- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0803- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (B) 		8-98031-850-1 01 1 0803- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0803- ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (C) 		8-98031-851-2 01 1 0803- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0803- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 0803-0804 ● ●
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 0809-1309 ●
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
FRAME-KICK UP<7EW> (D) 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0803- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 0809-1309 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 0809-1309 ●
453 02.483 PROTECTOR; HARNESS
EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 1310-1409 ●
453 02.483 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> (D) 		8-94417-716-0 02 1 1410- ●

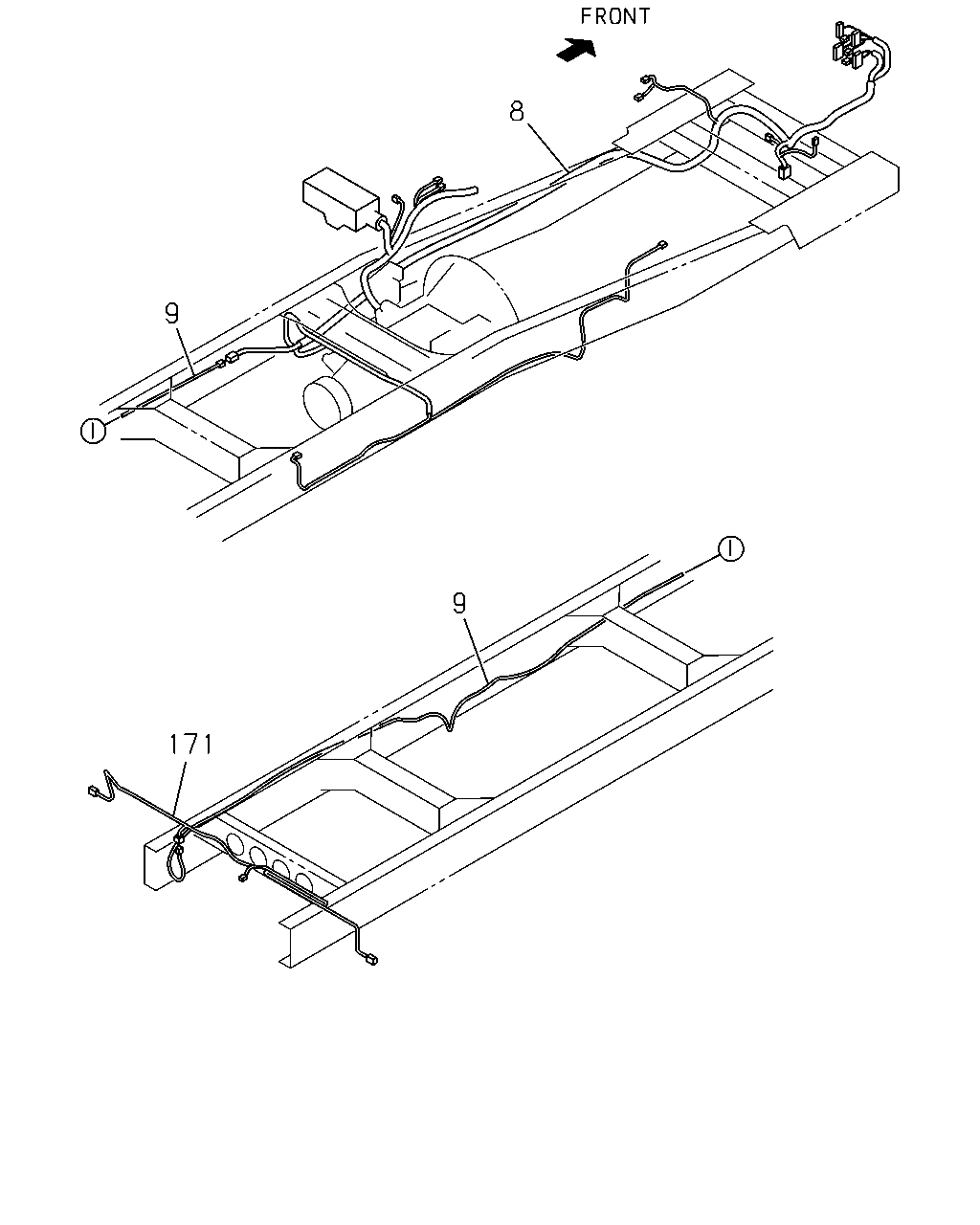

çizim 136913
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98228-514-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-852-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98113-017-3 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98293-848-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98071-816-1 01 1 0803-0804 ●
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98117-972-0 01 1 0805-0808 ●
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98126-024-2 01 1 0809-1409 ●
8 02.480 HARNESS; FRAME,FRT
FRAME-KICK UP<7EW> 		8-98293-801-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. FRAME-KICK UP<7EW> 		8-98071-798-4 01 1 0803-0804 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 0805-1309 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-811-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-835-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98071-799-4 01 1 0803-0804 ●
8 02.480 HARNESS; FRAME,FRT 8-98117-812-3 01 1 0805-1309 ●
8 02.480 HARNESS; FRAME,FRT 8-98254-634-0 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT 8-98293-844-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 0805-1309 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98117-813-2 01 1 1310-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98293-837-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 		8-98048-412-2 01 1 0803- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98048-422-2 01 1 0803- ●
9 02.480 HARNESS; FRAME,RR 8-98048-422-2 01 1 0803- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. FRAME-KICK UP<7EW> 		8-98008-095-2 01 1 0803-0911 ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98008-095-2 01 1 0803-0911 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. FRAME-KICK UP<7EW> 		8-98156-028-0 01 1 0912- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 0912- ●

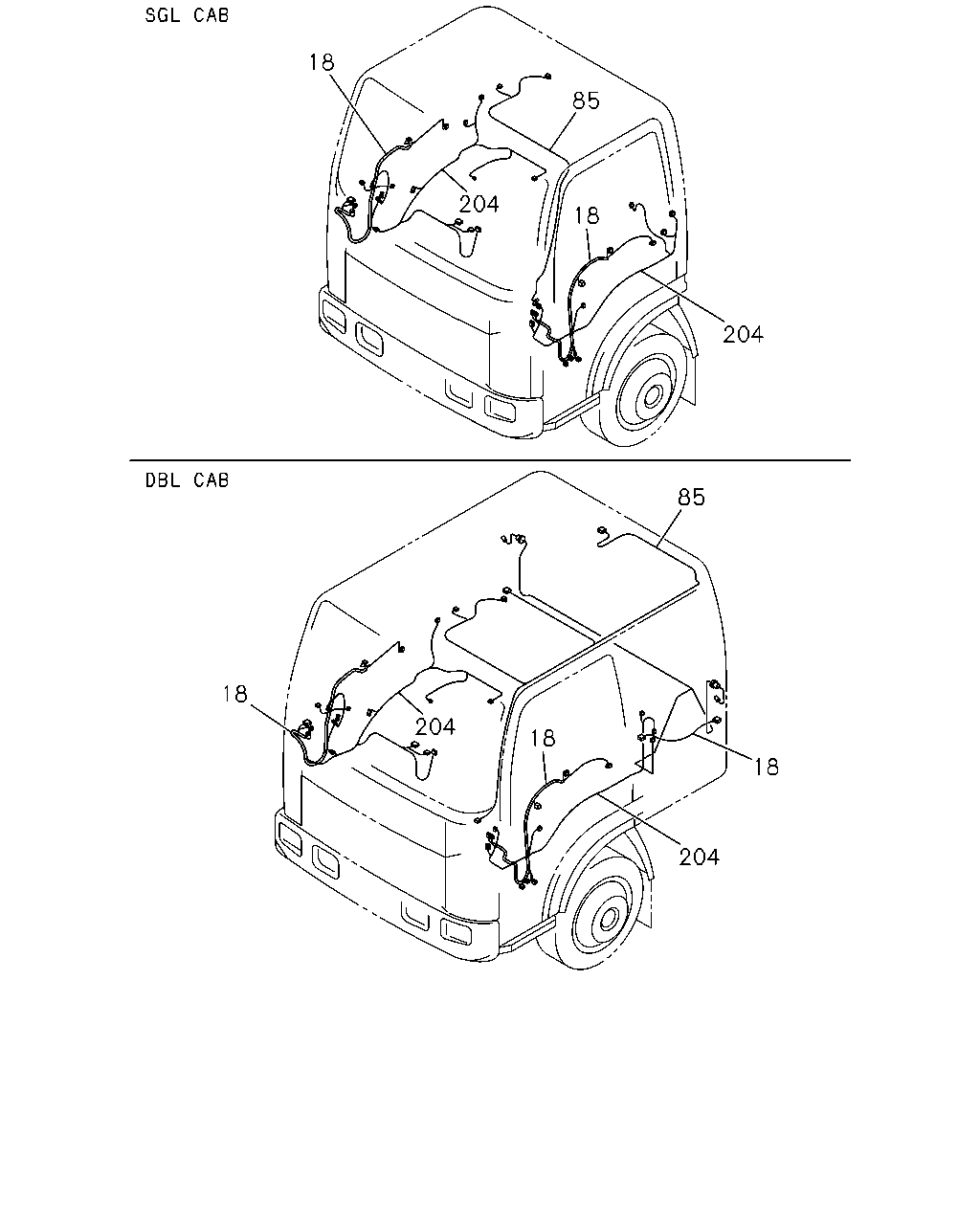

çizim 136948
18 85 204 18 204 85 18 204 18 18 204
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-592-3 01 1 0803- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-592-3 01 1 0803- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-591-2 01 1 0803- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-591-2 01 1 0803- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98056-047-1 02 1 0803-1203 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1204- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-600-2 01 1 0803-0904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-600-2 01 1 0803-0904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-600-3 01 1 0905- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-600-3 01 1 0905- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-599-1 01 1 0803-0904 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-599-1 01 1 0803-0904 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-599-2 01 1 0905- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-599-2 01 1 0905- ●
85 06.495 HARNESS; ROOM LAMP 8-98072-201-2 01 1 0803- ●
85 06.495 HARNESS; ROOM LAMP 8-98072-203-1 01 1 0803- ●
204 02.559 HARNESS; CABLE,FLOOR 8-98070-799-5 01 1 0803- ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-804-5 01 1 0803- ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-073-3 01 1 0803- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-803-5 01 1 0803- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-072-3 01 1 0803- ●

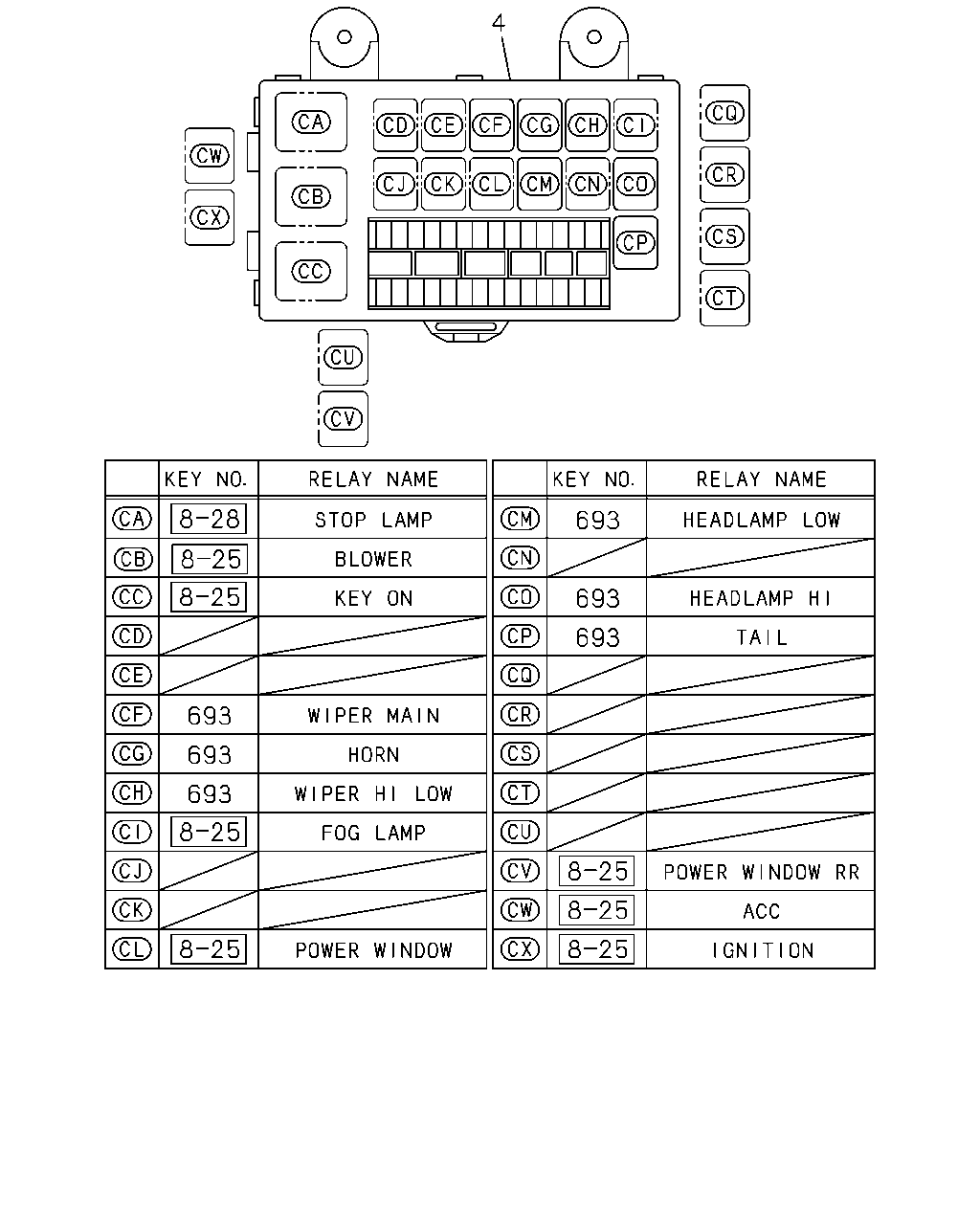

çizim 182598
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0803- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0803- ● ●

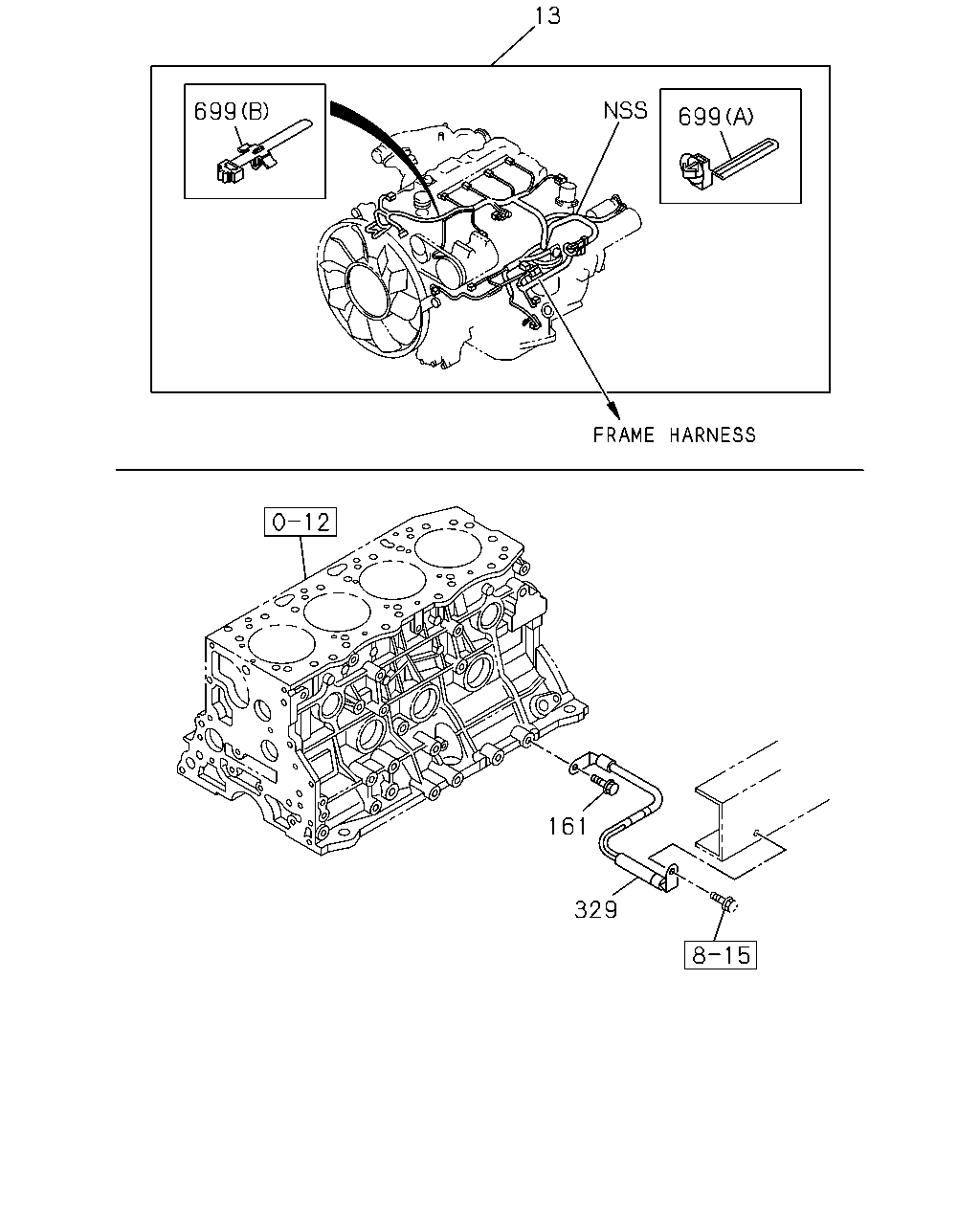

çizim 182602
13 699 699 329 161
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG 8-98083-030-5 01 1 0803-1006 ● ●
13 02.525 HARNESS; ENG 8-98147-731-0 01 1 1007-1111 ● ●
13 02.525 HARNESS; ENG 8-98172-159-1 01 1 1112- ● ●
161 02.559 BOLT; GROUND,HARNESS
02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0803- ● ●
329 02.480 CABLE; ENG TO FRAME 8-98039-854-1 01 1 0803- ● ●
699 02.559 CLIP; ENG HARNESS
04.105 (A) L=140 		8-97122-360-0 03 1 0803- ● ●
699 02.559 CLIP; ENG HARNESS
(B) 		8-98088-438-0 01 1 0803- ● ●

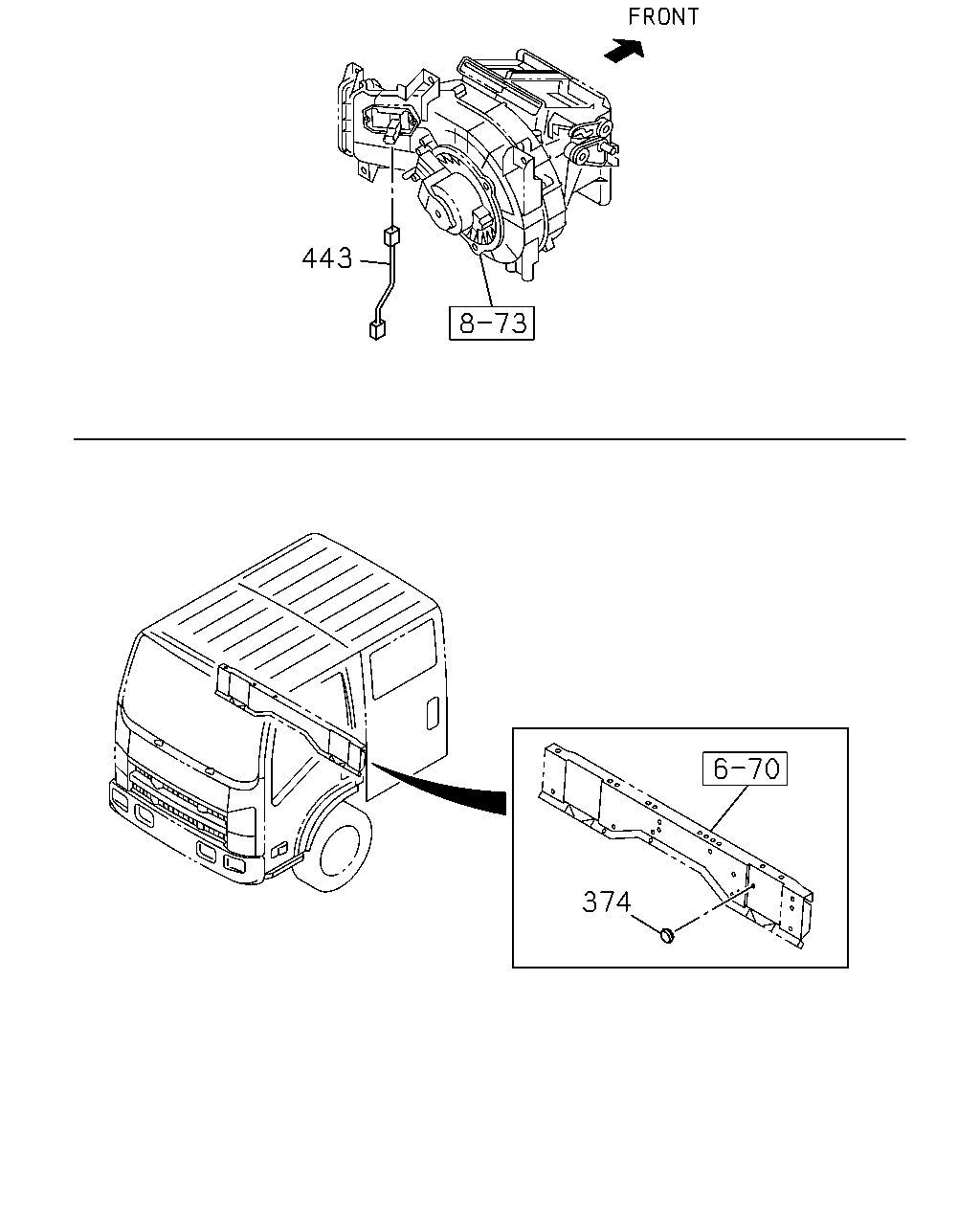

çizim 182611
443 374
BalonParca AdiParca NoAdetTipApplied Date A B
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0803- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 0803- ●
443 02.480 HARNESS; EXT,A/C
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98106-935-0 01 1 0803-0803 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
