◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#80435) — 22 parça
çizim 132915
48 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP CHASSIS(V4D) CAUTION SPANISH<YN1> 		8-98096-341-0 01 1 0803-0909 ●
47 08.808 PLATE; CAUTION,DUMP CONT
CAUTION SPANISH<YN1> PTO T/M SIDE DIRECT PUMP(8KZ) 		8-98096-341-0 01 1 0910- ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP CHASSIS(V4D) EXC. CAUTION SPANISH<YN1> 		8-98096-342-0 01 1 0803-0909 ●
47 08.808 PLATE; CAUTION,DUMP CONT
PTO T/M SIDE DIRECT PUMP(8KZ) EXC. CAUTION SPANISH<YN1> 		8-98096-342-0 01 1 0910- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 		8-94313-054-0 01 1 0803- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 0803- ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0803- ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0803- ●

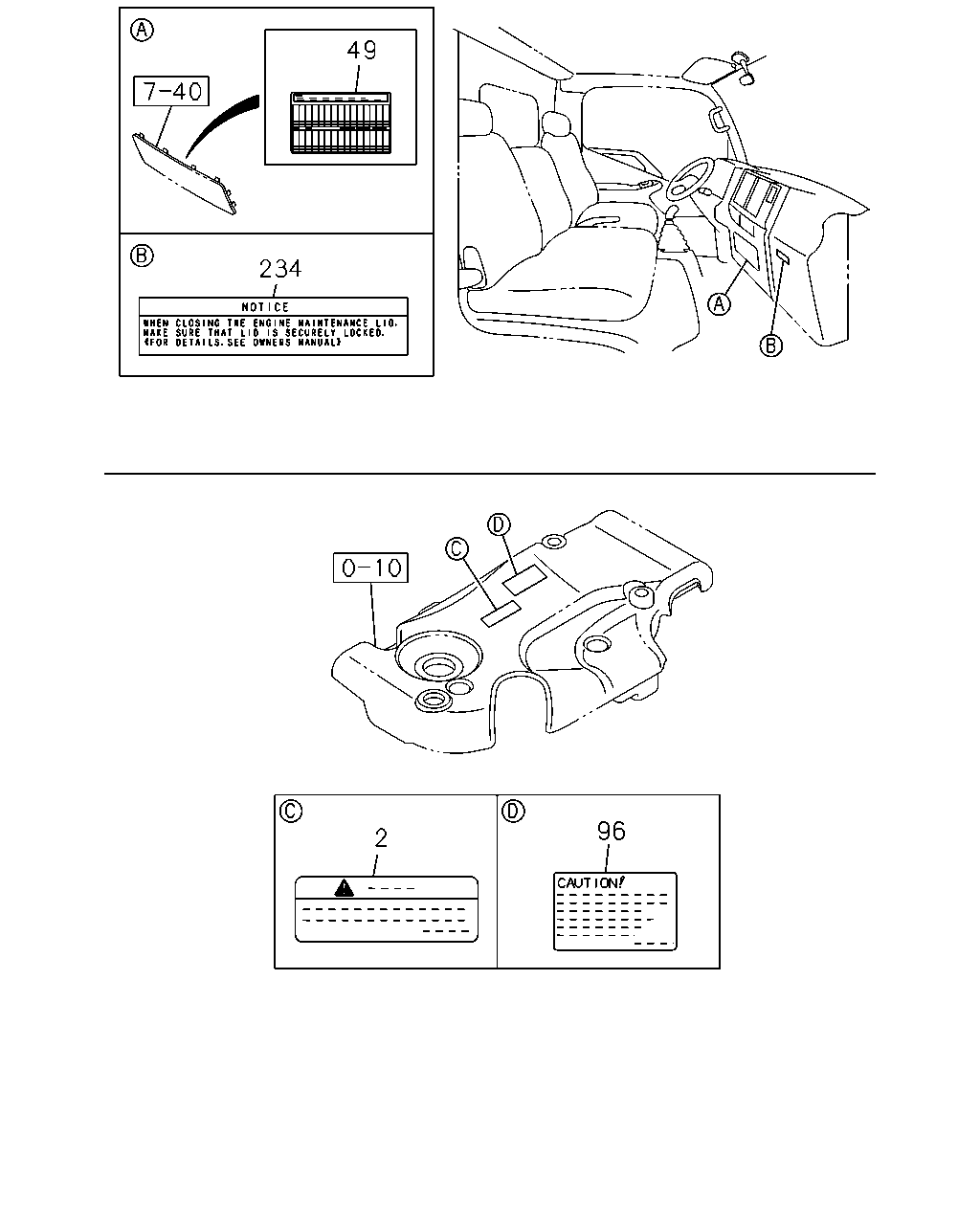

çizim 182588
49 234 96 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.680 LABEL; FUEL CAUTION
CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 0803- ● ●
2 03.680 LABEL; FUEL CAUTION
EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 0803- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 0803- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
CAUTION SPANISH<YN1> 		8-98036-112-0 01 1 0803- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
EXC. CAUTION SPANISH<YN1> 		8-98036-111-1 01 1 0803- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 0803- ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 0803- ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-98105-135-0 01 1 0803- ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-98105-135-0 01 1 0803- ●

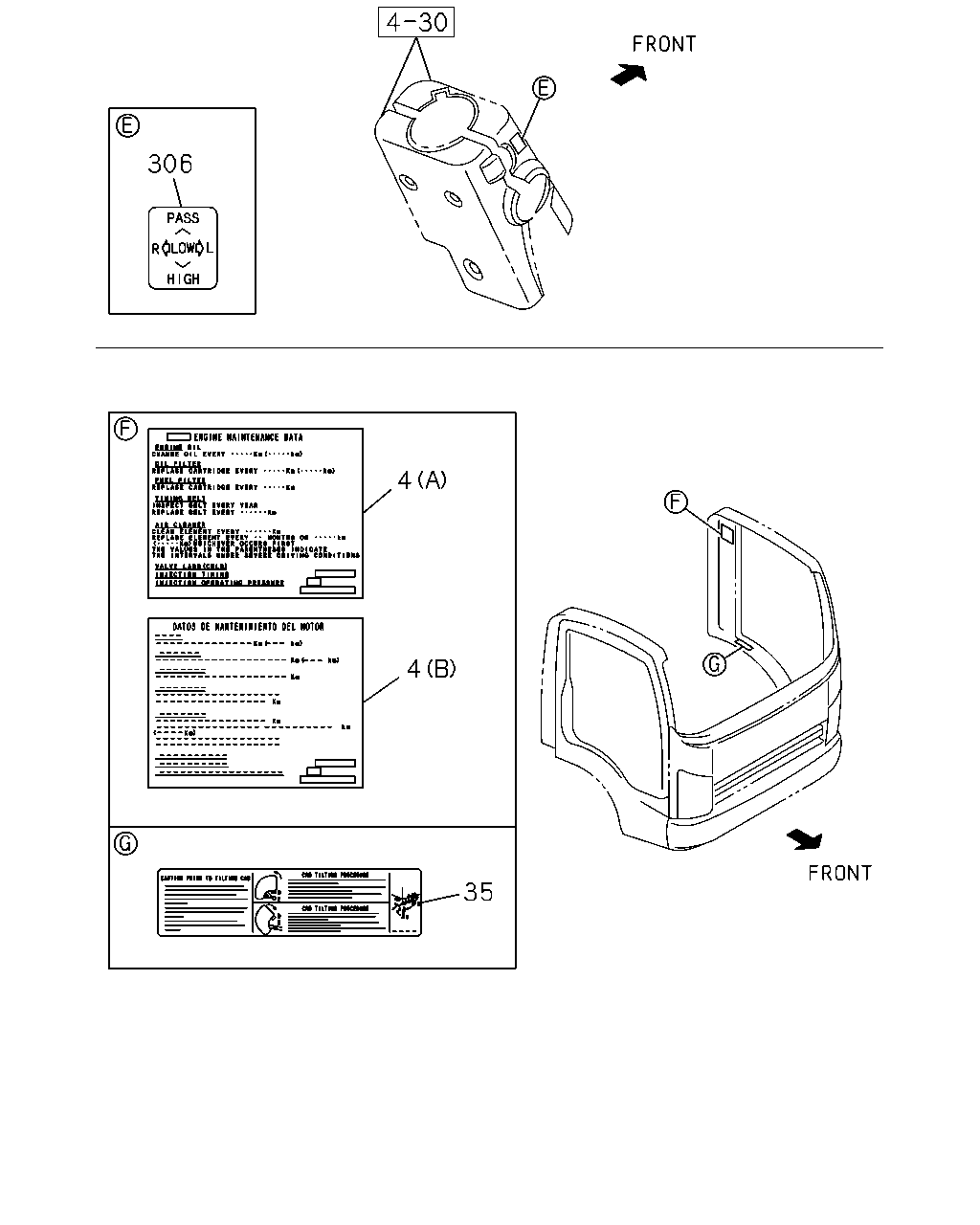

çizim 182589
306 4 4 35
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 0803- ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 0803- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 0803- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98105-131-0 01 1 0803- ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 0803- ● ●
