6-80 — BACK PANEL (#80430) — 52 parça

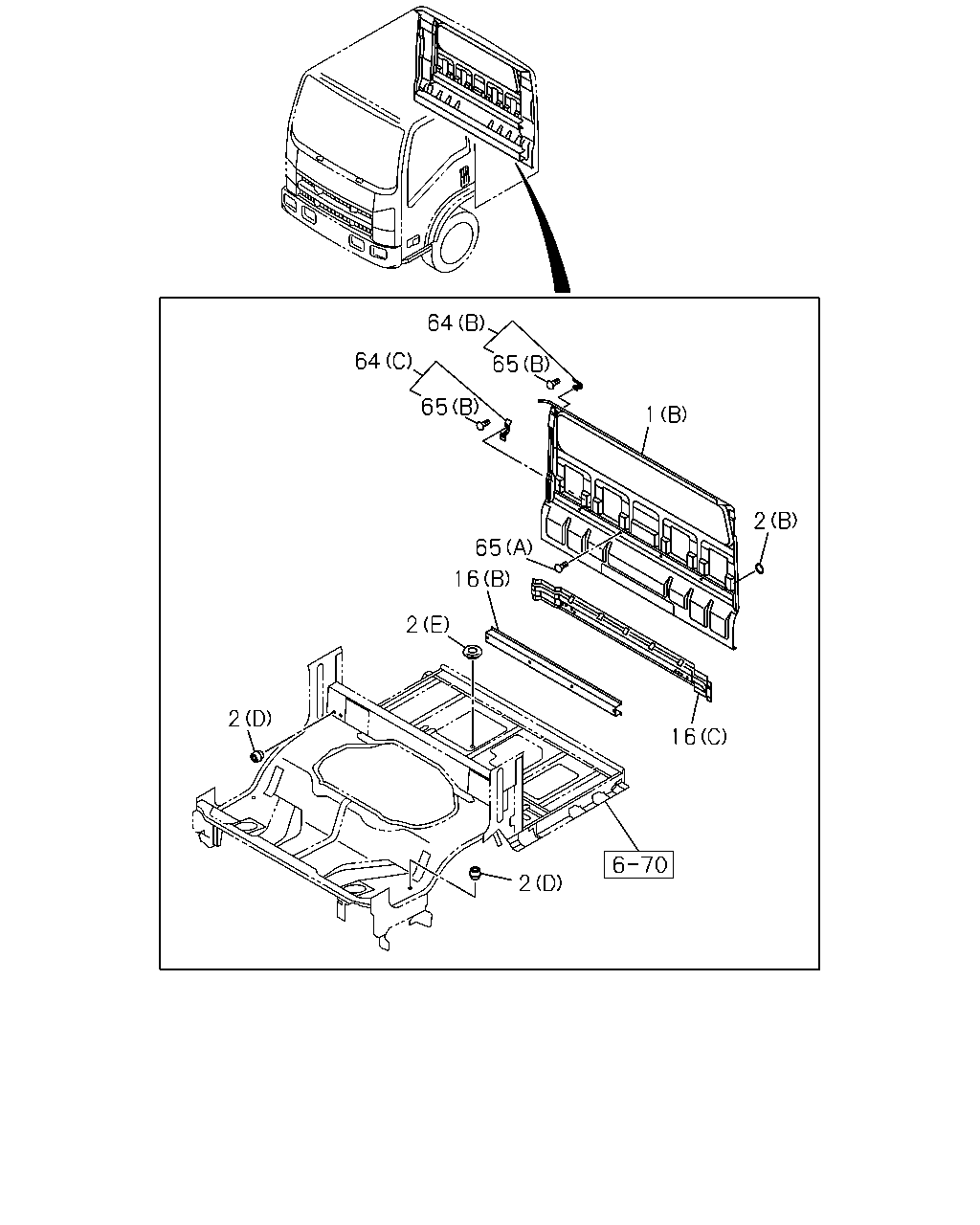

çizim 131906
64 64 65 65 1 2 65 16 2 2 16 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-300-3 01 1 0803- ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0803- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0803-0908 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0909- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 0803- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 0803- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 0803- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0803- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 0803- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 0803- ●
65 17.198 STUD; BACK PANEL
(A) 		8-94389-701-0 01 1 0803- ●
65 17.198 STUD; BACK PANEL
(A) 		8-94389-701-0 02 1 0803- ●
65 17.198 STUD; BACK PANEL
16.588 (B) M6X12 		8-98013-112-0 03 1 0803- ●
65 17.198 STUD; BACK PANEL
16.588 (B) M6X12 		8-98013-112-0 04 1 0803-1001 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D) 16.588 (B) M6X12 		8-98013-112-0 04 1 1002- ●
65 17.198 STUD; BACK PANEL
DUMP CHASSIS(V4D) 16.588 (B) M6X12 		8-98013-112-0 04 1 1002- ●

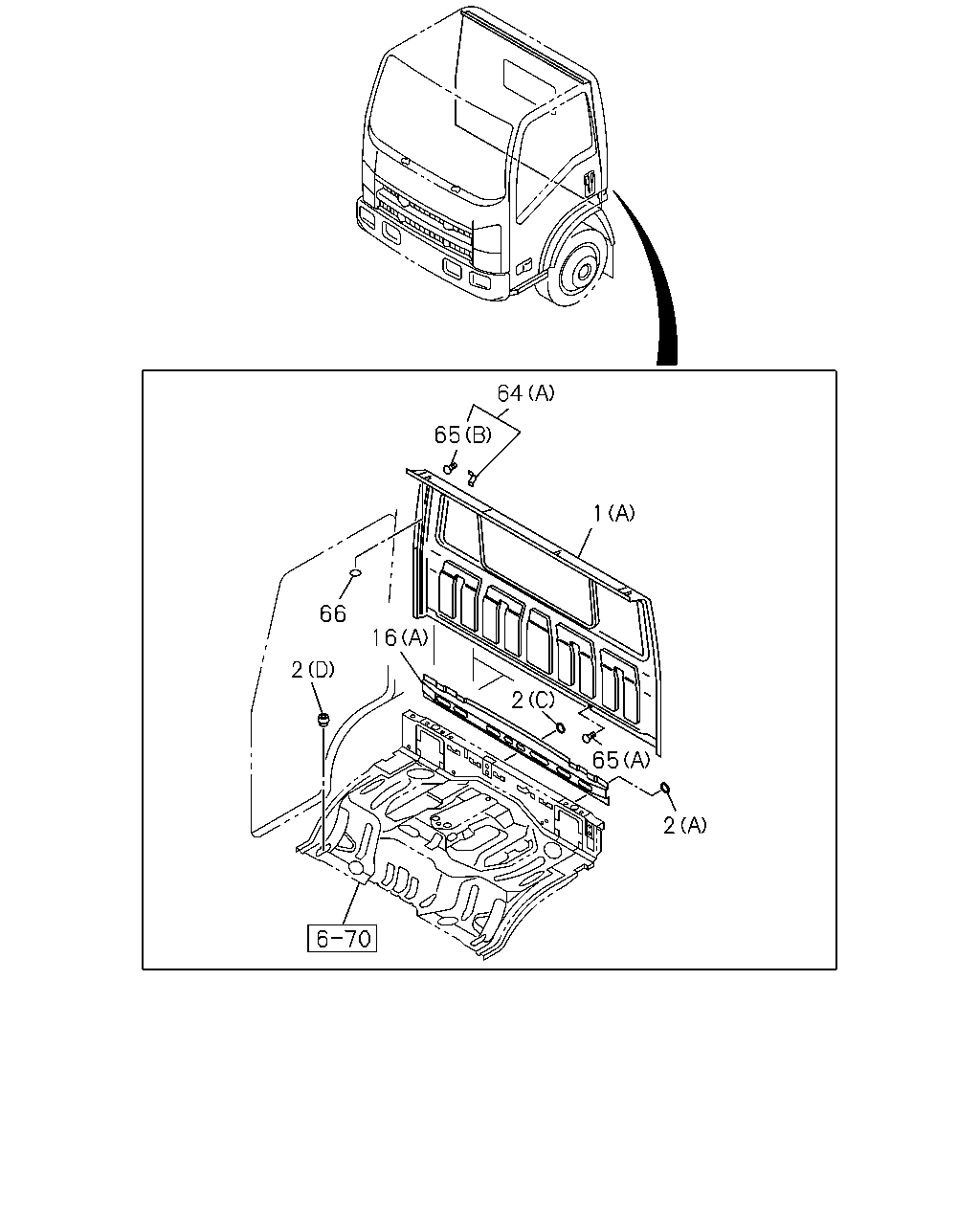

çizim 132385
64 65 1 66 16 2 2 65 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-300-3 01 1 0803- ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0803- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0803- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0803-0908 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0909- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 0803- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 0803- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 0803- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0803- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 0803- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 0803- ●
65 17.198 STUD; BACK PANEL
(A) 		8-94389-701-0 01 1 0803- ●
65 17.198 STUD; BACK PANEL
(A) 		8-94389-701-0 02 1 0803- ●
65 17.198 STUD; BACK PANEL
16.588 (B) M6X12 		8-98013-112-0 03 1 0803- ●
65 17.198 STUD; BACK PANEL
16.588 (B) M6X12 		8-98013-112-0 04 1 0803-1001 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D) 16.588 (B) M6X12 		8-98013-112-0 04 1 1002- ●
65 17.198 STUD; BACK PANEL
DUMP CHASSIS(V4D) 16.588 (B) M6X12 		8-98013-112-0 04 1 1002- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 0803-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 0904- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0803-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0803-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0904- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ●
