7-40 — INSTRUMENT PANEL AND BOX (#8043) — 234 parça

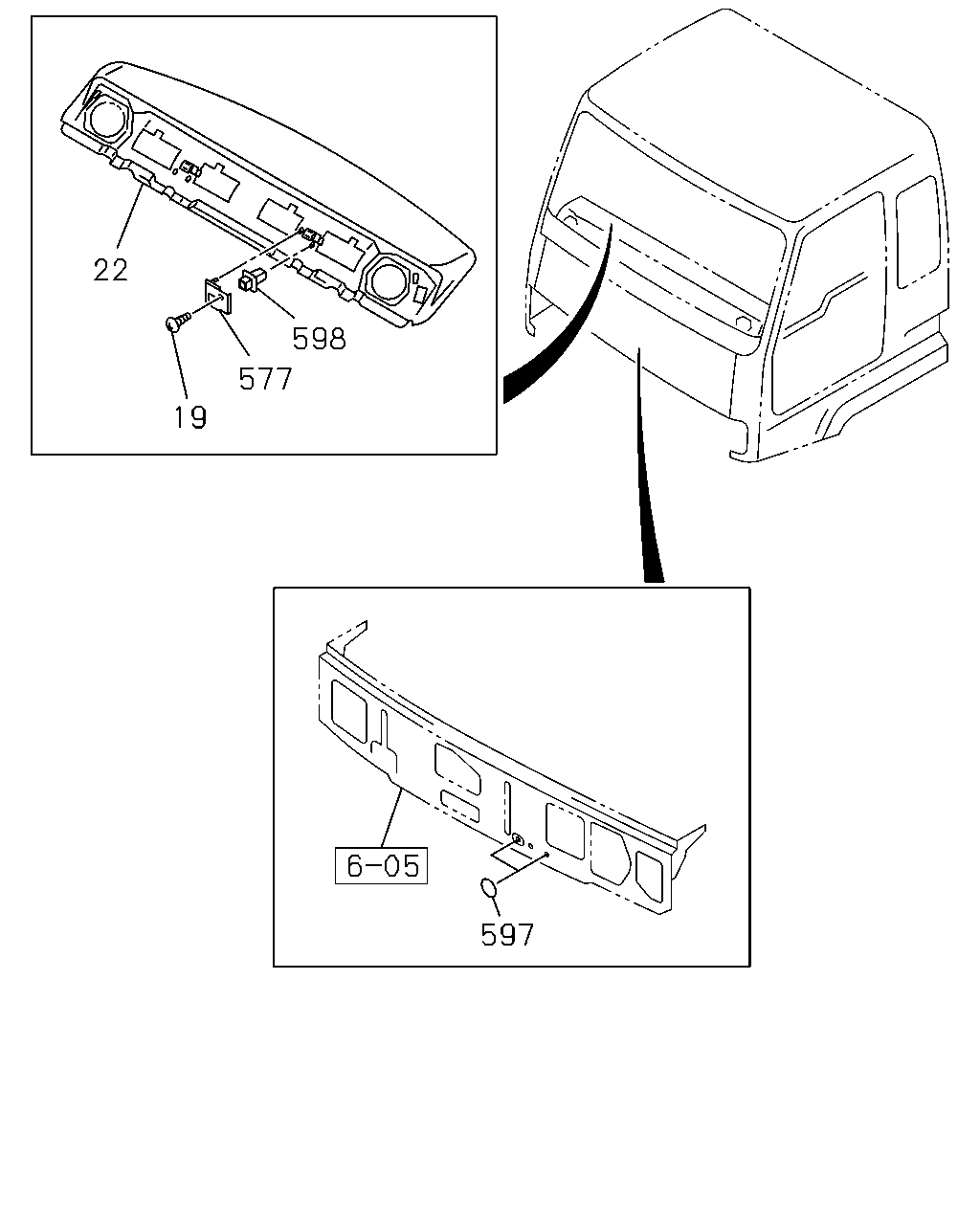

çizim 9358
22 598 577 19 597
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0005-0011 ● ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0012- ● ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0005-0011 ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0012-0210 ● ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0211- ● ● ●
22 PAD; INST 1-72318-433-0 01 1 0005-0011 ● ● ●
22 PAD; INST 1-72318-433-4 01 1 0012- ● ● ● ●
577 BRACKET; SENSOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72318-414-0 01 1 0005-0011 ● ● ●
577 BRACKET; SENSOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72318-414-0 01 1 0012-0210 ● ● ● ●
577 BRACKET; SENSOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72318-414-0 01 1 0211- ● ● ●
597 SEAL; HOLE,DASH
6HE1 TC ENG(57L) OD=16 BLACK 		1-76798-037-0 02 1 0005-0210 ●
598 GROMMET; SCREW
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0005-0011 ● ● ●
598 GROMMET; SCREW
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0012-0210 ● ● ● ●
598 GROMMET; SCREW
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0211- ● ● ●

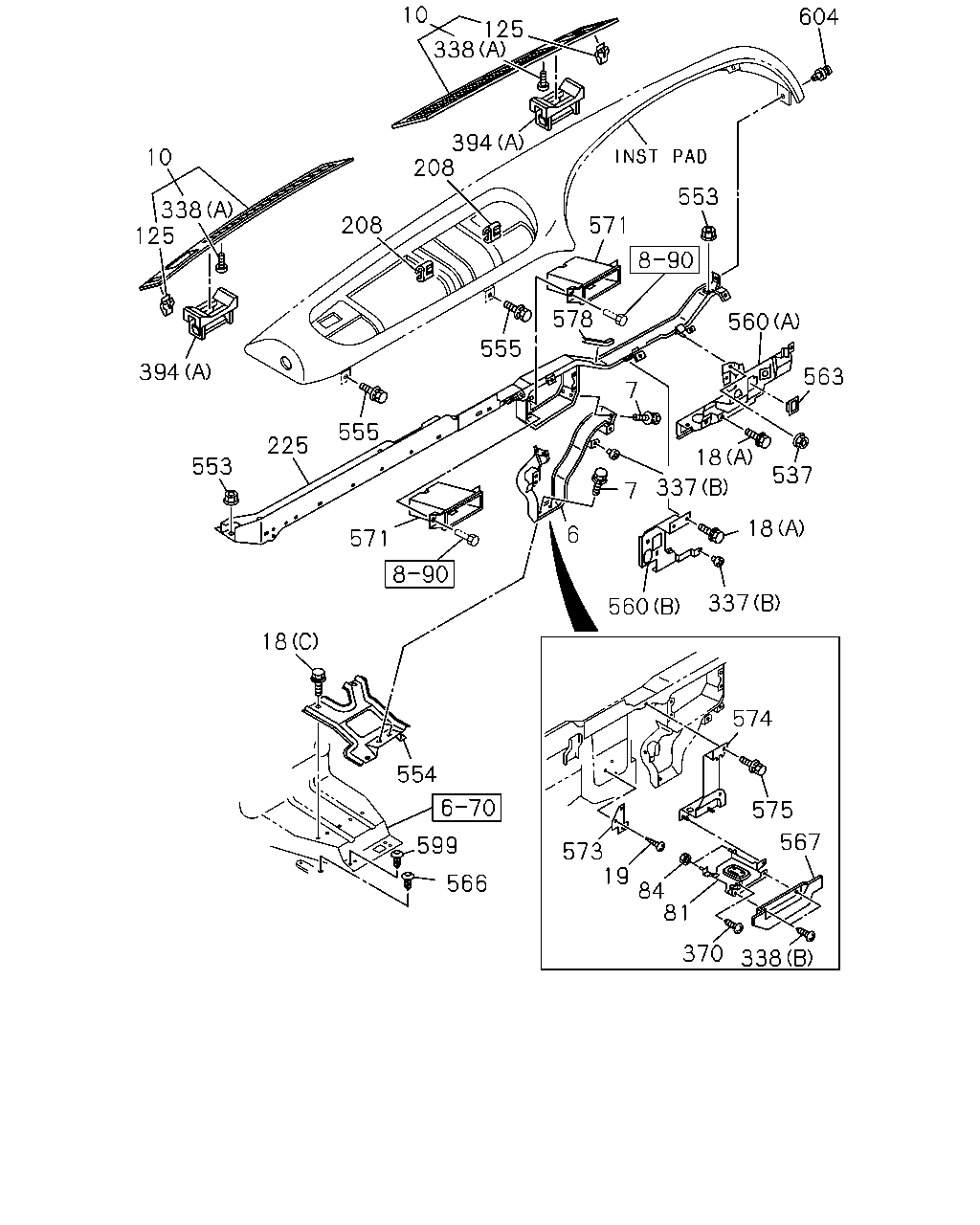

çizim 9773
10 604 125 338 394 208 10 553 338 125 208 571 578 560 555 394 563 7 555 225 18 553 537 337 7 18 6 571 337 560 18 574 554 575 567 599 573 19 84 81 566 370 338
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 SUPPORT; INST PANEL 1-65681-165-1 01 1 0005-0011 ● ● ●
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 0012- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0005-0011 ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0012- ● ● ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-2 01 1 0005-0011 ● ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0012- ● ● ● ●
10 PANEL ASM; GARNISH
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72437-603-2 01 1 0005-0011 ● ● ●
10 PANEL ASM; GARNISH
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72437-603-4 01 1 0012-0210 ● ● ● ●
10 PANEL ASM; GARNISH
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72437-603-6 01 1 0211- ● ● ●
10 PANEL ASM; GARNISH
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> W/SPEAKER NET 		1-72437-601-2 01 1 0005-0011 ● ● ●
10 PANEL ASM; GARNISH
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> W/SPEAKER NET 		1-72437-601-4 01 1 0012-0210 ● ● ● ●
10 PANEL ASM; GARNISH
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> W/SPEAKER NET 		1-72437-601-6 01 1 0211- ● ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0211- ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0005-0011 ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0012-0512 ● ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0005-0011 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0012- ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005-0011 ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0012- ● ● ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0005-0011 ● ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0012- ● ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0005-0011 ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0012-0210 ● ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0211- ● ● ●
81 BRACKET; ELEC CONT UNIT 1-73908-156-4 01 1 0005-0011 ● ● ●
81 BRACKET; ELEC CONT UNIT 1-73908-156-4 01 1 0012- ● ● ● ●
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005-0011 ● ● ●
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0012- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0211- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0005-0011 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0012-0210 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 0005-0011 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 0012- ● ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0005-0011 ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0012- ● ● ● ●
225 FRAME; FACIA 1-65681-096-0 01 1 0005-0011 ● ● ●
225 FRAME; FACIA 1-65681-096-2 01 1 0012-1002 ● ● ● ●
225 FRAME; FACIA 8-98142-102-0 01 1 1003- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0211- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0005-0011 ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0012-0210 ● ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005-0011 ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0012- ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0802- ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0310-0405 ● ● ● ●
338 SCREW; COVER
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (A) M5X14 		8-94279-325-0 10 1 0310-0405 ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0310-0405 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0005-0011 ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0012-0208 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 05 1 0209-0210 ● ● ● ●
338 SCREW; COVER
(B) M6X16 		8-94479-534-0 02 1 0211-0302 ● ● ● ●
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0303- ● ● ● ●
338 SCREW; COVER
(B) M6X16 		8-94479-534-0 02 1 0005-0011 ● ● ●
338 SCREW; COVER
(B) M6X16 		8-94479-534-0 02 1 0012-0210 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 05 1 0211-0309 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 05 1 0211-0309 ●
338 SCREW; COVER
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (A) M5X14 		8-94279-325-0 05 1 0310-0405 ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0406-0801 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0406-0801 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0802- ● ● ● ●
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 		8-94279-325-0 01 1 0005-0011 ● ● ●
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 		8-94279-325-0 01 1 0012- ● ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0005-0011 ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0012- ● ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005-0011 ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0012- ● ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0005-0011 ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0012-0602 ● ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0005-0011 ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0012-0602 ● ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-1 01 1 0005-0011 ● ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0012- ● ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 0005-0011 ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 0012-0512 ● ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ● ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005-0011 ● ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0012- ● ● ● ●
560 BRACKET
(B) 		1-65680-976-2 01 1 0005-0011 ● ● ●
560 BRACKET
(B) 		1-65680-976-3 01 1 0012- ● ● ● ●
560 BRACKET
(A) 		1-65681-078-3 01 1 0005-0011 ● ● ●
560 BRACKET
(A) 		1-65681-078-3 01 1 0012-0210 ● ● ● ●
560 BRACKET
(A) 		1-65671-772-4 01 1 0211- ● ● ● ●
563 BEZEL; BRKT 1-72448-410-3 01 1 0303- ● ● ● ●
566 PLUG; HOLE
6HK1 TCS ENG(80L) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0303- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0005-0011 ● ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0012-0210 ● ● ● ●
566 PLUG; HOLE
6SD1 TCN ENG(31L) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211- ● ● ● ●
567 COVER; CONT UNIT 1-65681-022-1 01 1 0005-0011 ● ● ●
567 COVER; CONT UNIT 1-65681-022-2 01 1 0012- ● ● ● ●
571 BEZEL; POCKET 1-72438-151-1 02 1 0005-0011 ● ● ●
571 BEZEL; POCKET 1-72438-151-1 02 1 0012-0309 ● ● ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0310- ● ● ● ●
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0005-0011 ● ● ●
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0012- ● ● ● ●
574 PANEL; RELAY BOX 1-73908-252-1 01 1 0005-0011 ● ● ●
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0012- ● ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0011 ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0012- ● ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-0 01 1 0005-0011 ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0012- ● ● ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0005-0011 ● ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0012- ● ● ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0005-0011 ● ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0012- ● ● ● ●

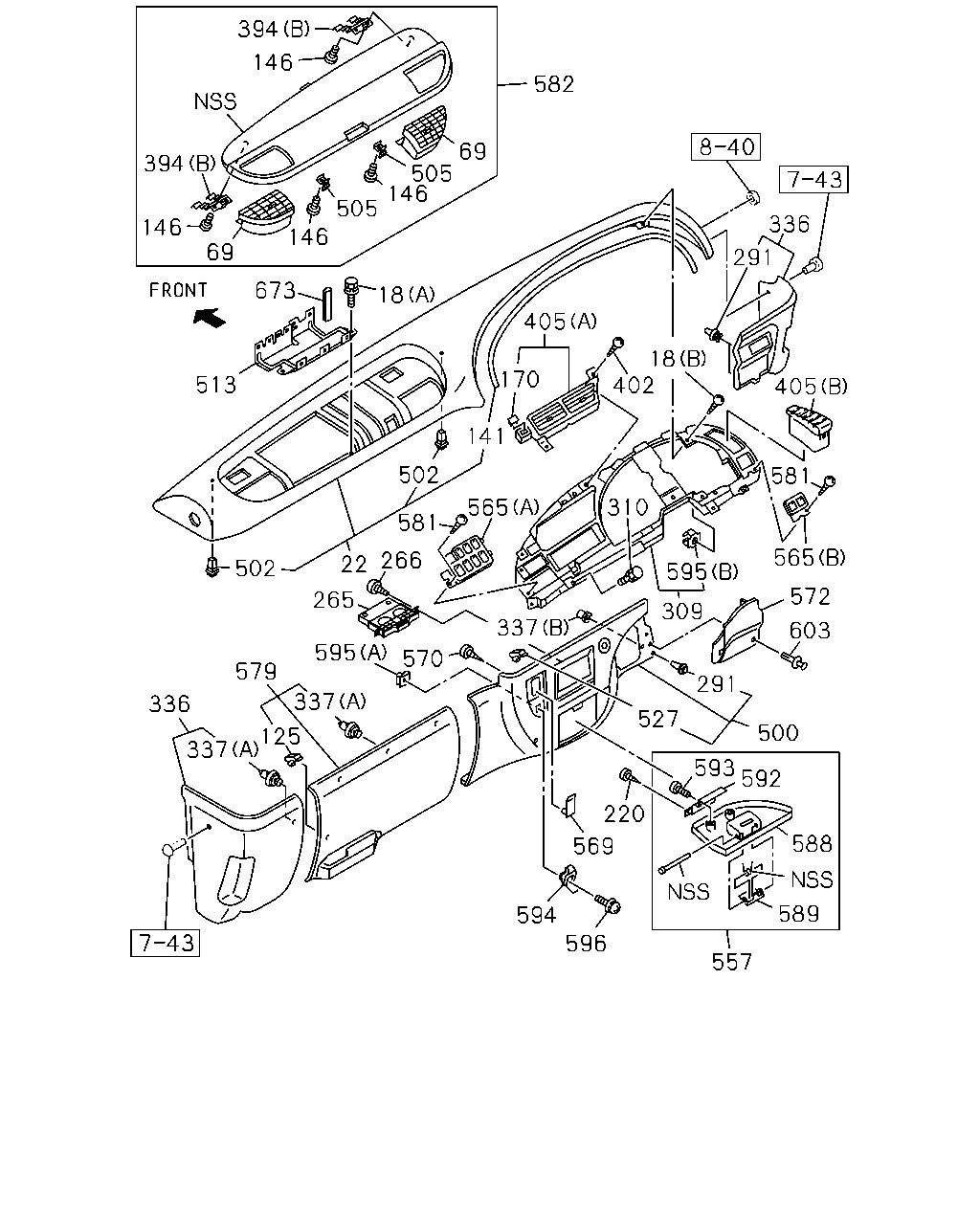

çizim 10499
394 146 582 69 505 146 394 505 336 146 146 69 291 673 18 405 18 402 170 513 405 141 502 581 310 565 581 565 266 22 502 595 572 265 309 337 603 595 570 579 291 337 336 527 500 125 337 593 592 220 588 569 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0005-0011 ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0012-0512 ● ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0005-0011 ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0012- ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005-0011 ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0012- ● ● ● ●
22 PAD; INST 1-72318-433-0 01 1 0005-0011 ● ● ●
22 PAD; INST 1-72318-433-4 01 1 0012- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0005-0011 ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0012- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0005-0011 ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0012- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0211- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0005-0011 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0012-0210 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 0005-0011 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 0012- ● ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0005-0011 ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0012- ● ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0005-0011 ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0012- ● ● ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0005-0011 ● ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0012- ● ● ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0005-0011 ● ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0012- ● ● ● ●
265 HOLDER; CUP 8-97853-172-8 01 1 0005-0011 ● ● ●
265 HOLDER; CUP 8-97853-172-8 01 1 0012- ● ● ● ●
266 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0005-0011 ● ● ●
266 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0012- ● ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0211- ● ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0005-0011 ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0012-0210 ● ● ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0005-0011 ● ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0012- ● ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005-0011 ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0012- ● ● ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0005-0011 ● ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0012- ● ● ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0005-0011 ● ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0012- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0211- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0005-0011 ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0012-0210 ● ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005-0011 ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0012- ● ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0005-0011 ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0012- ● ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005-0011 ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0012- ● ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0011 ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0012-0604 ● ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-1 01 1 0005-0011 ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0012- ● ● ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0005-0011 ● ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0012- ● ● ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0005-0011 ● ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0012- ● ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0005-0011 ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0012- ● ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 0005-0011 ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 0012- ● ● ● ●
513 BRACKET; RELAY 1-73908-009-9 01 1 0005-0011 ● ● ●
513 BRACKET; RELAY 1-73908-009-9 01 1 0012-0205 ● ● ● ●
513 BRACKET; RELAY 1-73908-425-0 01 1 0206- ● ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0005-0011 ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0012- ● ● ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0005-0011 ● ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0012- ● ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-1 01 1 0005-0011 ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0012- ● ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-2 01 1 0005-0011 ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0012- ● ● ● ●
569 HOLDER; CARD 1-72498-015-1 01 1 0005-0011 ● ● ●
569 HOLDER; CARD 1-72498-015-2 01 1 0012- ● ● ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0005-0011 ● ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0012- ● ● ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0005-0011 ● ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0012- ● ● ● ●
579 COVER; INST PNL 1-72438-184-1 01 1 0005-0011 ● ● ●
579 COVER; INST PNL 1-72438-184-1 01 1 0012- ● ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0011 ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0012-0604 ● ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ● ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0005-0011 ● ● ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0012- ● ● ● ●
588 LID; BOX 1-72548-135-3 01 1 0005-0011 ● ● ●
588 LID; BOX 1-72548-135-3 01 1 0012- ● ● ● ●
589 KNOB; LID 1-72548-143-0 01 1 0005-0011 ● ● ●
589 KNOB; LID 1-72548-143-0 01 1 0012- ● ● ● ●
592 HINGE; LID 1-72548-133-3 01 1 0005-0011 ● ● ●
592 HINGE; LID 1-72548-133-3 01 1 0012- ● ● ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0005-0011 ● ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0012- ● ● ● ●
594 HOOK; COAT 1-72498-013-0 01 1 0005-0011 ● ● ●
594 HOOK; COAT 1-72498-013-0 01 1 0012- ● ● ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0005-0011 ● ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0012-0012 ● ● ● ●
595 NUT; HOOK
(A) 		8-97810-118-0 01 1 0101-0110 ● ● ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0111- ● ● ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0005-0011 ● ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0012- ● ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0005-0011 ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0012-0012 ● ● ● ●
596 SCREW; HOOK
M5X14 		8-94279-325-0 01 1 0101-0110 ● ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0111- ● ● ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0005-0011 ● ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0012- ● ● ● ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009 ● ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-0011 ● ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0012- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
