◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#80428) — 101 parça

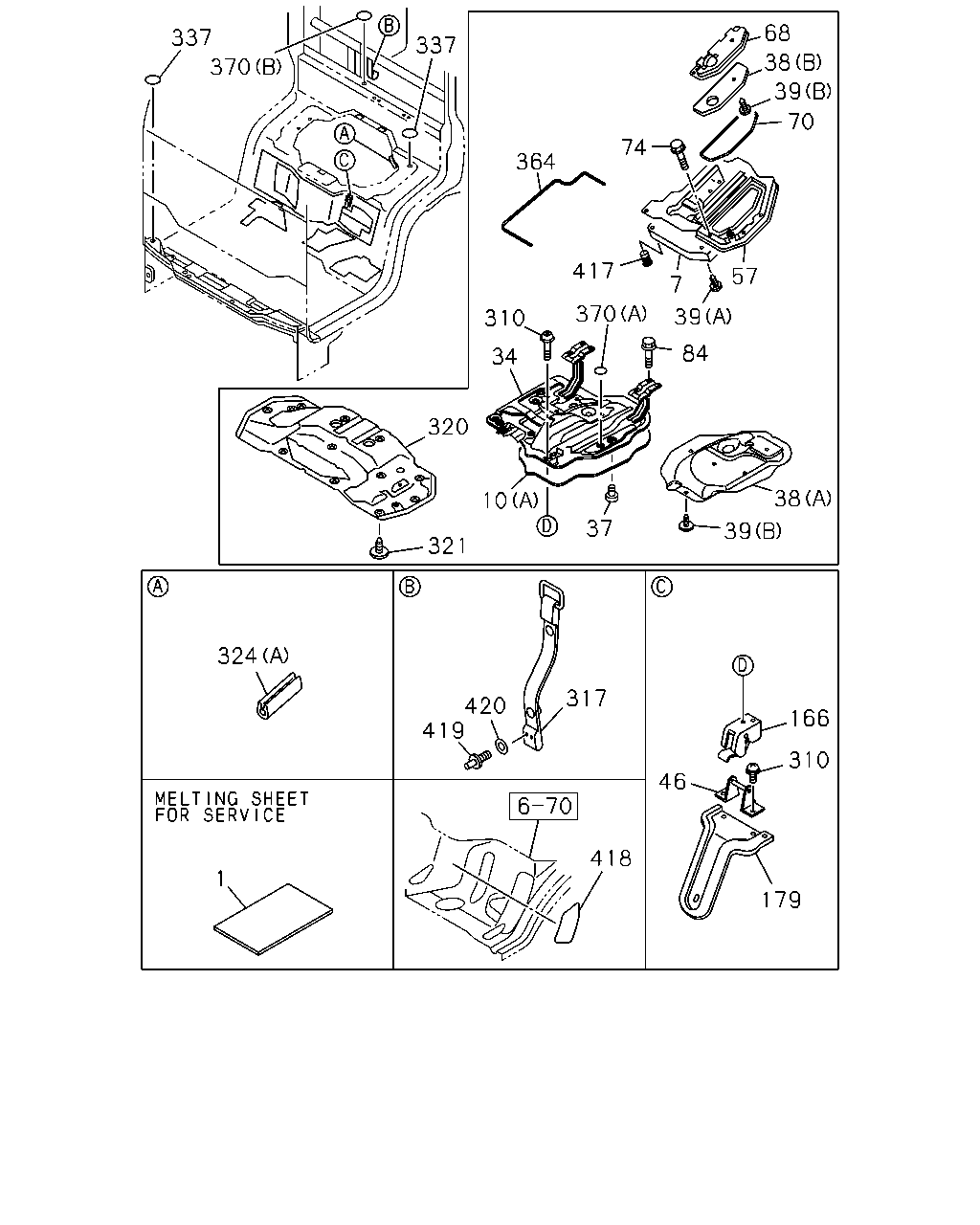

çizim 131850
68 337 337 38 370 39 70 74 364 417 57 7 370 39 310 84 34 320 38 10 37 39 321 324 317 420 419 166 310 46 418 1 179
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0803- ● ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-97586-177-2 01 1 0803-1408 ●
7 16.545 INSULATOR; SUPPORT COVER 8-97586-177-2 01 1 0803-1408 ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-98250-675-0 01 1 1409- ●
7 16.545 INSULATOR; SUPPORT COVER 8-98250-675-0 01 1 1409- ●
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(B) 		8-98033-268-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(C) 		8-98033-269-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(D) 		8-98033-270-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(E) 		8-98105-285-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(F) 		8-98105-300-0 01 1 0803- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-98021-745-1 01 1 0803- ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-98021-745-1 01 1 0803- ●
37 16.549 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0803- ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0803- ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-97586-169-2 01 1 0803-1408 ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97586-169-2 01 1 0803-1408 ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-98242-234-0 01 1 1409- ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-98242-234-0 01 1 1409- ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-97586-187-3 01 1 0803-1408 ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97586-187-3 01 1 0803-1408 ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98250-672-0 01 1 1409- ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-98250-672-0 01 1 1409- ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (B) OD=30 		8-94279-952-0 07 1 0803- ●
39 16.549 CLIP; INSULATOR,COVER
(B) OD=30 		8-94279-952-0 07 1 0803- ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 0803- ●
39 16.549 CLIP; INSULATOR,COVER
08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 0803- ●
46 16.549 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 0803- ●
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 0803- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-98021-746-2 01 1 0803- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-98021-746-2 01 1 0803- ●
68 16.549 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 0803- ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0803- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97853-050-1 01 1 0803- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0803- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 09 1 0803- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 09 1 0803- ●
84 16.549 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0803- ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0803- ●
166 16.549 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 0803- ●
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 0803- ●
179 16.549 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 0803- ●
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 0803- ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 09 1 0803-0810 ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 09 1 0803-0810 ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 05 1 0811- ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 0811- ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ●
317 16.549 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 0803- ●
317 16.549 BAND; ENGINE COVER 8-97585-575-0 01 1 0803- ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98034-605-2 01 1 0803-1408 ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98250-678-0 01 1 1409- ●
321 16.549 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4 		8-97808-623-0 14 1 0803- ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 01 1 0803- ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 01 1 0803- ●
324 16.545 FINISHER; FLOOR PANEL
16.742 (B) L=120 		1-73948-004-0 02 1 0803- ●
324 16.545 FINISHER; FLOOR PANEL
03.417 (B) SERVICED BY L=314 		8-94262-845-0 02 1 0803- ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0803- ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 0803- ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 07 1 0803- ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 07 1 0803- ●
337 16.545 SEAL; CLIP HOLE
EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 08 1 0803- ●
337 16.545 SEAL; CLIP HOLE
16.165 OD=25 BLACK 		1-76798-019-0 14 1 0803- ●
364 16.545 FINISHER; ENG COVER SIDE
INSPECTION ENGINE COVER<8GA> L=1100 		8-97892-744-0 01 1 0803- ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0803- ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 0803- ●
370 16.549 SEAL; LOCATION HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 0803- ●
370 16.549 SEAL; LOCATION HOLE
16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0803- ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT 		8-98013-752-0 01 1 0803- ●
417 16.549 NUT; POP
09.786 M6 POP NUT 		8-98013-752-0 01 1 0803- ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> M8 POP NUT 		8-98021-404-0 01 1 0803- ●
417 16.549 NUT; POP
M8 POP NUT 		8-98021-404-0 01 1 0803- ●
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 0803- ● ●
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 0803- ● ●
419 09.786 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 0803- ●
419 09.786 RIVET; ENG COVER 8-98065-262-0 01 1 0803- ●
420 09.786 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 0803- ●
420 09.786 WASHER; ENG COVER
02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 0803- ●

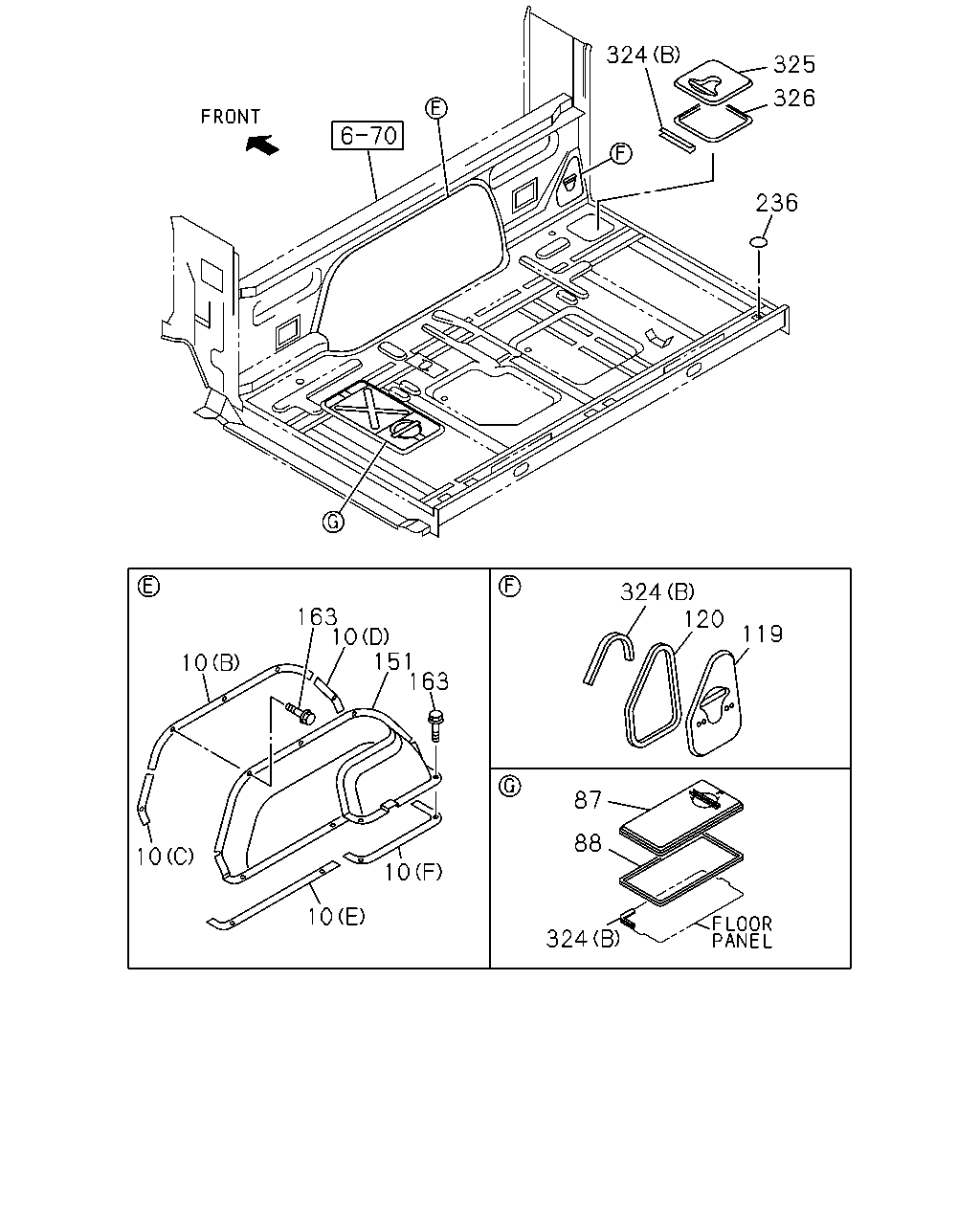

çizim 131989
324 325 326 236 324 120 163 10 151 163 119 10 87 88 10 10 10 324
BalonParca AdiParca NoAdetTipApplied Date A B
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(B) 		8-98033-268-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(C) 		8-98033-269-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(D) 		8-98033-270-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(E) 		8-98105-285-0 01 1 0803- ●
10 16.549 SEAL; ENG COVER
(F) 		8-98105-300-0 01 1 0803- ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 0803- ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0803- ●
119 16.090 LID; P/S OIL TANK 8-97410-834-1 01 1 0803- ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 0803- ●
151 16.549 COVER ASM; ENG 8-98081-412-0 01 1 0803- ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.343 M6X16 FLANGE 		0-28650-616-0 09 1 0803- ●
163 16.549 BOLT; RR,ENG COVER,FRT
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0803- ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0803- ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 01 1 0803- ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 01 1 0803- ●
324 16.545 FINISHER; FLOOR PANEL
16.742 (B) L=120 		1-73948-004-0 02 1 0803- ●
324 16.545 FINISHER; FLOOR PANEL
03.417 (B) SERVICED BY L=314 		8-94262-845-0 02 1 0803- ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 0803- ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 0803- ●
