6-70 — FLOOR PANEL (#80426) — 138 parça

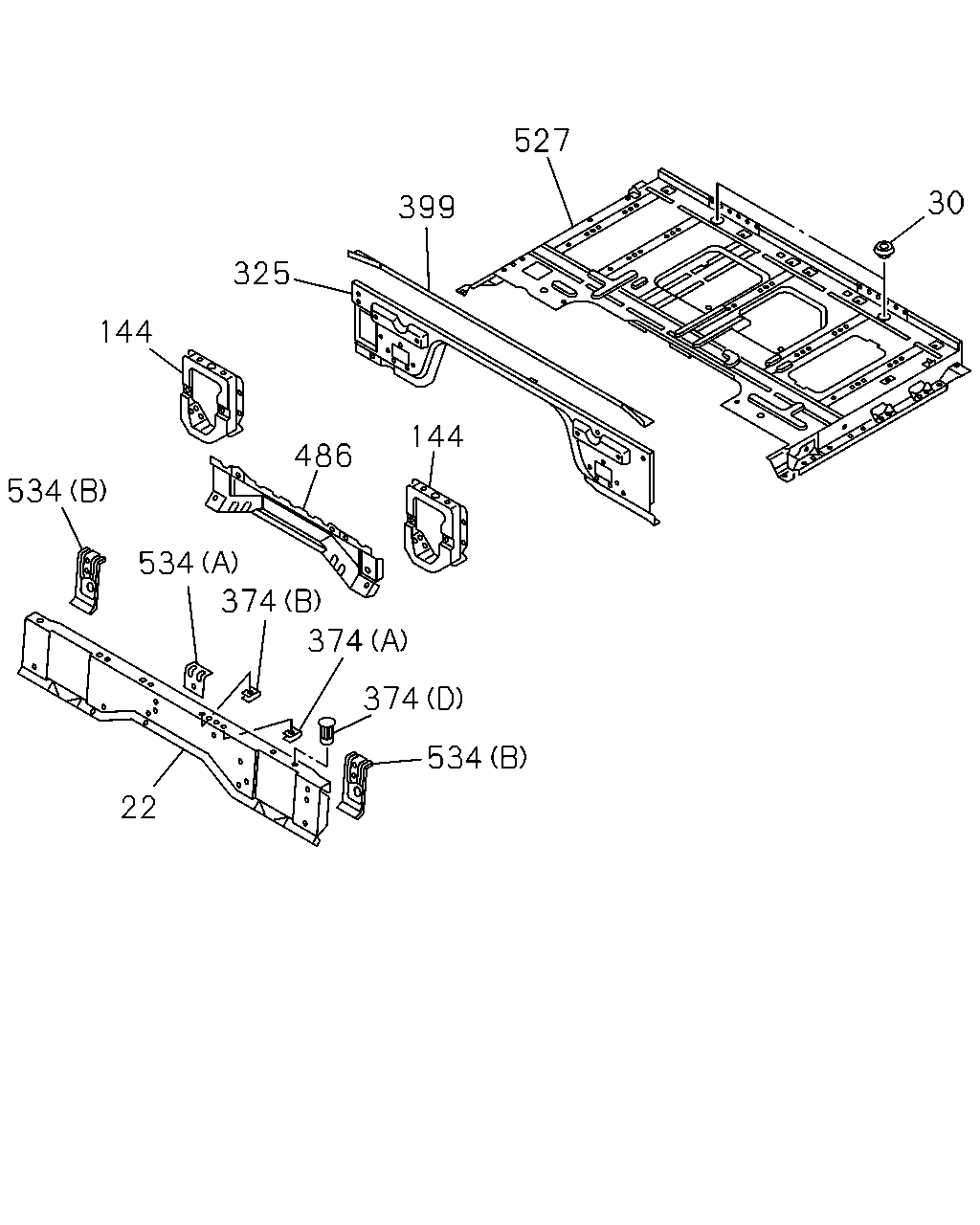

527 30 399 325 144 144 486 534 534 374 374 374 534 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	16.545 FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-446-2	01	1	0803-	●
22	16.545 FRAME; FLOOR REAR	8-97589-457-2	01	1	0803-		●
30	16.547 GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	0803-		●
144	16.545 BRACKET; MTG,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	0803-	●
144	16.545 BRACKET; MTG,RR	8-97850-208-6	02	1	0803-0803		●
144	16.545 BRACKET; MTG,RR	8-98112-244-2	02	1	0804-		●
325	16.545 REINFORCEMENT ASM; RR MTG	8-97588-942-2	01	1	0803-		●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0803-	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	0803-	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0803-		●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	0803-		●
374	16.545 NUT; FLOOR 09.786 (D) M6 POP NUT	8-98013-752-0	01	1	0803-		●
374	16.545 NUT; FLOOR (C) M8	9-09114-068-0	03	1	0803-	●	●
399	16.545 PANEL; EXTENSION,RR MTG RAIL	8-97588-952-1	01	1	0803-		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	0803-	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-612-0	01	1	0803-		●
527	16.545 FLOOR; RR	8-98081-408-4	01	1	0803-		●
534	16.545 REINFORCEMENT; SEAT BACK EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98007-678-2	02	1	0803-	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-98007-678-2	02	1	0803-		●
534	16.545 REINFORCEMENT; SEAT BACK EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98019-181-2	01	1	0803-	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0803-		●

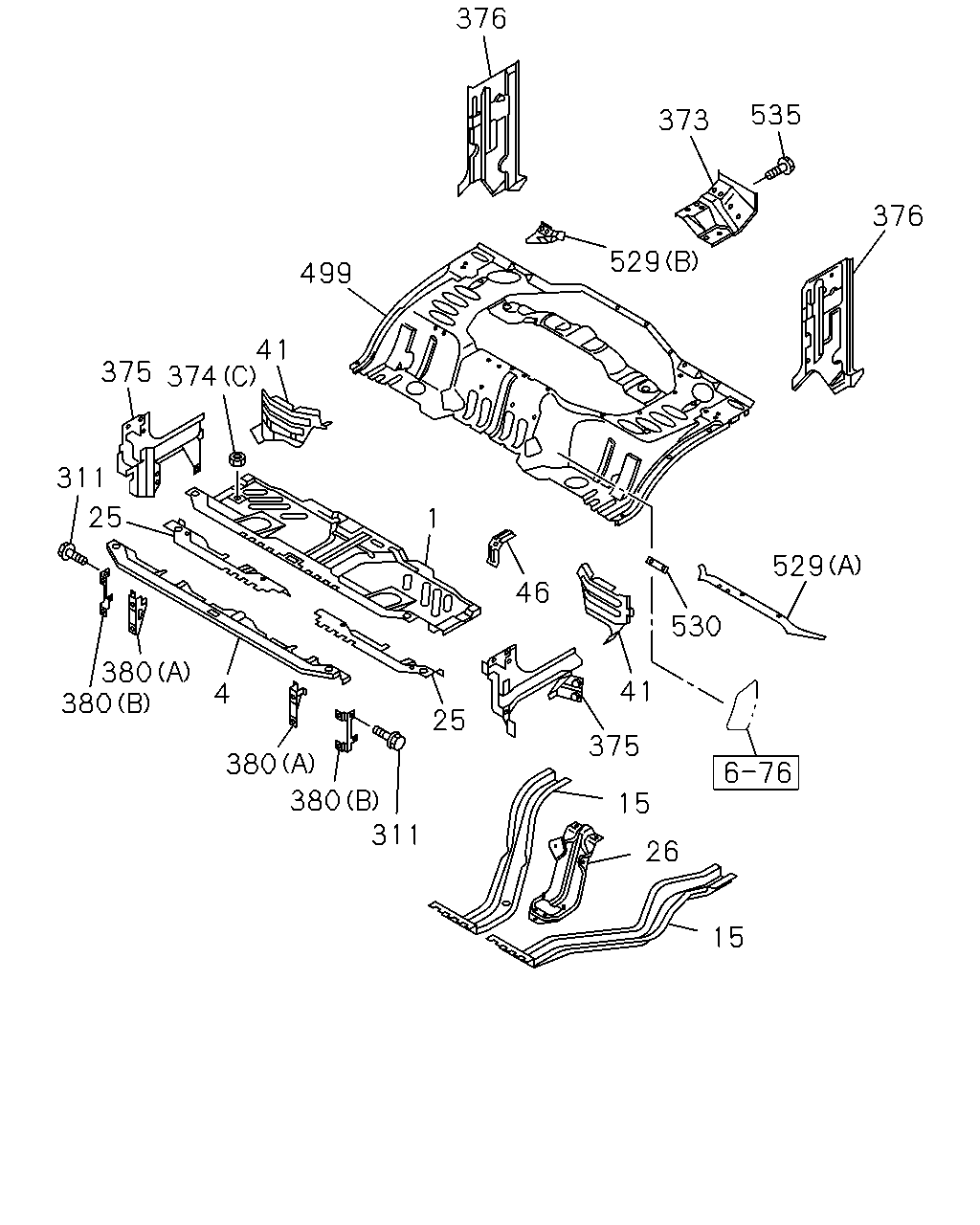

376 535 373 529 376 499 41 374 375 311 25 1 529 46 530 380 380 41 4 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.545 PANEL; FLOOR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-434-1	01	1	0803-	●
1	16.545 PANEL; FLOOR	8-97589-434-1	01	1	0803-		●
4	16.545 FRAME; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-98080-108-0	01	1	0803-	●
4	16.545 FRAME; FLOOR,FRT	8-98080-108-0	01	1	0803-		●
15	16.545 FRAME; UNDER EXC. INSPECTION ENGINE COVER<8GA>	8-98061-277-1	01	1	0803-	●
15	16.545 FRAME; UNDER	8-98061-277-1	01	1	0803-		●
15	16.545 FRAME; UNDER EXC. INSPECTION ENGINE COVER<8GA>	8-98061-278-1	01	1	0803-	●
15	16.545 FRAME; UNDER	8-98061-278-1	01	1	0803-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97588-030-1	01	1	0803-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-030-1	01	1	0803-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97588-031-1	01	1	0803-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-031-1	01	1	0803-		●
26	16.545 PANEL; GEAR CONT REINF EXC. INSPECTION ENGINE COVER<8GA>	8-97589-517-1	01	1	0803-	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-517-1	01	1	0803-		●
41	16.545 SUPPORT; STEP,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-935-2	01	1	0803-	●
41	16.545 SUPPORT; STEP,RR	8-97583-935-2	01	1	0803-		●
41	16.545 SUPPORT; STEP,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-936-2	01	1	0803-	●
41	16.545 SUPPORT; STEP,RR	8-97583-936-2	01	1	0803-		●
46	16.545 BRACKET; FRT SEAT,RR OUTER EXC. INSPECTION ENGINE COVER<8GA>	8-97583-834-0	01	1	0803-	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0803-		●
311	16.545 BOLT; BRKT 02.500 M6X16	0-52000-616-0	04	1	0803-0804	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0805-	●	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-97589-447-0	01	1	0803-	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-97589-448-0	01	1	0803-	●
373	16.545 REINFORCEMENT; SEAT BELT	8-98021-748-0	01	1	0803-		●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0803-	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	0803-	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0803-		●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	0803-		●
374	16.545 NUT; FLOOR 09.786 (D) M6 POP NUT	8-98013-752-0	01	1	0803-		●
374	16.545 NUT; FLOOR (C) M8	9-09114-068-0	03	1	0803-	●	●
375	16.545 CLOSING; PILLAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-882-3	01	1	0803-	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	0803-		●
375	16.545 CLOSING; PILLAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-883-2	01	1	0803-	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	0803-		●
376	16.545 CLOSING; PILLAR,LWR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-888-2	01	1	0803-	●
376	16.545 CLOSING; PILLAR,LWR EXC. INSPECTION ENGINE COVER<8GA>	8-97584-618-2	01	1	0803-	●
376	16.545 CLOSING; PILLAR,LWR	8-98024-544-7	01	1	0803-		●
376	16.545 CLOSING; PILLAR,LWR	8-98024-545-6	01	1	0803-		●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0803-	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0803-	●	●
380	16.545 BRACKET; HEAD LAMP EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-384-4	01	1	0803-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	0803-		●
380	16.545 BRACKET; HEAD LAMP EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-385-3	01	1	0803-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	0803-		●
499	16.545 PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-436-0	01	1	0803-	●
499	16.545 PANEL; FLOOR,RR	8-97589-453-1	01	1	0803-		●
529	16.545 RETAINER; FLOOR PANEL (A)	8-98021-207-0	01	1	0803-		●
529	16.545 RETAINER; FLOOR PANEL (B)	8-98031-663-0	01	1	0803-		●
530	16.565 BRACKET; COVER	8-97589-255-0	01	1	0803-		●
535	16.549 BOLT; REINFORCEMENT 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0803-		●

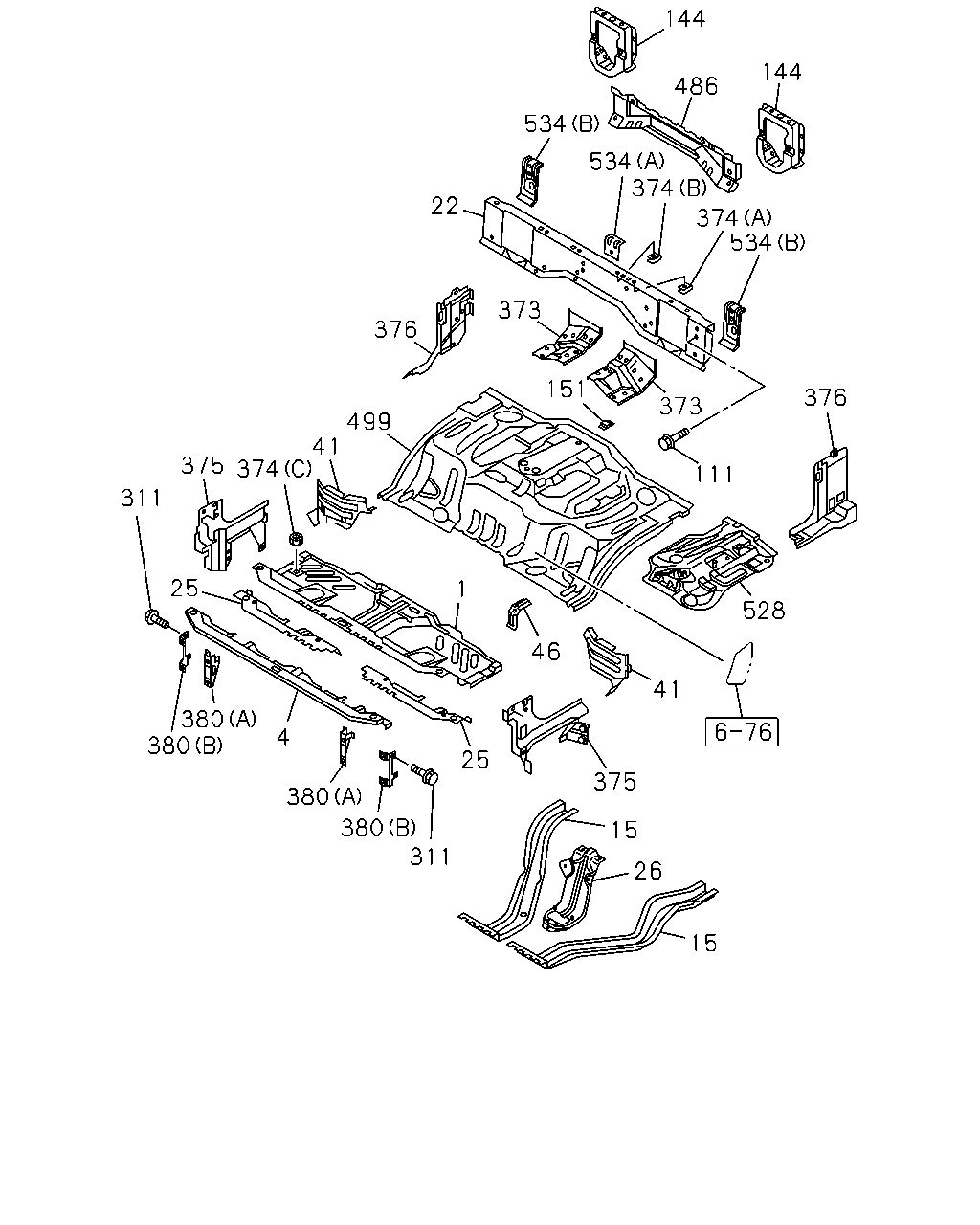

144 144 486 534 534 374 22 374 534 373 376 151 376 373 499 41 374 375 111 311 25 1 528 46 41 380 380 4 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.545 PANEL; FLOOR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-434-1	01	1	0803-	●
1	16.545 PANEL; FLOOR	8-97589-434-1	01	1	0803-		●
4	16.545 FRAME; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-98080-108-0	01	1	0803-	●
4	16.545 FRAME; FLOOR,FRT	8-98080-108-0	01	1	0803-		●
15	16.545 FRAME; UNDER EXC. INSPECTION ENGINE COVER<8GA>	8-98061-277-1	01	1	0803-	●
15	16.545 FRAME; UNDER	8-98061-277-1	01	1	0803-		●
15	16.545 FRAME; UNDER EXC. INSPECTION ENGINE COVER<8GA>	8-98061-278-1	01	1	0803-	●
15	16.545 FRAME; UNDER	8-98061-278-1	01	1	0803-		●
22	16.545 FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-446-2	01	1	0803-	●
22	16.545 FRAME; FLOOR REAR	8-97589-457-2	01	1	0803-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97588-030-1	01	1	0803-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-030-1	01	1	0803-		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97588-031-1	01	1	0803-	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-031-1	01	1	0803-		●
26	16.545 PANEL; GEAR CONT REINF EXC. INSPECTION ENGINE COVER<8GA>	8-97589-517-1	01	1	0803-	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-517-1	01	1	0803-		●
41	16.545 SUPPORT; STEP,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-935-2	01	1	0803-	●
41	16.545 SUPPORT; STEP,RR	8-97583-935-2	01	1	0803-		●
41	16.545 SUPPORT; STEP,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-936-2	01	1	0803-	●
41	16.545 SUPPORT; STEP,RR	8-97583-936-2	01	1	0803-		●
46	16.545 BRACKET; FRT SEAT,RR OUTER EXC. INSPECTION ENGINE COVER<8GA>	8-97583-834-0	01	1	0803-	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0803-		●
111	16.549 BOLT; PANEL 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●
144	16.545 BRACKET; MTG,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	0803-	●
144	16.545 BRACKET; MTG,RR	8-97850-208-6	02	1	0803-0803		●
144	16.545 BRACKET; MTG,RR	8-98112-244-2	02	1	0804-		●
151	16.670 BRACKET; SEAT CUSHION STOPPER EXC. INSPECTION ENGINE COVER<8GA>	8-97583-833-0	01	1	0803-	●
311	16.545 BOLT; BRKT 02.500 M6X16	0-52000-616-0	04	1	0803-0804	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0805-	●	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-97589-447-0	01	1	0803-	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-97589-448-0	01	1	0803-	●
373	16.545 REINFORCEMENT; SEAT BELT	8-98021-748-0	01	1	0803-		●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0803-	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	0803-	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0803-		●
374	16.545 NUT; FLOOR (A) M8	1-09984-111-0	04	1	0803-		●
374	16.545 NUT; FLOOR 09.786 (D) M6 POP NUT	8-98013-752-0	01	1	0803-		●
374	16.545 NUT; FLOOR (C) M8	9-09114-068-0	03	1	0803-	●	●
375	16.545 CLOSING; PILLAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-882-3	01	1	0803-	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	0803-		●
375	16.545 CLOSING; PILLAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-883-2	01	1	0803-	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	0803-		●
376	16.545 CLOSING; PILLAR,LWR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-888-2	01	1	0803-	●
376	16.545 CLOSING; PILLAR,LWR EXC. INSPECTION ENGINE COVER<8GA>	8-97584-618-2	01	1	0803-	●
376	16.545 CLOSING; PILLAR,LWR	8-98024-544-7	01	1	0803-		●
376	16.545 CLOSING; PILLAR,LWR	8-98024-545-6	01	1	0803-		●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0803-	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0803-	●	●
380	16.545 BRACKET; HEAD LAMP EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-384-4	01	1	0803-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	0803-		●
380	16.545 BRACKET; HEAD LAMP EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97589-385-3	01	1	0803-	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	0803-		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	0803-	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR	8-98030-612-0	01	1	0803-		●
499	16.545 PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97589-436-0	01	1	0803-	●
499	16.545 PANEL; FLOOR,RR	8-97589-453-1	01	1	0803-		●
528	16.545 REINFORCEMENT; PARKING BRAKE EXC. INSPECTION ENGINE COVER<8GA>	8-97589-437-2	01	1	0803-	●
534	16.545 REINFORCEMENT; SEAT BACK EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98007-678-2	02	1	0803-	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-98007-678-2	02	1	0803-		●
534	16.545 REINFORCEMENT; SEAT BACK EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98019-181-2	01	1	0803-	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0803-		●

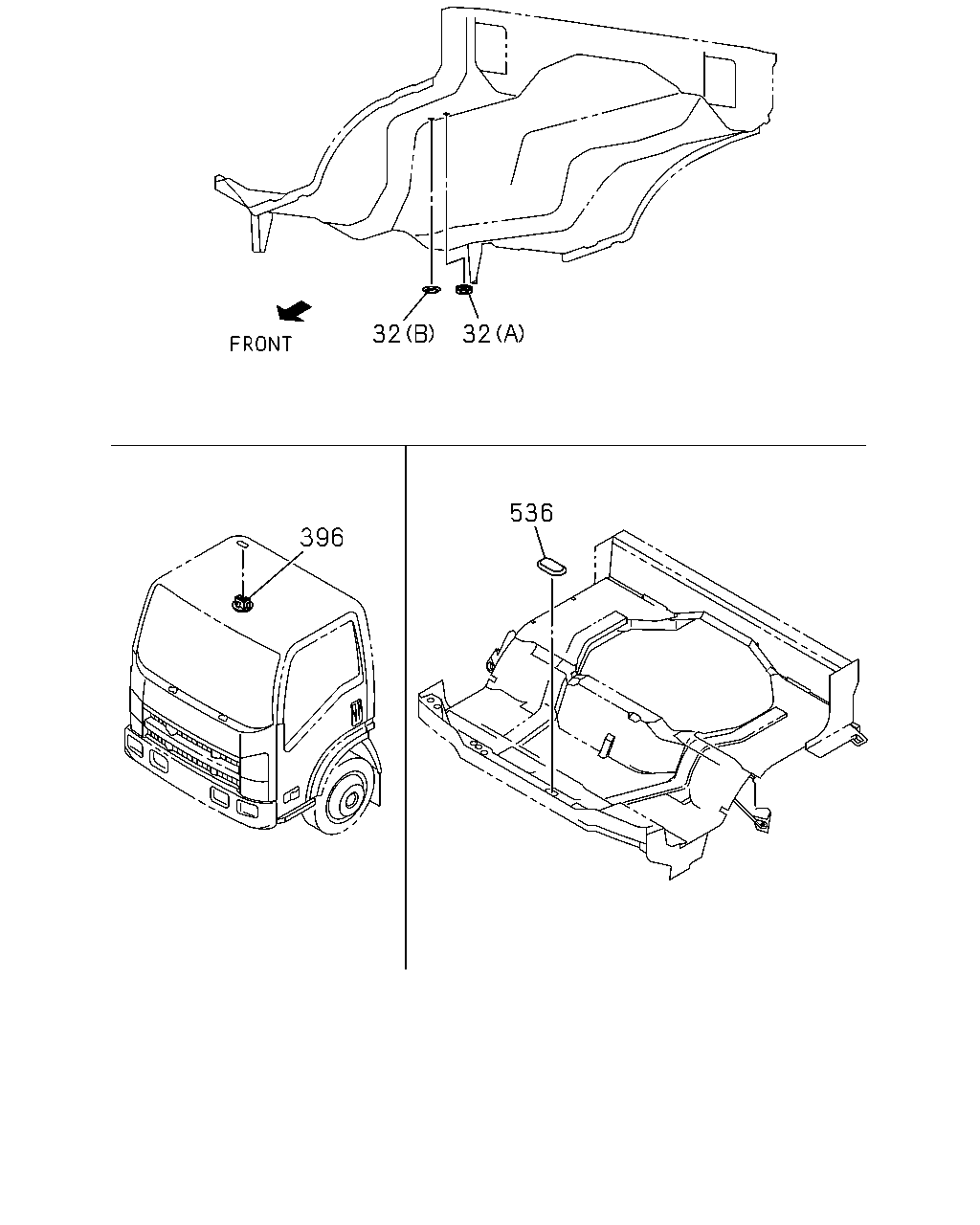

32 32 536 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (B) OD=12.1	8-97898-423-0	02	1	0803-	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO 00.785 (A) OD=16.2	8-94492-493-0	02	1	0803-0908	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (A) OD=15.0	8-94279-040-0	02	1	0909-	●	●
396	16.547 GROMMET; LOCATION HOLE	8-98054-990-0	02	1	0803-	●
536	16.549 PLUG; CABLE,PTO 04.008	8-98029-219-1	01	1	0803-	●	●
