6-66 — HEAD LINING AND TRIM (#80425) — 56 parça

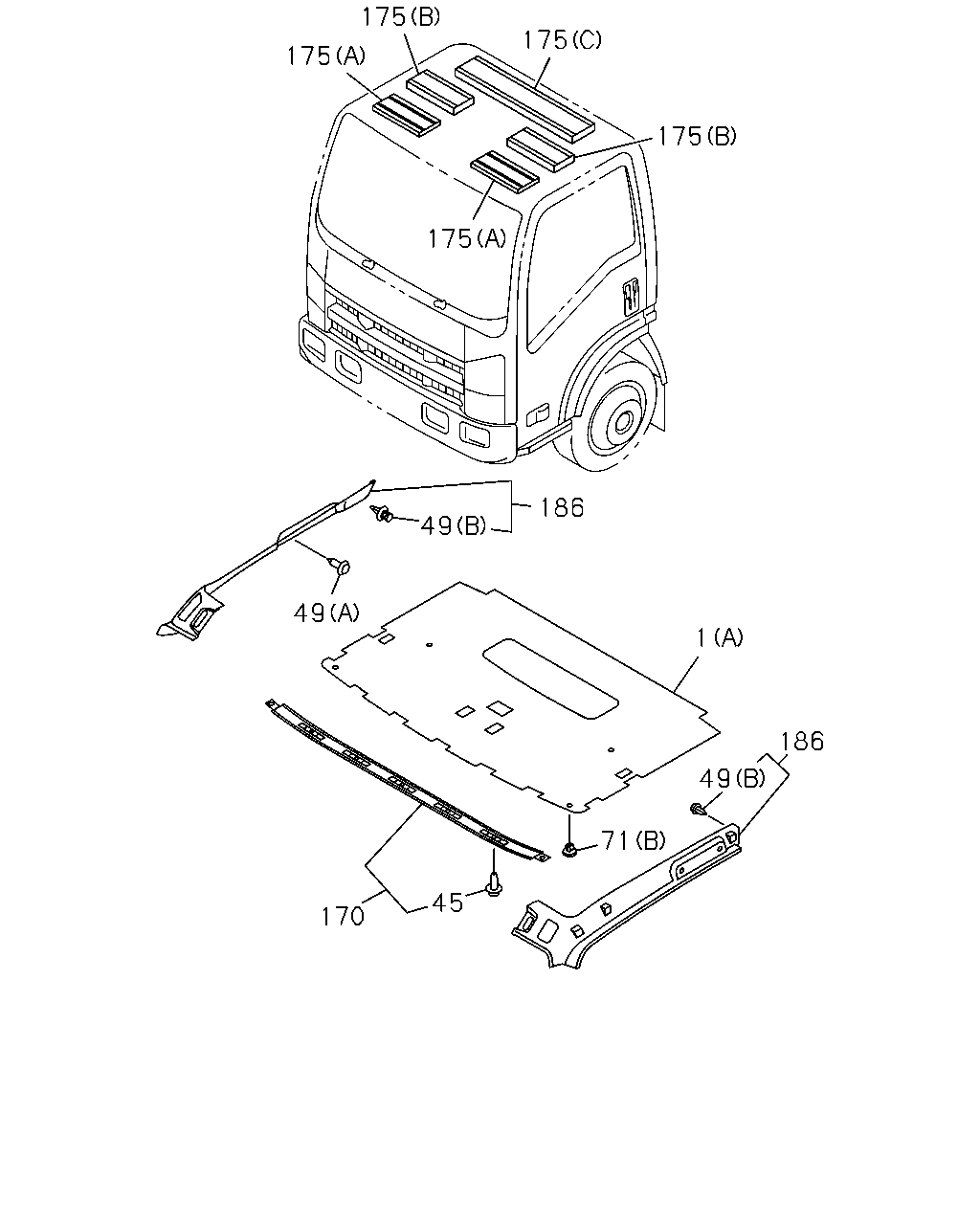

çizim 131506
175 175 175 175 175 186 49 49 1 186 49 71 45 170
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY 		8-97411-681-2 01 1 0803- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-282-6 01 1 0803- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-277-5 01 1 0803- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (B) DARK GRAY 		8-97411-682-0 01 1 0803- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97406-291-4 01 1 0803- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97406-289-3 01 1 0803- ●
45 16.742 CLIP; FINISHER 8-98035-592-1 05 1 0803-0911 ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 0912- ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 0803- ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 0803-1410 ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1411- ● ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 04 1 0803- ● ●
71 16.742 FASTENER; HD LINING
(B) DARK GRAY 		8-97405-282-0 06 1 0803- ●
71 16.742 FASTENER; HD LINING
(B) DARK GRAY 		8-97405-282-0 34 1 0803- ●
71 16.742 FASTENER; HD LINING
(A) DARK GRAY 		8-97411-797-0 01 1 0803- ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97406-296-4 01 1 0803- ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 0803- ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 0803- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0803- ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-98053-866-2 02 1 0803- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 04 1 0803- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 0803- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 0803- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 0803- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 0803- ● ●

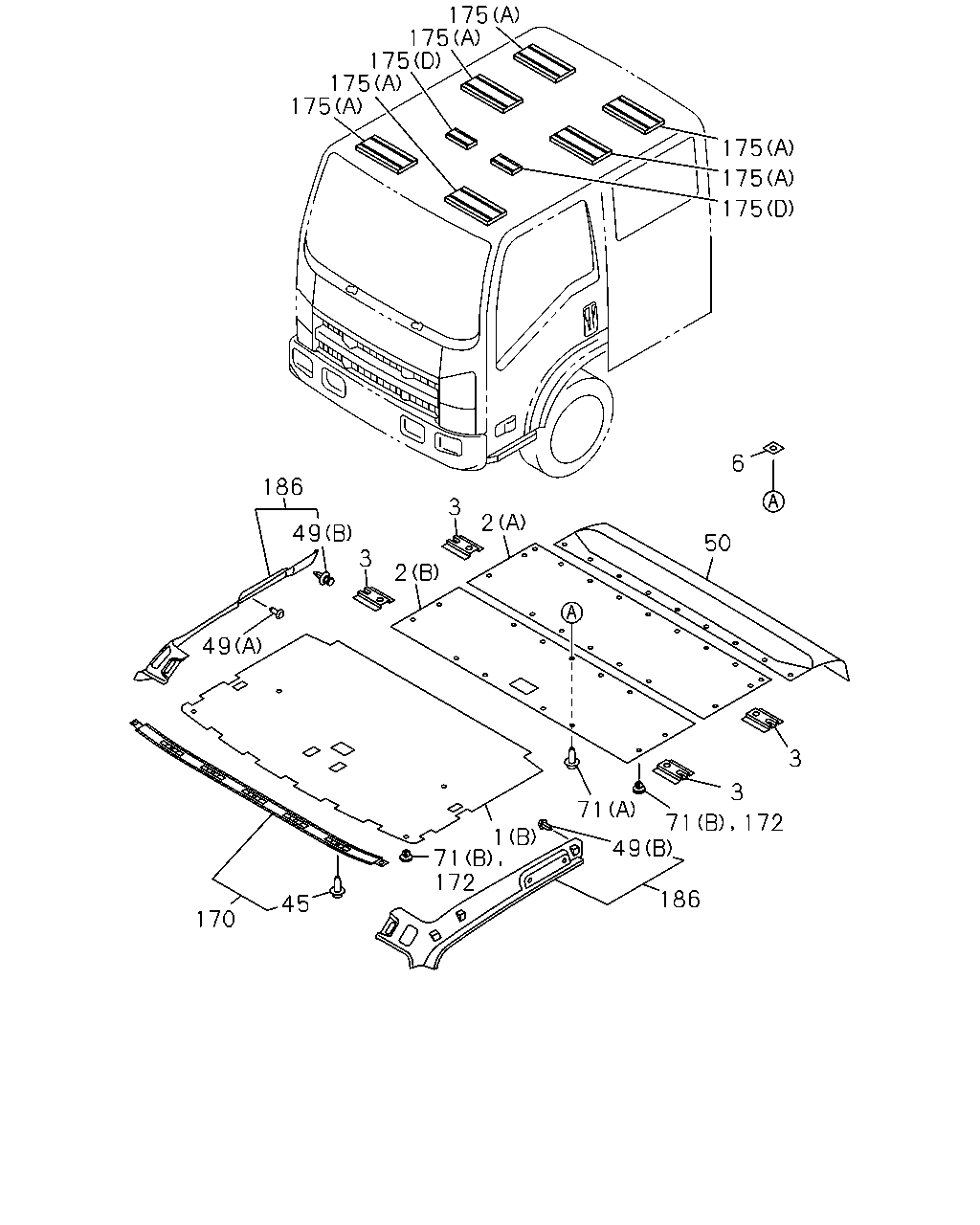

çizim 132165
175 175 175 175 175 175 175 175 6 186 3 2 49 3 50 2 49 3 3 71 71 49 172 1 71 172 186 45 170
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY 		8-97411-681-2 01 1 0803- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-282-6 01 1 0803- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97406-277-5 01 1 0803- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (B) DARK GRAY 		8-97411-682-0 01 1 0803- ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97406-291-4 01 1 0803- ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97406-289-3 01 1 0803- ●
2 16.742 LINING; HD,ROOF RR
(A) DARK GRAY 		8-97406-292-2 01 1 0803- ●
2 16.742 LINING; HD,ROOF RR
(B) DARK GRAY 		8-97407-331-3 01 1 0803- ●
3 16.575 COVER; TRIM,ROOF SIDE
DARK GRAY 		8-97407-365-0 04 1 0803- ●
6 16.742 SPACER; HD LINING
1 SET=20 PIECE 		8-98100-429-0 01 1 0803- ●
45 16.742 CLIP; FINISHER 8-98035-592-1 05 1 0803-0911 ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 0912- ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 0803- ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 0803-1410 ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1411- ● ●
49 16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 04 1 0803- ● ●
50 16.742 TRIM; ROOF BACK
DARK GRAY 		8-97406-295-2 01 1 0803- ●
71 16.742 FASTENER; HD LINING
(B) DARK GRAY 		8-97405-282-0 06 1 0803- ●
71 16.742 FASTENER; HD LINING
(B) DARK GRAY 		8-97405-282-0 34 1 0803- ●
71 16.742 FASTENER; HD LINING
(A) DARK GRAY 		8-97411-797-0 01 1 0803- ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97406-296-4 01 1 0803- ● ●
172 16.742 RETAINER; HEAD LINING
DARK GRAY 		8-97405-282-0 19 1 0803- ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 0803- ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 0803- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0803- ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-98053-866-2 02 1 0803- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 04 1 0803- ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 0803- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 0803- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 0803- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 0803- ● ●
