Isuzu WW
▶
TRUCKS
▶
NMR
▶
51384 - NMR 85(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#80424) — 30 parça
Tümü
A - NMR6SN
B - NMR6WN
◀

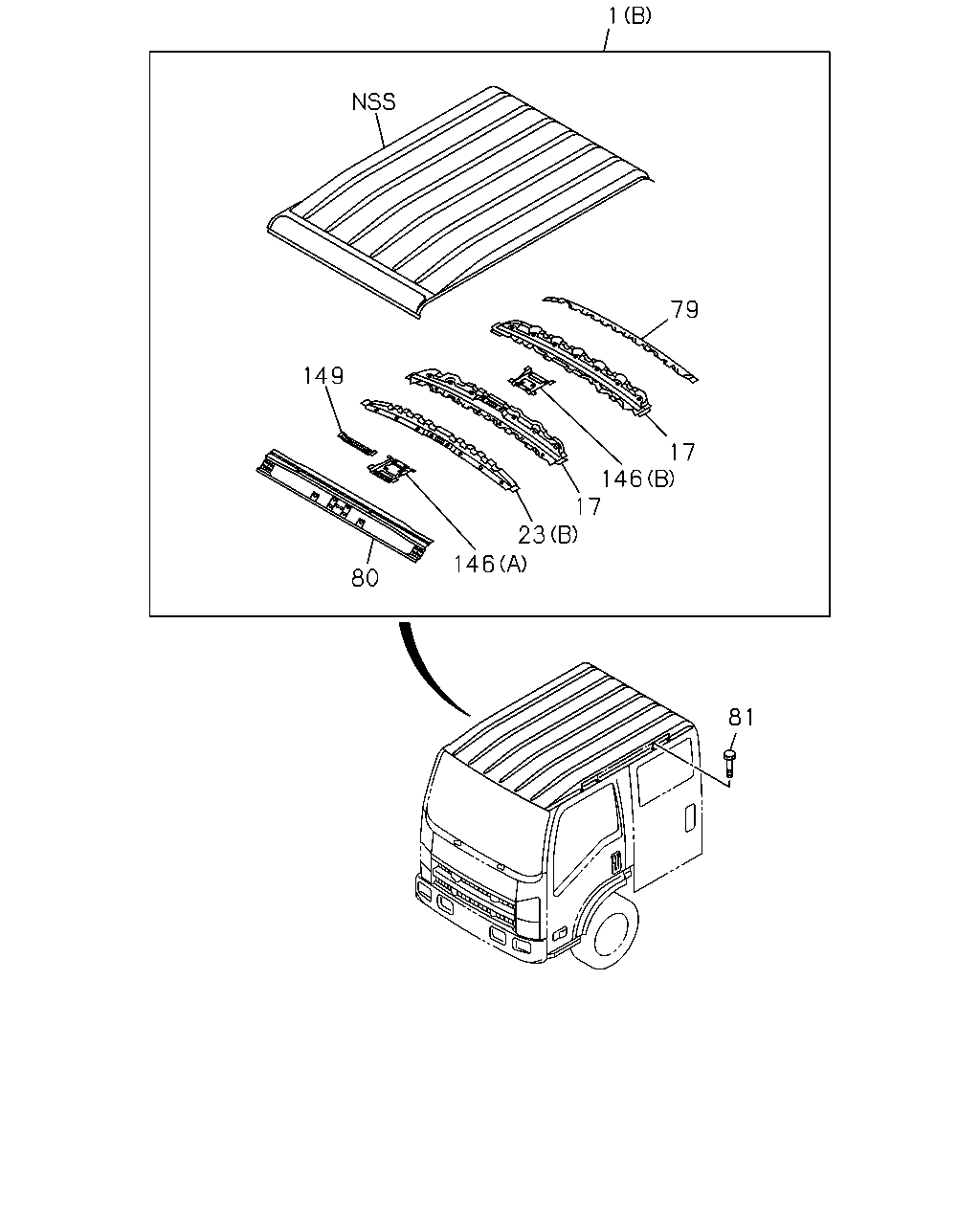

[660A] DBL CAB (16 parça)

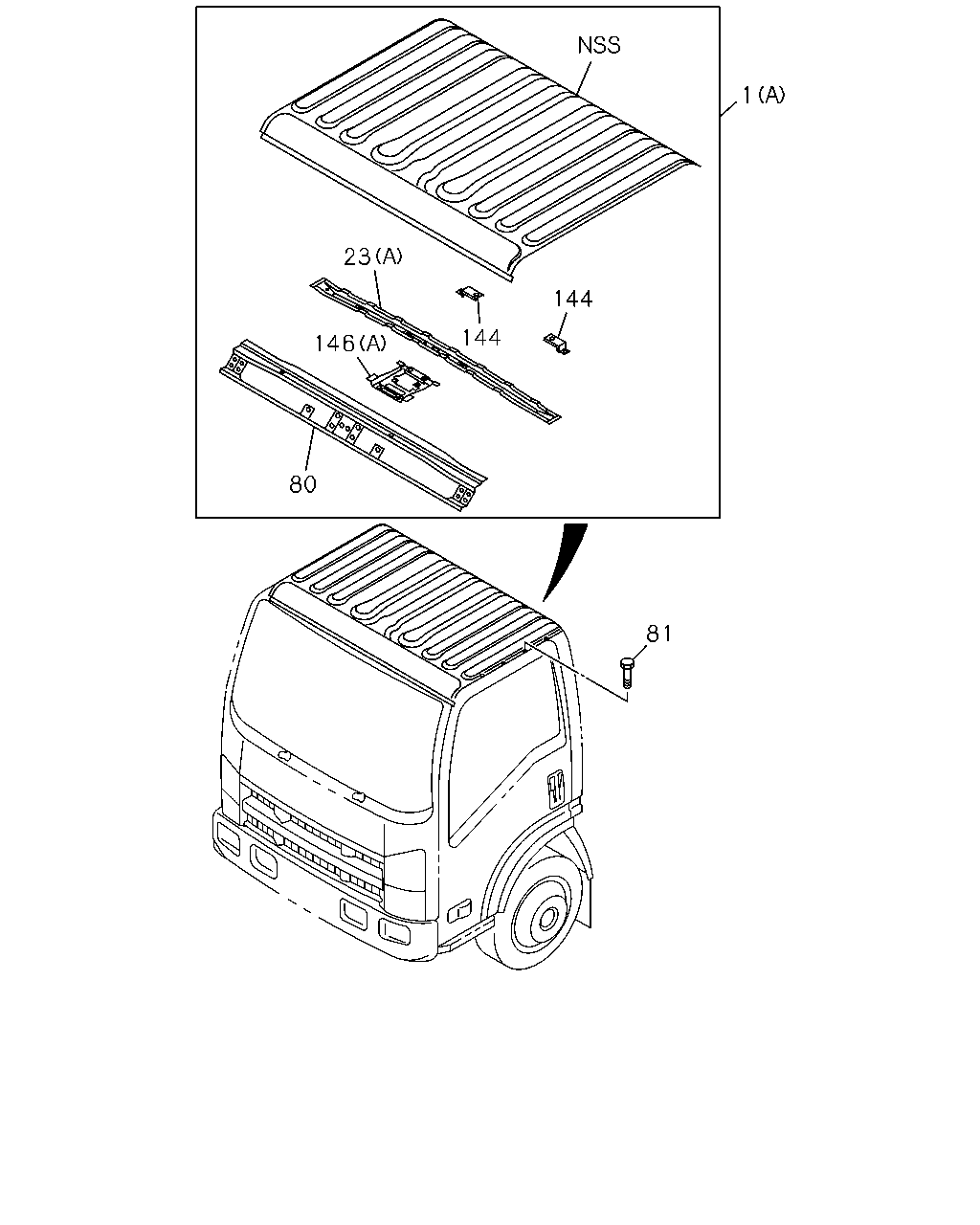

[660A] SGL CAB (14 parça)
▶
1
79
149
17
146
17
23
146
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.585 PANEL; ROOF
(A)
8-97584-169-6
01
1
0803-1503
●
1
16.585 PANEL; ROOF
(A)
8-98287-343-0
01
1
1504-
●
1
16.585 PANEL; ROOF
(B)
8-97587-638-6
01
1
0803-1503
●
1
16.585 PANEL; ROOF
(B)
8-98287-017-0
01
1
1504-
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
8-97587-639-2
02
1
0803-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(A)
8-97584-197-0
01
1
0803-1503
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(A)
8-98287-358-0
01
1
1504-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(B)
8-98009-723-1
01
1
0803-
●
79
16.570 REINFORCEMENT; ROOF PANEL,RR
8-98054-646-1
01
1
0803-
●
80
16.585 PANEL; HEADER,ROOF
8-97584-189-4
01
1
0803-1503
●
●
80
16.585 PANEL; HEADER,ROOF
8-98287-352-0
01
1
1504-
●
●
81
16.585 BOLT; ROOF
16.450 M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0803-0910
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
0911-
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
(A)
8-98009-289-4
01
1
0803-
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
(B)
8-98075-827-0
02
1
0803-
●
149
16.585 SUPPORT; REINFORCEMENT
8-98009-110-0
01
1
0803-
●
1
23
144
144
146
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.585 PANEL; ROOF
(A)
8-97584-169-6
01
1
0803-1503
●
1
16.585 PANEL; ROOF
(A)
8-98287-343-0
01
1
1504-
●
1
16.585 PANEL; ROOF
(B)
8-97587-638-6
01
1
0803-1503
●
1
16.585 PANEL; ROOF
(B)
8-98287-017-0
01
1
1504-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(A)
8-97584-197-0
01
1
0803-1503
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(A)
8-98287-358-0
01
1
1504-
●
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
(B)
8-98009-723-1
01
1
0803-
●
80
16.585 PANEL; HEADER,ROOF
8-97584-189-4
01
1
0803-1503
●
●
80
16.585 PANEL; HEADER,ROOF
8-98287-352-0
01
1
1504-
●
●
81
16.585 BOLT; ROOF
16.450 M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0803-0910
●
●
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
0911-
●
●
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
0803-
●
146
16.570 REINFORCEMENT; ROOM LAMP
(A)
8-98009-289-4
01
1
0803-
●
●
146
16.570 REINFORCEMENT; ROOM LAMP
(B)
8-98075-827-0
02
1
0803-
●
