Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#80403) — 176 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

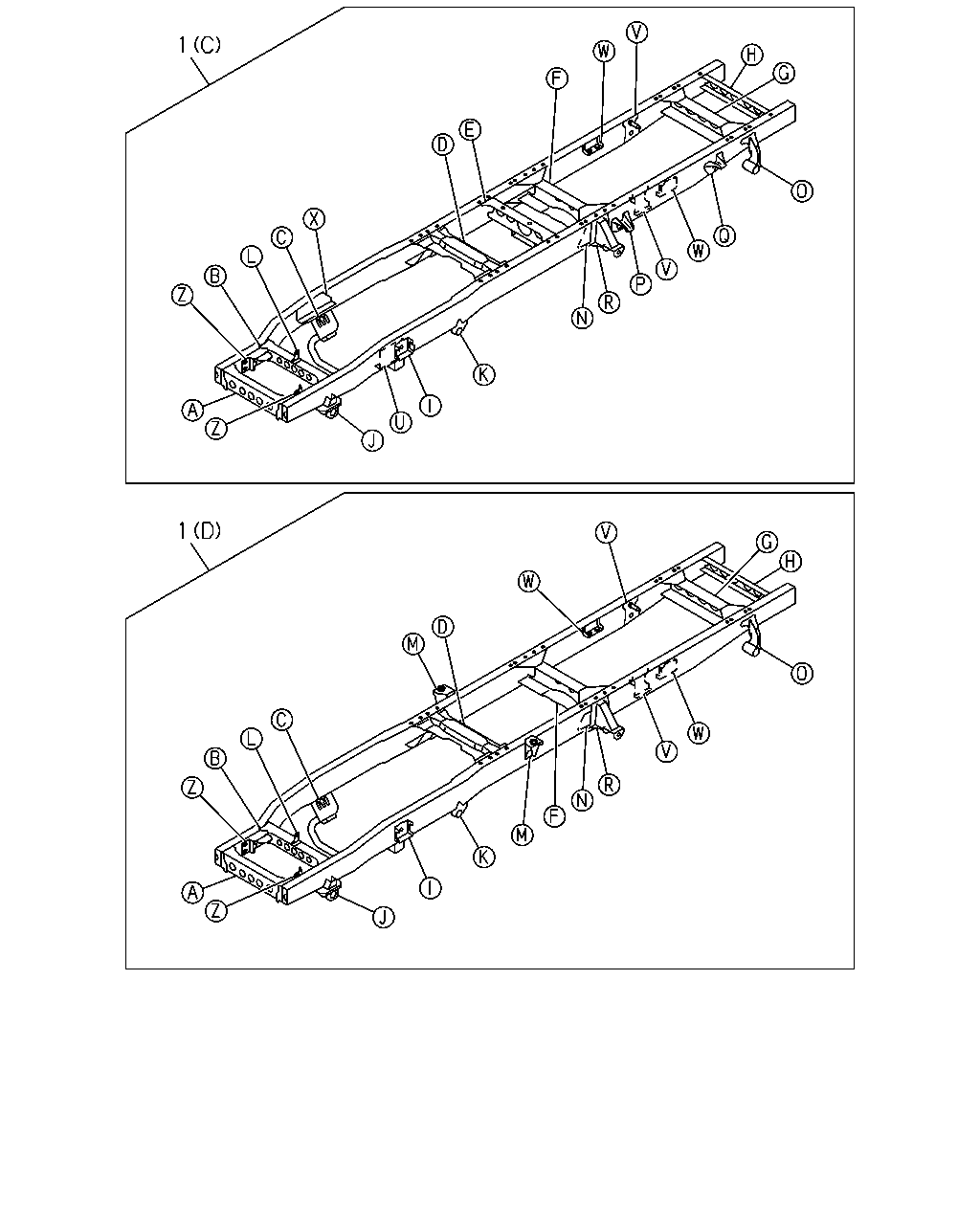

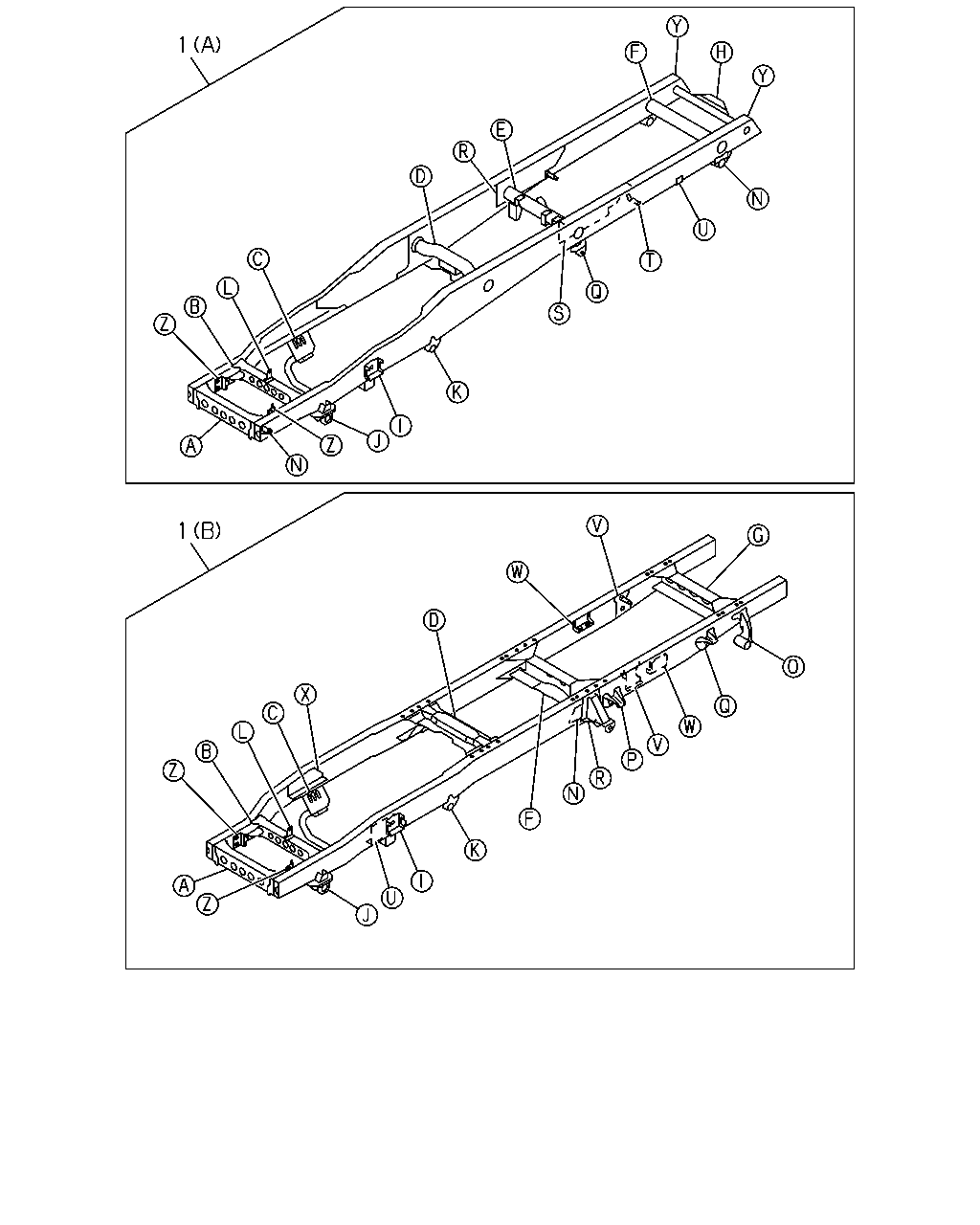

1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (B)	8-98254-657-1	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (C)	8-98254-669-1	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98023-312-3	01	1	0803-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98023-312-3	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-98023-315-4	01	1	0803-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) (C)	8-98072-763-3	01	1	0803-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (C)	8-98072-763-3	01	1	1310-	●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6> (D)	8-98072-769-3	01	1	0803-1309		●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6> (D)	8-98254-674-1	01	1	1310-		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6> (D)	8-98072-768-3	01	1	0803-1309		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6> (D)	8-98254-673-1	01	1	1310-		●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 296 40 60 176 176 118 62 67 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0803-1309	●
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	08.155 BOLT; BRKT TO FRAME 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-		●
60	05.601 BOLT; MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 07.039 M10X30	0-20851-030-0	04	1	0803-	●
60	05.601 BOLT; MBR WHEEL BASE 3300MM(33W) 07.039 M10X30	0-20851-030-0	04	1	0803-	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	0803-		●
62	05.601 NUT; MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-	●
62	05.601 NUT; MBR WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-		●
67	07.011 NUT; C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-0803	●
67	07.011 NUT; C/MBR WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-0803	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-0803		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-	●	●
118	07.529 NUT; STOPPER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M8 LOCK NUT	0-91370-008-0	02	1	0803-	●
118	07.529 NUT; STOPPER WHEEL BASE 3300MM(33W) M8 LOCK NUT	0-91370-008-0	02	1	0803-	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0803-		●
176	04.085 BOLT; C/MBR,ENG MTG (C) M10X30 FLANGE	0-28061-030-0	08	1	1310-		●
176	04.085 BOLT; C/MBR,ENG MTG (A) M14X45 FLANGE	0-29261-445-0	08	1	0803-0803	●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	0803-1309	●	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	1310-	●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10X30	0-20851-030-0	04	1	0803-0803	●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 3300MM(33W) M10X30	0-20851-030-0	04	1	0803-0803	●
296	07.039 BOLT; 3RD C/MBR M10X30	0-20851-030-0	04	1	0803-0803		●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME (I) D10X34 TAPER END	9-06751-034-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME (K) D11X26 TAPER END	9-06751-126-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME 07.105 (L) D12X30 TAPER END	9-06751-230-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME 07.006 (M) D12X32 TAPER END	9-06751-232-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME 07.535 (N) D12X34 TAPER END	9-06751-234-0	AR	1	0803-	●	●
376	07.039 RIVET; FRAME 07.428 (O) D12X36 TAPER END	9-06751-236-0	AR	1	0803-	●	●

43 43 173 173 215 215 105 105 215 215 446 103 103 147 147 101 101 365 142 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

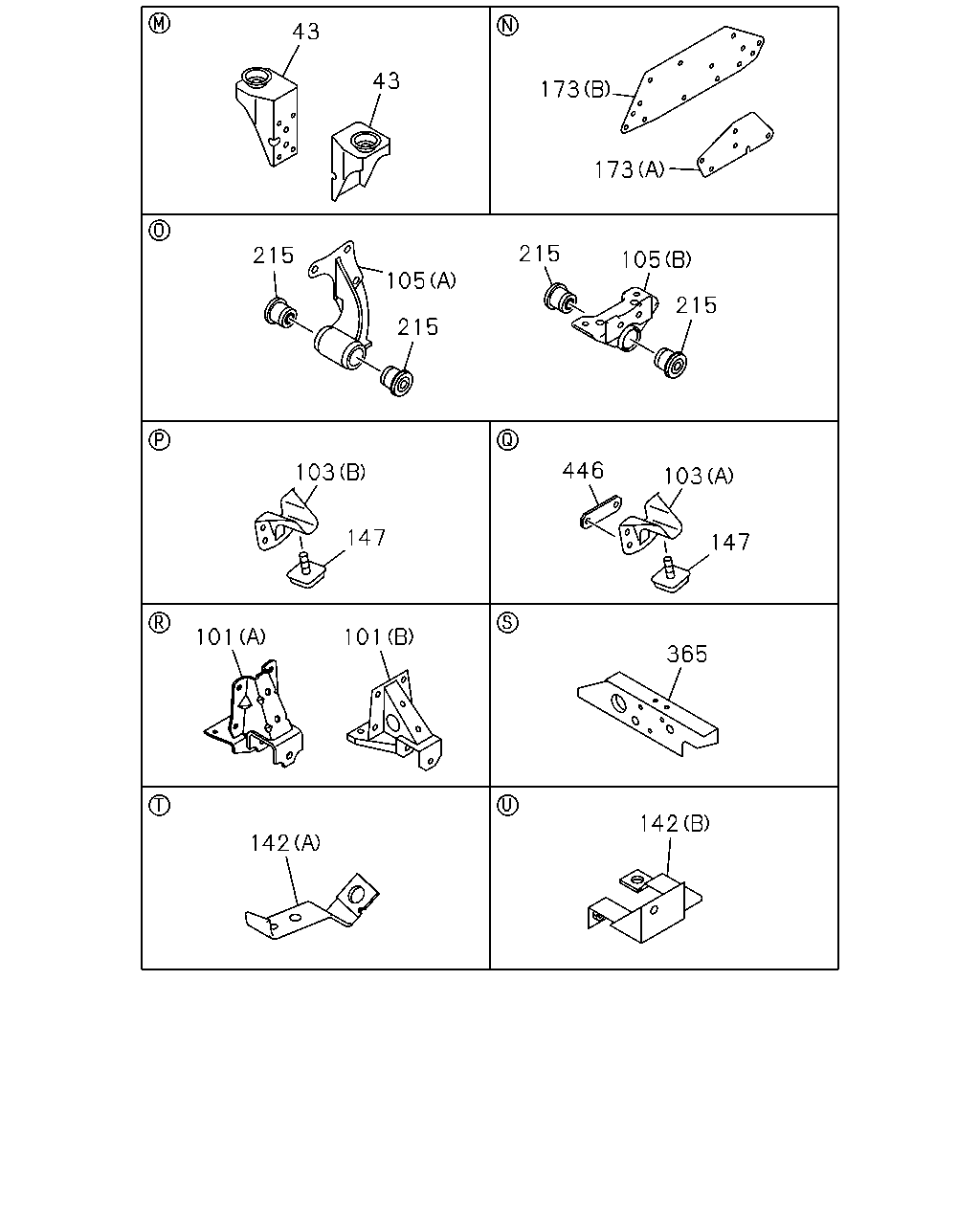

43	09.003 BRACKET; CAB MTG,RR	8-98035-851-1	01	1	0803-		●
43	09.003 BRACKET; CAB MTG,RR	8-98035-852-1	01	1	0803-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98243-604-0	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-98243-604-0	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1310-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-97034-156-1	02	1	0803-1309	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) (A)	8-97034-156-1	02	1	0803-1309	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	0803-1309		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-97034-156-1	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-97034-156-1	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97034-223-1	02	1	0803-	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-97223-748-0	02	1	0803-	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) (B)	8-97223-748-0	02	1	0803-	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0803-		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-97223-750-0	02	1	0803-	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) (A)	8-97223-750-0	02	1	0803-	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-750-0	02	1	0803-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98032-488-0	01	1	0803-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (A)	8-98032-488-0	01	1	0803-	●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-488-0	01	1	0803-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98032-489-0	01	1	0803-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (A)	8-98032-489-0	01	1	0803-	●
105	07.112 BRACKET; RR SPR,RR (A)	8-98032-489-0	01	1	0803-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97184-907-0	02	1	0803-	●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98040-814-0	01	1	0803-0806	●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-97259-035-0	01	1	0803-	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97254-387-0	04	1	0803-	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 3300MM(33W)	8-97254-387-0	04	1	0803-	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0803-		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98012-947-3	02	1	0803-	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) (B)	8-98012-947-3	02	1	0803-	●
173	07.112 STIFFENER; RR SPRING (B)	8-98012-947-3	02	1	0803-		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98012-948-2	02	1	0803-	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) (A)	8-98012-948-2	02	1	0803-	●
173	07.112 STIFFENER; RR SPRING (A)	8-98012-948-2	02	1	0803-		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0803-	●	●
365	07.039 REINFORCEMENT; TRUNNION WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97033-251-2	01	1	0803-	●
365	07.039 REINFORCEMENT; TRUNNION WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97185-188-1	01	1	0803-	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W)	8-98060-184-1	01	1	0803-1309	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W)	8-98060-184-1	01	1	1310-	●
446	07.112 STIFFENER; SPRING STOPPER	8-98060-184-1	01	1	1310-		●

345 345 75 75 198 130 130 198 139 24 51 165 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	0803-	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	0803-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0803-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	0803-	●	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98011-863-0	04	1	0803-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W)	8-98011-863-0	04	1	0803-	●
75	07.039 GUSSET; 5TH C/MBR	8-98011-863-0	04	1	0803-		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-94388-995-3	01	1	0803-	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W) (B)	8-98041-239-1	01	1	0803-	●
130	07.014 MEMBER; CROSS,END (B)	8-98041-239-1	01	1	0803-		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97384-745-0	01	1	0803-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W)	8-97384-745-0	01	1	0803-	●
139	07.012 MEMBER; CROSS,6TH	8-97384-745-0	01	1	0803-		●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	0803-	●	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0803-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0803-	●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0803-		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0803-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0803-	●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0803-		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98011-861-2	01	1	0803-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) (A)	8-98011-861-2	01	1	0803-	●
345	07.012 MEMBER; CROSS,5TH (A)	8-98011-861-2	01	1	0803-		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97033-229-1	01	1	0803-	●

148 2 148 20 534 534 34 42 34 344 344 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

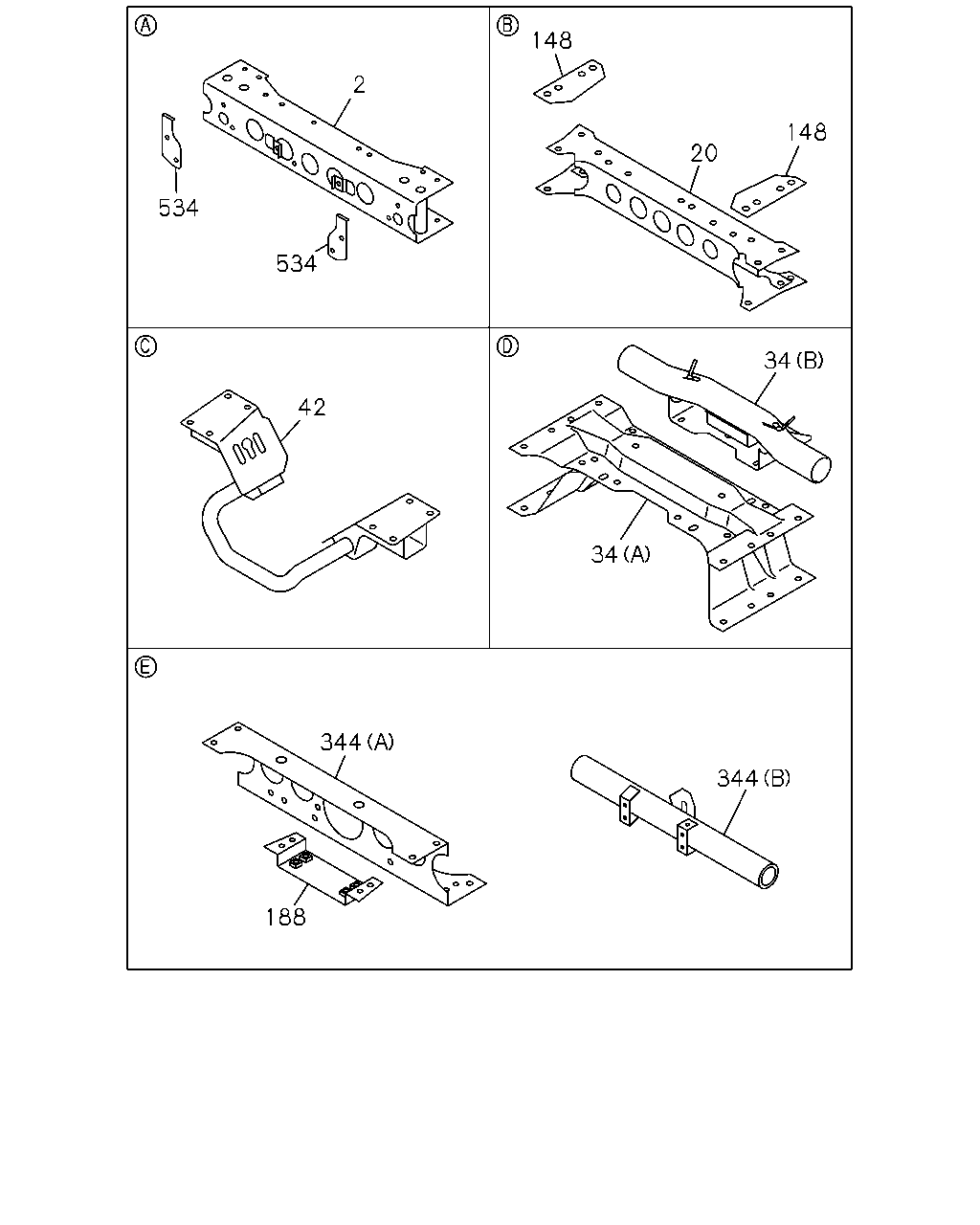

2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	0803-	●	●
20	07.012 MEMBER; CROSS,2ND	8-98088-281-1	01	1	0803-	●	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-97384-743-1	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A)	8-97384-743-1	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD (A)	8-97384-743-1	01	1	1310-		●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98081-959-0	01	1	0803-1309	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 3300MM(33W) (A)	8-98081-959-0	01	1	0803-1309	●
34	07.012 MEMBER; CROSS,3RD (A)	8-98081-959-0	01	1	0803-1309		●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98081-959-0	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98081-959-0	01	1	1310-	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97256-169-0	01	1	0803-	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	0803-	●	●
148	07.105 SPACER; C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98081-958-0	04	1	0803-1309	●
148	07.105 SPACER; C/MBR WHEEL BASE 3300MM(33W)	8-98081-958-0	04	1	0803-1309	●
148	07.105 SPACER; C/MBR	8-98081-958-0	04	1	0803-1309		●
148	07.105 SPACER; C/MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1310-	●
148	07.105 SPACER; C/MBR WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1310-	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	0803-	●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	0803-		●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98039-740-0	01	1	0803-	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W) (A)	8-98005-959-1	01	1	0803-	●
344	07.012 MEMBER; CROSS,4TH (A)	8-98005-959-1	01	1	0803-		●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	0803-	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	0803-	●	●

533 533 356 217 140 140 234 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98006-176-0	01	1	0803-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (B)	8-98006-176-0	01	1	0803-	●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	0803-		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98006-180-0	01	1	0803-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (A)	8-98006-180-0	01	1	0803-	●
140	07.112 BRACKET; S/ABS,RR (A)	8-98006-180-0	01	1	0803-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97202-417-0	02	1	0803-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 3300MM(33W)	8-97202-417-0	02	1	0803-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0803-		●
234	07.006 COVER; END,S/MBR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97033-249-0	02	1	0803-	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98062-610-1	01	1	0803-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 3300MM(33W) (A)	8-98062-610-1	01	1	0803-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	0803-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1310-	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1310-	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98062-611-1	01	1	0803-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 3300MM(33W) (B)	8-98062-611-1	01	1	0803-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	0803-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1310-	●
356	07.011 BRACKET; ENG SUPPORT,INNER WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1310-	●
533	07.010 STIFFENER; REINFORCEMENT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB>	8-98006-680-1	02	1	1310-	●
533	07.010 STIFFENER; REINFORCEMENT WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98006-680-1	02	1	1310-	●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1310-		●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (B)	8-98254-657-1	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (C)	8-98254-669-1	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98023-312-3	01	1	0803-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98023-312-3	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-98023-315-4	01	1	0803-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) (C)	8-98072-763-3	01	1	0803-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (C)	8-98072-763-3	01	1	1310-	●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6> (D)	8-98072-769-3	01	1	0803-1309		●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6> (D)	8-98254-674-1	01	1	1310-		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6> (D)	8-98072-768-3	01	1	0803-1309		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6> (D)	8-98254-673-1	01	1	1310-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
