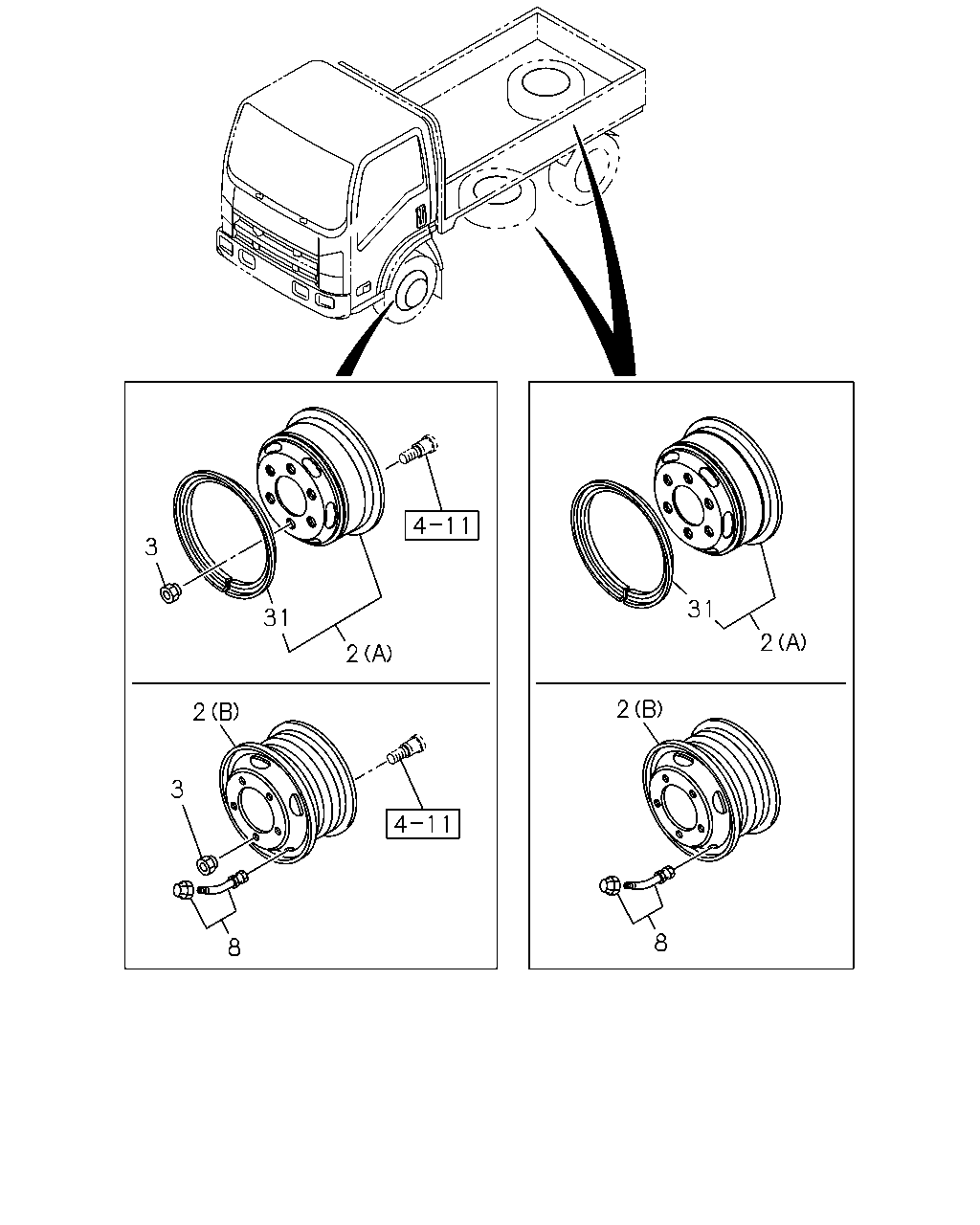

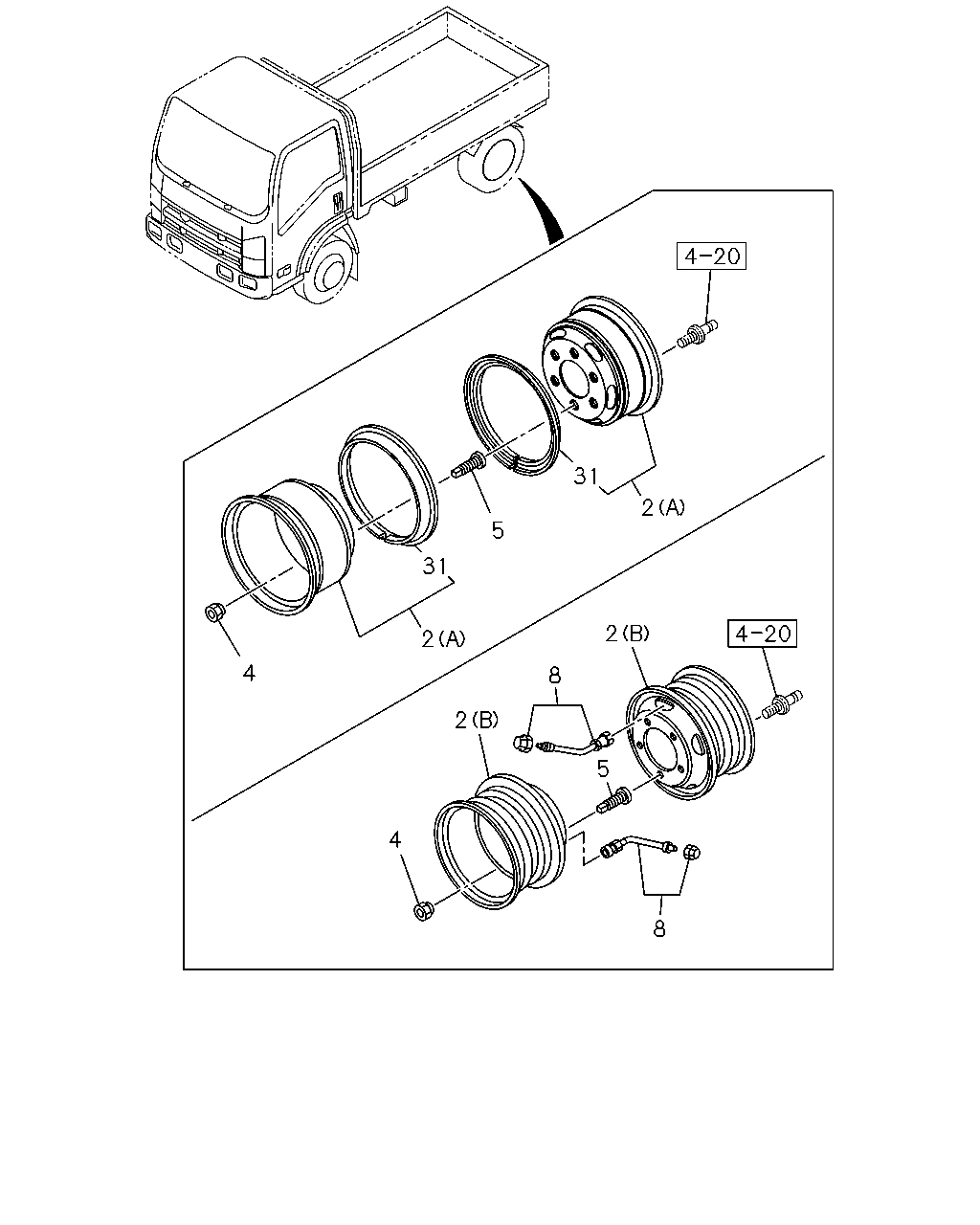

4-80 — ROAD WHEEL (#80402) — 30 parça

4 31 2 5 31 2 4 2 8 2 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0803-	●	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0803-	●	●
2	05.803 WHEEL; DISC FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0803-	●
2	05.803 WHEEL; DISC FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER (CUA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0803-		●
2	05.803 WHEEL; DISC FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0803-	●
2	05.803 WHEEL; DISC FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER (CUA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0803-		●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0803-	●	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0803-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0803-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0803-	●	●
8	05.875 VALVE; TIRE FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) SPARE	8-98221-106-0	01	1	0803-	●
8	05.875 VALVE; TIRE FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER (CUA) SPARE	8-98221-106-0	01	1	0803-		●
8	05.875 VALVE; TIRE FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) FRONT,REAR	8-98221-106-0	06	1	0803-	●
8	05.875 VALVE; TIRE FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER (CUA) FRONT,REAR	8-98221-106-0	06	1	0803-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0803-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0803-	●	●

3 31 2 2 3 8 8 2 2 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0803-	●	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0803-	●	●
2	05.803 WHEEL; DISC FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0803-	●
2	05.803 WHEEL; DISC FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER (CUA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0803-		●
2	05.803 WHEEL; DISC FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0803-	●
2	05.803 WHEEL; DISC FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER (CUA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0803-		●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0803-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0803-	●	●
8	05.875 VALVE; TIRE FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) SPARE	8-98221-106-0	01	1	0803-	●
8	05.875 VALVE; TIRE FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER (CUA) SPARE	8-98221-106-0	01	1	0803-		●
8	05.875 VALVE; TIRE FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) FRONT,REAR	8-98221-106-0	06	1	0803-	●
8	05.875 VALVE; TIRE FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER (CUA) FRONT,REAR	8-98221-106-0	06	1	0803-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0803-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
