◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#80400) — 14 parça

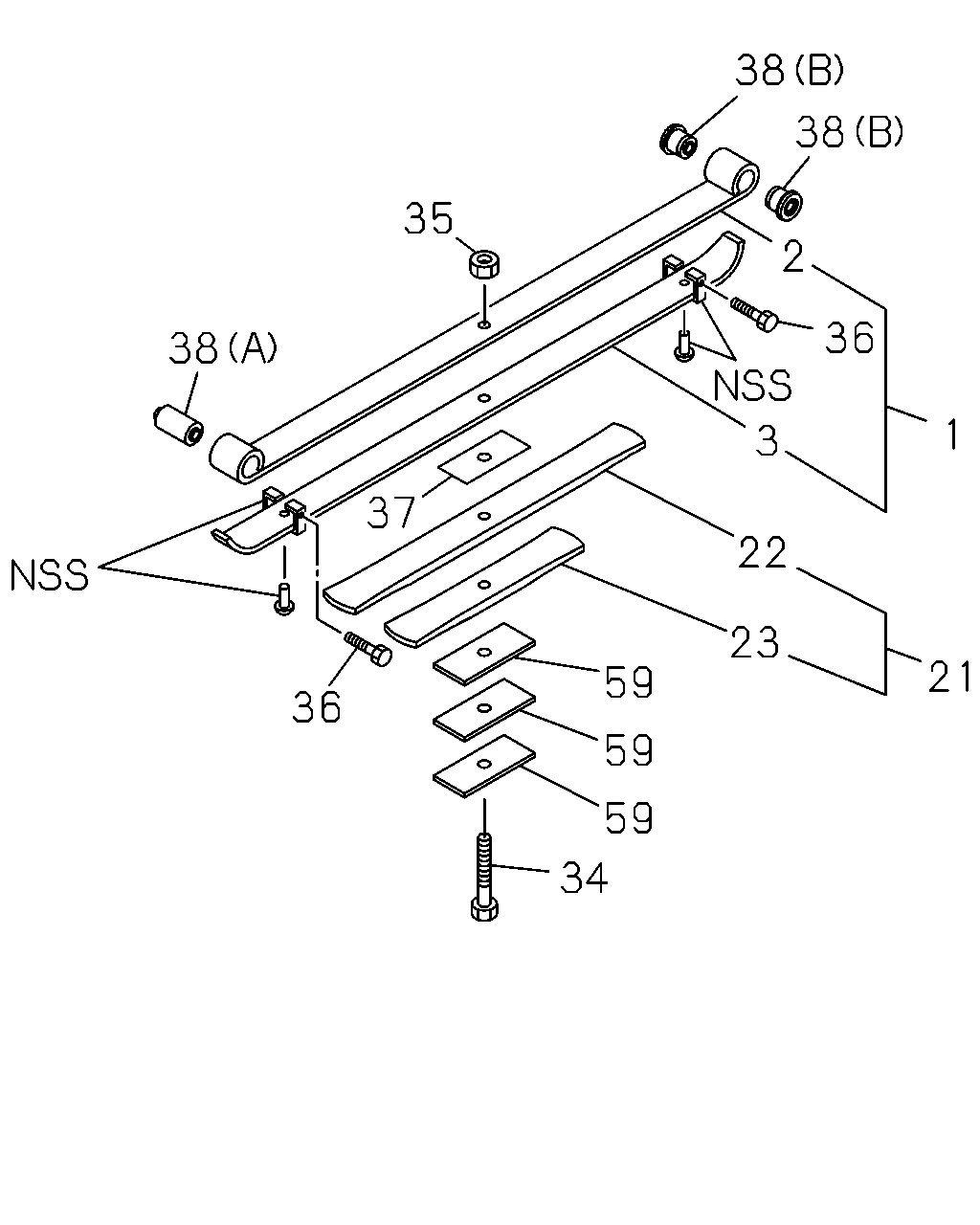

çizim 124717
38 38 35 2 36 38 1 3 37 22 23 21 59 36 59 59 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98032-760-0, 98032760 		8-98042-366-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98032-760-0, 98032760 		8-98042-367-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98032-760-0, 98032760 		8-98042-368-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98032-760-0, 98032760 		8-98042-369-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98032-760-0, 98032760 		8-98042-370-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98032-760-0, 98032760 		8-98042-371-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=105 ASM PART: A = 8-98032-760-0, 98032760 		8-98040-307-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98032-760-0, 98032760 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 8-98032-760-0, 98032760 		8-98040-331-0 02 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98032-760-0, 98032760 		8-97084-102-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98032-760-0, 98032760 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98032-760-0, 98032760 		8-97074-826-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=40 L=41 ASM PART: A = 8-98032-760-0, 98032760 		8-97374-410-0 02 1 -
59 07.513 SEAT; RR SPRING,SUB
T=8 ASM PART: A = 8-98032-760-0, 98032760 		1-51177-242-0 03 1 -
