◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#8040) — 74 parça

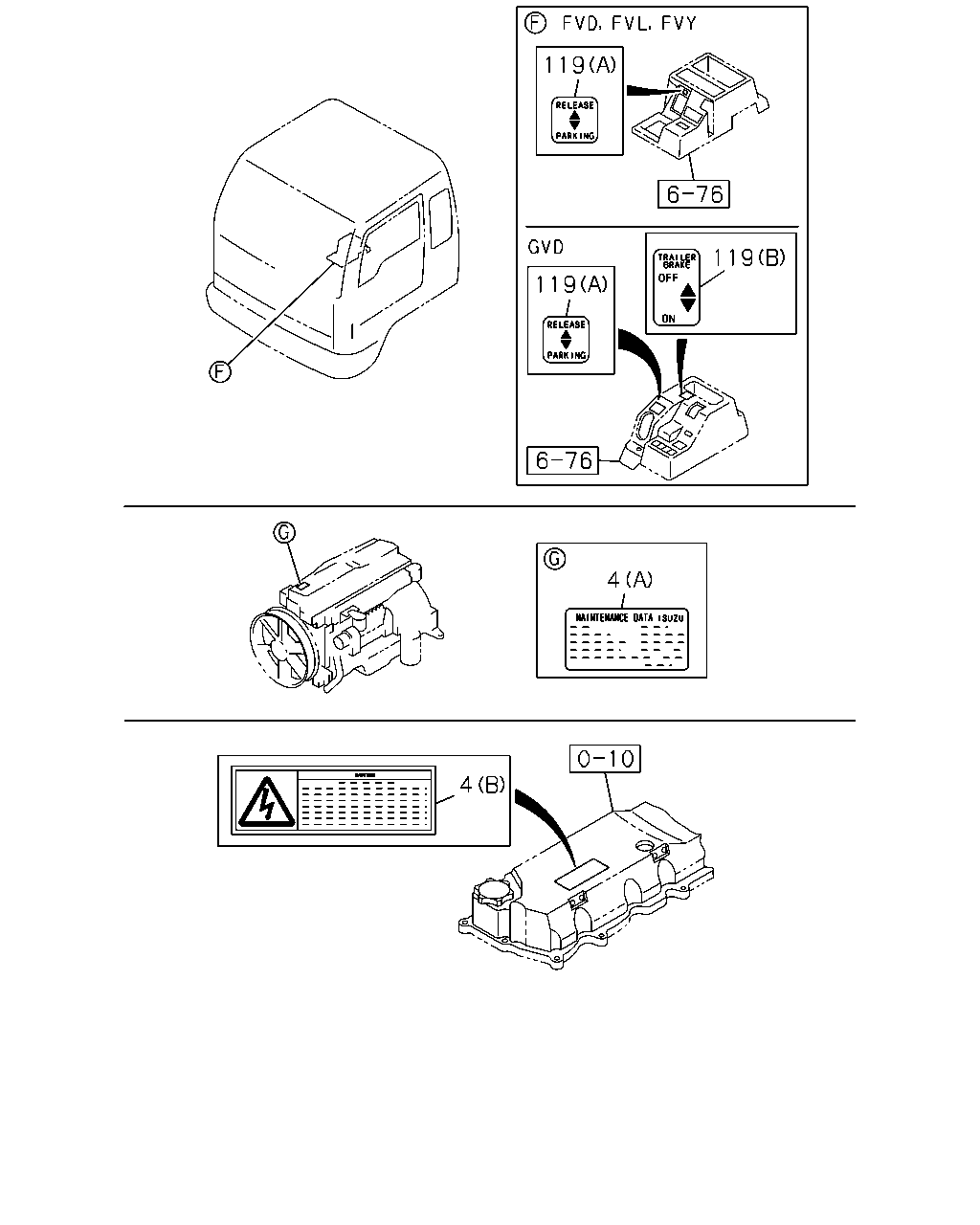

çizim 10781
119 119 119 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 LABEL; ENG MAINTENANCE
6HK1 TCS ENG(80L) (A) 		8-97601-793-0 01 1 0303- ●
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG(31L) (A) 		1-85886-788-0 01 1 0005-0011 ● ● ●
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG(31L) (A) 		1-85886-788-0 01 1 0012-0210 ●
4 LABEL; ENG MAINTENANCE
(A) 		1-85886-788-0 01 1 0012-0210 ● ● ●
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG(31L) (A) 		1-85889-081-0 01 1 0211- ● ● ● ●
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG(31L) (B) 		8-94391-524-0 01 1 0211- ● ● ● ●
119 PLATE; CAUTION,HAND BRK LEVER
(A) 		1-85881-759-0 01 1 0005-0011 ● ● ●
119 PLATE; CAUTION,HAND BRK LEVER
(A) 		1-85881-759-0 01 1 0012- ● ● ● ●
119 PLATE; CAUTION,HAND BRK LEVER
(B) 		1-85881-780-0 01 1 0005- ●

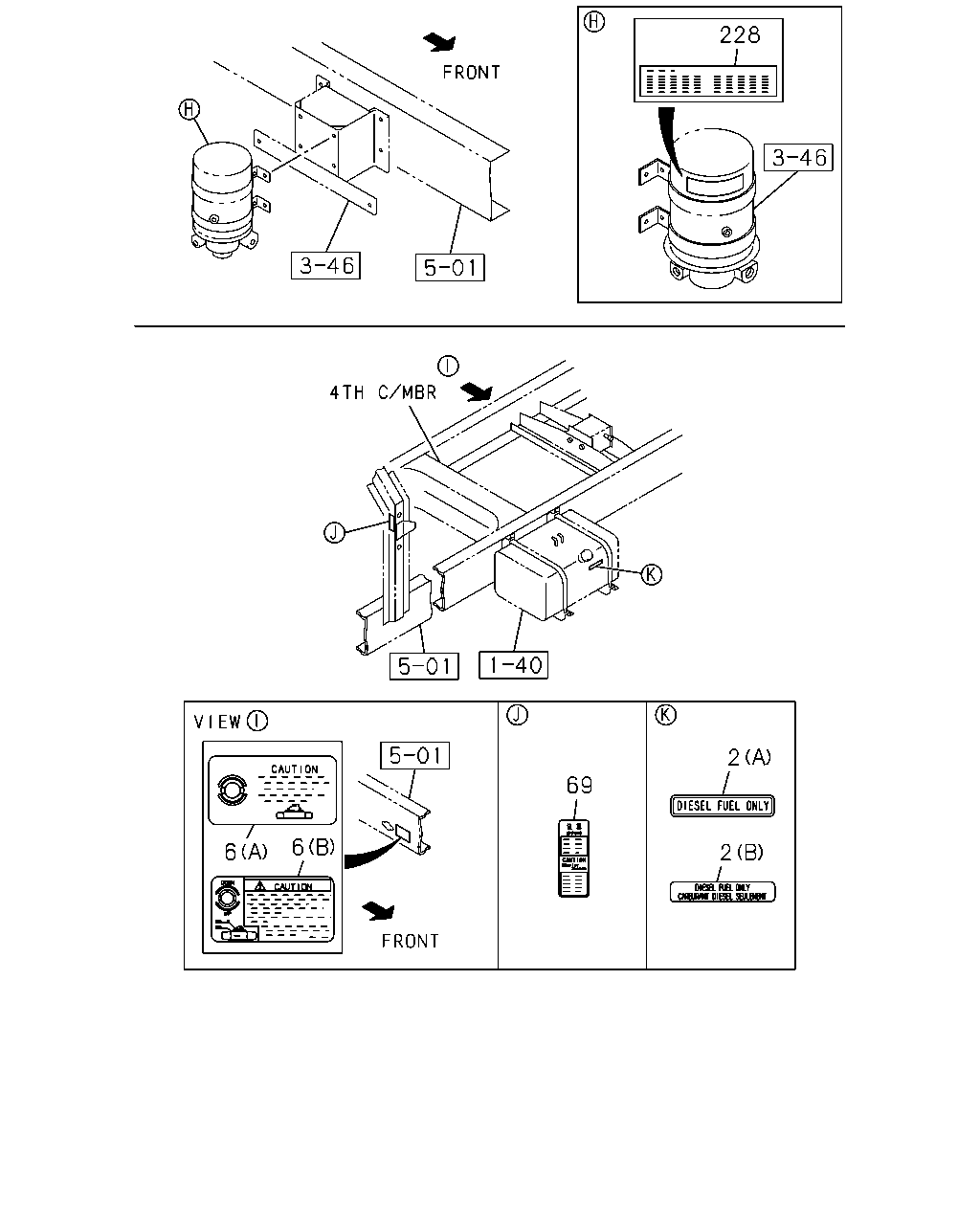

çizim 43253
228 2 2 69 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LABEL; FUEL CAUTION
FUEL TANK 200L FMCSR<PK6> (A) 		8-97135-605-0 01 1 0005-0312 ●
2 LABEL; FUEL CAUTION
FUEL TANK 200L FMCSR<PK6> (B) 		1-85883-153-0 01 1 0401- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-004-0 01 1 0005-0005 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-004-0 01 1 0006-0011 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-004-0 01 1 0012-0210 ● ●
6 PLATE; CAUTION,SPARE TIRE
(A) 		1-53639-004-0 01 1 0012-0210 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-004-0 01 1 0211-0708 ●
6 PLATE; CAUTION,SPARE TIRE
(A) 		1-53639-004-0 01 1 0211-0708 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98082-437-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
(B) 		8-98082-437-0 01 1 0709- ● ●
69 PLATE; CAUTION,STARTER SW 1-85887-389-0 01 1 0005-0011 ● ● ●
69 PLATE; CAUTION,STARTER SW 1-85887-389-0 01 1 0012-0302 ● ● ● ●
69 PLATE; CAUTION,STARTER SW
EXC. STARTER SWITCH DELETION<E5D> 		1-85887-389-0 01 1 0303- ● ● ● ●
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0005-0011 ● ● ●
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0012-1001 ● ● ● ●
çizim 43382
1 109 60 51 51 49 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PLATE; CAUTION,SHIFT PATTERN
FULLER FS8209 DD M/T(Y2S) (A) 		1-85881-598-0 01 1 0005-0011 ●
1 PLATE; CAUTION,SHIFT PATTERN
(A) 		1-85881-598-0 01 1 0005-0011 ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER FS8209 DD M/T(Y2S) (A) 		1-85881-598-0 01 1 0012-0210 ●
1 PLATE; CAUTION,SHIFT PATTERN
(A) 		1-85881-598-0 01 1 0012-0210 ● ●
1 PLATE; CAUTION,SHIFT PATTERN
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (A) 		1-85881-598-0 01 1 0211-0609 ● ● ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER FS8209HD DD M/T(Y3A) (A) 		1-85881-598-0 01 1 0610- ● ● ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER FS8209 DD M/T(Y2S) (B) 		1-85881-599-0 01 1 0005-0011 ●
1 PLATE; CAUTION,SHIFT PATTERN
(B) 		1-85881-599-0 01 1 0005-0011 ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER FS8209 DD M/T(Y2S) (B) 		1-85881-599-0 01 1 0012-0210 ●
1 PLATE; CAUTION,SHIFT PATTERN
(B) 		1-85881-599-0 01 1 0012-0210 ● ●
1 PLATE; CAUTION,SHIFT PATTERN
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) 		1-85881-599-0 01 1 0211-0609 ● ● ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER FS8209HD DD M/T(Y3A) (B) 		1-85881-599-0 01 1 0610- ● ● ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER RT7608LL M/T(X8P) (B) 		1-85881-639-0 01 1 0005- ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER RT7608LL M/T(X8P) (A) 		1-85881-640-0 01 1 0005- ●
49 PLATE; CAUTION,FUSE BOX
6HE1 TC ENG(57L) 		1-85878-077-0 01 1 0005-0109 ●
49 PLATE; CAUTION,FUSE BOX
6HK1 TCS ENG(80L) 		1-85878-324-0 01 1 0303-0603 ●
49 PLATE; CAUTION,FUSE BOX 1-85878-324-0 01 1 0604- ● ● ● ●
49 PLATE; CAUTION,FUSE BOX
6SD1 TCN ENG(31L) 		1-85878-278-0 01 1 0005-0011 ●
49 PLATE; CAUTION,FUSE BOX 1-85878-278-0 01 1 0005-0011 ● ●
49 PLATE; CAUTION,FUSE BOX
6SD1 TCN ENG(31L) 		1-85878-278-0 01 1 0012-0109 ●
49 PLATE; CAUTION,FUSE BOX 1-85878-278-0 01 1 0012-0109 ● ● ●
49 PLATE; CAUTION,FUSE BOX 1-85878-278-0 01 1 0110-0210 ● ● ● ●
49 PLATE; CAUTION,FUSE BOX
6SD1 TCN ENG(31L) 		1-85878-278-0 01 1 0211-0603 ● ● ● ●
51 PLATE; CAUTION,WARNING
A/T<X9D> (B) 		1-85877-550-0 01 1 0006-0210 ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 0005-0011 ● ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 0012- ● ● ● ●
51 PLATE; CAUTION,WARNING
EXC. A/T<X9D> (B) 		1-85888-559-2 01 1 0005-0011 ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85888-559-2 01 1 0005-0011 ●
51 PLATE; CAUTION,WARNING
EXC. A/T<X9D> (B) 		1-85888-559-2 01 1 0012-0210 ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85888-559-2 01 1 0012-0210 ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85878-325-0 01 1 0211- ● ● ● ●
60 PLATE; CAUTION,CAB TILT 1-85883-169-0 01 1 0005-0011 ● ● ●
60 PLATE; CAUTION,CAB TILT 1-85883-169-0 01 1 0012- ● ● ● ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) 		1-85881-742-0 01 1 0005-0103 ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-742-0 01 1 0005-0103 ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-837-1 01 1 0104-0405 ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 275/70R22.5 SPECIAL AUSTRALIA DRIVE 6X2(98N),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-85881-837-1 01 1 0104-0405 ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-837-2 01 1 0406-0411 ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 275/70R22.5 SPECIAL AUSTRALIA DRIVE 6X2(98N),TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-85881-837-2 01 1 0406-0411 ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-837-2 01 1 0412- ● ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		1-85881-747-0 01 1 0005-0103 ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) 		1-85881-838-1 01 1 0104-0210 ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-838-1 01 1 0104-0210 ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) 		1-85881-860-0 01 1 0211-0405 ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-860-0 01 1 0211-0405 ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-85881-860-1 01 1 0406- ● ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-744-1 01 1 0005-0011 ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-744-1 01 1 0012-0103 ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-85881-744-1 01 1 0012-0103 ●
109 PLATE; CAUTION,TIRE PLACARD
TIRE 275/70R22.5 SPECIAL AUSTRALIA DRIVE 6X2(98N) 		1-85881-831-0 01 1 0012-0103 ●
