◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#80398) — 46 parça

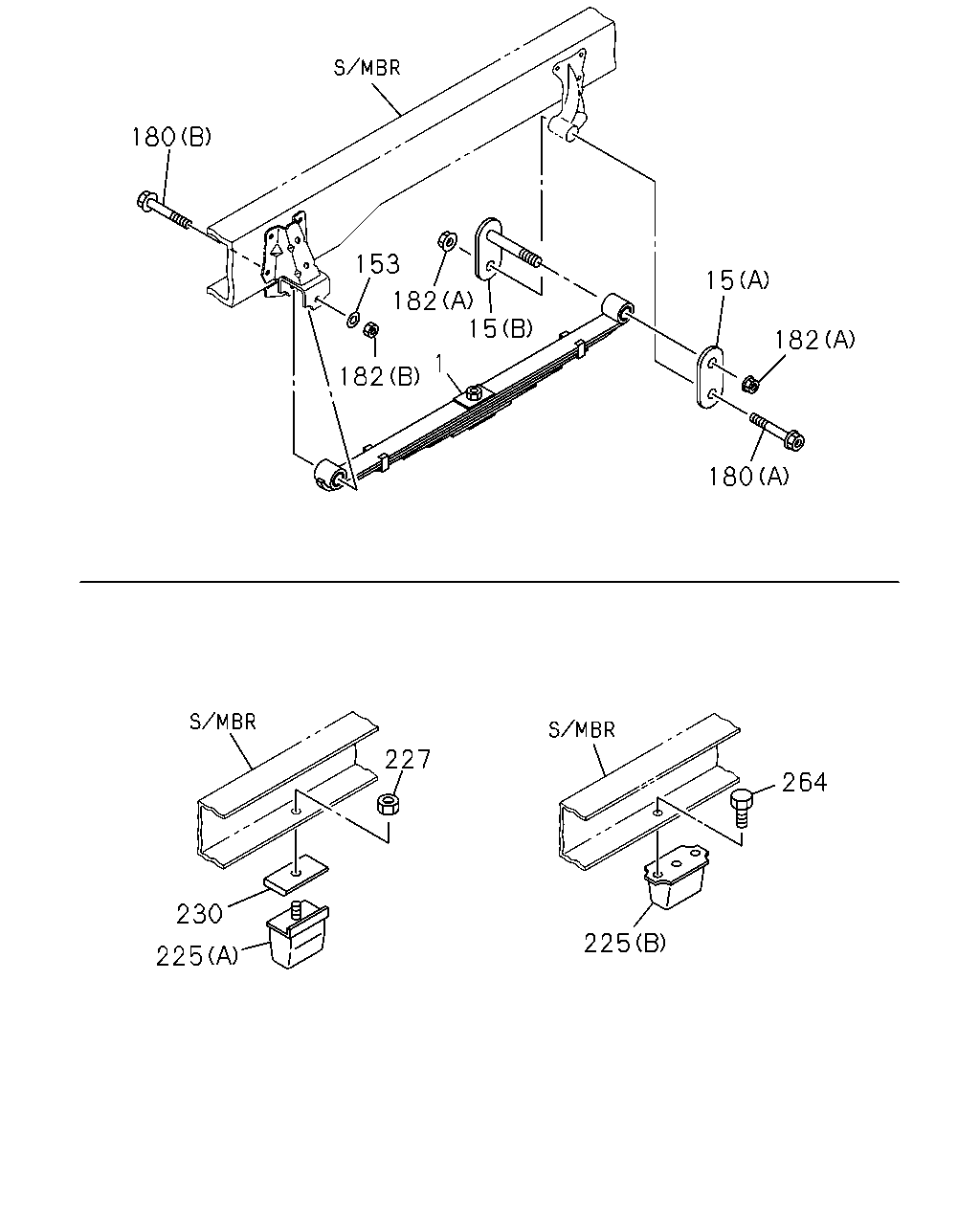

çizim 124956
180 153 15 182 15 182 1 182 180 227 264 230 225 225
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-98032-760-0 02 1 0803- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-652-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98001-652-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98100-522-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98100-522-0 02 1 1309- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0803- ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0803- ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=19 		8-97360-119-0 02 1 0803- ● ●
180 07.529 PIN; RR SPR
07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0803- ● ●
180 07.529 PIN; RR SPR
(B) M18X130 FLANGE 		8-97360-112-0 02 1 0803- ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0803- ● ●
182 07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0803- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) (A) 		8-98021-554-0 02 1 0803-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-98021-554-0 02 1 0803-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (A) 		8-98021-554-0 02 1 0909- ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-98021-554-0 02 1 0909- ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME-KICK UP<7EW> (B) 		8-97035-815-0 02 1 0803-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97035-815-1 02 1 0909- ●
227 07.535 NUT; CUSHION RUBBER
EXC. FRAME-KICK UP<7EW> 02.042 M12 FLANGE 		0-91180-112-0 02 1 0803- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0803- ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 0803- ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 0803- ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0803- ●

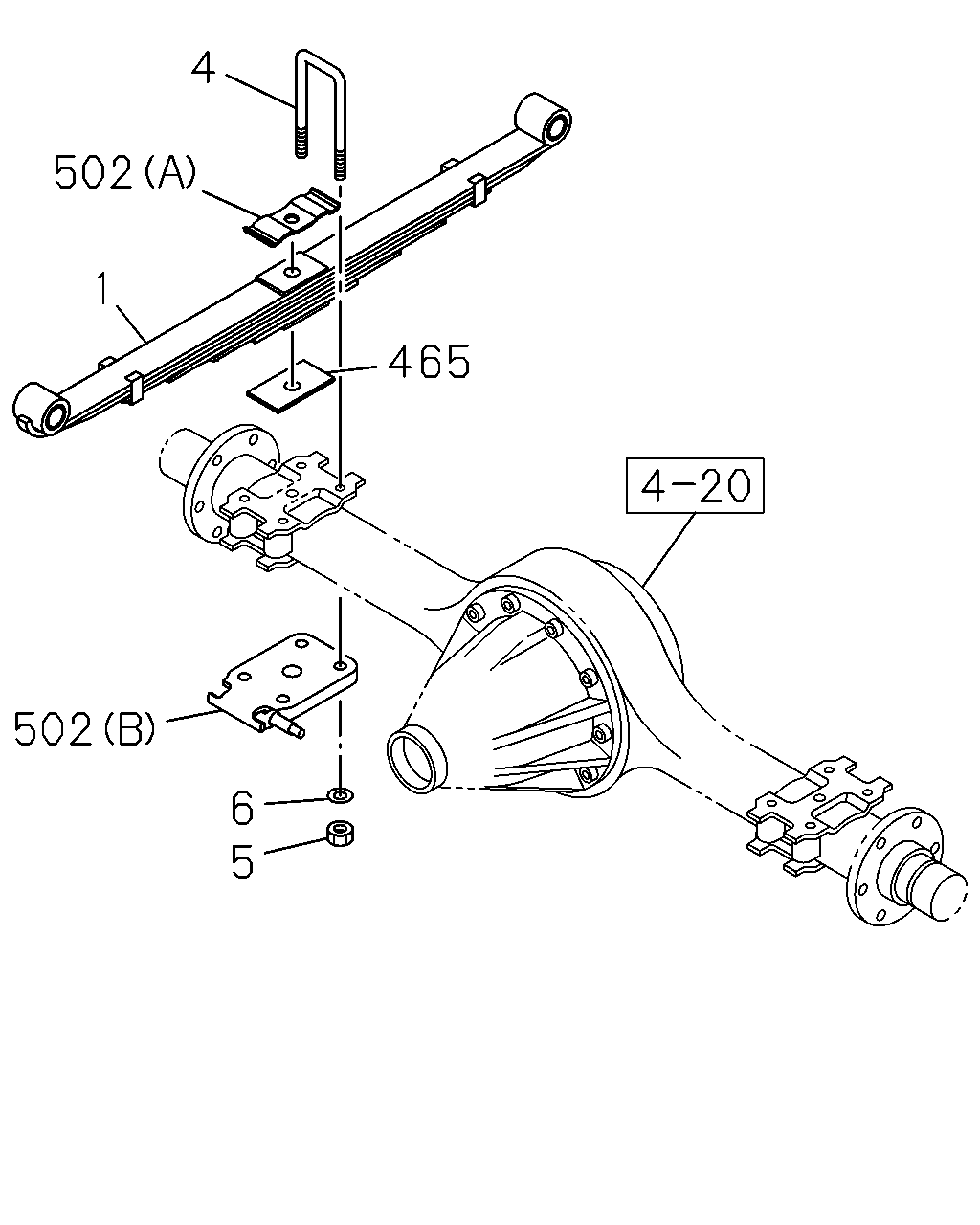

çizim 182659
4 502 1 465 502 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-98032-760-0 02 1 0803- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 6-LEAF 		8-98001-652-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98001-652-0 02 1 0803-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98001-652-0 02 1 0909-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 6-LEAF 		8-98100-522-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-98100-522-0 02 1 1309- ●
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) L=245 		8-94127-921-3 04 1 0803-1308 ●
4 07.516 U-BOLT; RR SPR
L=245 		8-94127-921-3 04 1 0803-1308 ●
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> L=235 		8-94127-920-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) L=255 		8-94127-922-3 04 1 0803-1308 ●
4 07.516 U-BOLT; RR SPR
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> L=255 		8-94127-922-3 04 1 1309- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0803- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0803- ● ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 0803- ● ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0803- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 0803- ●
502 07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.380 (B) 		8-94128-362-3 01 1 0803- ●
502 07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.380 (B) 		8-94128-363-3 01 1 0803- ●
502 07.506 CLAMP; RR LEAF SPR
FRAME-KICK UP<7EW> 07.518 (A) L=130 T=6 		8-94165-555-1 02 1 0803- ●
