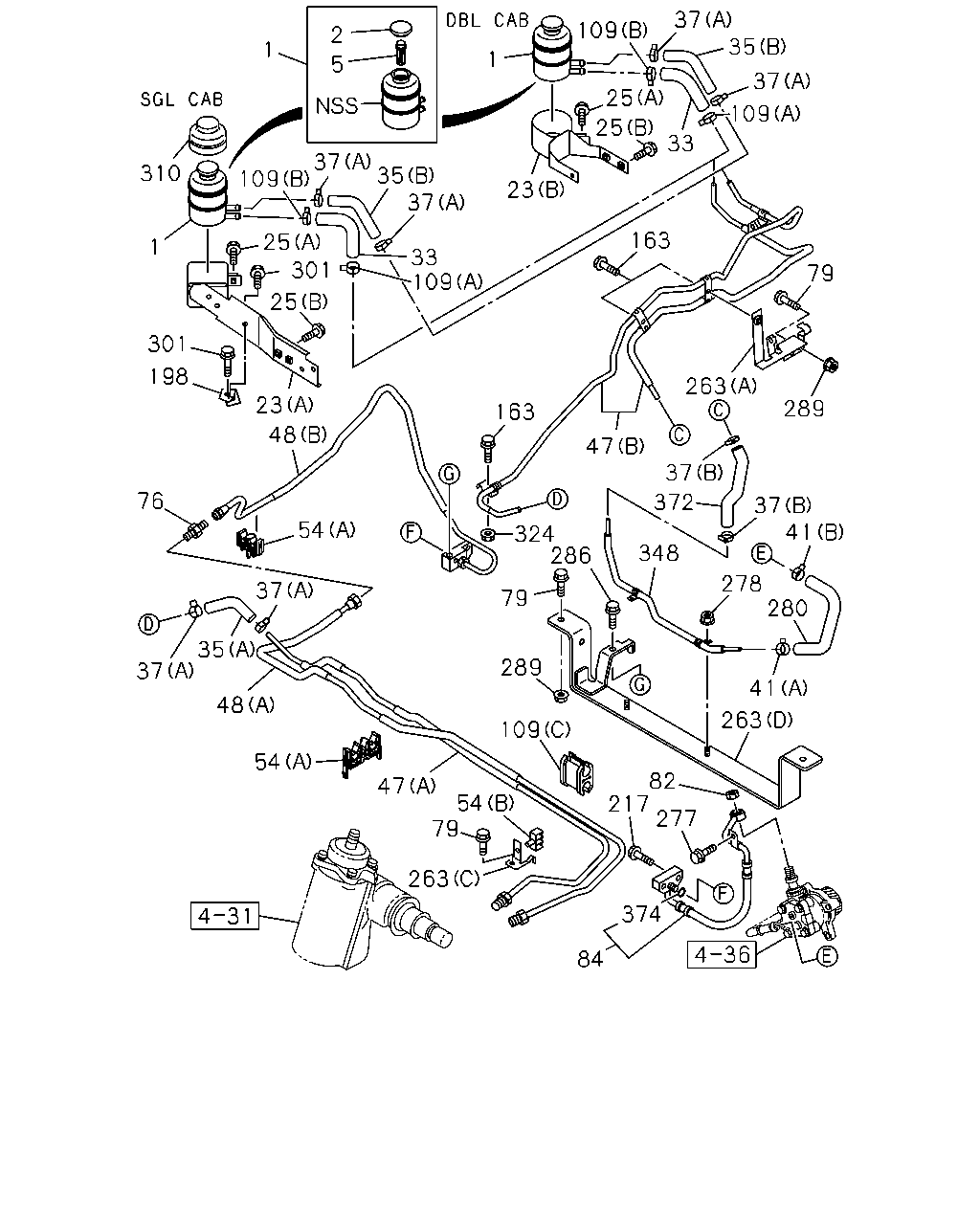

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#80391) — 137 parça

1 2 5 109 310 1 301 198 23 278 76 25 301 25 35 37 33 37 109 37 372 163 286 37 79 37 35 37 48 54 47 79 54 109 79 84 277 217 374 278 289 263 47 41 280 82 41 348 278 324 263 289 23 163 79 33 109 25 25 37 37 35 109 1 277 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0803-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0803-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0803-	●	●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	0803-	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	0803-		●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0803-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0803-	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0803-		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0803-1011	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0803-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	0803-1011		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0911	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0803-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	0803-	●	●
41	06.672 CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0803-0911	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	0912-	●	●
47	06.671 PIPE; RETURN (B)	8-98051-539-2	01	1	0803-		●
47	06.671 PIPE; RETURN (A)	8-98091-526-1	01	1	0803-0807	●	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	0808-	●	●
47	06.671 PIPE; RETURN (B)	8-98047-168-2	01	1	0803-1011	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1012-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98046-161-0	01	1	0803-0807	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	0808-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-	●	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-	●	●
54	06.672 CLIP; OIL PIPE 04.686 (B) ID=10X2 & 4.76	8-97305-170-0	01	1	0803-0807	●	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0808-	●	●
76	06.673 UNION; OIL PIPE M16 L=42	0-92123-010-0	01	1	0803-	●	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	0803-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0803-	●	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	0803-1312	●	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0803-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0803-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0803-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0803-	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0803-	●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0803-	●	●
263	06.672 BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0803-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0803-1312	●	●
263	06.672 BRACKET; P/S PIPE (D)	8-98250-108-0	01	1	1401-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
277	06.672 BOLT; HOSE CLIP 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0803-1002	●	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0803-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0803-	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	0803-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0803-	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98047-170-3	01	1	0803-1012	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98156-807-0	01	1	1101-1312	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-	●	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	0803-1312	●	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	0803-	●	●

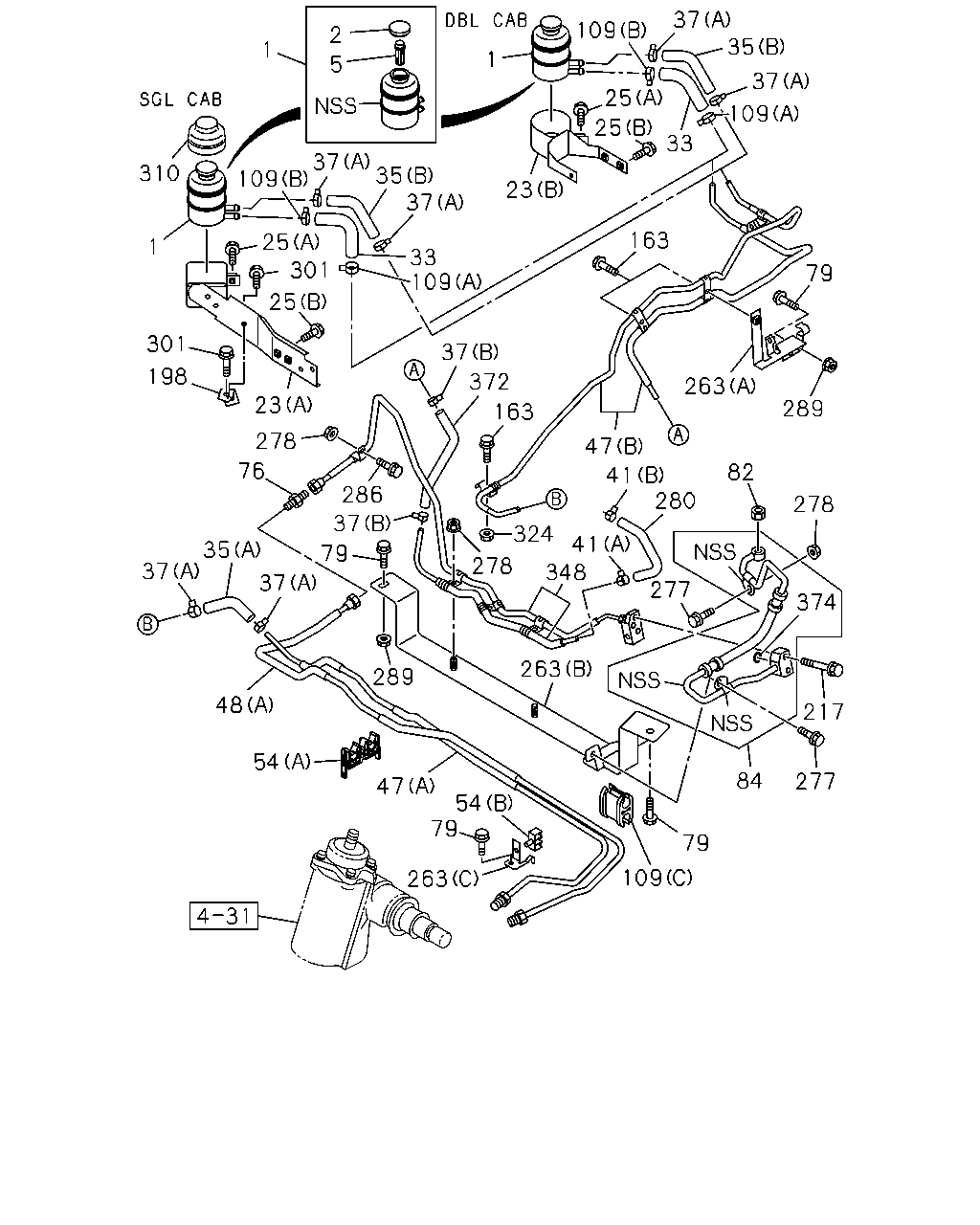

1 52 1 25 310 1 109 25 301 25 301 37 35 33 37 109 23 198 48 76 54 37 35 37 48 54 47 79 263 54 374 277 82 217 109 263 280 278 48 289 79 324 286 163 41 37 47 372 289 263 37 79 163 23 109 33 25 37 109 37 41 35 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0803-	●	●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	0803-	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	0803-		●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0803-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0803-	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0803-		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0803-1011	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0803-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	0803-1011		●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0911	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0803-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	0803-	●	●
41	06.672 CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0803-0911	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	0912-	●	●
47	06.671 PIPE; RETURN (B)	8-98051-539-2	01	1	0803-		●
47	06.671 PIPE; RETURN (A)	8-98091-526-1	01	1	0803-0807	●	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	0808-	●	●
47	06.671 PIPE; RETURN (B)	8-98047-168-2	01	1	0803-1011	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1012-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98046-161-0	01	1	0803-0807	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	0808-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-	●	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-	●	●
54	06.672 CLIP; OIL PIPE 04.686 (B) ID=10X2 & 4.76	8-97305-170-0	01	1	0803-0807	●	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0808-	●	●
76	06.673 UNION; OIL PIPE M16 L=42	0-92123-010-0	01	1	0803-	●	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	0803-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0803-	●	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	0803-1312	●	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0803-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0803-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0803-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0803-	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0803-	●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0803-	●	●
263	06.672 BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0803-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0803-1312	●	●
263	06.672 BRACKET; P/S PIPE (D)	8-98250-108-0	01	1	1401-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
277	06.672 BOLT; HOSE CLIP 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0803-1002	●	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0803-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0803-	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	0803-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0803-	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	0803-1312	●	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	0803-	●	●
