◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#8039) — 25 parça

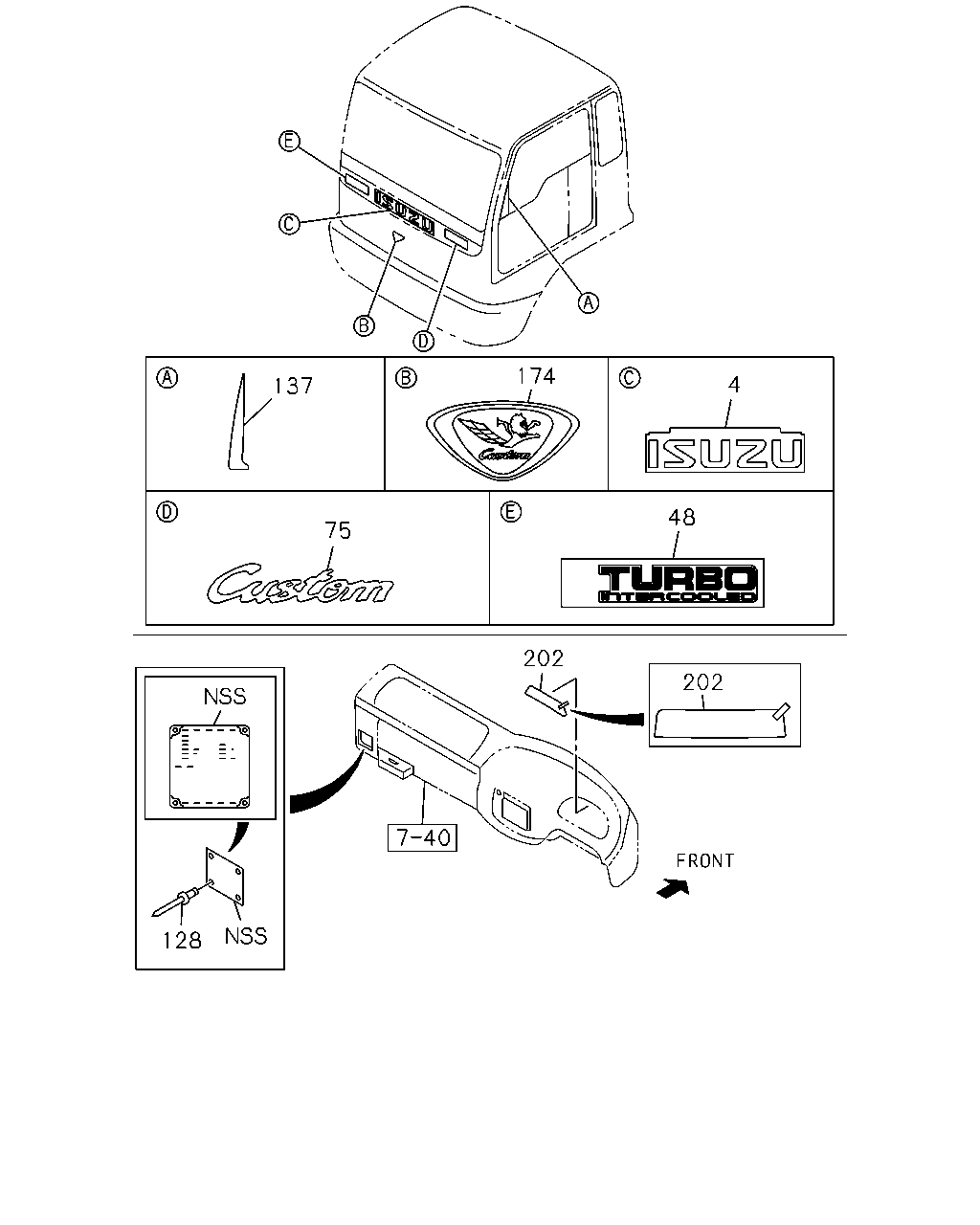

çizim 47686
174 4 137 48 75 202 202 128
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 EMBLEM; RAD GRILLE
CUSTOM CAB(SR5) ISUZU 		1-76210-669-2 01 1 0005-0011 ● ● ●
4 EMBLEM; RAD GRILLE
CUSTOM CAB(SR5) ISUZU 		1-76210-669-2 01 1 0012-0210 ● ● ● ●
4 EMBLEM; RAD GRILLE
CUSTOM CAB(SR5) ISUZU 		1-76210-669-3 01 1 0211- ● ● ●
4 EMBLEM; RAD GRILLE
EXC. CUSTOM CAB(SR5) ISUZU 		1-76210-668-2 01 1 0005-0011 ● ● ●
4 EMBLEM; RAD GRILLE
EXC. CUSTOM CAB(SR5) ISUZU 		1-76210-668-3 01 1 0012- ● ● ● ●
48 DECAL; TURBOCHARGER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) INTERCOOLED 		1-76218-114-0 01 1 0005-0011 ●
48 DECAL; TURBOCHARGER
INTERCOOLED 		1-76218-114-0 01 1 0005-0011 ● ●
48 DECAL; TURBOCHARGER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) INTERCOOLED 		1-76218-114-0 01 1 0012-0210 ●
48 DECAL; TURBOCHARGER
INTERCOOLED 		1-76218-114-0 01 1 0012-0210 ● ● ●
48 DECAL; TURBOCHARGER
INTERCOOLED 		1-76218-114-0 01 1 0211-0410 ● ● ● ●
75 DECAL; FRT CORNER
CUSTOM CAB(SR5) CUSTOM 		1-76210-640-2 01 1 0005-0011 ● ● ●
75 DECAL; FRT CORNER
CUSTOM CAB(SR5) CUSTOM 		1-76210-640-2 01 1 0012-0210 ● ● ● ●
75 DECAL; FRT CORNER
CUSTOM CAB(SR5) CUSTOM 		1-76210-640-3 01 1 0211- ● ● ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 0005-0011 ● ● ●
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 0012- ● ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0005-0011 ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0012- ● ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0005-0011 ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0012- ● ● ● ●
174 EMBLEM; FRT PANEL
CUSTOM CAB(SR5) CUSTOM 		1-76210-641-1 01 1 0005-0011 ● ● ●
174 EMBLEM; FRT PANEL
CUSTOM CAB(SR5) CUSTOM 		1-76210-641-1 01 1 0012-0210 ● ● ● ●
174 EMBLEM; FRT PANEL
CUSTOM CAB(SR5) CUSTOM 		1-76210-641-2 01 1 0211- ● ● ●
202 DECAL; METER CLUSTER
CUSTOM CAB(SR5) 		1-72418-016-1 01 1 0005-0011 ● ● ●
202 DECAL; METER CLUSTER
CUSTOM CAB(SR5) 		1-72418-016-1 01 1 0012-0210 ● ● ● ●
202 DECAL; METER CLUSTER
CUSTOM CAB(SR5) 		1-72418-016-1 01 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
