4-30 — STEERING WHEEL AND COWL (#80388) — 13 parça

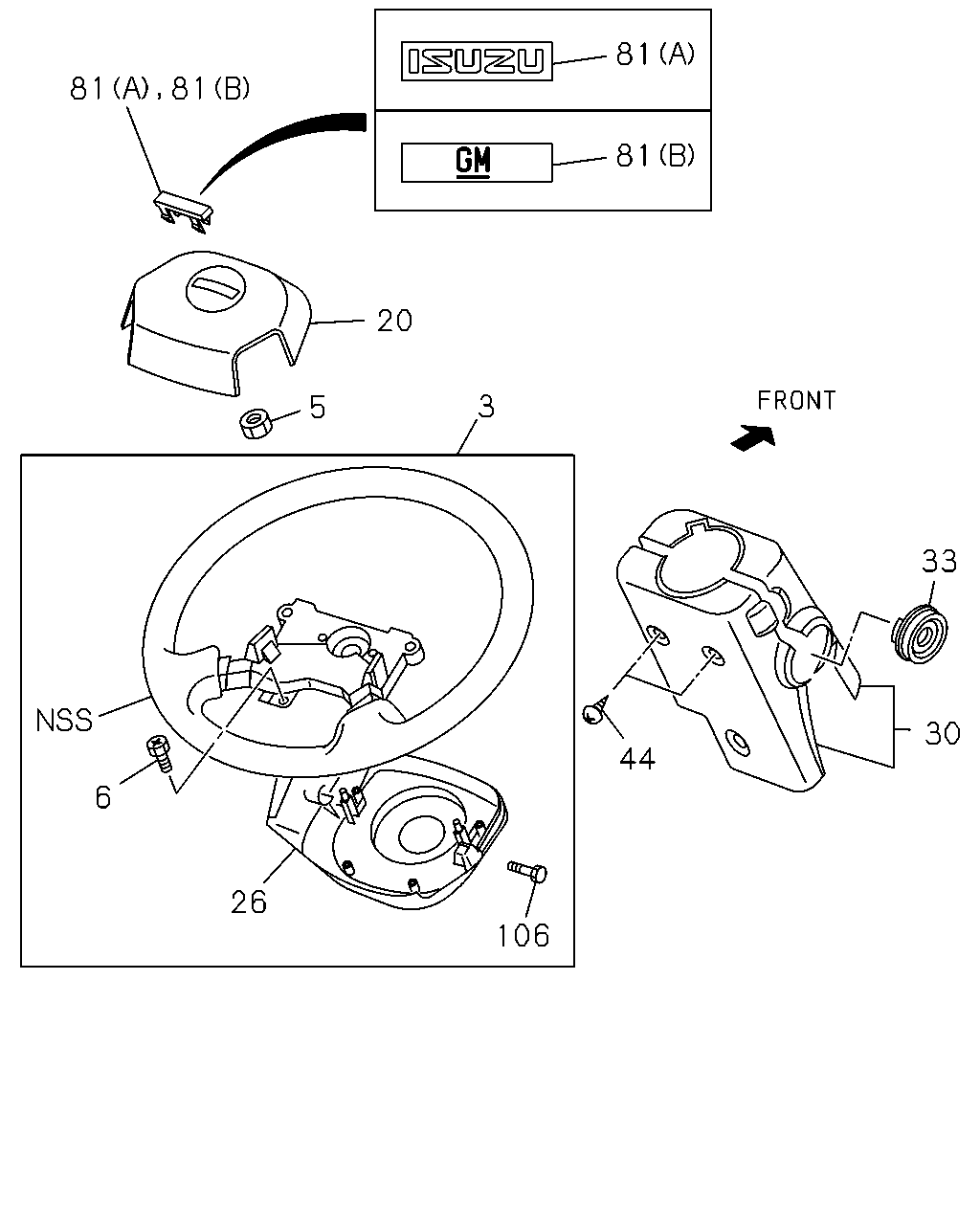

çizim 123009
33 30 44 106 26 6 3 20 5 81 81 81 81
BalonParca AdiParca NoAdetTipApplied Date A B
3 06.513 WHEEL; STRG
DARK GRAY 		8-97412-556-1 01 1 0803- ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0803- ● ●
6 02.820 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 0803- ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97405-985-1 01 1 0803- ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97409-275-2 01 1 0803- ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97405-356-5 01 1 0803-1110 ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1111- ● ●
33 06.518 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 0803- ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0803- ● ●
81 02.820 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97405-986-0 01 1 0803-0811 ● ●
81 02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (A) DARK GRAY 		8-97405-986-0 01 1 0812- ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. ISUZU BRAND<7WL> (B) DARK GRAY 		8-97405-987-0 01 1 0812- ● ●
106 05.453 BOLT; TORX 8-98231-397-0 02 1 0803- ● ●
