Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#80382) — 367 parça

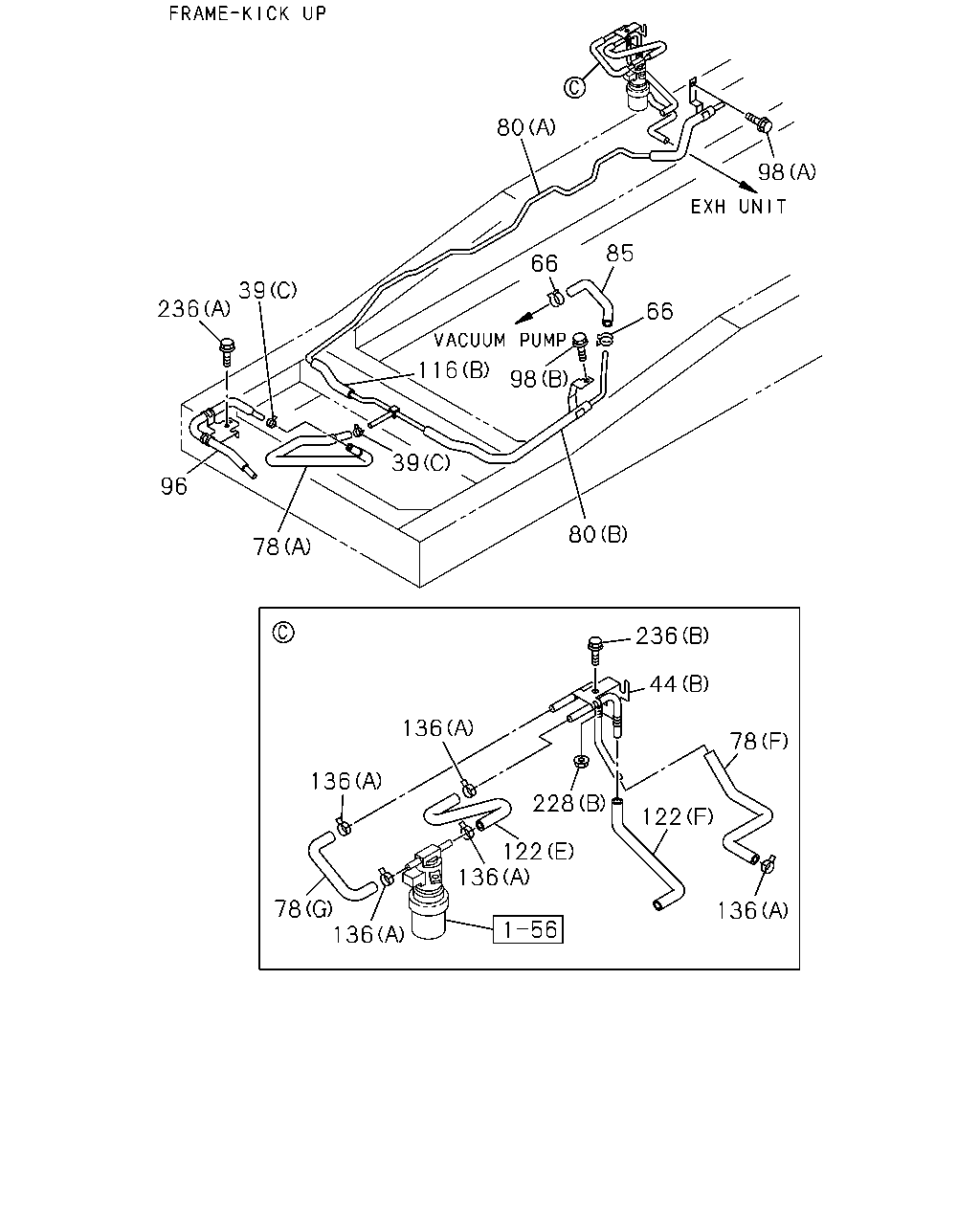

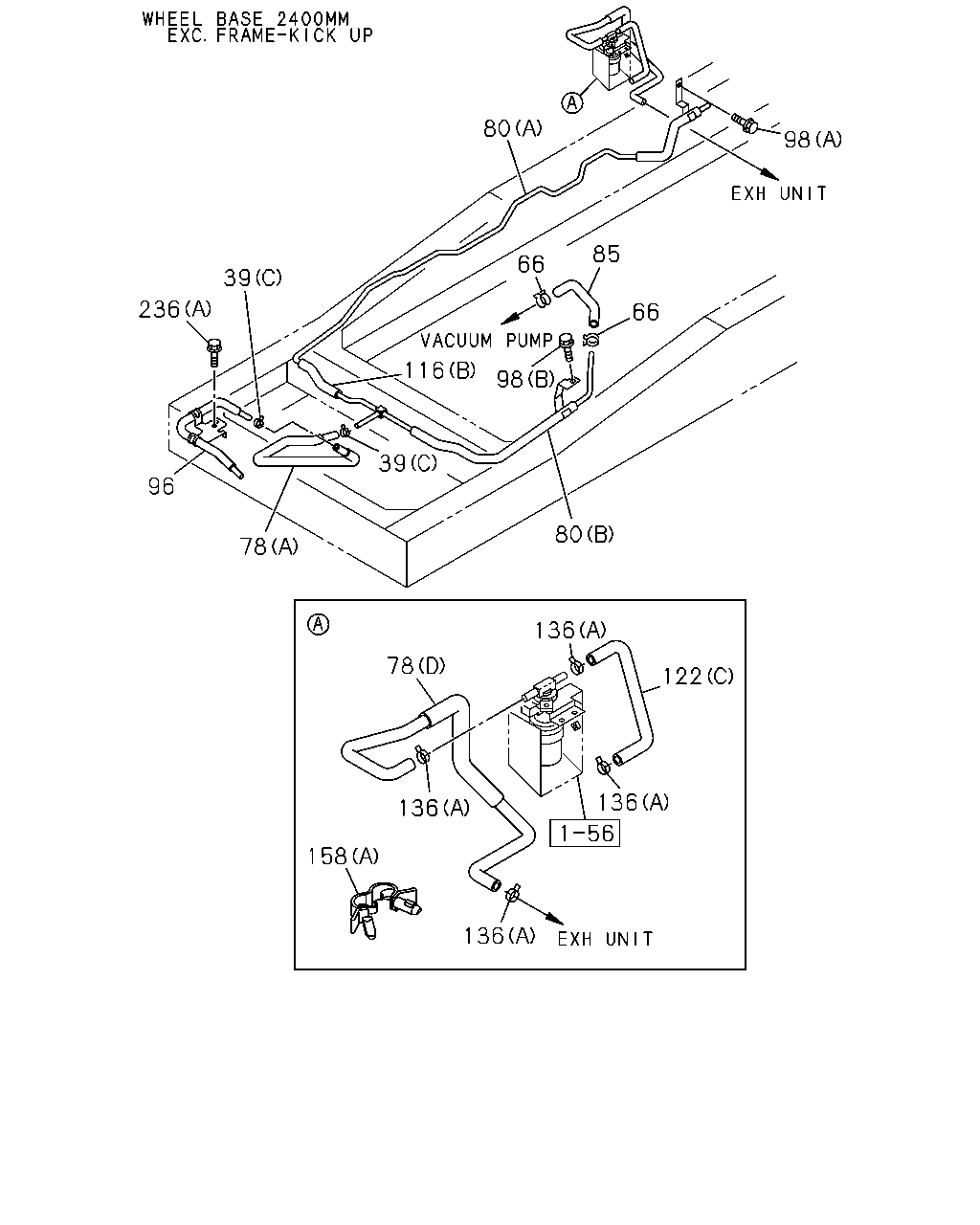

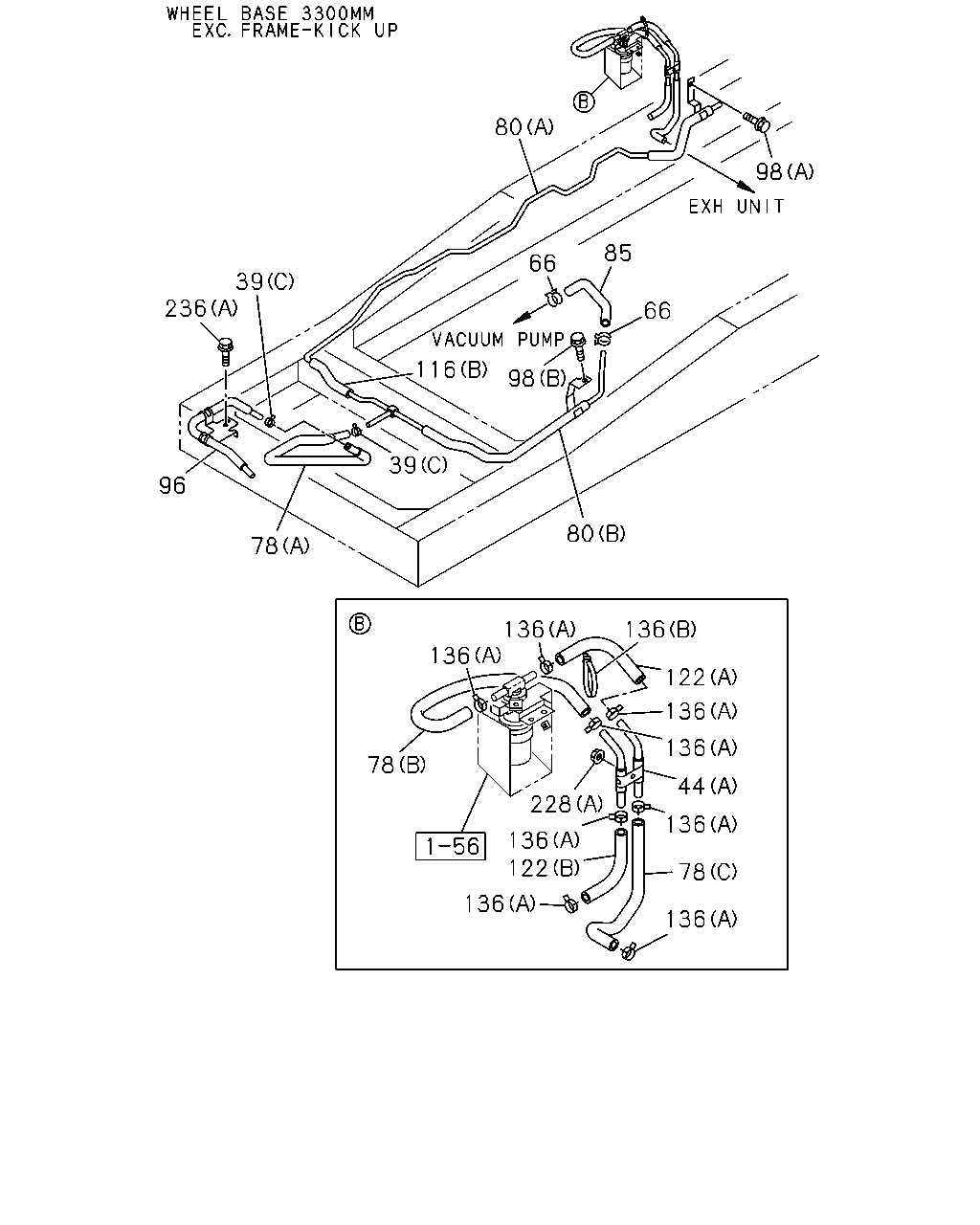

80 98 85 66 39 236 66 116 98 39 96 80 78 136 78 122 136 136 158 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0803-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (D)	8-98098-174-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (G)	8-98113-154-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (F)	8-98113-156-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98047-019-3	01	1	0803-0810	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-019-3	01	1	0811-0909	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-840-0	01	1	0910-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98136-237-0	01	1	0811-0909	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-842-0	01	1	0910-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98068-245-0	01	1	0803-1008		●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98171-283-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98042-690-1	01	1	0803-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98189-223-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98042-691-2	01	1	0803-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1105-	●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	0803-	●	●
80	04.930 PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> (A)	8-98067-014-2	01	1	0803-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0803-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	0803-1309	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98066-971-0	01	1	0803-1309		●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98071-771-0	01	1	1310-		●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0803-	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0803-0810	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-732-1	01	1	0803-0909	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	0910-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0803-	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	0803-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98076-068-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (E)	8-98113-153-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (F)	8-98113-155-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (D)	8-98064-717-1	01	1	0803-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98042-689-2	01	1	0803-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98089-657-0	01	1	0803-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1105-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	0803-	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0803-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0911	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0911	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0803	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0804-0911	●	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) ID=18-24 L=14.5	1-09709-298-0	01	1	0803-	●
158	04.681 CLIP; HOSE 02.559 (B) ID=28 H=45 L=30	1-09700-707-0	01	1	0803-		●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-	●	●
236	04.930 BOLT; PIPE FRAME-KICK UP<7EW> 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-0806	●
236	04.930 BOLT; PIPE FRAME-KICK UP<7EW> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0807-	●

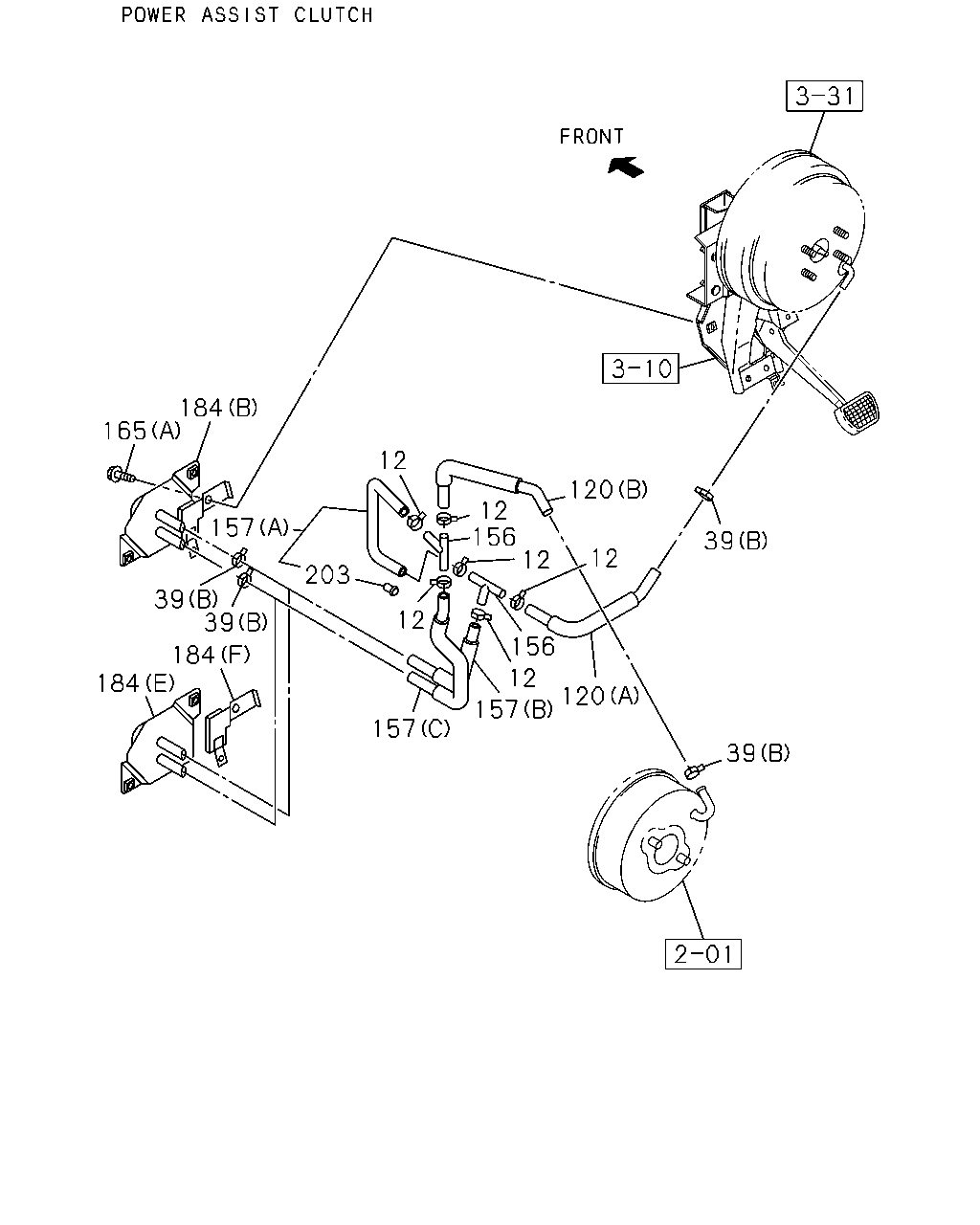

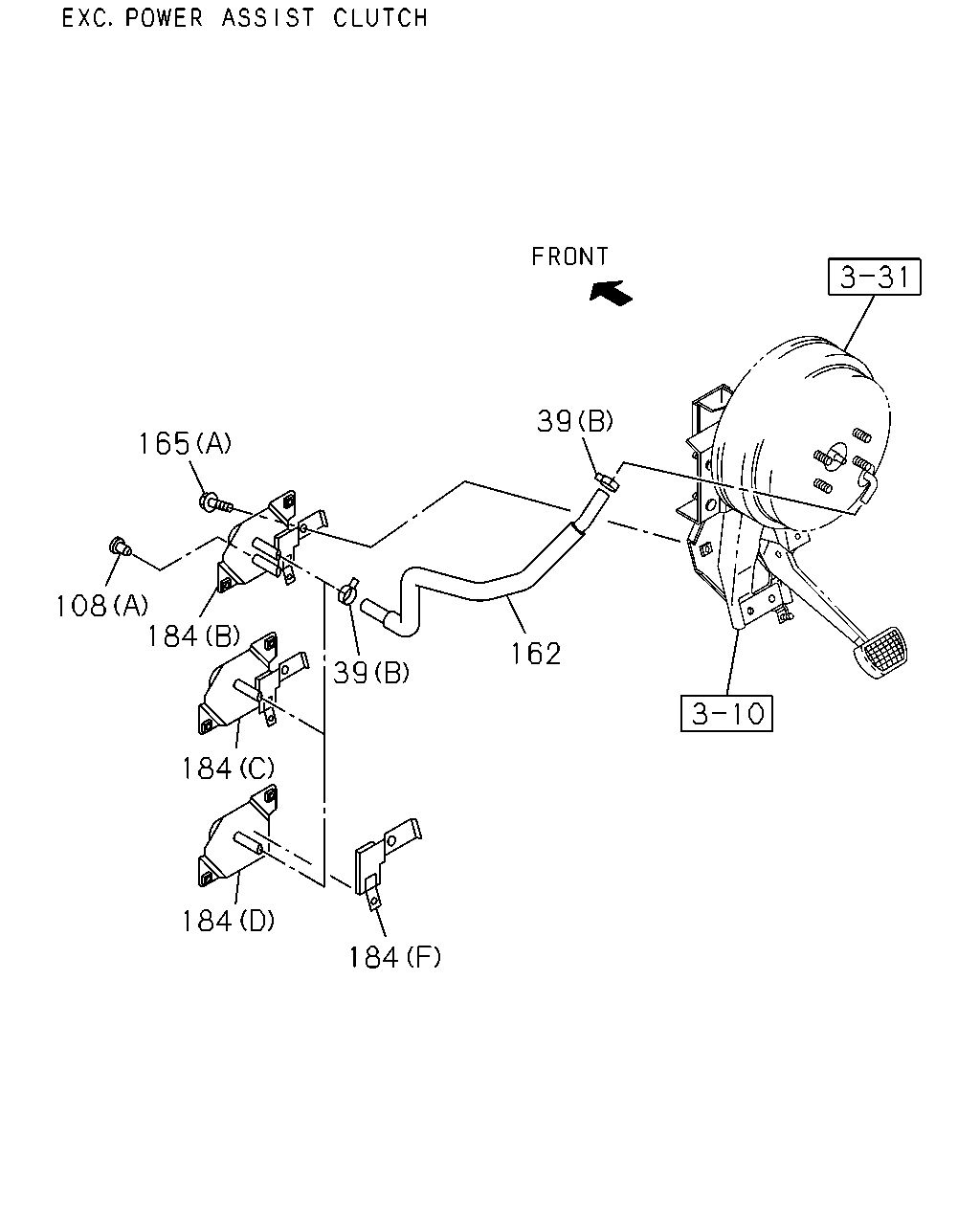

39 120 12 12 156 12 12 12 156 12 120 157 157 39 203 157 39 39 184 184 165 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	0803-	●	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	0803-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	0803-	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	0803-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	0803-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	0803-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	0803-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-	●	●
184	04.685 BRACKET; UNION FIX (F)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0803-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0803-1204		●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-		●
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0803-0908	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1001	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	02	1	1002-1012	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1101-1101	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1102-1311	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (E)	8-98255-536-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1101	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1102-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98255-537-0	01	1	1312-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	0907-	●	●

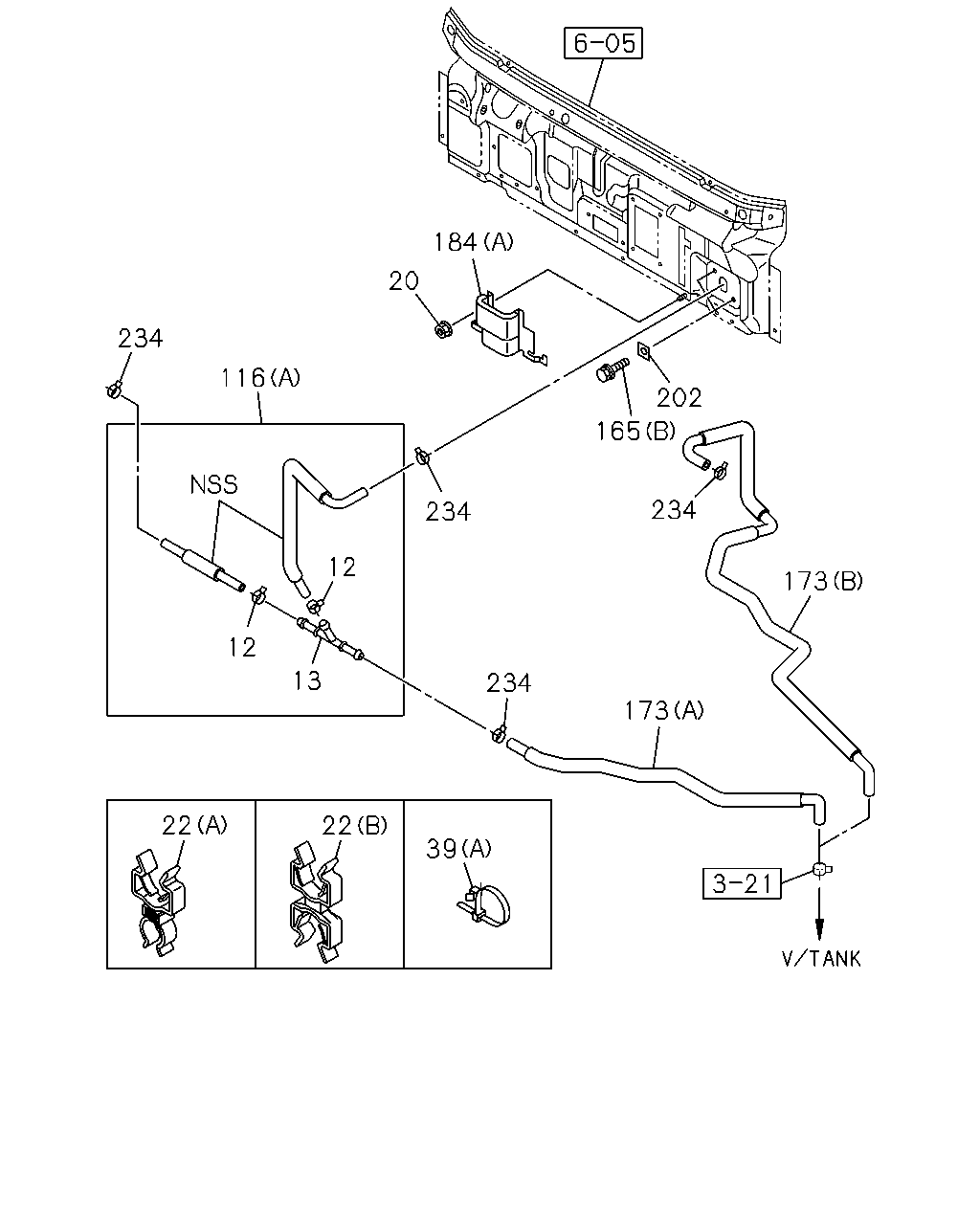

184 20 234 116 202 165 234 234 12 173 12 13 234 173 22 22 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	0803-	●	●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0803-	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	0803-	●	●
20	04.686 NUT; BRKT EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-		●
22	04.681 CLIP; HOSE,VAC TANK AIR CONDITIONER MANUAL CONT(C60) (A)	8-97289-095-0	01	1	0803-0810	●	●
22	04.681 CLIP; HOSE,VAC TANK (A)	8-97289-095-0	01	1	0811-1101	●	●
22	04.681 CLIP; HOSE,VAC TANK 01.166 (B) ID=22 & 22	8-94464-837-0	01	1	1102-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	0803-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	0803-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	0803-	●	●
184	04.685 BRACKET; UNION FIX (F)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0803-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0803-1204		●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-		●
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0803-0908	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1001	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	02	1	1002-1012	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1101-1101	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1102-1311	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (E)	8-98255-536-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1101	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1102-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98255-537-0	01	1	1312-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0803-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0803-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0803-	●	●

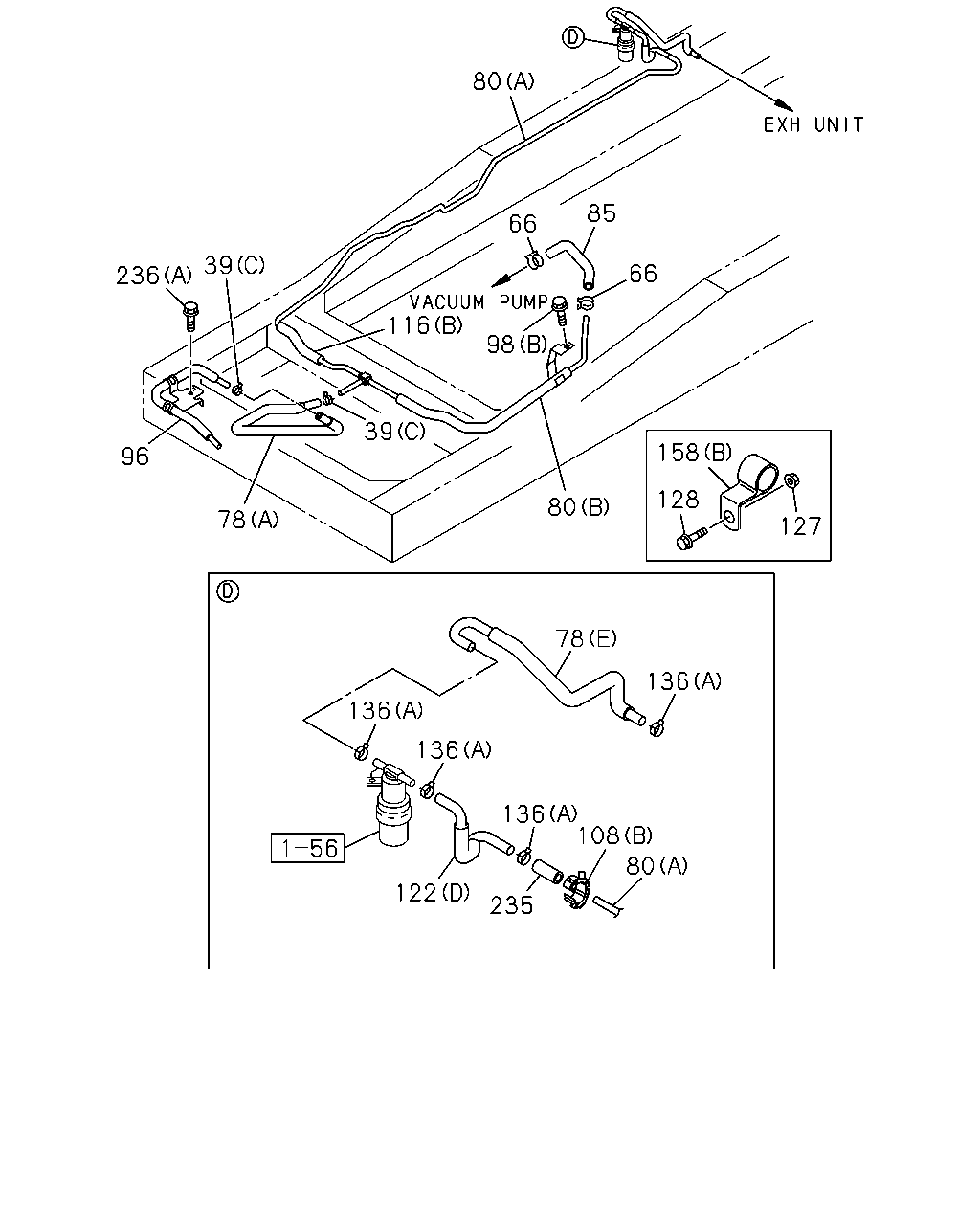

80 85 66 39 66 236 116 98 39 158 96 128 80 78 127 78 136 136 136 136 108 80 122 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0803-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (D)	8-98098-174-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (G)	8-98113-154-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (F)	8-98113-156-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98047-019-3	01	1	0803-0810	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-019-3	01	1	0811-0909	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-840-0	01	1	0910-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98136-237-0	01	1	0811-0909	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-842-0	01	1	0910-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98068-245-0	01	1	0803-1008		●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98171-283-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98042-690-1	01	1	0803-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98189-223-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98042-691-2	01	1	0803-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1105-	●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	0803-	●	●
80	04.930 PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> (A)	8-98067-014-2	01	1	0803-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0803-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	0803-1309	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98066-971-0	01	1	0803-1309		●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98071-771-0	01	1	1310-		●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0803-	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0803-0810	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-732-1	01	1	0803-0909	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	0910-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0803-	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0803-0908	●	●
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0803-		●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	0803-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98076-068-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (E)	8-98113-153-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (F)	8-98113-155-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (D)	8-98064-717-1	01	1	0803-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98042-689-2	01	1	0803-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98089-657-0	01	1	0803-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1105-	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-		●
128	04.930 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	0803-	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0803-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0911	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0911	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0803	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0804-0911	●	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) ID=18-24 L=14.5	1-09709-298-0	01	1	0803-	●
158	04.681 CLIP; HOSE 02.559 (B) ID=28 H=45 L=30	1-09700-707-0	01	1	0803-		●
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0803-		●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-	●	●
236	04.930 BOLT; PIPE FRAME-KICK UP<7EW> 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-0806	●
236	04.930 BOLT; PIPE FRAME-KICK UP<7EW> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0807-	●

80 98 85 66 39 236 66 116 98 39 96 80 78 236 44 136 78 136 228 122 122 136 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98042-654-0	01	1	0803-	●
44	04.930 PIPE; VAC,MAG VLV FRAME-KICK UP<7EW> (B)	8-98113-192-1	01	1	0803-	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0803-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (D)	8-98098-174-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (G)	8-98113-154-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (F)	8-98113-156-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98047-019-3	01	1	0803-0810	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-019-3	01	1	0811-0909	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-840-0	01	1	0910-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98136-237-0	01	1	0811-0909	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-842-0	01	1	0910-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98068-245-0	01	1	0803-1008		●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98171-283-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98042-690-1	01	1	0803-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98189-223-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98042-691-2	01	1	0803-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1105-	●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	0803-	●	●
80	04.930 PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> (A)	8-98067-014-2	01	1	0803-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0803-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	0803-1309	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98066-971-0	01	1	0803-1309		●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98071-771-0	01	1	1310-		●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0803-	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0803-0810	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-732-1	01	1	0803-0909	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	0910-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0803-	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	0803-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98076-068-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (E)	8-98113-153-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (F)	8-98113-155-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (D)	8-98064-717-1	01	1	0803-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98042-689-2	01	1	0803-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98089-657-0	01	1	0803-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1105-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	0803-	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0803-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0911	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0911	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0803	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0804-0911	●	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-0806	●
228	04.930 NUT; PIPE FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-0806	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0807-	●
228	04.930 NUT; PIPE FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0807-	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-	●	●
236	04.930 BOLT; PIPE FRAME-KICK UP<7EW> 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-0806	●
236	04.930 BOLT; PIPE FRAME-KICK UP<7EW> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0807-	●

80 98 85 66 39 236 66 116 98 39 96 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98042-654-0	01	1	0803-	●
44	04.930 PIPE; VAC,MAG VLV FRAME-KICK UP<7EW> (B)	8-98113-192-1	01	1	0803-	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0803-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (D)	8-98098-174-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (G)	8-98113-154-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME-KICK UP<7EW> (F)	8-98113-156-0	01	1	0803-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98047-019-3	01	1	0803-0810	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-019-3	01	1	0811-0909	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-840-0	01	1	0910-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98136-237-0	01	1	0811-0909	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-98138-842-0	01	1	0910-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98068-245-0	01	1	0803-1008		●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98171-283-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98042-690-1	01	1	0803-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98189-223-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98042-691-2	01	1	0803-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1105-	●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98056-002-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	0803-	●	●
80	04.930 PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> (A)	8-98067-014-2	01	1	0803-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0803-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	0803-1309	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98065-063-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98066-971-0	01	1	0803-1309		●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98071-771-0	01	1	1310-		●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0803-	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0803-0810	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-732-1	01	1	0803-0909	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	0910-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0803-	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	0803-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	0803-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98076-068-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (E)	8-98113-153-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME-KICK UP<7EW> (F)	8-98113-155-1	01	1	0803-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (D)	8-98064-717-1	01	1	0803-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98042-689-2	01	1	0803-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A)	8-98089-657-0	01	1	0803-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1105-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	0803-	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0803-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0803		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0911	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0911	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
136	04.681 CLIP; VAC HOSE FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0803	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0804-0911	●	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-0806	●
228	04.930 NUT; PIPE FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-0806	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0807-	●
228	04.930 NUT; PIPE FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0807-	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0803-	●	●
236	04.930 BOLT; PIPE FRAME-KICK UP<7EW> 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-0806	●
236	04.930 BOLT; PIPE FRAME-KICK UP<7EW> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0807-	●

162 39 184 184 184 184 108 165 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0803-0908	●	●
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0803-		●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	0803-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-	●	●
184	04.685 BRACKET; UNION FIX (F)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0803-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0803-1204		●
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-		●
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0803-0908	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1001	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	02	1	1002-1012	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	1101-1101	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1102-1311	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (E)	8-98255-536-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1101	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1102-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98255-537-0	01	1	1312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
