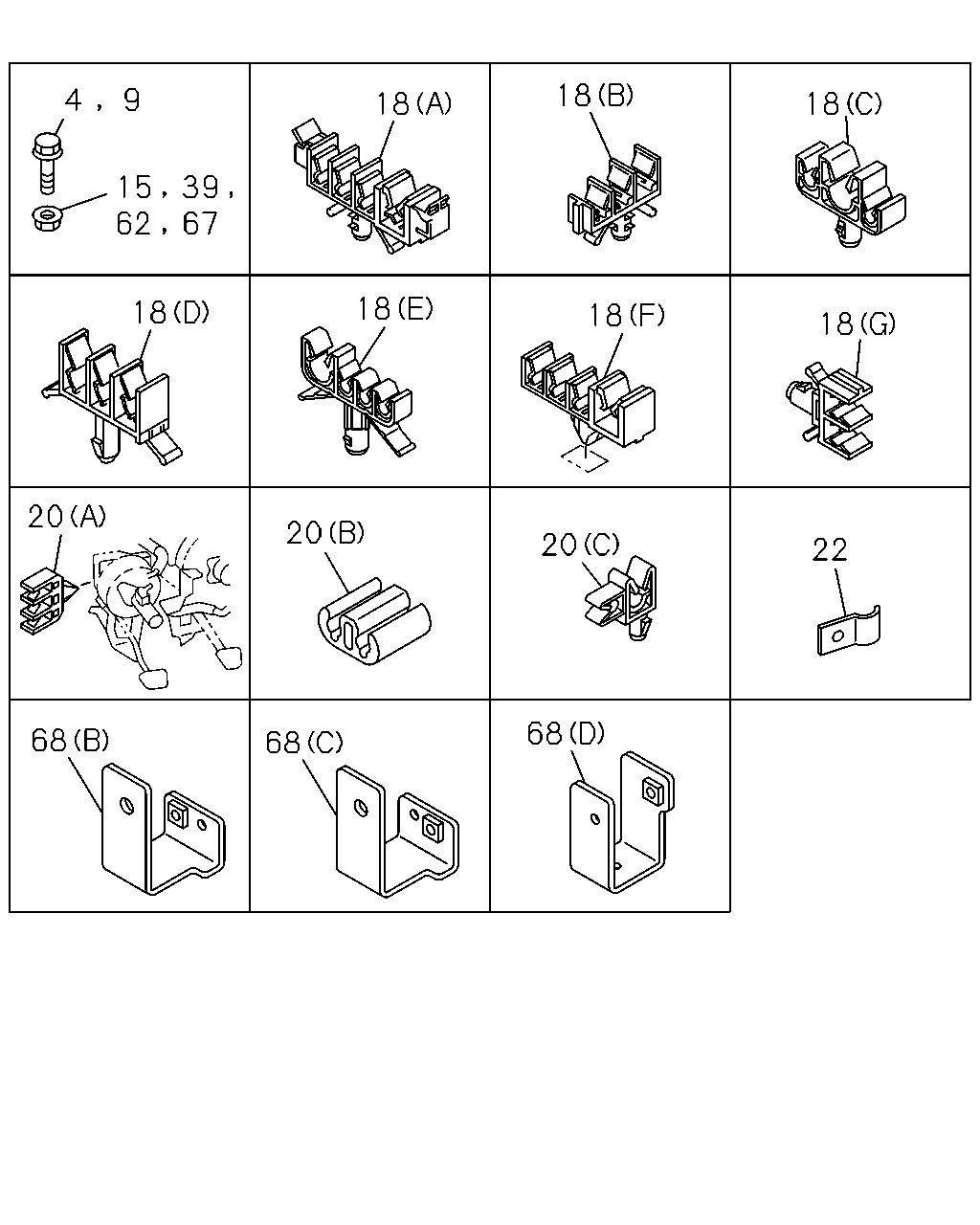

3-58 — FIXING PARTS; OIL PIPING (#80381) — 54 parça

18 9 4 18 18 15 62 39 67 18 18 18 18 20 20 20 22 68 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
9	04.686 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0803-	●
9	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0803-		●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-	●	●
18	04.686 CLIP; BRK PIPE HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3	8-97168-819-0	01	1	1310-	●
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	01	1	1310-		●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) ID=10 & 4.76X3	8-97326-158-1	03	1	0803-	●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	03	1	0803-		●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (G) ID=4.8X2	8-94316-410-0	02	1	0803-	●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3	8-97168-819-0	09	1	0803-	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0803-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0803-	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0803-		●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	02	1	0803-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (A) ID=10 & 4.76X3	8-97326-158-1	02	1	0803-	●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	02	1	0803-		●
18	04.686 CLIP; BRK PIPE (D) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0803-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0803-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0803-	●	●
18	04.686 CLIP; BRK PIPE (C) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0803-	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3	8-97168-819-0	07	1	0803-	●
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	07	1	0803-		●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76	8-97305-169-1	03	1	0803-0906	●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76	8-97305-169-1	03	1	0907-	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76	8-97305-169-1	05	1	0803-1005	●
18	04.686 CLIP; BRK PIPE (C) ID=12 & 6.35 & 4.76	8-97305-169-1	05	1	0803-1005		●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1006-	●
18	04.686 CLIP; BRK PIPE (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1006-		●
20	04.686 CLIP; BRK PIPE (A) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0803-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (B) ID=6.35 & 6.35	8-94474-113-0	01	1	0803-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0803-	●	●
22	04.686 CLIP; PIPE TO FRAME 00.785 B=14 L=16	9-09916-996-0	02	1	0803-	●	●
39	04.686 NUT; BRKT FIX EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
39	04.686 NUT; BRKT FIX 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-		●
62	04.686 NUT 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
68	04.686 BRACKET; CLIP (A)	8-98039-558-2	01	1	0803-	●	●
68	04.686 BRACKET; CLIP (B)	8-98060-870-2	01	1	0803-	●	●
68	04.686 BRACKET; CLIP (C)	8-98090-213-1	01	1	0803-1009	●	●
68	04.686 BRACKET; CLIP (D)	8-98178-046-0	01	1	1010-	●	●

19 67 68 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
19	04.686 BRACKET; OIL PIPE	8-98009-117-2	01	1	0803-1006	●	●
19	04.686 BRACKET; OIL PIPE	8-98162-759-0	01	1	1007-	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
68	04.686 BRACKET; CLIP (A)	8-98039-558-2	01	1	0803-	●	●
68	04.686 BRACKET; CLIP (B)	8-98060-870-2	01	1	0803-	●	●
68	04.686 BRACKET; CLIP (C)	8-98090-213-1	01	1	0803-1009	●	●
68	04.686 BRACKET; CLIP (D)	8-98178-046-0	01	1	1010-	●	●
