◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#80379) — 33 parça

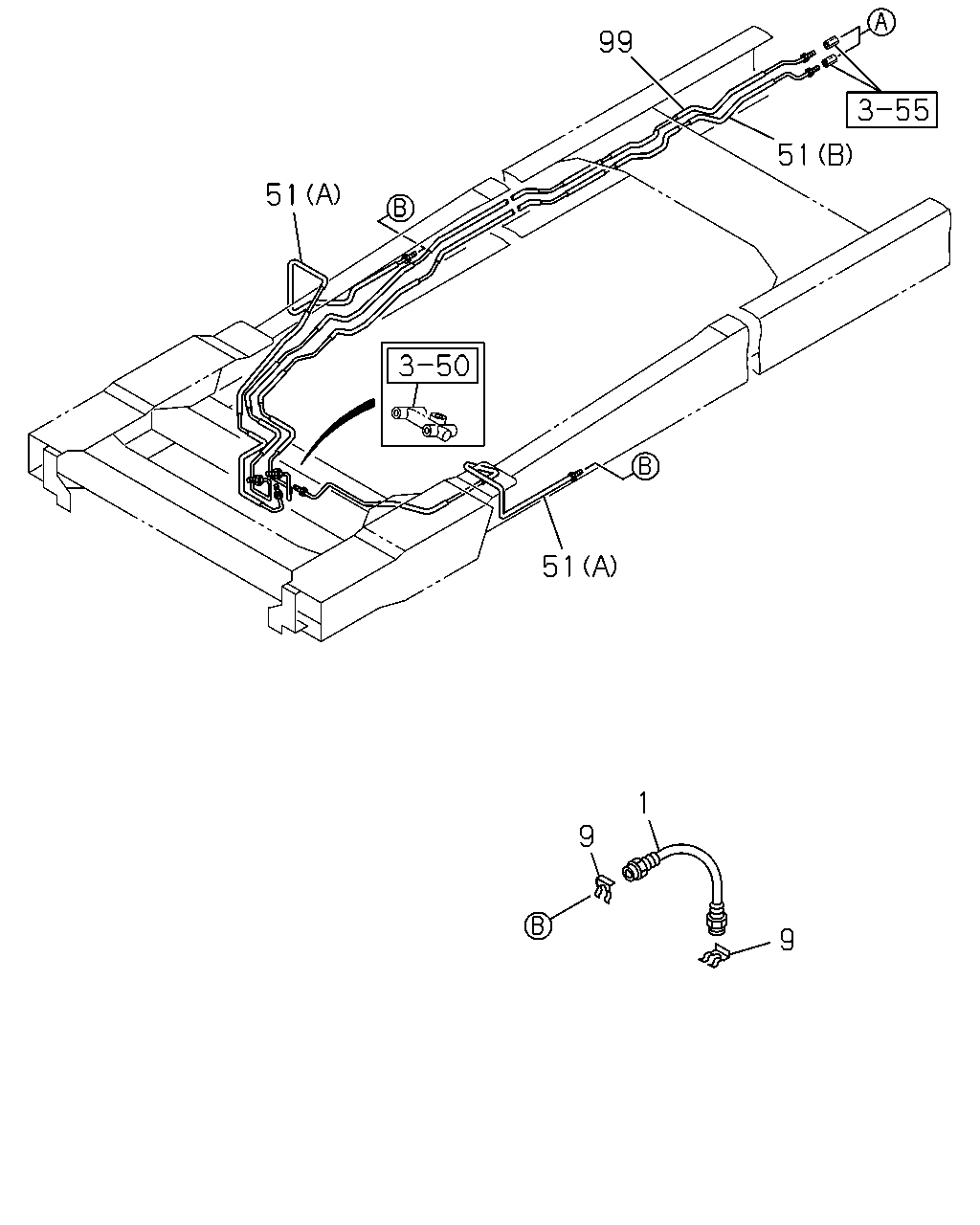

çizim 119913
99 51 51 51 1 9 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK 8-97042-976-0 02 1 0803- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0803- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0803- ● ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310- ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 0803- ● ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-531-1 01 1 0803- ● ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98064-515-1 01 1 0803-0901 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 0902-1309 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1310- ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1310- ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1310- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> 		8-98063-431-0 01 1 0803- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME-KICK UP<7EW> 		8-98064-513-1 01 1 0803-0901 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98064-513-1 01 1 0803-0901 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 0902-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98131-078-0 01 1 0902-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 1310- ●

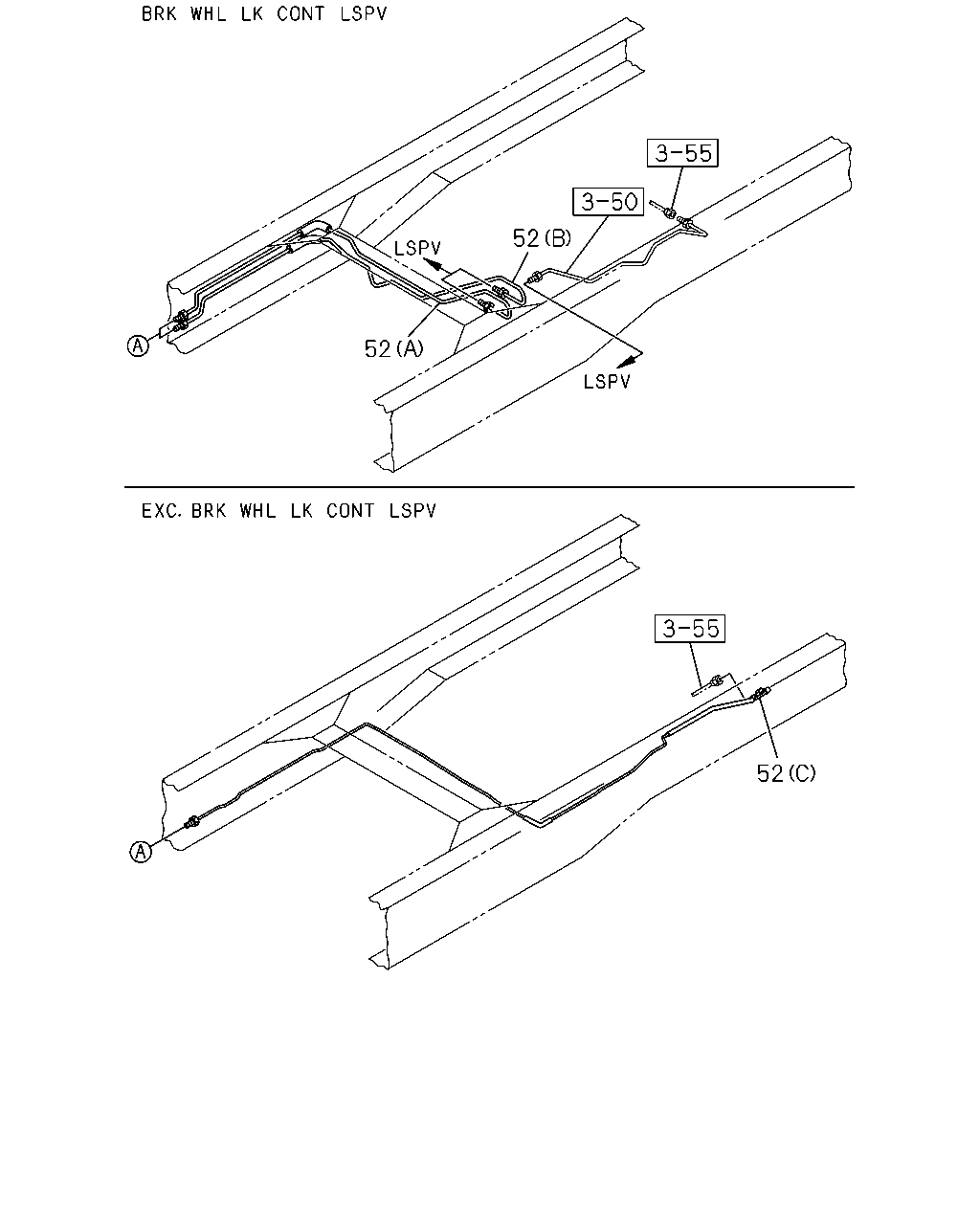

çizim 182653
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 0803- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98063-432-0 01 1 0803- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICKUP<7EW> (C) 2WAY TO REAR 		8-98054-694-0 01 1 0803- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 0803- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICKUP<7EW> (C) 2WAY TO REAR 		8-98054-696-0 01 1 0803- ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98054-696-0 01 1 0803- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-97389-459-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 0804- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98051-513-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 0804- ●

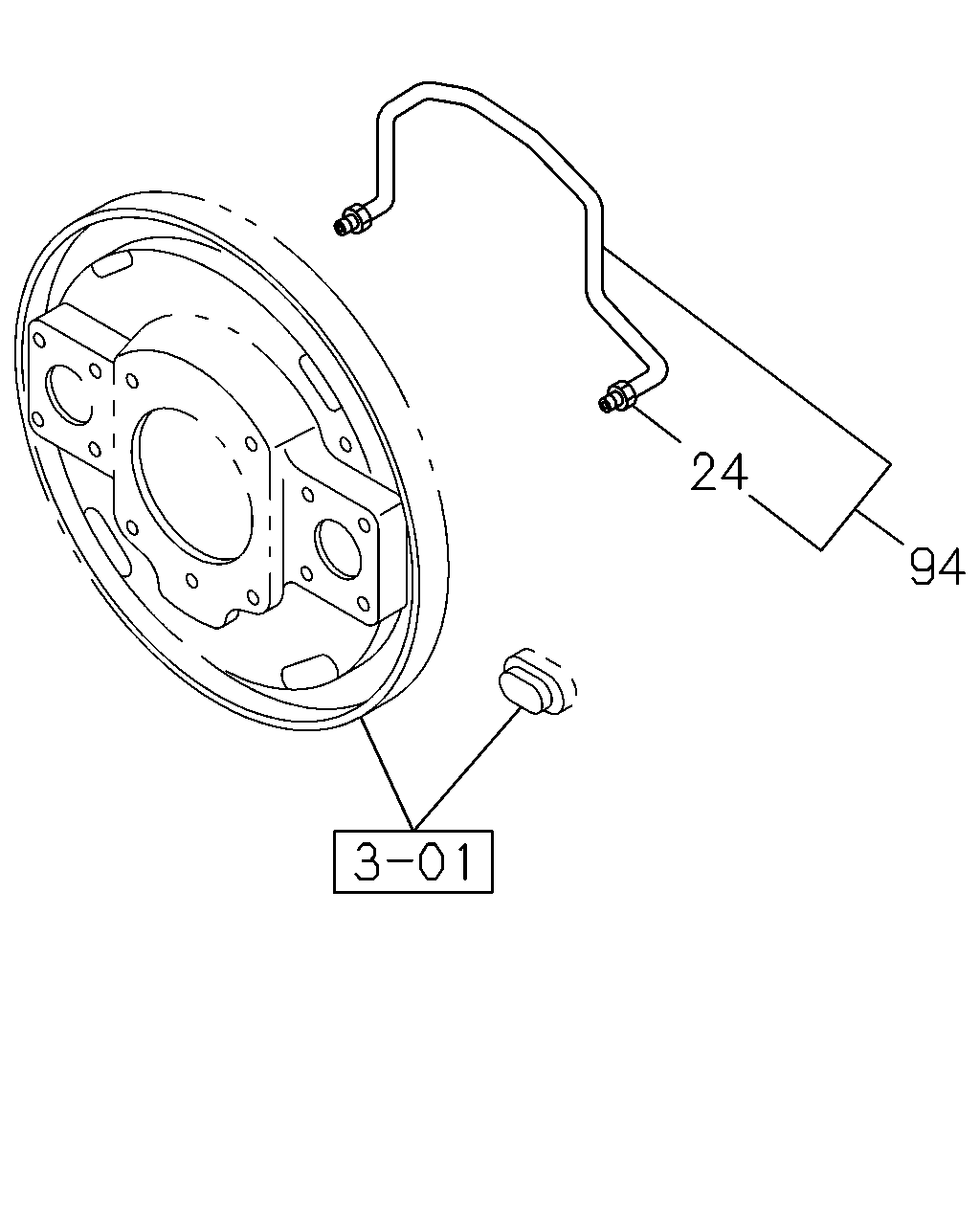

çizim 182654
24 94
BalonParca AdiParca NoAdetTipApplied Date A B
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0803-1301 ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		0-92107-605-0 02 1 1302- ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0803-1301 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-222-0 01 1 1302- ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0803-1301 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-223-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
