◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#80373) — 53 parça

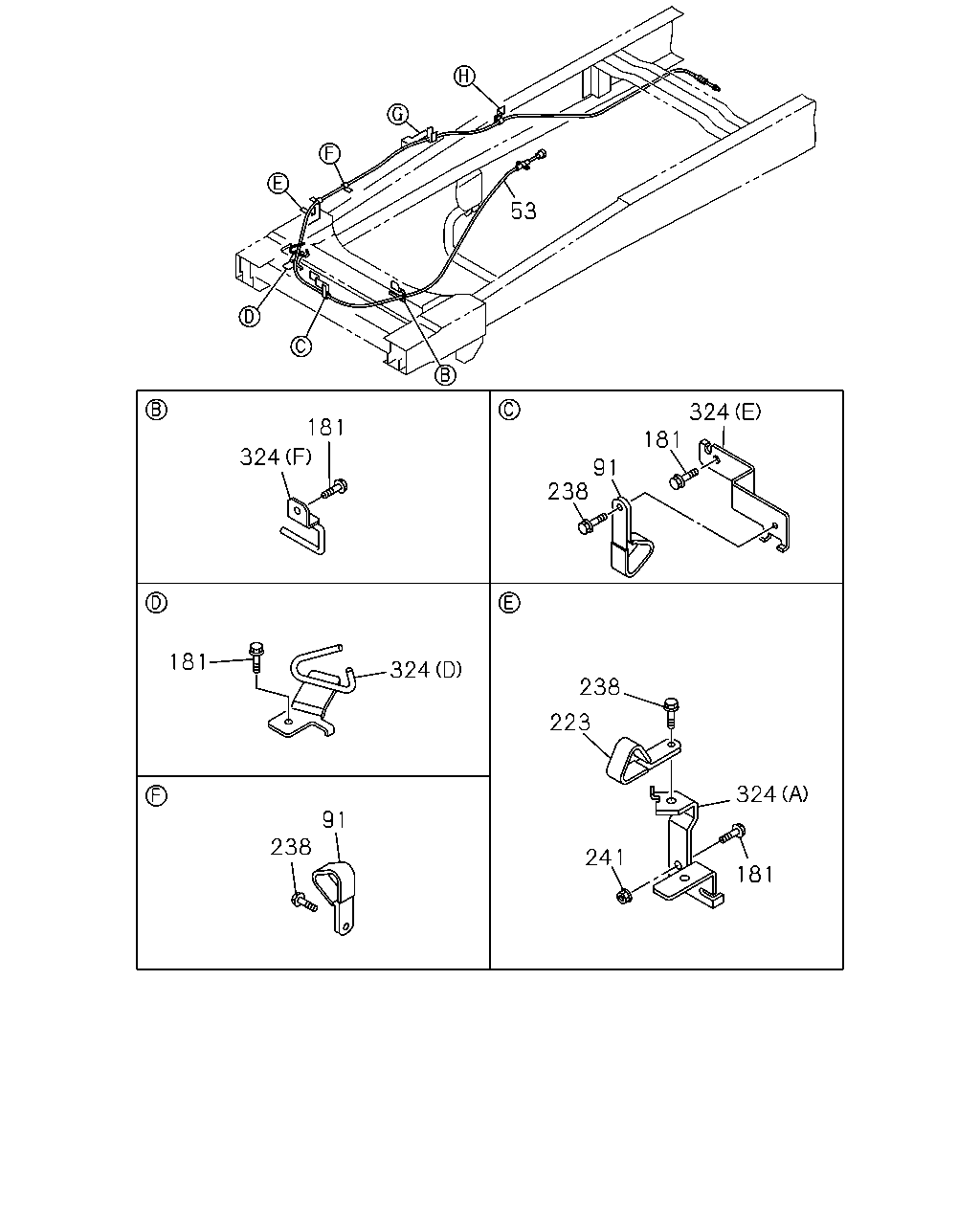

çizim 115395
53 324 181 181 324 91 238 181 324 238 223 324 91 238 241 181
BalonParca AdiParca NoAdetTipApplied Date A B
53 04.779 CABLE; PARK BRK,FRT LWR 8-98051-572-4 01 1 0803- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 02 1 0803- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
223 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 01 1 0803- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0803- ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> (B) 		8-98063-429-0 01 1 0803- ●
324 04.785 BRACKET
(A) 		8-98003-642-1 01 1 0803- ● ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 0803- ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 0803- ● ●
324 04.785 BRACKET
EXC. FRAME-KICK UP<7EW> (C) 		8-98026-099-2 01 1 0803- ●
324 04.785 BRACKET
(C) 		8-98026-099-2 01 1 0803- ●
324 04.785 BRACKET
(F) 		8-98047-576-1 01 1 0803-0906 ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 0907- ● ●
çizim 115724
236 236 324 324 241 241 235 235 237 85 225 85 225
BalonParca AdiParca NoAdetTipApplied Date A B
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 0803- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> (B) 		8-98013-968-0 01 1 0803- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME-KICK UP<7EW> (A) 		8-98034-352-0 01 1 0803- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98034-352-0 01 1 0803- ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0803- ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
236 04.785 BOLT; BRKT TO FRAME
EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803- ●
237 04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 01 1 0803- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> (B) 		8-98063-429-0 01 1 0803- ●
324 04.785 BRACKET
(A) 		8-98003-642-1 01 1 0803- ● ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 0803- ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 0803- ● ●
324 04.785 BRACKET
EXC. FRAME-KICK UP<7EW> (C) 		8-98026-099-2 01 1 0803- ●
324 04.785 BRACKET
(C) 		8-98026-099-2 01 1 0803- ●
324 04.785 BRACKET
(F) 		8-98047-576-1 01 1 0803-0906 ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 0907- ● ●

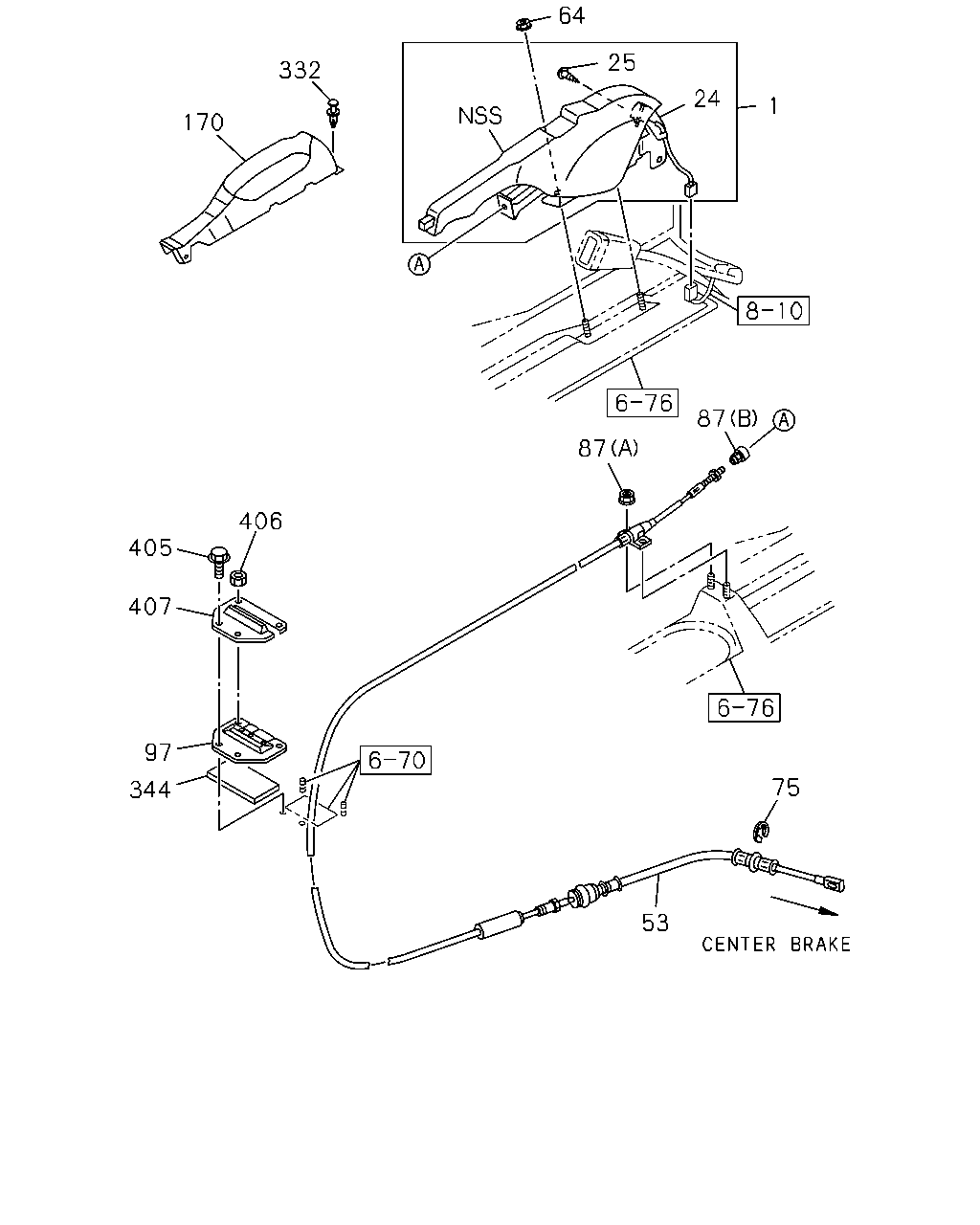

çizim 182647
64 25 332 24 1 170 87 87 406 405 407 97 75 344 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 0803-1303 ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0803-1303 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0803- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98051-572-4 01 1 0803- ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0803- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0803- ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0803- ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 0803- ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97411-674-1 01 1 0803- ● ●
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 0803- ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 0803- ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0803- ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0803- ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0803- ● ●
