6-84 — BACK TRIM (#8037) — 28 parça

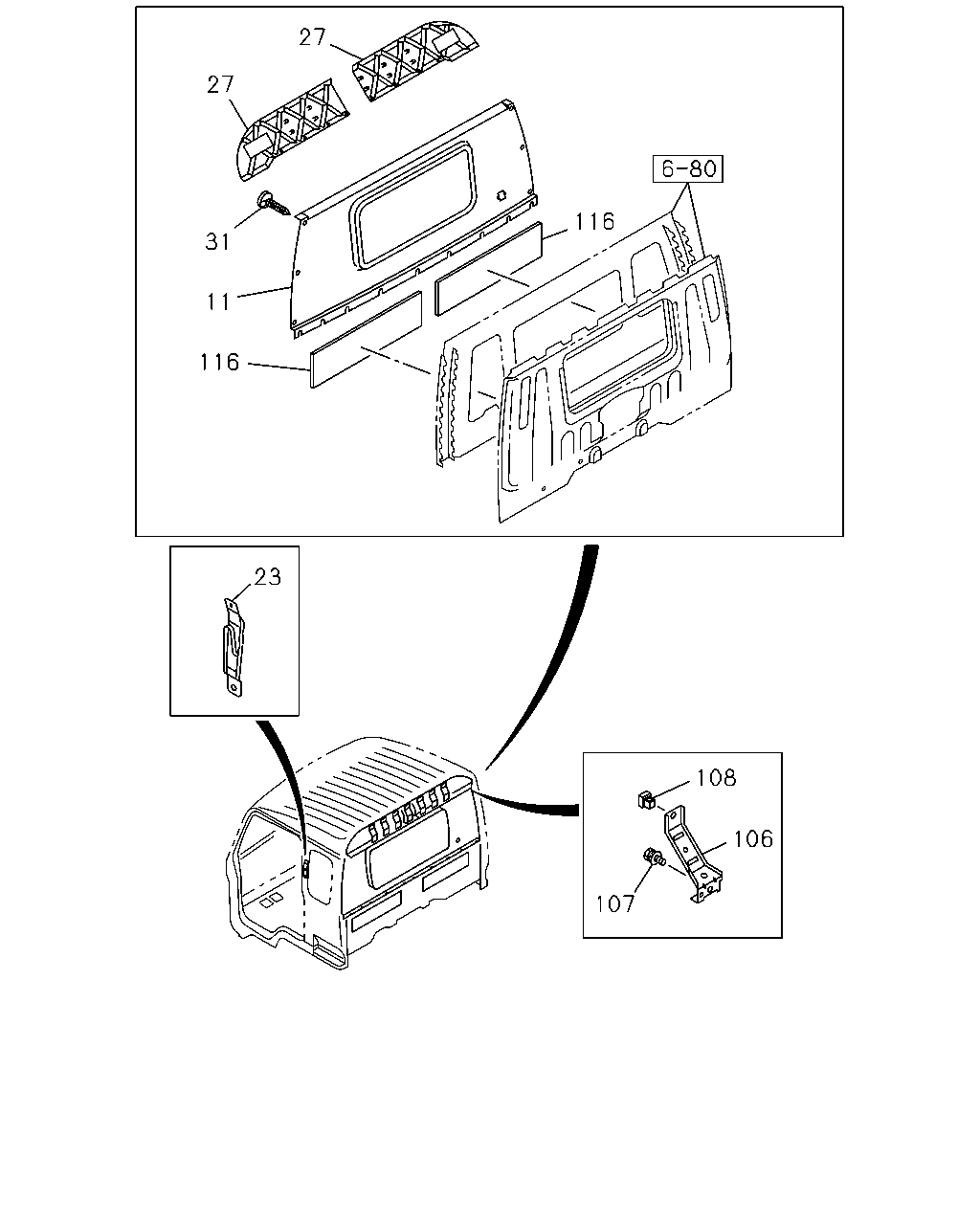

çizim 46791
27 27 116 31 11 116 23 108 106 107
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 TRIM; ROOM,BACK INNER 1-73348-942-1 01 1 0005-0011 ● ● ●
11 TRIM; ROOM,BACK INNER 1-73348-942-1 01 1 0012-0212 ● ● ● ●
11 TRIM; ROOM,BACK INNER
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-942-1 01 1 0301-0405 ● ● ● ●
11 TRIM; ROOM,BACK INNER 1-73348-942-3 01 1 0406- ● ● ● ●
11 TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY> 		8-97893-967-0 01 1 0301-0405 ● ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 0005-0011 ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 0012- ● ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 0005-0011 ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 0012- ● ● ● ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) 		1-73348-946-0 01 1 0005-0011 ● ● ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) 		1-73348-946-0 01 1 0012-0210 ● ● ● ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) 		1-73348-946-0 01 1 0211-0305 ● ● ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) 		1-73348-945-0 01 1 0005-0011 ● ● ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) 		1-73348-945-0 01 1 0012-0210 ● ● ● ●
27 COVER; TRIM,BACK
CUSTOM CAB(SR5) 		1-73348-945-0 01 1 0211-0305 ● ● ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0005-0011 ● ● ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0012- ● ● ● ●
106 BRACKET; BACK TRIM
CUSTOM CAB(SR5) 		1-73348-411-4 03 1 0005-0011 ● ● ●
106 BRACKET; BACK TRIM
CUSTOM CAB(SR5) 		1-73348-411-4 03 1 0012-0210 ● ● ● ●
106 BRACKET; BACK TRIM
CUSTOM CAB(SR5) 		1-73348-411-4 03 1 0211-0305 ● ● ●
107 SCREW; BRKT
CUSTOM CAB(SR5) M5X20 		5-09981-059-0 06 1 0005-0011 ● ● ●
107 SCREW; BRKT
CUSTOM CAB(SR5) M5X20 		5-09981-059-0 06 1 0012-0210 ● ● ● ●
107 SCREW; BRKT
CUSTOM CAB(SR5) M5X20 		5-09981-059-0 06 1 0211-0305 ● ● ●
108 GROMMET; SCREW
CUSTOM CAB(SR5) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0005-0011 ● ● ●
108 GROMMET; SCREW
CUSTOM CAB(SR5) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0012-0210 ● ● ● ●
108 GROMMET; SCREW
CUSTOM CAB(SR5) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0211-0305 ● ● ●
116 INSULATOR; BACK PANEL 1-73368-002-0 02 1 0005-0011 ● ● ●
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 0012- ● ● ● ●
