3-01 — FRONT WHEEL BRAKE (#80369) — 80 parça

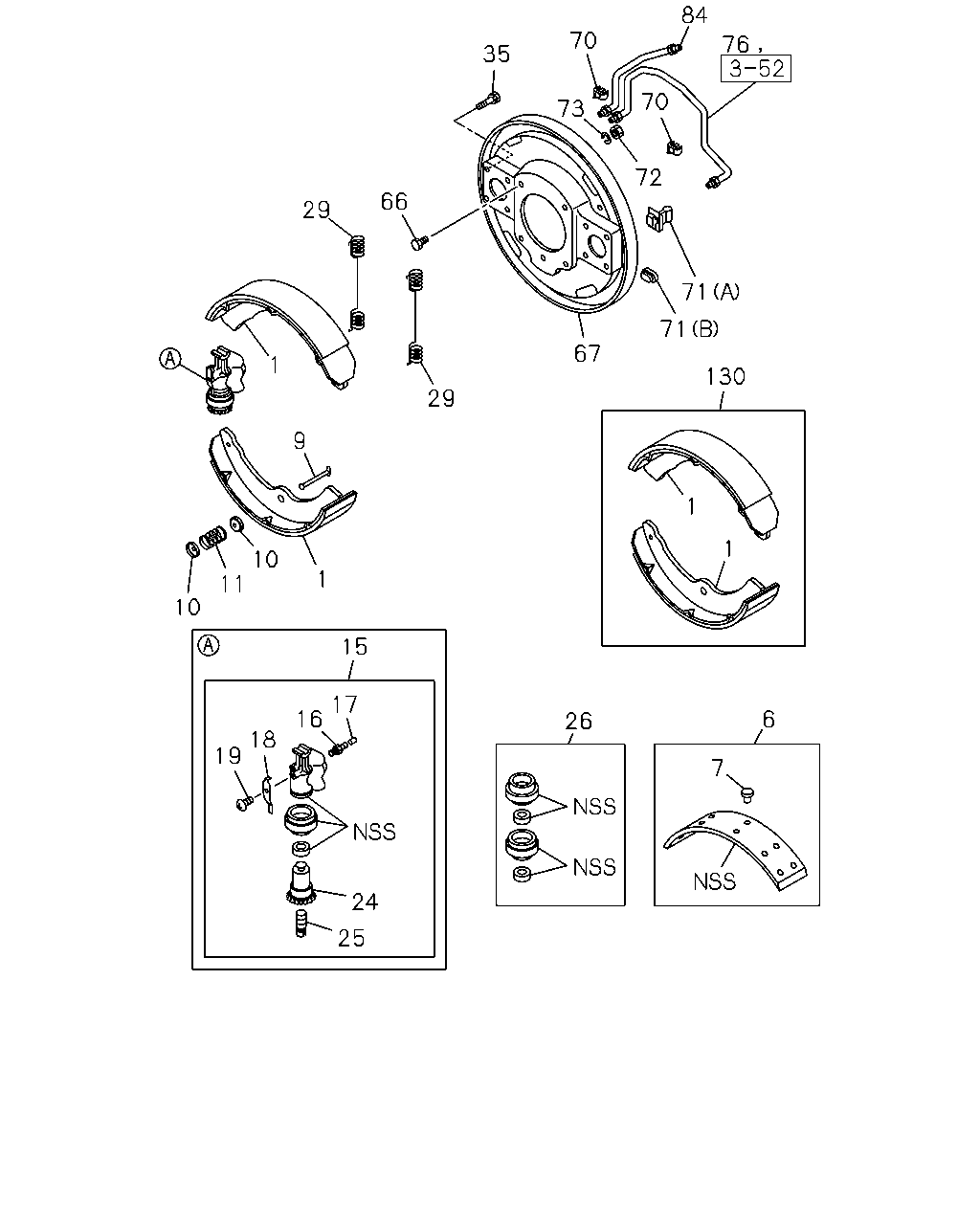

çizim 114280
76 84 70 70 35 73 72 71 71 130 1 1 67 29 66 29 1 9 1 10 11 10 15 17 16 18 19 24 25 26 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.017 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97201-061-0 04 1 1302- ● ●
1 05.017 SHOE; BRK,FRT 8-97035-085-1 04 1 0803-1301 ● ●
1 05.017 SHOE; BRK,FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97035-085-1 04 1 1302- ● ●
6 05.018 LINING KIT; FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-87831-774-0 01 1 1302- ● ●
6 05.018 LINING KIT; FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> BEST VALUE PARTS 		5-87610-120-0 01 1 1302- ● ●
7 05.019 RIVET; LINING,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		1-09732-029-0 48 1 1302- ● ●
9 05.026 PIN; SHOE HOLDER
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 05.043 		8-97022-089-0 04 1 1302- ● ●
9 05.026 PIN; SHOE HOLDER 8-97019-207-0 04 1 0803-1301 ● ●
9 05.026 PIN; SHOE HOLDER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-207-0 04 1 1302- ● ●
10 05.043 CUP; SHOE HOLDING
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		9-47165-096-0 08 1 1302- ● ●
10 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 0803-1301 ● ●
10 05.043 CUP; SHOE HOLDING
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		9-47162-033-0 08 1 1302- ● ●
11 05.027 SPRING; SHOE HOLDING
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 05.043 		5-09580-101-1 04 1 1302- ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		9-09940-989-1 04 1 0803-1301 ● ●
11 05.027 SPRING; SHOE HOLDING
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 05.043 		9-09940-989-1 04 1 1302- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> REAR 		8-97139-818-0 01 1 1302- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> REAR 		8-97139-819-0 01 1 1302- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> FRONT 		8-97139-820-0 01 1 1302- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> FRONT 		8-97139-821-0 01 1 1302- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-357-0 01 1 0803-1301 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> REAR 		8-97179-357-0 01 1 1302- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-358-0 01 1 0803-1301 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> REAR 		8-97179-358-0 01 1 1302- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-359-0 01 1 0803-1301 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> FRONT 		8-97179-359-0 01 1 1302- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-360-0 01 1 0803-1301 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> FRONT 		8-97179-360-0 01 1 1302- ● ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 0803- ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0803- ● ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0803- ● ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0803- ● ●
24 04.668 PISTON; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-94414-700-1 04 1 1302- ● ●
24 04.668 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 0803-1301 ● ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97078-621-0 04 1 1302- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 04.666 		8-94414-702-0 04 1 1302- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 0803-1301 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97078-623-0 04 1 1302- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 04.665 		5-87831-598-0 01 1 1302- ● ●
26 04.667 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 0803-1301 ● ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-87831-602-0 01 1 1302- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97022-087-0 04 1 1302- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97078-739-0 04 1 0803-1301 ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97078-739-0 04 1 1302- ● ●
35 04.665 BOLT; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97081-305-0 16 1 1302- ● ●
35 04.665 BOLT; FRT WHEEL CYL 8-97025-734-0 16 1 0803-1301 ● ●
35 04.665 BOLT; FRT WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97025-734-0 16 1 1302- ● ●
66 05.815 BOLT; OIL SHIELD COVER
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 05.002 M14X40 		8-98007-879-0 08 1 1302- ● ●
66 05.815 BOLT; OIL SHIELD COVER
M12X33 		8-98009-493-2 08 1 0803-1301 ● ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> M12X33 		8-98009-493-2 08 1 1302- ● ●
67 05.001 PLATE; BACK,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98072-847-0 01 1 1302- ● ●
67 05.001 PLATE; BACK,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98072-848-0 01 1 1302- ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-586-0 01 1 0803-1301 ● ●
67 05.001 PLATE; BACK,FRT BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97302-586-0 01 1 1302- ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-587-0 01 1 0803-1301 ● ●
67 05.001 PLATE; BACK,FRT BRK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97302-587-0 01 1 1302- ● ●
70 04.685 CLIP; PIPE HOLD
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97022-086-0 04 1 1302- ● ●
70 04.685 CLIP; PIPE HOLD 8-94128-306-0 04 1 0803-1301 ● ●
70 04.685 CLIP; PIPE HOLD
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-94128-306-0 04 1 1302- ● ●
71 05.002 GROMMET; CHECK HOLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (B) 		8-97017-507-0 02 1 1302- ● ●
71 05.002 GROMMET; CHECK HOLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (A) 		8-97044-742-1 04 1 1302- ● ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-94171-287-0 02 1 0803-1301 ● ●
71 05.002 GROMMET; CHECK HOLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (B) 		8-94171-287-0 02 1 1302- ● ●
71 05.002 GROMMET; CHECK HOLE
(A) 		9-09756-034-0 04 1 0803-1301 ● ●
71 05.002 GROMMET; CHECK HOLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (A) 		9-09756-034-0 04 1 1302- ● ●
72 05.815 NUT; OIL SHIELD COVER
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 07.833 M14 		0-91110-514-0 08 1 1302- ● ●
72 05.815 NUT; OIL SHIELD COVER
05.002 M12 		0-91110-512-0 08 1 0803-1301 ● ●
72 05.815 NUT; OIL SHIELD COVER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 05.002 M12 		0-91110-512-0 08 1 1302- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 06.174 ID=14.2 		0-91510-814-0 08 1 1302- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
07.347 ID=12.2 		0-91510-812-0 08 1 0803-1301 ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 07.347 ID=12.2 		0-91510-812-0 08 1 1302- ● ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97079-847-0 02 1 1302- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97039-676-0 01 1 1302- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97039-677-0 01 1 1302- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-224-0 01 1 0803-1301 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-224-0 01 1 1302- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-225-0 01 1 0803-1301 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-225-0 01 1 1302- ● ●
130 05.017 SHOE KIT; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-87831-775-0 01 1 1302- ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-045-0 01 1 0803-1301 ● ●
130 05.017 SHOE KIT; BRK,FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		5-87832-045-0 01 1 1302- ● ●
