◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶

2-85 — POWER TAKE OFF CONTROL (#80368) — 131 parça

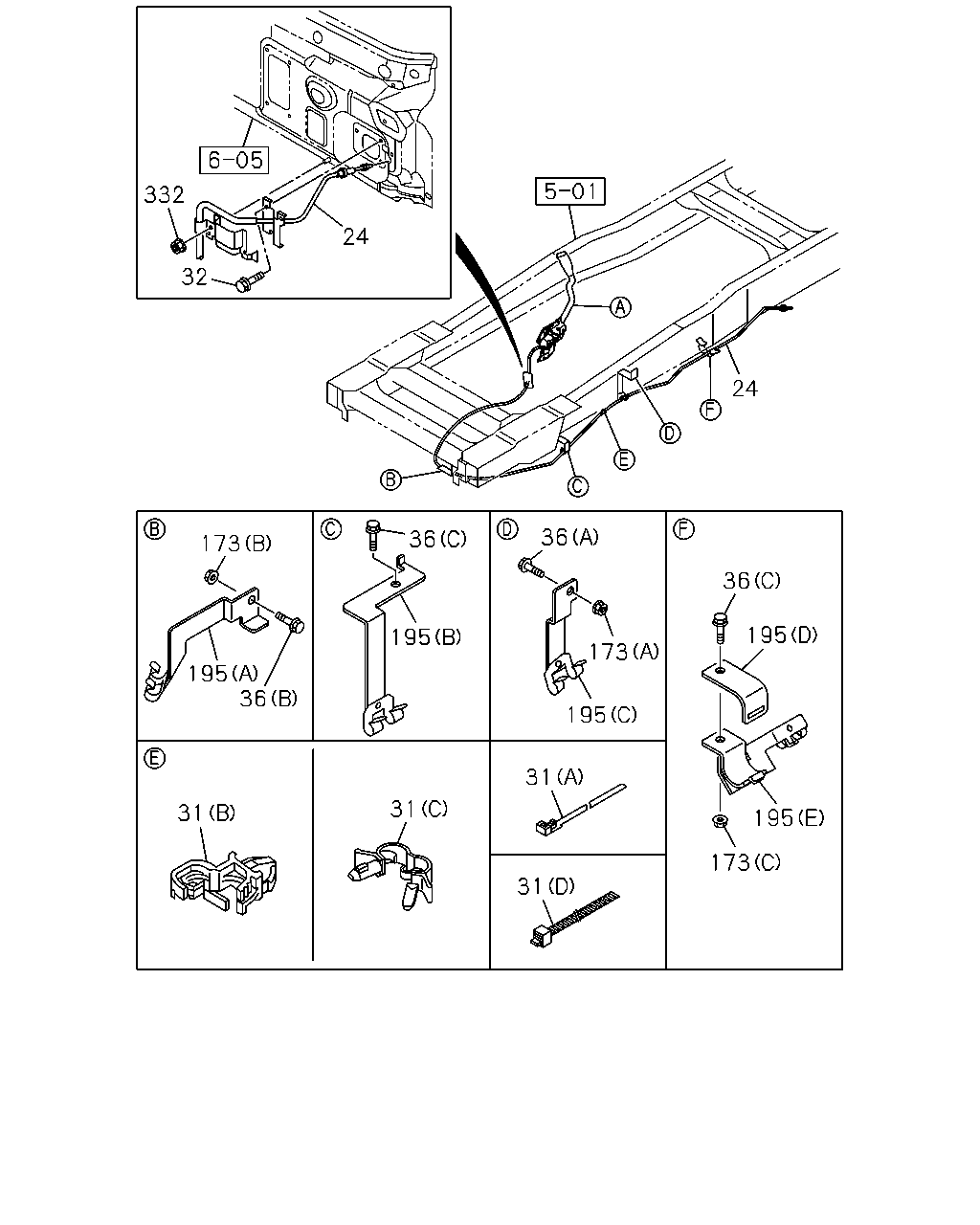

332 24 32 24 36 36 173 36 195 195 173 195 36 195 31 31 31 195 173 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=2999	8-98071-365-0	01	1	0803-0803
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3028	8-98118-371-0	01	1	0804-0902
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3014	8-98136-696-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3014	8-98212-286-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3014	8-98223-292-0	01	1	1208-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3053	8-98071-357-2	01	1	0803-0803
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3053	8-98117-185-0	01	1	0804-0902
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3028	8-98139-164-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3028	8-98212-223-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3028	8-98223-336-0	01	1	1208-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) ID=16	8-97040-812-0	01	1	0803-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	0803-0803
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	0803-0803
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 (A) L=250	5-09707-030-1	01	1	0803-0803
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 03.162 (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0804-0808
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 (D) L=300	1-09707-001-1	02	1	0809-0903
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 (D) L=300	1-09707-001-1	02	1	0904-0906
31	04.439 CLIP; BAND,CABLE PTO T/M SIDE DIRECT PUMP(8KZ) EXC. DUMP CHASSIS(V4D) 02.559 (D) L=300	1-09707-001-1	02	1	0904-0906
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 (D) L=300	1-09707-001-1	02	1	0907-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	0811-
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	0803-
36	04.439 BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0803-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 07.874 (B) M14X30 FLANGE	0-28651-430-0	01	1	0803-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0804-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0804-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 07.529 (B) M14 FLANGE	0-91180-114-0	01	1	1112-
173	04.439 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 07.529 (B) M14 FLANGE	0-91180-114-0	01	1	0803-1111
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0804-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98086-263-0	01	1	0803-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-98086-265-0	01	1	0803-
195	04.439 BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (C)	8-98086-266-0	01	1	0803-0803
195	04.439 BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) (C)	8-98086-266-0	01	1	0803-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (E)	8-98117-131-0	01	1	0804-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (D)	8-98117-132-0	01	1	0804-
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-

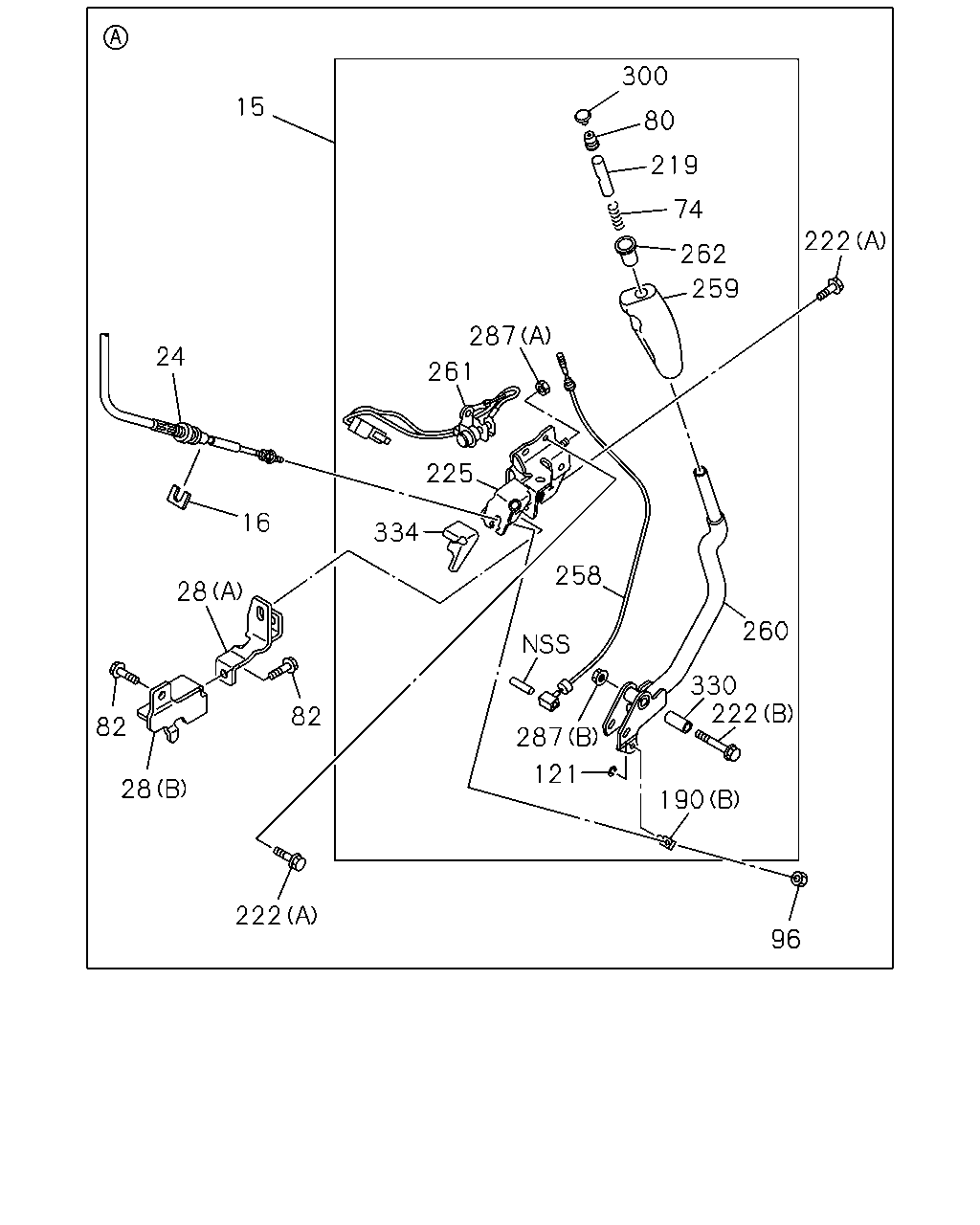

15 24 16 28 82 82 28 222 334 225 261 287 300 80 219 74 262 259 222 258 260 330 222 287 121 190 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98070-129-3	01	1	0803-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0803-
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=2999	8-98071-365-0	01	1	0803-0803
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3028	8-98118-371-0	01	1	0804-0902
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3014	8-98136-696-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3014	8-98212-286-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3014	8-98223-292-0	01	1	1208-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3053	8-98071-357-2	01	1	0803-0803
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3053	8-98117-185-0	01	1	0804-0902
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3028	8-98139-164-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3028	8-98212-223-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3028	8-98223-336-0	01	1	1208-
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	0803-
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	0803-
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0803-
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0803-
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0803-
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 ID=4	0-91805-504-0	01	1	0803-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0803-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 04.307 (A)	8-94366-842-2	01	1	0803-0903
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	0904-
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0803-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0803-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	0803-
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	0803-
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0803-
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	0803-
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-899-2	01	1	0803-
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0803-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	0803-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	0803-
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0803-
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0803-
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	0811-

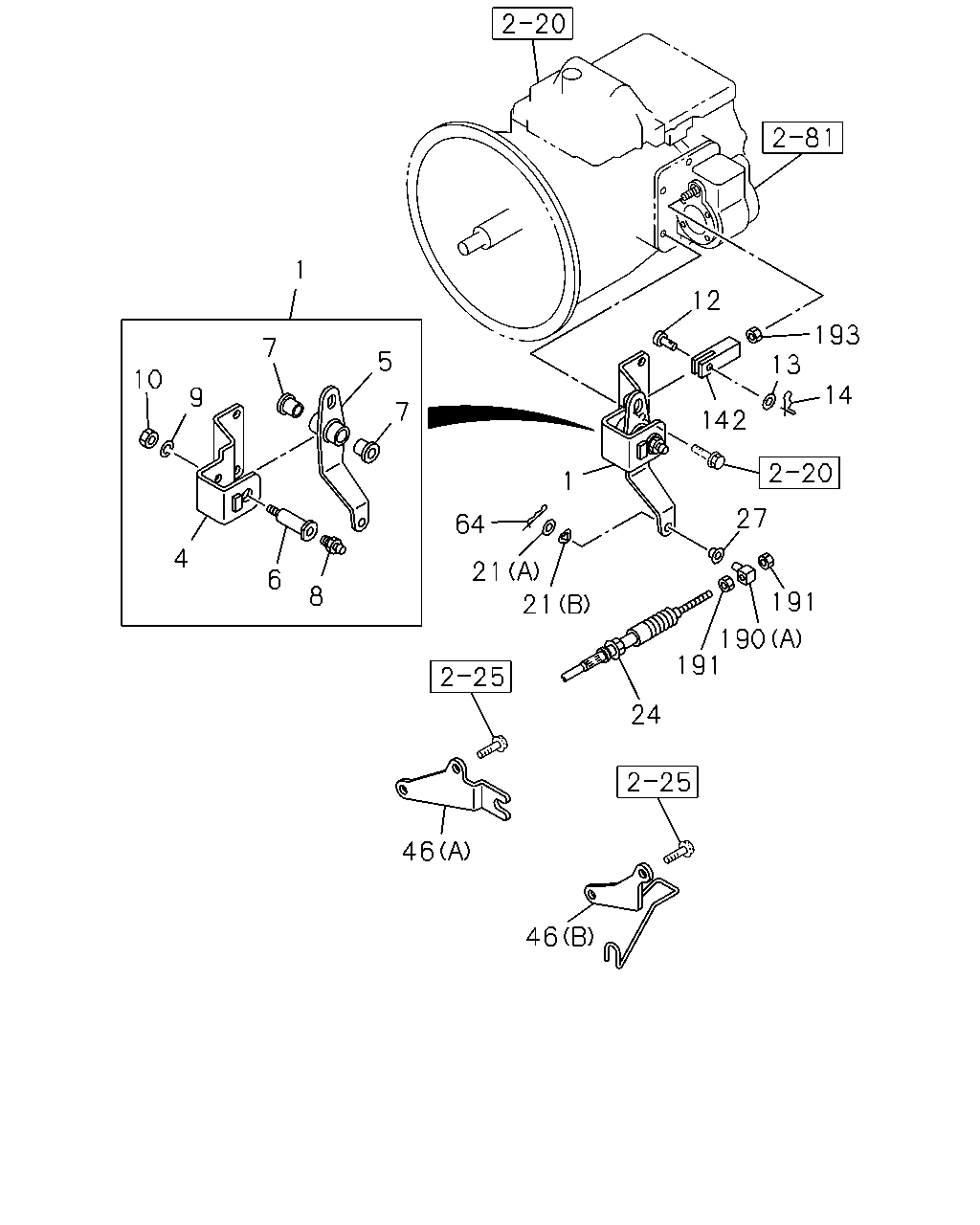

1 12 193 7 5 13 10 14 9 7 142 1 27 64 4 21 21 6 8 191 190 191 24 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0803-1107
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-1308
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1309-
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0803-1107
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-1308
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1309-
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0803-1308
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1309-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0803-1107
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-1308
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1309-
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0803-1308
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1309-
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0803-1308
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1309-
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0803-1308
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1309-
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0803-1308
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1309-
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0803-1308
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1309-
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0803-1308
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1309-
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0803-1308
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1309-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0803-0903
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0904-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0803-0903
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0904-
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=2999	8-98071-365-0	01	1	0803-0803
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3028	8-98118-371-0	01	1	0804-0902
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3014	8-98136-696-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3014	8-98212-286-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=3014	8-98223-292-0	01	1	1208-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3053	8-98071-357-2	01	1	0803-0803
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3053	8-98117-185-0	01	1	0804-0902
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3028	8-98139-164-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3028	8-98212-223-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3028	8-98223-336-0	01	1	1208-
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 04.042	8-94367-367-0	01	1	0803-0903
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 04.042	8-94367-367-0	01	1	0904-
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98032-829-2	01	1	0803-0903
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) (A)	8-98032-829-2	01	1	0904-
46	04.439 BRACKET; PTO,TRANS SIDE DUMP CHASSIS(V4D) (B)	8-98133-150-0	01	1	0901-0903
46	04.439 BRACKET; PTO,TRANS SIDE DUMP CHASSIS(V4D) (B)	8-98133-150-0	01	1	0904-0906
46	04.439 BRACKET; PTO,TRANS SIDE PTO T/M SIDE DIRECT PUMP(8KZ) EXC. DUMP CHASSIS(V4D) (B)	8-98133-150-0	01	1	0904-0906
46	04.439 BRACKET; PTO,TRANS SIDE DUMP CHASSIS(V4D) (B)	8-98133-150-0	01	1	0907-
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 00.833 L=27.7	8-94111-137-0	01	1	0803-0903
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 00.833 L=27.7	8-94111-137-0	01	1	0904-
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0803-1308
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1309-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0803-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 04.307 (A)	8-94366-842-2	01	1	0803-0903
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	0904-
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	02	1	0803-0903
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 03.330 M6	0-91110-506-0	02	1	0904-
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0803-1308
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1309-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
