2-26 — MANUAL TRANSMISSION GEAR (#80363) — 70 parça

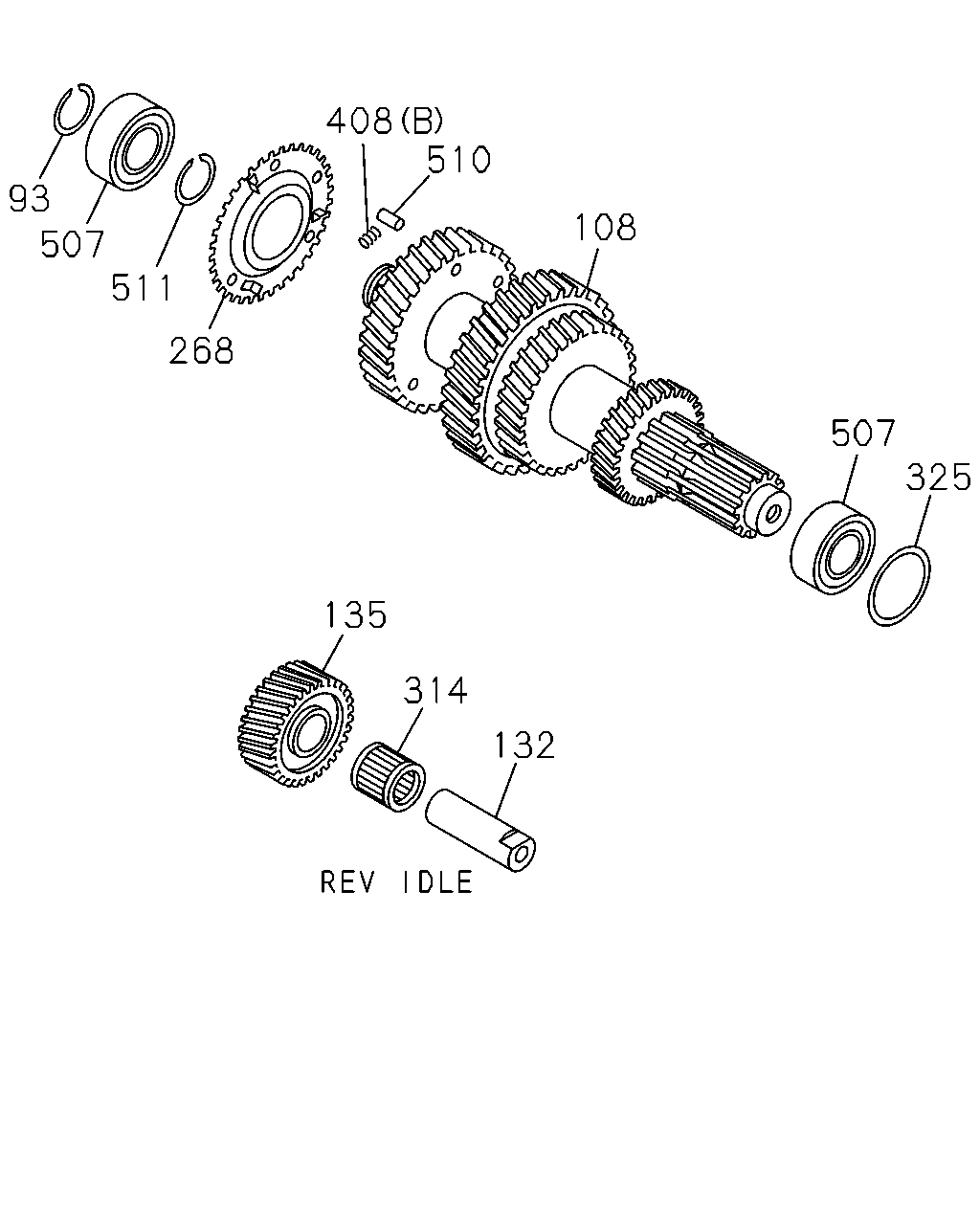

çizim 109771
408 510 93 108 507 511 268 507 325 135 314 132
BalonParca AdiParca NoAdetTipApplied Date
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0803-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0803-
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0803-
108 04.428 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 0803-
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0803-
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0803-
268 04.537 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 0803-
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0803-
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0803-
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0803-
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0803-
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0803-
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 0803-
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 0803-

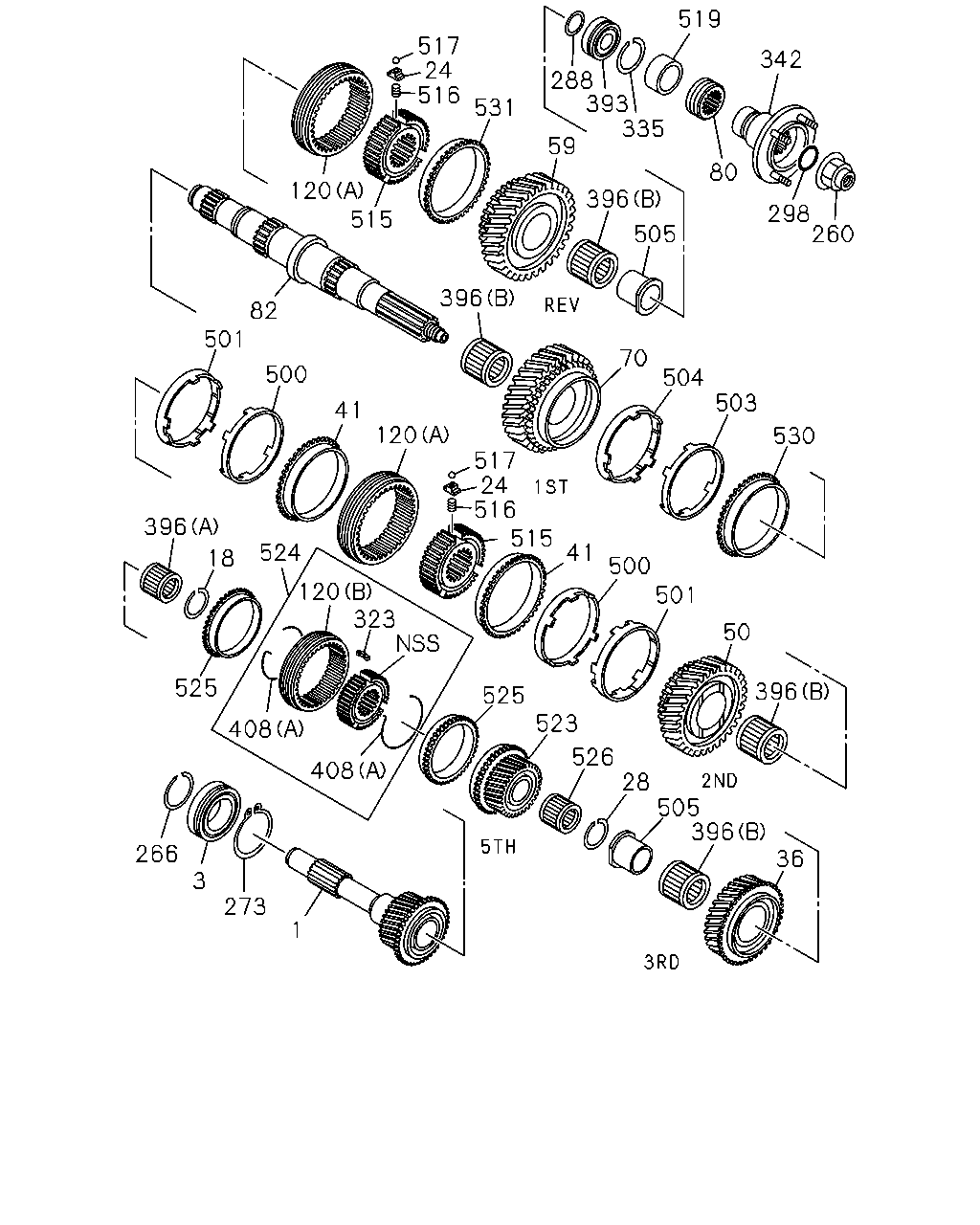

çizim 182648
519 517 24 516 342 288 393 335 531 59 80 120 515 396 298 260 505 396 82 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 120 323 501 50 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 04.351 SHAFT; TOP GEAR,TRANS
Z=28 		8-98031-848-0 01 1 0803-
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0803-
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0803-
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0803-
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0803-
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0803-
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0803-
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0803-
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 0803-
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0803-
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0803-
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 0803-
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0803-1311
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 0803-
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0803-
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0803-
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0803-
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0803-
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0803-
323 04.384 INSERT 8-94448-202-2 03 1 0803-
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0803-
342 05.545 FLANGE; OUTPUT 8-98031-640-0 01 1 0803-
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0803-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0803-
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0803-
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0803-
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 0803-
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0803-
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0803-
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 0803-
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 0803-
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0803-
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 0803-
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0803-
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0803-
519 04.419 COLLAR; MAINSHAFT END,5TH
04.415 		8-97252-940-0 01 1 0803-
523 04.395 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 0803-
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0803-
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0803-
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0803-
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0803-
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 0803-
