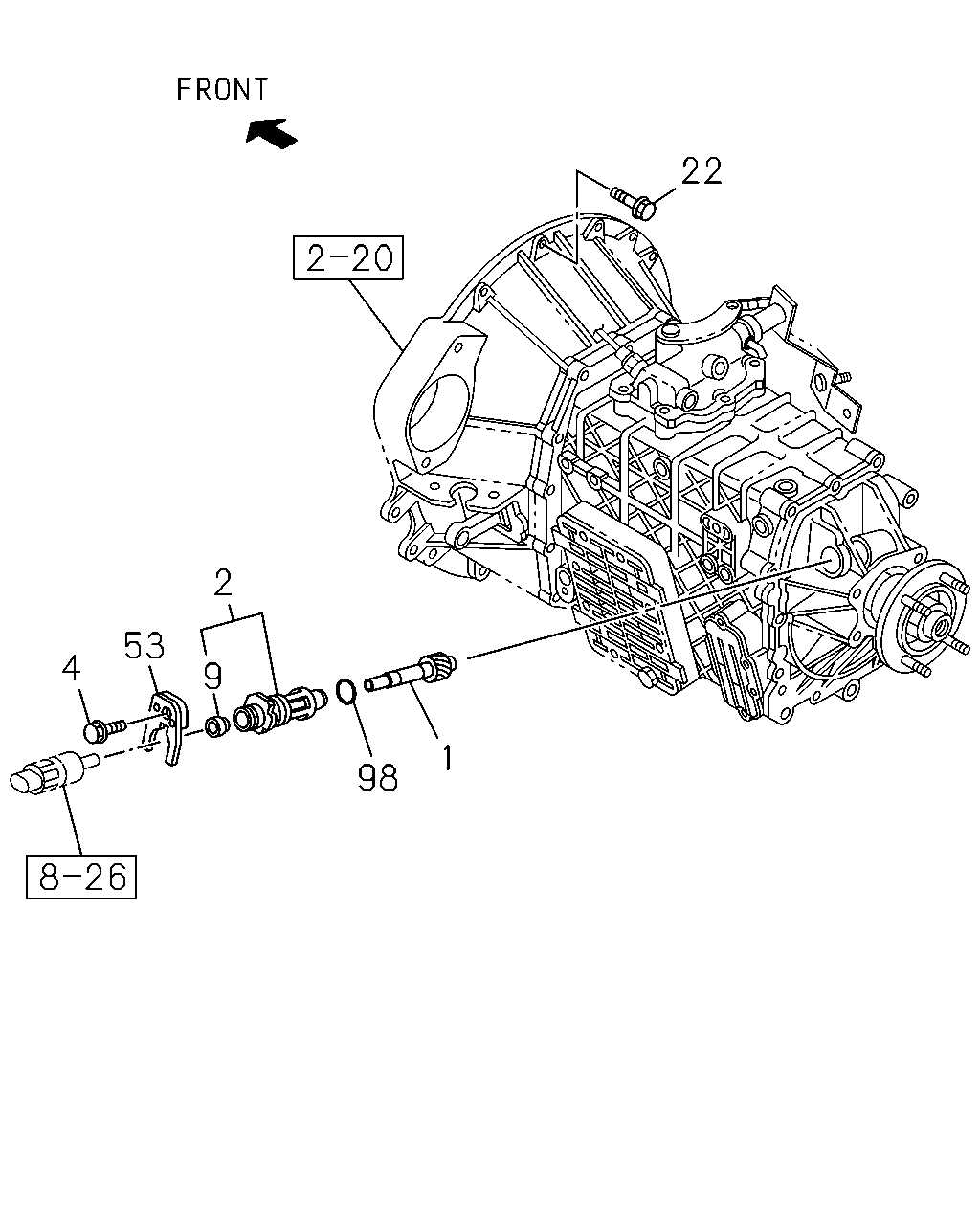

2-25 — SPEEDOMETER DRIVEN GEAR (#80362) — 56 parça

22 2 53 4 9 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=14	8-97253-561-1	01	1	0803-	●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) Z=14	8-97253-561-1	01	1	0803-	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/8(R40) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILV ER(CUC) Z=14	8-97253-561-1	01	1	0803-	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/8(R40) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) Z=14	8-97253-561-1	01	1	0803-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER (CUC) Z=15	8-97253-560-1	01	1	0803-	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER (CUA) Z=15	8-97253-560-1	01	1	0803-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=13	8-97253-562-1	01	1	0803-	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) Z=13	8-97253-562-1	01	1	0803-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) MARK "12,13,14,15"	8-97253-125-0	01	1	0803-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER(CUA) MARK "12,13,14,15"	8-97253-125-0	01	1	0803-		●
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
9	04.338 SEAL; OIL,DRIVEN GEAR FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) NOK	8-97131-328-1	01	1	0803-	●
9	04.338 SEAL; OIL,DRIVEN GEAR FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER(CUA) NOK	8-97131-328-1	01	1	0803-		●
22	00.685 BOLT; TRANS CASE TO ENG 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0803-1301	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	1302-		●
22	00.685 BOLT; TRANS CASE TO ENG 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0803-1301	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	1302-		●
22	00.685 BOLT; TRANS CASE TO ENG 02.042 M10X50 FLANGE	0-28151-050-0	01	1	0803-1301	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1302-		●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1302-		●
22	00.685 BOLT; TRANS CASE TO ENG 00.683 M10X140 FLANGE	0-28156-014-0	01	1	0803-1301	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1302-		●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1302-		●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0803-0811	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0812-0906	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0812-0906		●
22	00.685 BOLT; TRANS CASE TO ENG PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0907-1301	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE	0-28151-035-0	04	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE	0-28151-035-0	04	1	1302-		●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) 00.683 M10X130 FLANGE	0-28156-013-0	01	1	0803-0811	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X130 FLANGE	0-28156-013-0	01	1	0812-0906	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) 00.683 M10X130 FLANGE	0-28156-013-0	01	1	0812-0906		●
22	00.685 BOLT; TRANS CASE TO ENG PTO MANUAL CONTROL(6WC) 00.683 M10X130 FLANGE	0-28156-013-0	01	1	0907-1301	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 00.683 M10X130 FLANGE	0-28156-013-0	01	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.683 M10X130 FLANGE	0-28156-013-0	01	1	1302-		●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE	0-28151-030-0	01	1	0803-0811	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE	0-28151-030-0	01	1	0812-0906	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE	0-28151-030-0	01	1	0812-0906		●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE	0-28151-030-0	01	1	0907-1301	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE	0-28151-030-0	03	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE	0-28151-030-0	03	1	1302-		●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	0803-0811	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	0812-0906	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	0812-0906		●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	0907-1301	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	1302-	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	1302-		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	0803-	●	●
98	04.338 SEAL; OIL,BUSH FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) 04.439	9-09561-324-0	01	1	0803-	●
98	04.338 SEAL; OIL,BUSH FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER(CUA) 04.439	9-09561-324-0	01	1	0803-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
