1-56 — EXHAUST BRAKE SYSTEM (#80353) — 13 parça

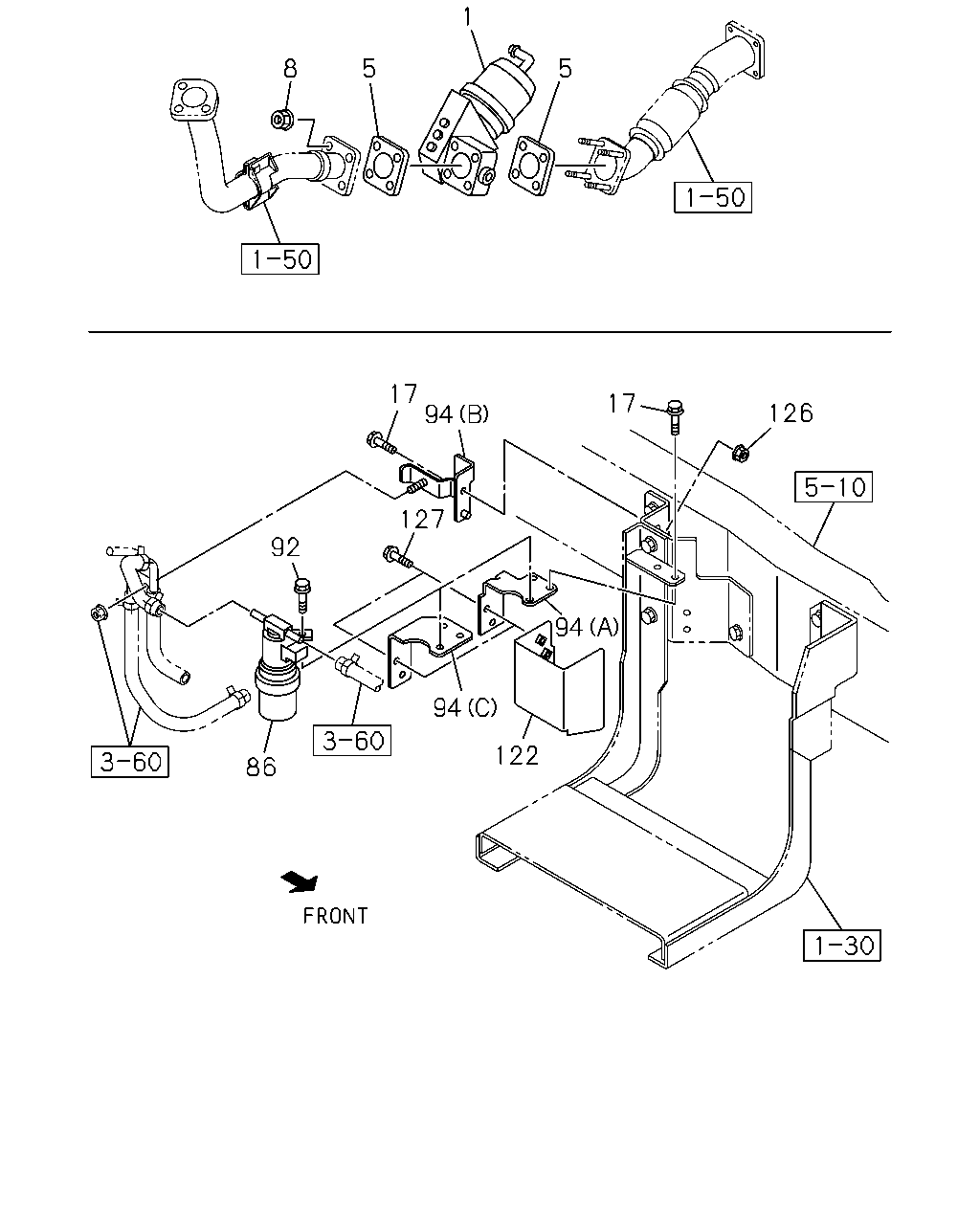

çizim 97441
1 8 5 5 17 94 17 126 127 92 94 94 122 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.632 BRAKE UNIT; EXH 8-98033-200-1 01 1 0803- ● ●
5 03.634 GASKET; EXH BRAKE UNIT
ID=54 		8-94328-354-0 02 1 0803- ● ●
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0803- ● ●
17 03.634 BOLT; BRKT
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
17 03.634 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0803- ●
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 0803- ● ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) 		8-98042-694-2 01 1 0803- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98042-145-2 01 1 0803-1206 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(C) 		8-98211-757-1 01 1 1207- ●
122 03.640 PROTECTOR; MAG VLV 8-98098-564-0 01 1 0803- ●
126 03.634 NUT; BRKT
WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803- ●
127 04.902 BOLT; PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0803- ●
