Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#80351) — 154 parça

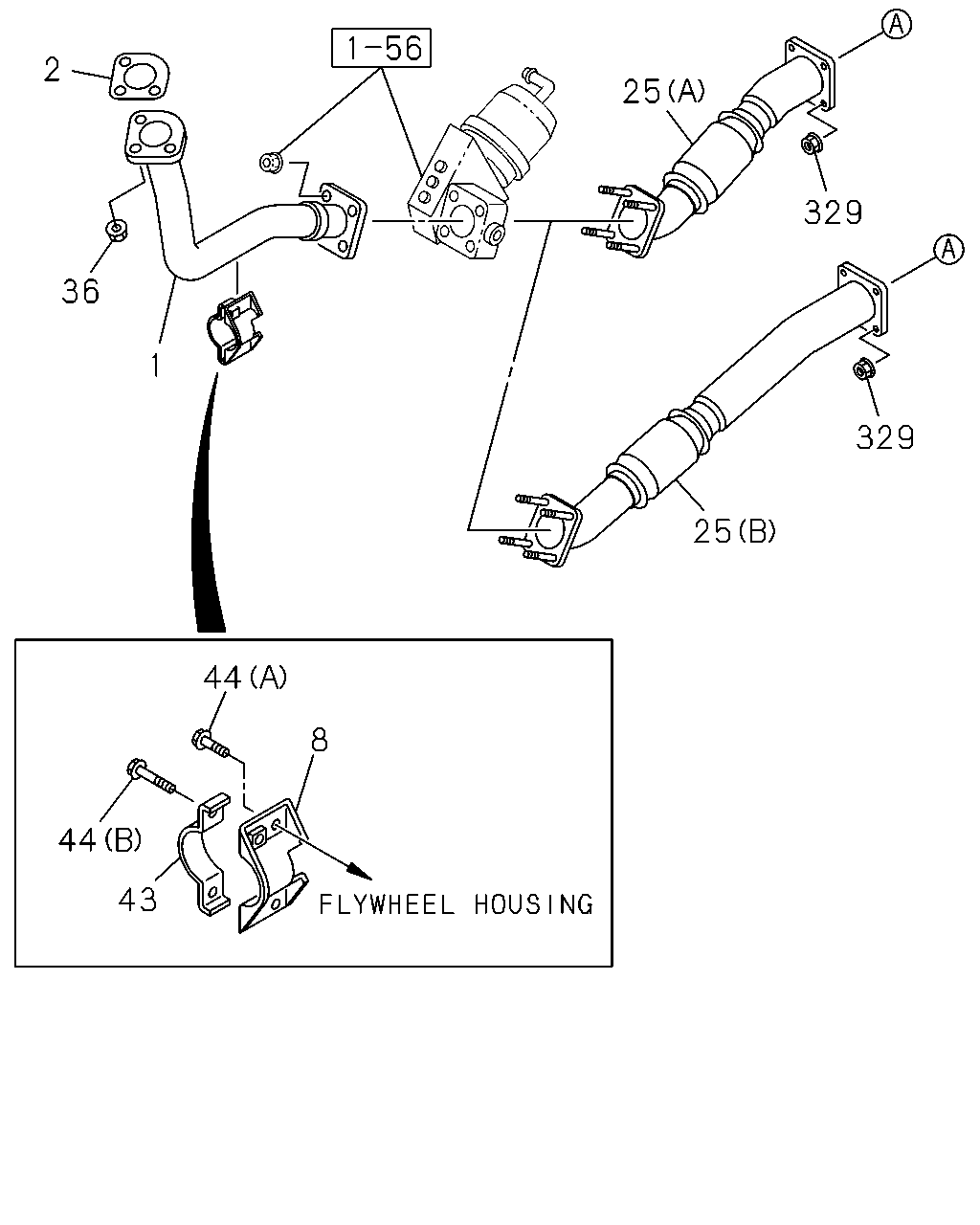

2 25 329 36 1 329 25 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH	8-98075-966-0	01	1	0803-	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0803-	●	●
8	03.704 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	0803-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A)	8-98072-121-1	01	1	0803-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98027-805-1	01	1	0803-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER WHEEL BASE 3300MM(33W) (B)	8-98027-805-1	01	1	0803-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (B)	8-98027-805-1	01	1	0803-		●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0803-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0803-	●	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0803-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0803-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 01.062 M8 FLANGE	0-91180-108-0	04	1	0803-	●	●

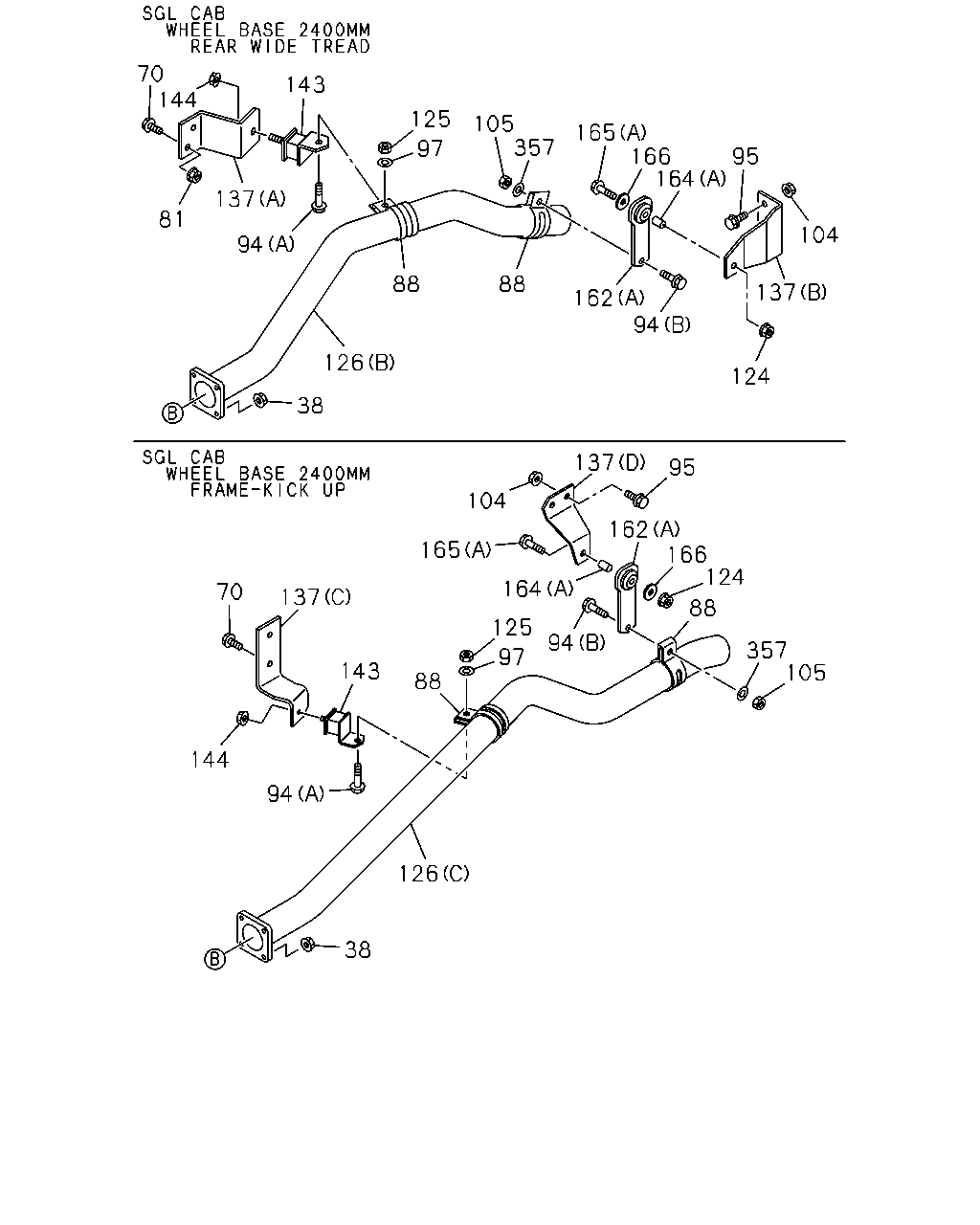

105 357 88 164 124 137 70 125 166 94 95 97 81 104 162 144 143 88 165 137 94 126 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 01.062 M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●	●
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-		●
81	03.704 NUT; BRKT EXC. FRAME-KICK UP<7EW>,TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0803-	●	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0803-	●	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-	●	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0803-	●	●
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●	●
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-	●	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
104	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-		●
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-138-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-134-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98072-137-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98072-137-0	01	1	0803-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-155-0	01	1	0803-0803	●
126	03.705 PIPE; EXH,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-155-0	01	1	0803-0803		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98116-727-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98116-727-0	01	1	0803-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98038-762-1	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98075-678-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-151-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-152-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	0803-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	0803-		●
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	0803-	●	●
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0803-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0803-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0803-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0803-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0803-	●
164	03.706 COLLAR; DIST,TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0803-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0803-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-	●
165	03.706 BOLT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-	●	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-	●	●

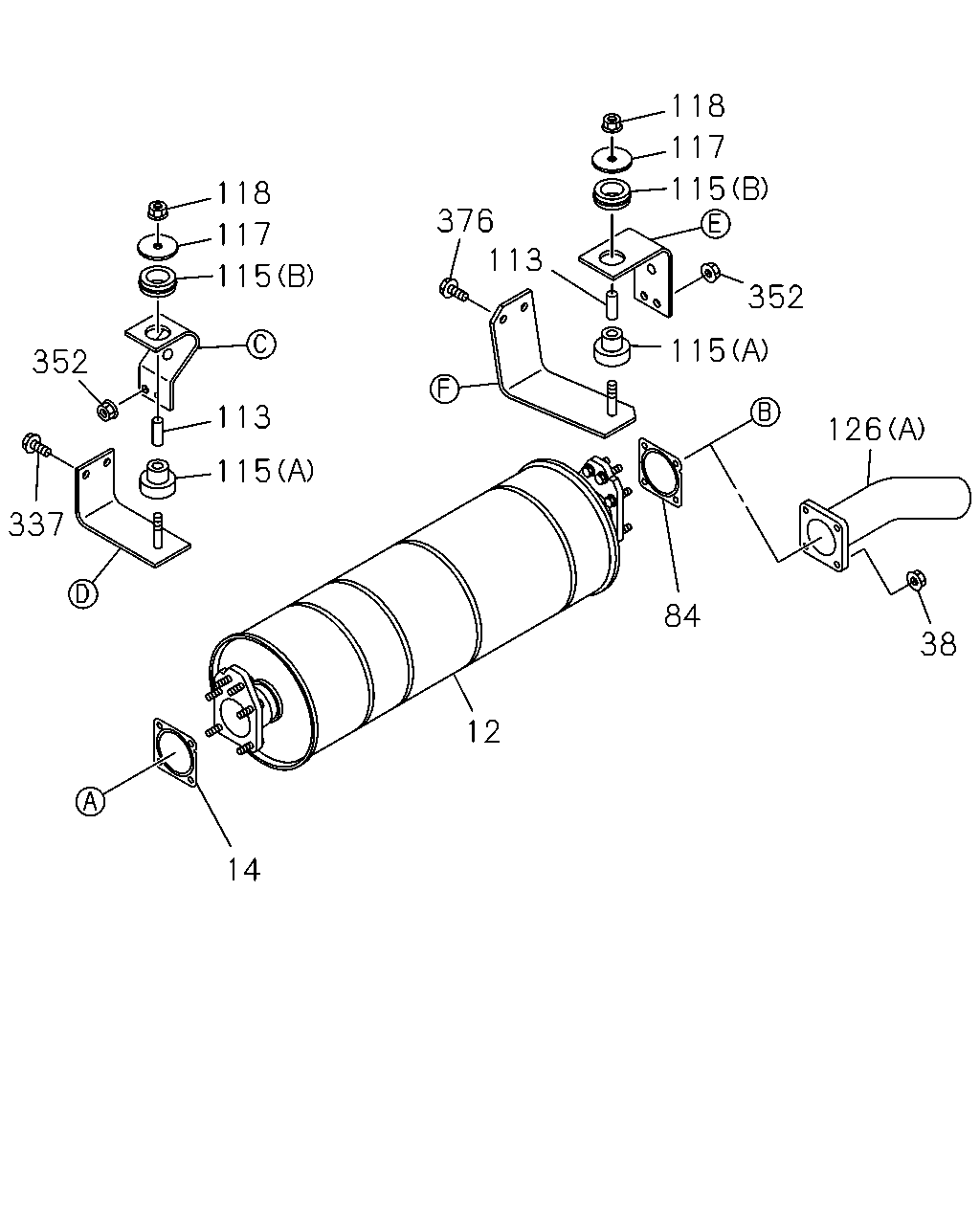

118 117 115 118 376 113 117 115 352 115 352 113 126 115 337 84 38 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH	8-98027-813-1	01	1	0803-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=64	8-97373-108-0	01	1	0803-	●	●
38	00.002 NUT; SILENCER 01.062 M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
84	03.611 GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	0803-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0803-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0803-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0803-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0803-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0803-	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-138-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-134-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98072-137-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98072-137-0	01	1	0803-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-155-0	01	1	0803-0803	●
126	03.705 PIPE; EXH,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-155-0	01	1	0803-0803		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98116-727-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98116-727-0	01	1	0803-		●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0803-	●	●
352	03.613 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
376	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●
376	03.708 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-	●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-		●

59 59 576 576 345 345 577 577 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	03.704 BRACKET; EXH SILENCER,FRT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98072-143-0	01	1	0803-	●
59	03.704 BRACKET; EXH SILENCER,FRT WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98082-156-0	01	1	0803-	●
59	03.704 BRACKET; EXH SILENCER,FRT WHEEL BASE 3300MM(33W) (A)	8-98082-156-0	01	1	0803-	●
59	03.704 BRACKET; EXH SILENCER,FRT (A)	8-98082-156-0	01	1	0803-		●
345	03.704 BRACKET; EXH SILENCER,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98082-027-0	01	1	0803-	●
345	03.704 BRACKET; EXH SILENCER,RR WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98027-822-0	01	1	0803-	●
345	03.704 BRACKET; EXH SILENCER,RR WHEEL BASE 3300MM(33W) (A)	8-98027-822-0	01	1	0803-	●
345	03.704 BRACKET; EXH SILENCER,RR (A)	8-98027-822-0	01	1	0803-		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98072-139-0	01	1	0803-	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98067-992-0	01	1	0803-	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W) (A)	8-98067-992-0	01	1	0803-	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98067-992-0	01	1	0803-		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-141-0	01	1	0803-	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98107-265-0	01	1	0803-	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (B)	8-98107-266-0	01	1	0803-	●
577	03.706 BRACKET; DPD RR TO FRAME (B)	8-98107-266-0	01	1	0803-		●

70 144 143 125 105 357 165 166 164 97 95 137 81 104 94 88 88 137 162 94 126 124 38 137 95 104 162 166 124 165 164 70 137 88 125 94 357 105 97 143 88 144 94 126 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 01.062 M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●	●
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-		●
81	03.704 NUT; BRKT EXC. FRAME-KICK UP<7EW>,TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0803-	●	●
88	03.708 CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	0803-	●	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-	●	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0803-	●	●
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●	●
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-	●	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
104	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-		●
105	03.704 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-	●
124	03.704 NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-		●
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0803-	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-138-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-134-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98072-137-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98072-137-0	01	1	0803-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-155-0	01	1	0803-0803	●
126	03.705 PIPE; EXH,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-155-0	01	1	0803-0803		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98116-727-0	01	1	0803-	●
126	03.705 PIPE; EXH,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98116-727-0	01	1	0803-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98038-762-1	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98075-678-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-151-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-152-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	0803-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	0803-	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	0803-		●
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	0803-	●	●
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0803-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0803-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0803-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0803-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0803-	●
164	03.706 COLLAR; DIST,TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5	9-22151-217-0	01	1	0803-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0803-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-	●
165	03.706 BOLT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE	0-28051-070-0	01	1	0803-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-	●	●
357	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-	●	●
